94ltr VW Crafter/MAN TGE MWB 4x4 & RWD Underslung Water Tank 2017 Onwards
94ltr VW Crafter/MAN TGE MWB 4x4 & RWD Underslung Water Tank 2017 Onwards
Couldn't load pickup availability

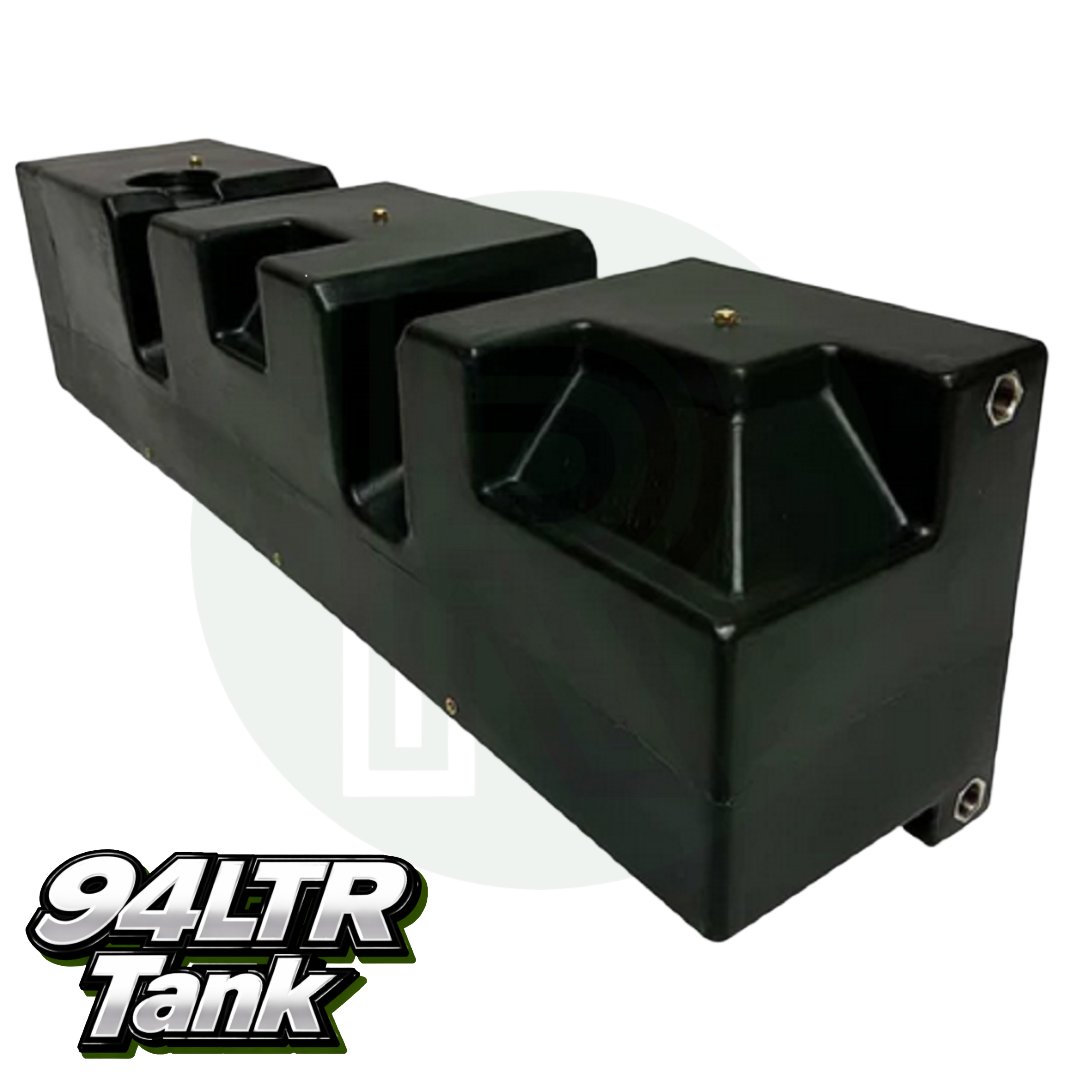

The Wydale 94 Litre Underslung Water Tank is a vehicle-specific water storage solution designed for 2017 onwards Volkswagen Crafter and MAN TGE Medium Wheelbase (MWB) vans with Rear Wheel Drive (RWD) or Four Wheel Drive (4WD).
Designed to mount beneath the vehicle, the tank provides a substantial 94 litre water capacity without taking up valuable space inside the campervan. This makes it particularly suitable for campervan and motorhome conversions where maximising internal storage and living space is important.
The tank is manufactured by Wydale Plastics from durable rotationally moulded polyethylene and has been shaped specifically around the underside of the MWB Crafter and MAN TGE RWD/4WD chassis.
Vehicle Compatibility
This 94 litre version is designed specifically for:
- Volkswagen Crafter 2017 onwards
- MAN TGE 2017 onwards
- Medium Wheelbase (MWB)
- Rear Wheel Drive (RWD)
- Four Wheel Drive / 4x4 (4WD)
It is important to select the correct Wydale tank for your vehicle's wheelbase and drivetrain, as different tanks and fitting kits are used for FWD, RWD and 4WD applications.
Integrated Connections & Mounting Points
The tank incorporates dedicated moulded plumbing connection points, including 1 × 1" BSP and 2 × 3/4" BSP connections, together with moulded vent points. These allow the tank to be connected to the fresh or waste water system using the appropriate fittings. Additional connections can be added using suitable tank fittings or Wydale KwiQ fittings where required.

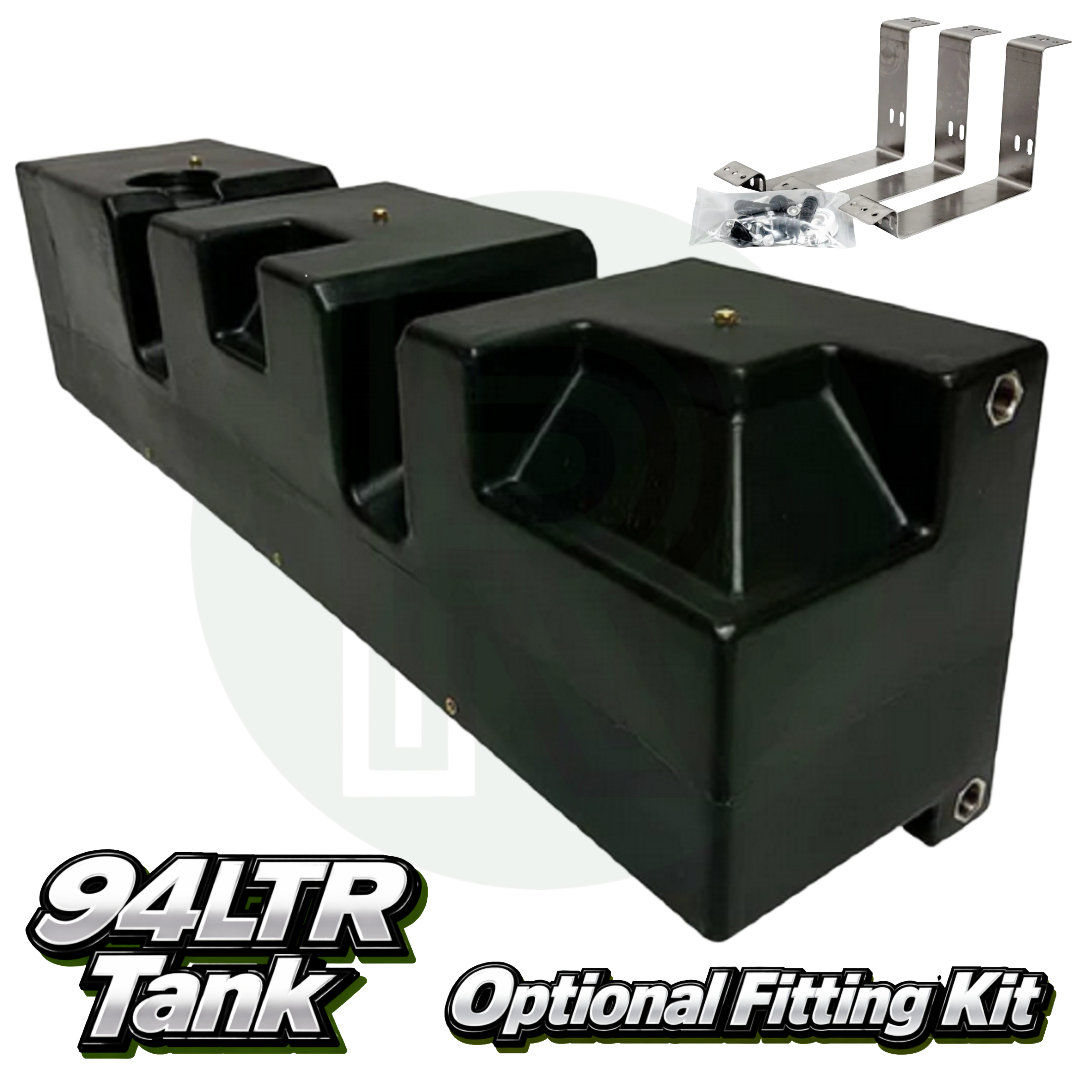

Optional Vehicle-Specific Fitting & Plumbing Kit
An optional Wydale complete fitting kit is available for this tank. Wydale specifically lists this kit for the 94 litre MWB Crafter / MAN TGE RWD and 4WD tank.
Please note: The fitting kit is not included as standard and must be selected when ordering if required.
Adding Additional Inlets, Outlets & Breathers
If additional connections are required, further holes can be added to accommodate a water inlet, outlet, breather, drain, level sensor or other tank fitting.
When using a conventional tank fitting with a nut and sealing washer, always make sure the chosen position can be reached from inside the tank so the nut and washer can be correctly fitted and tightened.
Alternatively, a Wydale KwiQ fitting can be used where appropriate. These allow an additional BSP connection to be created without needing access to the back of the fitting from inside the tank. Wydale recommends KwiQ fittings for creating additional connections on its vehicle-specific underslung tanks.
Features
- Genuine Wydale Plastics underslung water tank
- 94 litre nominal water capacity
- Vehicle-specific design
- Suitable for VW Crafter MWB 2017 onwards
- Suitable for MAN TGE MWB 2017 onwards
- Designed for RWD and 4WD/4x4 vehicles
- Underslung installation saves valuable interior space
- Integrated M8 mounting points
- Optional vehicle-specific fitting and plumbing kit available
Technical Specifications
- Manufacturer: Wydale Plastics
- Capacity: 94 litres nominal
- Colour: Black
- Material: Rotationally moulded polyethylene
- Installation: Underslung
- Vehicle: VW Crafter / MAN TGE
- Model year: 2017 onwards
- Wheelbase: Medium Wheelbase (MWB)
- Drivetrain: RWD / 4WD
- Optional complete kit: USK90CR4
- Mounting: Integrated M8 threaded inserts
Wydale advises that quoted dimensions and volumes are subject to approximately ±3% variation due to the manufacturing process.
Share
Frequently Asked Questions
This tank is designed for 2017 onwards Volkswagen Crafter and MAN TGE Medium Wheelbase vans with Rear Wheel Drive or Four Wheel Drive.
No. This particular 94 litre tank is intended for RWD and 4WD/4x4 MWB vehicles. Wydale produces alternative underslung tanks for other Crafter and TGE drivetrain and wheelbase combinations.
Mounting the tank underneath the van keeps the water storage system out of the living area, freeing up valuable space beneath beds, seats and cupboards. A 94 litre capacity also provides a substantial fresh water supply without using interior storage space.
No. The vehicle-specific fitting kit is an optional extra and must be selected when ordering if required.
The tank has dedicated factory-fitted threaded plumbing connections consisting of 1 × 1" BSP connection and 2 × 3/4" BSP connections. These provide connection points for the tank's inlet and outlet plumbing.
Yes. Additional connections can be installed where required. If using a conventional bulkhead fitting, remember that you will normally need access to the inside of the tank to tighten the nut and sealing washer, so carefully consider the position before drilling.
A Wydale KwiQ fitting can be used where suitable. This allows an additional BSP connection to be created without needing to reach inside the tank to secure a separate nut and washer.
The tank is specifically shaped for its intended position beneath the MWB Crafter / MAN TGE RWD and 4WD chassis. Ground clearance can still vary depending on the vehicle, suspension, tyres and conversion, so the completed installation should always be checked before use.
The correct sensor length depends on the depth of the tank at the dedicated level sender position rather than simply its overall external dimensions. The sensor should be selected so that it does not contact the bottom of the tank when installed.
Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
