89ltr Mercedes Sprinter & VW Crafter Underslung Water Tank RWD ONLY
89ltr Mercedes Sprinter & VW Crafter Underslung Water Tank RWD ONLY
Couldn't load pickup availability

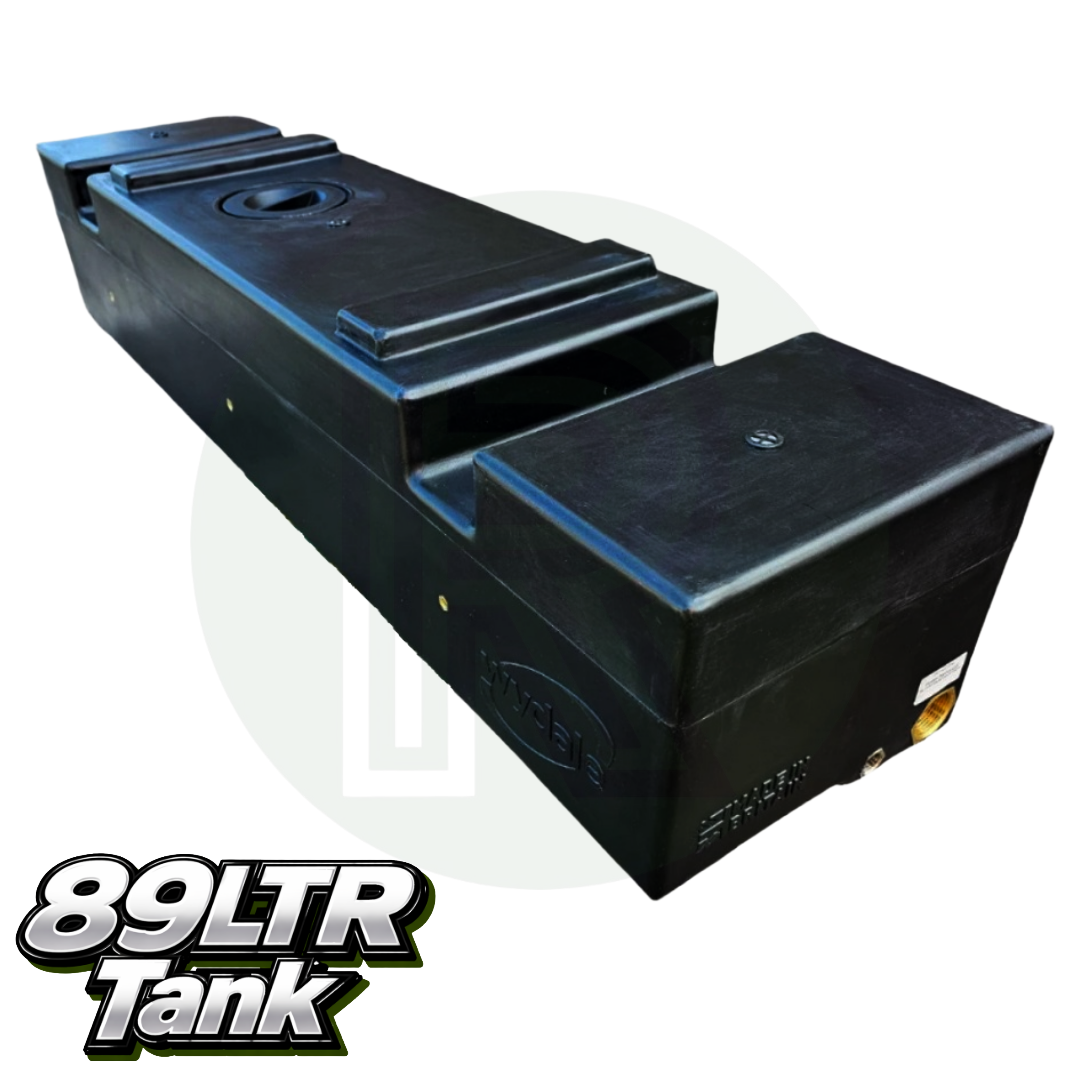

The Wydale 89 Litre Underslung Water Tank is a vehicle-specific water storage tank purpose-built to fit Rear Wheel Drive (RWD) variants of the Mercedes-Benz Sprinter and Volkswagen Crafter.
Designed for underslung installation, the tank provides a substantial 89 litre capacity without taking up valuable space inside the campervan, making it an excellent option for conversions where internal storage and living space need to be maximised.
This tank can be configured for either fresh water or waste water, allowing the plumbing arrangement to be tailored to the requirements of your conversion.
Vehicle Compatibility
The Wydale 89 litre tank is purpose-built to fit RWD variants of:
- Mercedes-Benz Sprinter – 2006 onwards
- Volkswagen Crafter – 2007 to 2016
- L2 / MWB
- L3 / LWB
- L4 / XLWB
Please note: This tank is designed for Rear Wheel Drive (RWD) vehicles only. It is not suitable for FWD variants.
Always check the available space beneath your vehicle before ordering, particularly where additional equipment such as diesel heaters, LPG tanks, steps or other underslung accessories have been installed.
Integrated Connections & Breathers
The Wydale 89 litre tank is supplied with factory-fitted connection points, reducing the amount of additional drilling required when installing your water system.
3 × vents/breathers are fitted into the top sections of the tank, providing dedicated venting points for the installation.
A lower sump incorporates 2 × female threaded connection points:
- 1 × 1 1/4" BSP female connection
- 1 × 1/2" BSP female connection
Positioning these connections within the lower sump provides access towards the lowest part of the tank, making them suitable for configuring the water outlet or drain depending on whether the tank is being used for fresh or waste water.
Optional Vehicle-Specific Fitting Kit

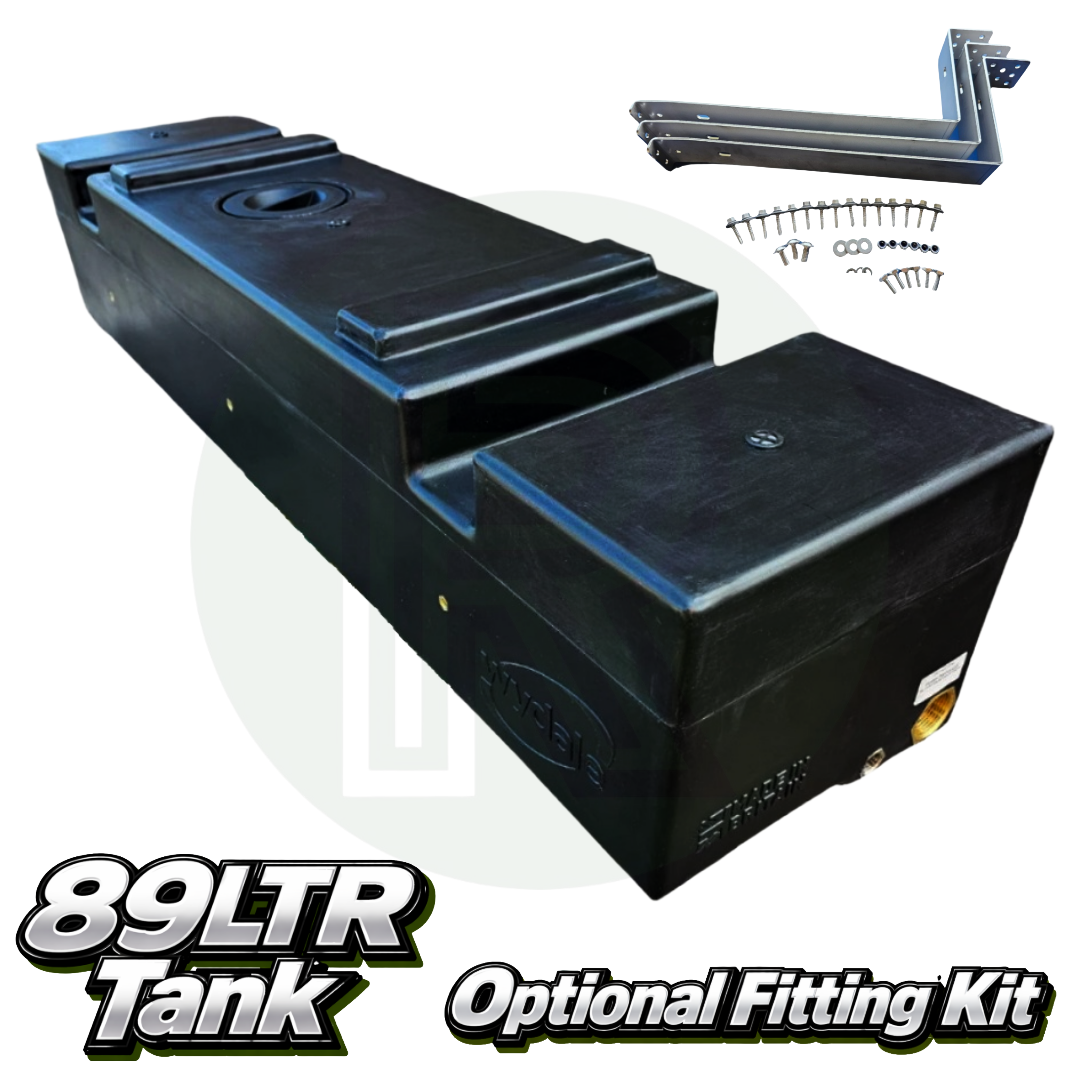

An optional vehicle-specific steel fitting kit is available for securing the tank beneath the Sprinter or Crafter.
The fitting kit is designed specifically around the intended mounting position and provides a secure method of installing the tank underneath the vehicle.
Please note: The fitting kit is not included as standard and must be selected when ordering if required.
Adding Additional Inlets, Outlets & Fittings
Although the tank already incorporates dedicated threaded connections and breathers, additional holes can be added where required for a water inlet, outlet, drain, level sensor or other tank fitting.
When using a conventional tank fitting, remember that a nut and sealing washer normally need to be fitted from inside the tank. Always position the hole somewhere that can be reached internally so the nut and washer can be correctly fitted and tightened.
Alternatively, a Wydale KwiQ fitting can be used where appropriate. These allow an additional connection to be installed without needing access to the inside of the tank to fit a separate nut and washer.
Features
- Genuine Wydale Plastics underslung water tank
- 89 litre nominal capacity
- Suitable for fresh or waste water
- Purpose-built for RWD Mercedes Sprinter and VW Crafter
- Fits L2, L3 and L4 wheelbase vans
- Underslung installation saves valuable interior space
- 3 × factory-fitted vents/breathers
- 1 × 1 1/4" BSP female threaded connection
- 1 × 1/2" BSP female threaded connection
- Lower sump helps maximise drainage and water draw-off
- Optional vehicle-specific steel mounting kit available
Technical Specifications
- Manufacturer: Wydale Plastics
- Capacity: 89 litres nominal
- Colour: Black
- Material: Rotationally moulded polyethylene
- Installation: Underslung
- Application: Fresh or waste water
- Mercedes compatibility: Sprinter 2006 onwards
- VW compatibility: Crafter 2007–2016
- Drivetrain: RWD only
- Wheelbase: L2 / L3 / L4 (MWB / LWB / XLWB)
- Top connections: 3 × vents/breathers
- Lower connections: 1 × 1 1/4" BSP female and 1 × 1/2" BSP female
- Mounting kit: Optional, must be selected if required
Share
Frequently Asked Questions
The tank is purpose-built for RWD Mercedes-Benz Sprinter models from 2006 onwards and RWD Volkswagen Crafter models from 2007 to 2016. It can be fitted to L2, L3 and L4 wheelbase vans, also commonly referred to as MWB, LWB and XLWB.
No. This particular Wydale tank is designed for Rear Wheel Drive (RWD) vehicles only.
Yes. The 89 litre tank can be configured for either fresh water or waste water storage. The final plumbing arrangement will depend on how you intend to use the tank.
The lower sump contains 1 × 1 1/4" BSP female threaded connection and 1 × 1/2" BSP female threaded connection.
Yes. 3 × vents/breathers are fitted into the top sections of the tank, providing dedicated venting points for the water system.
No. The vehicle-specific fitting kit is an optional extra and must be selected when ordering if required.
Mounting the tank underneath the van keeps the water storage system outside the living area, leaving more valuable space beneath beds, seating and cupboards for storage and other equipment.
Yes. Additional connections can be installed if required. With conventional tank fittings, remember that you will normally need access to the inside of the tank to tighten the nut and sealing washer, so check that the proposed position can be reached before drilling.
A Wydale KwiQ fitting can be used where appropriate. This allows an additional connection to be installed without needing to reach inside the tank to secure a separate nut and washer.
Additional equipment such as diesel heaters, LPG tanks, steps, auxiliary batteries or other conversion components can affect the available mounting space. Always check the tank and fitting kit against the underside of your particular vehicle before ordering.
Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
