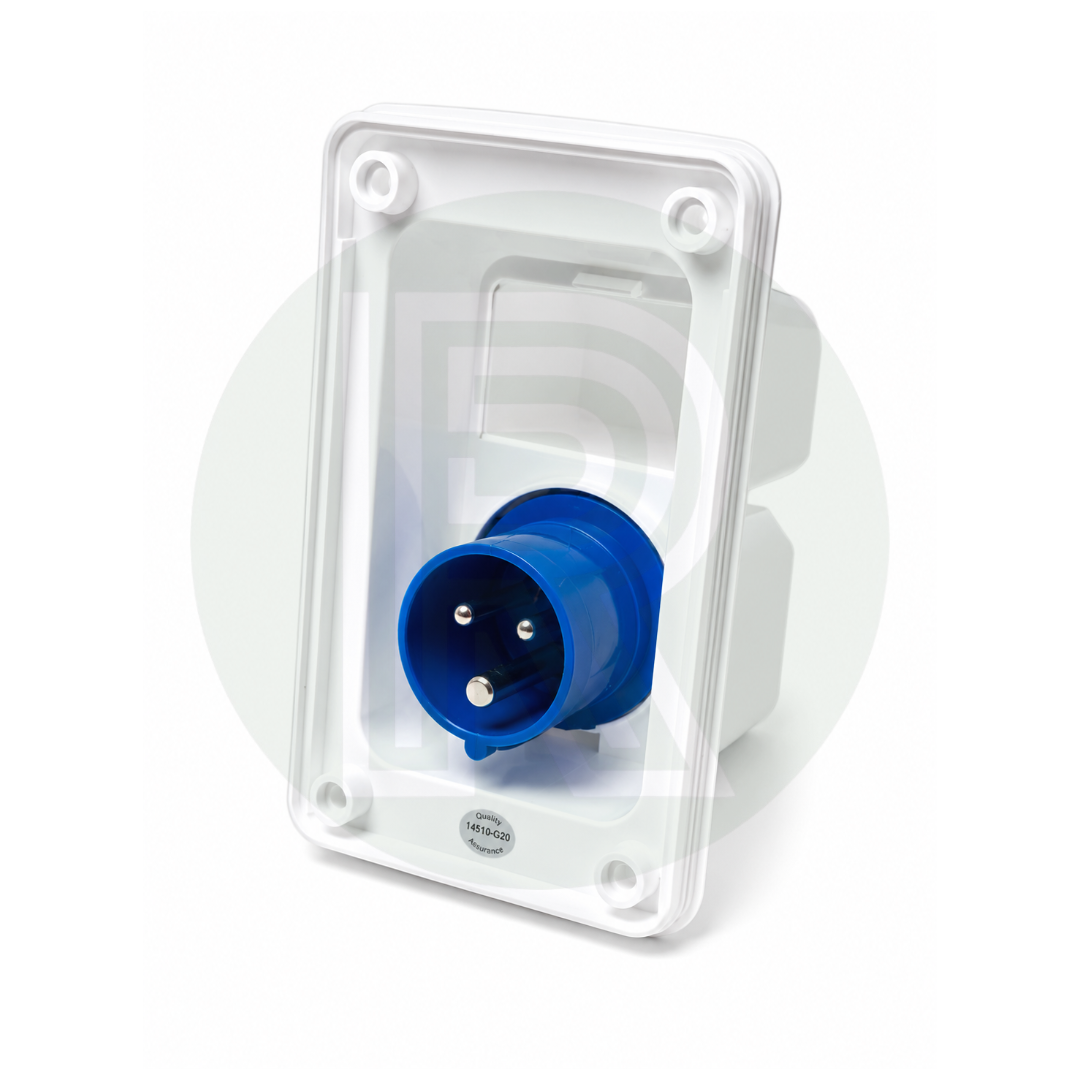

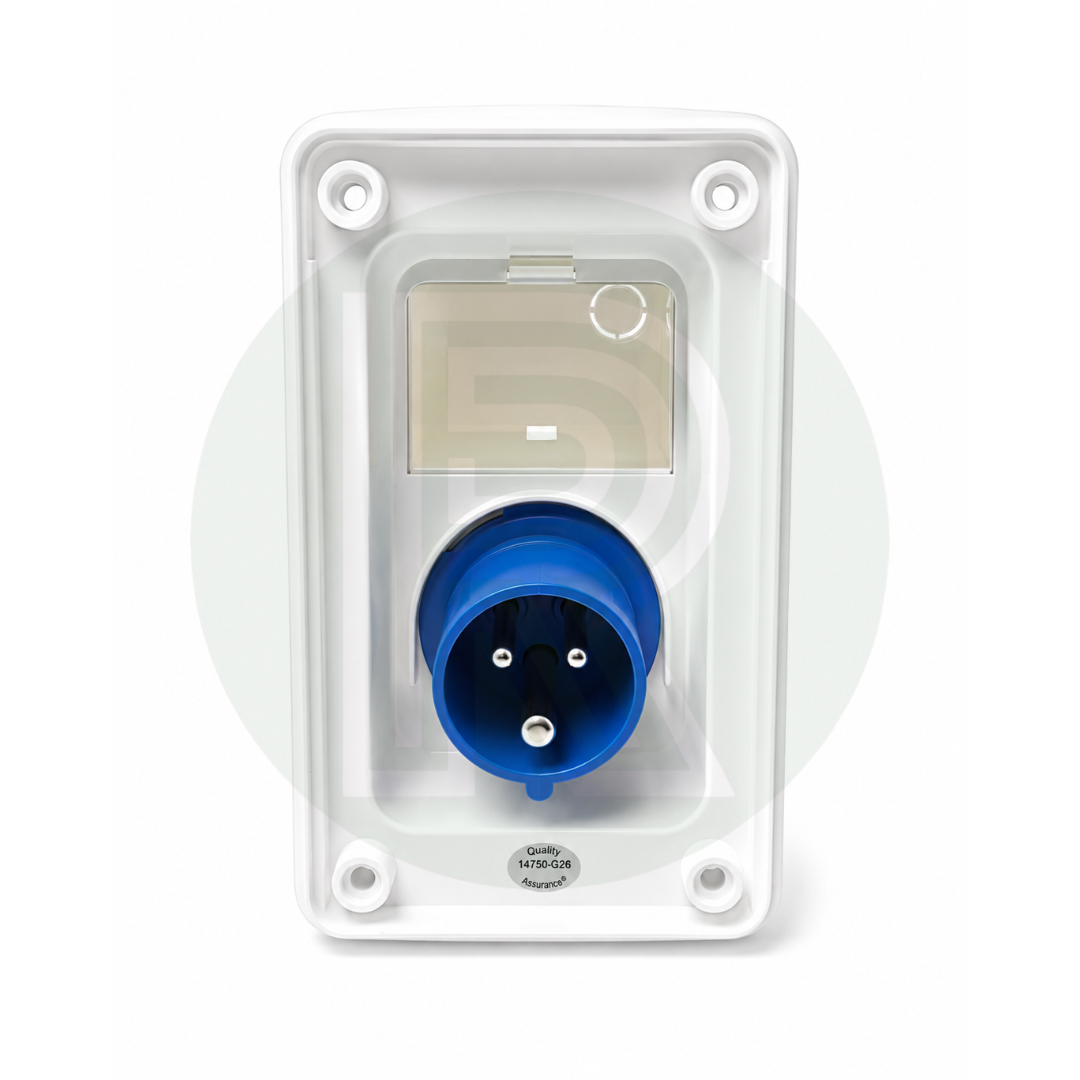

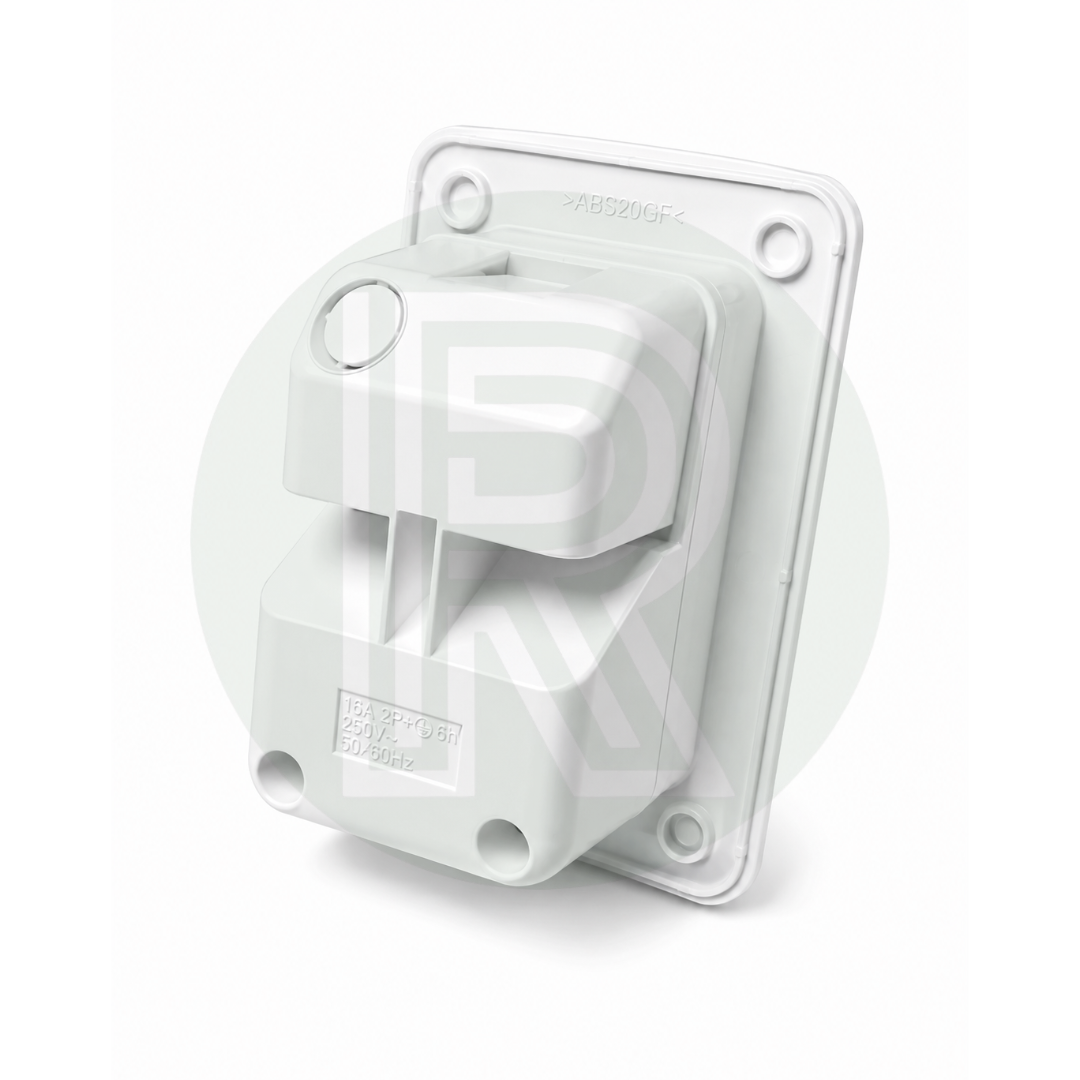

Whale Easi-Slide Body - 240v Inlet
Whale Easi-Slide Body - 240v Inlet
Couldn't load pickup availability
The Whale Easi-Slide 240V Mains Electric Inlet provides a neat and secure external mains hook-up connection for motorhomes, caravans and campervans.
Designed to be installed into the exterior wall of the vehicle, the inlet allows the leisure vehicle to be connected to a campsite or external 230V/240V mains electricity supply using a standard 16A hook-up lead.
The inlet is rated at 16A and is designed to be hard-wired into the vehicle's electrical system, providing the incoming mains connection for the vehicle's power distribution and charging system.
Part of Whale's Easi-Slide exterior socket range, the SO3100C features the same compact flush-fitting design as Whale's water, gas and electrical connection points. It is designed for use with the compatible Easi-Slide 240V Power Icon lid, available separately in a choice of colours.
The sliding lid design provides a clean, modern appearance on the outside of the vehicle and avoids the large projecting hinged flap found on many traditional caravan mains inlet sockets.
The Whale SO3100C is an ideal choice for new campervan and motorhome conversions or as a replacement for an existing compatible Whale Easi-Slide mains inlet.
Features
- Genuine Whale Easi-Slide product
- External 230V/240V mains hook-up inlet
- Rated at 16A
- Designed for standard caravan and motorhome electrical hook-up systems
- Compact, flush-fitting exterior design
- Compatible with Whale Easi-Slide 240V Power Icon lids
- Suitable for caravans, motorhomes and campervans
- Ideal for new installations or replacement of an existing Whale inlet
Technical Information
- Manufacturer: Whale
- Product type: Mains electric inlet
- Voltage: 230V AC nominal UK mains supply
- Commonly referred to as: 240V mains inlet
- Current rating: 16A
- Connection type: Mains hook-up inlet
- Electrical connection: Hard-wired
- Standard: BS EN 60309
- Recommended cable: 3-core, minimum 2.5mm² CSA
- Protection: IP55 when installed with the correct Easi-Slide lid and closed
- Application: Caravan, motorhome and campervan
- Compatible lid: Whale Easi-Slide 240V Power Icon lid
- Lid: Not included
Compatible Easi-Slide Lids
The SO3100C is designed for use with the Whale Easi-Slide 240V Power Icon Lid, available separately in:
This allows you to select a lid colour to complement the exterior of your caravan, motorhome or campervan.
Please Note
The Easi-Slide lid is NOT included with the SO3100C inlet and must be purchased separately.
This listing is for the Whale SO3100C 230V/240V Mains Electric Inlet Body only, unless otherwise specifically stated.
As this product forms part of the vehicle's 230V mains electrical installation, installation should be carried out by a suitably competent person.
Share
Frequently Asked Questions
No. This is the inlet body/socket assembly only. The exterior Easi-Slide lid is sold separately. This is useful if your existing lid is still serviceable or if you want to choose a different lid colour.
Whale specifies the unit as 230V AC / 16A. It is also commonly referred to as a 240V caravan or motorhome mains inlet in the UK.
This is the mains inlet, used to connect the vehicle to an external campsite electrical hook-up. Do not confuse it with the Whale SO3000C mains outlet, which provides an external UK 3-pin socket for appliances.
Whale specifies IP55 protection when the correct lid is fitted and closed.
The inlet is intended to be hard-wired to the vehicle's power distribution system. Whale specifies 3-core cable rated at 300/500V, 16A minimum and 2.5mm² CSA. Because this involves mains electricity, installation should be undertaken by a suitably competent person.
Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
