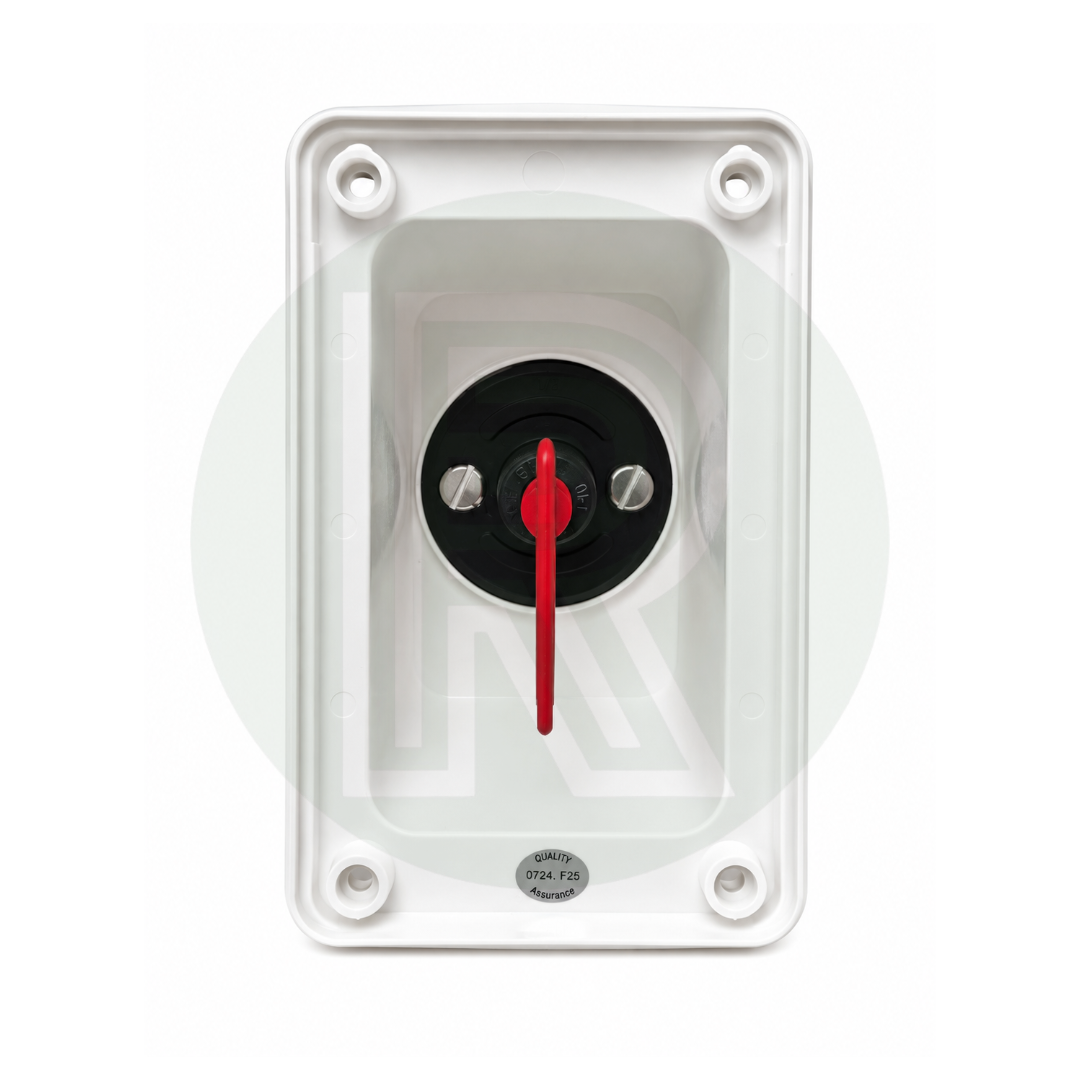

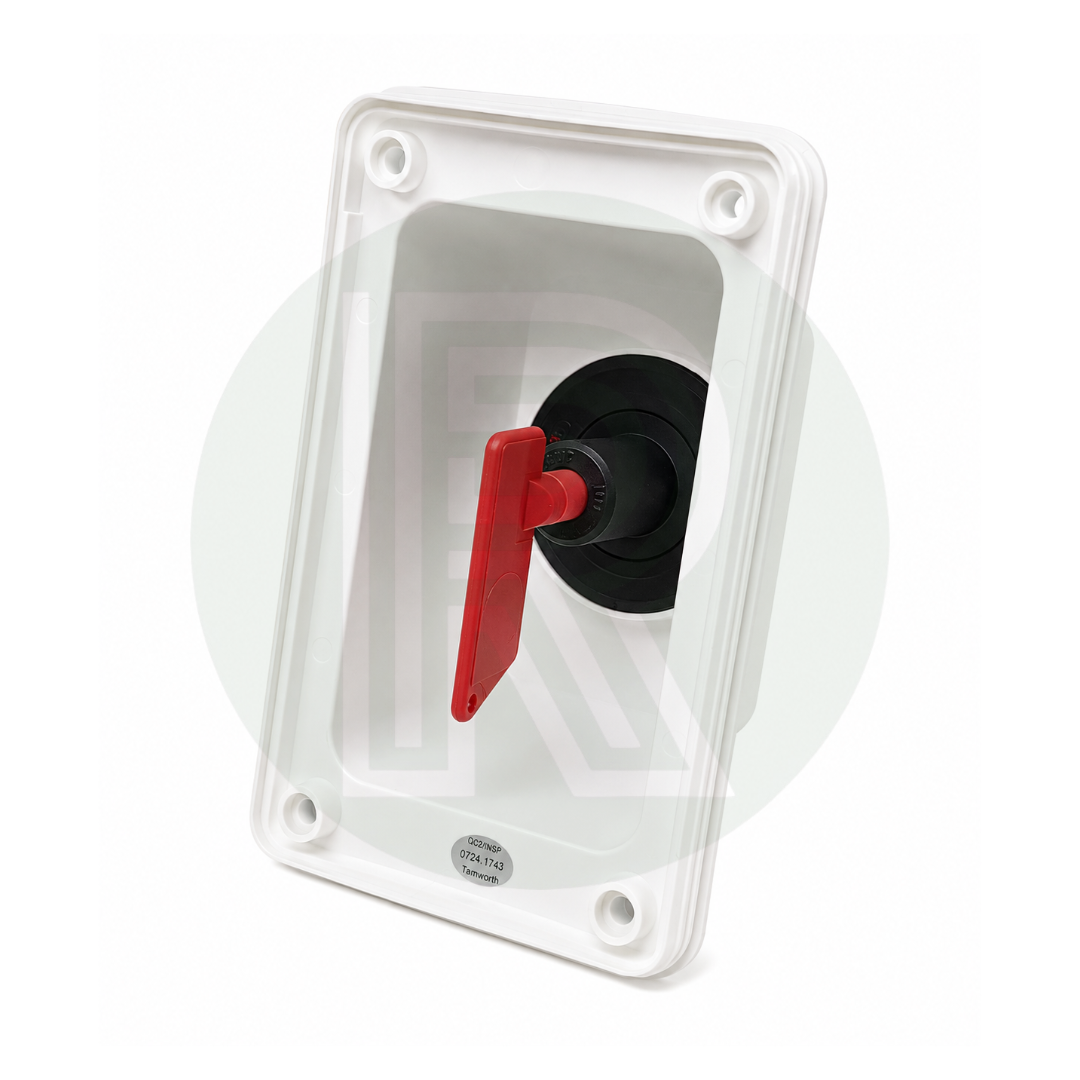

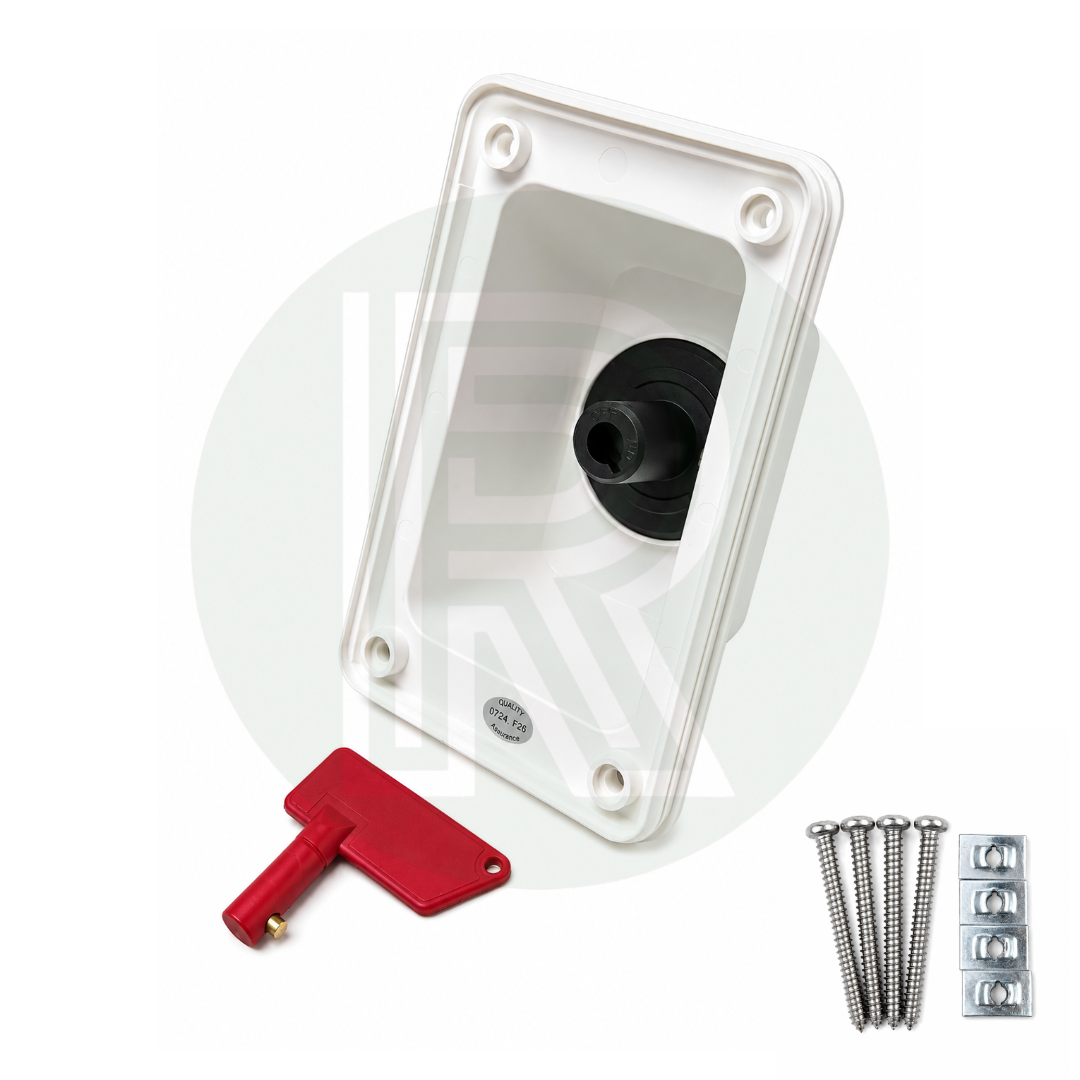

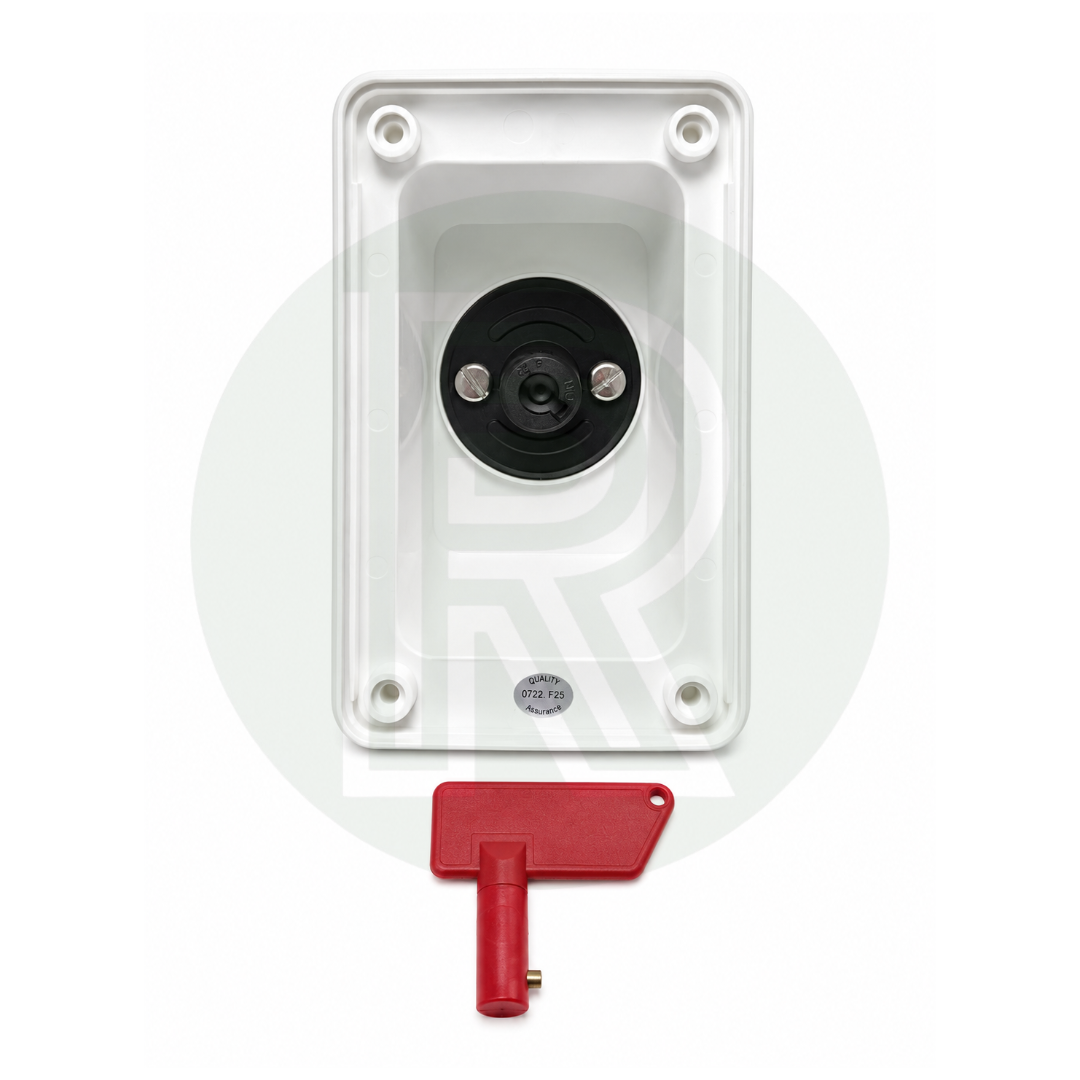

The Whale Easi-Slide 12V/24V DC Isolator Switch provides a neat and accessible external isolation point for electrical systems fitted to motorhomes, caravans, campervans and leisure vehicles.
Designed for 12V and 24V DC electrical systems, the Whale SO3200C allows the power supply to connected equipment to be isolated when it is not required. This can help prevent unnecessary battery drain and provides a convenient way of disconnecting high-current equipment without needing to access an internally mounted battery or isolator.
It is particularly useful as an external motor mover isolator switch, allowing the mover's electrical supply to be switched on when required and isolated again after use. It can also be used for other suitable 12V or 24V DC equipment where an accessible high-current isolation point is required.

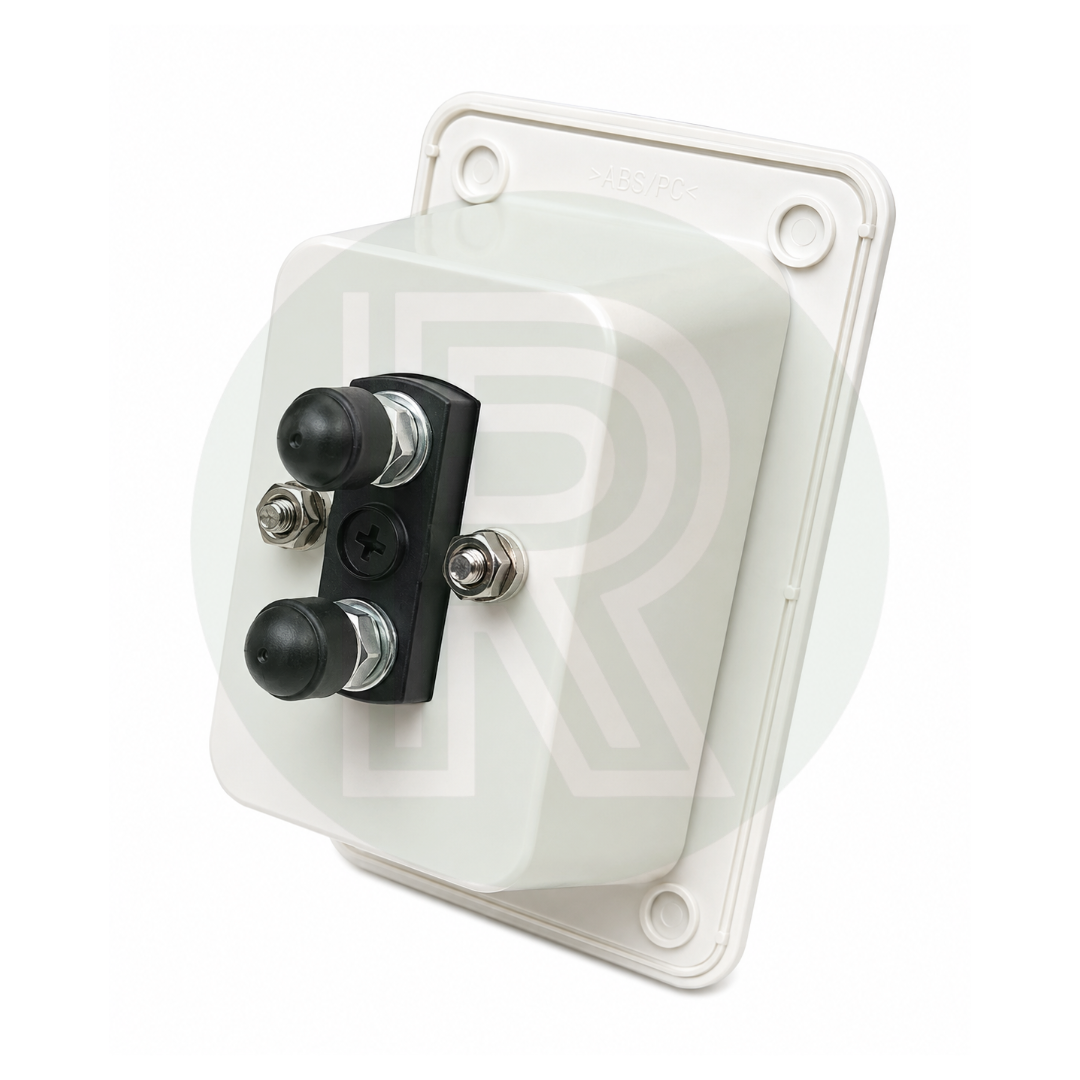

The rear of the isolator features substantial M8 threaded electrical connections for connection into the DC electrical system.
Part of Whale's Easi-Slide exterior socket range, the SO3200C is designed for use with a compatible Whale Easi-Slide lid, available separately in a choice of colours. This allows the isolator to match other Whale Easi-Slide water, gas and electrical utility points fitted to the vehicle.
One of the most useful applications for the Whale Easi-Slide Isolator is as an external caravan motor mover isolation switch.
Installing the isolator in an accessible exterior position means the motor mover power supply can be enabled before use and isolated again afterwards without needing to access the leisure battery compartment.
The high-current design and M8 terminals make it particularly suitable for this type of application, subject to the electrical requirements of the specific motor mover installation.
The SO3200C is designed for use with a compatible Whale Easi-Slide lid, available separately in:
This allows the isolator to match other Whale Easi-Slide exterior utility sockets fitted to your vehicle.
The Whale Easi-Slide lid is NOT included and must be purchased separately.
This listing is for the Whale SO3200C 12V/24V DC Isolator Switch body only.
Electrical installation should be carried out using appropriately rated cables, terminals and circuit protection for the intended application.
It provides an accessible isolation point for suitable 12V or 24V DC electrical equipment fitted to a caravan, motorhome or campervan.
Yes. A common application is as an external motor mover isolation switch, providing convenient access to switch the mover's main electrical supply on or off.
Yes. Whale specifies an operating voltage of 12V DC up to a maximum of 24V DC.
Whale specifies a maximum of 500A for 5 seconds. The complete installation, including cable and terminals, must be correctly rated for the equipment being connected.
The rear of the isolator uses M8 threaded electrical connections for the high-current cables.
An isolator provides a physical means of disconnecting equipment from the battery supply when it is not required, helping prevent unnecessary battery drain and providing an additional means of electrical isolation.
No. The Whale Easi-Slide lid is sold separately, allowing you to select the required colour.
The Whale Easi-Slide isolator assembly is IP55 rated when the correct lid is fitted and fully closed.
Yes. It can be used to isolate other suitable 12V or 24V DC equipment, provided the electrical requirements of the application are within the specifications of the switch and the installation is correctly designed.
