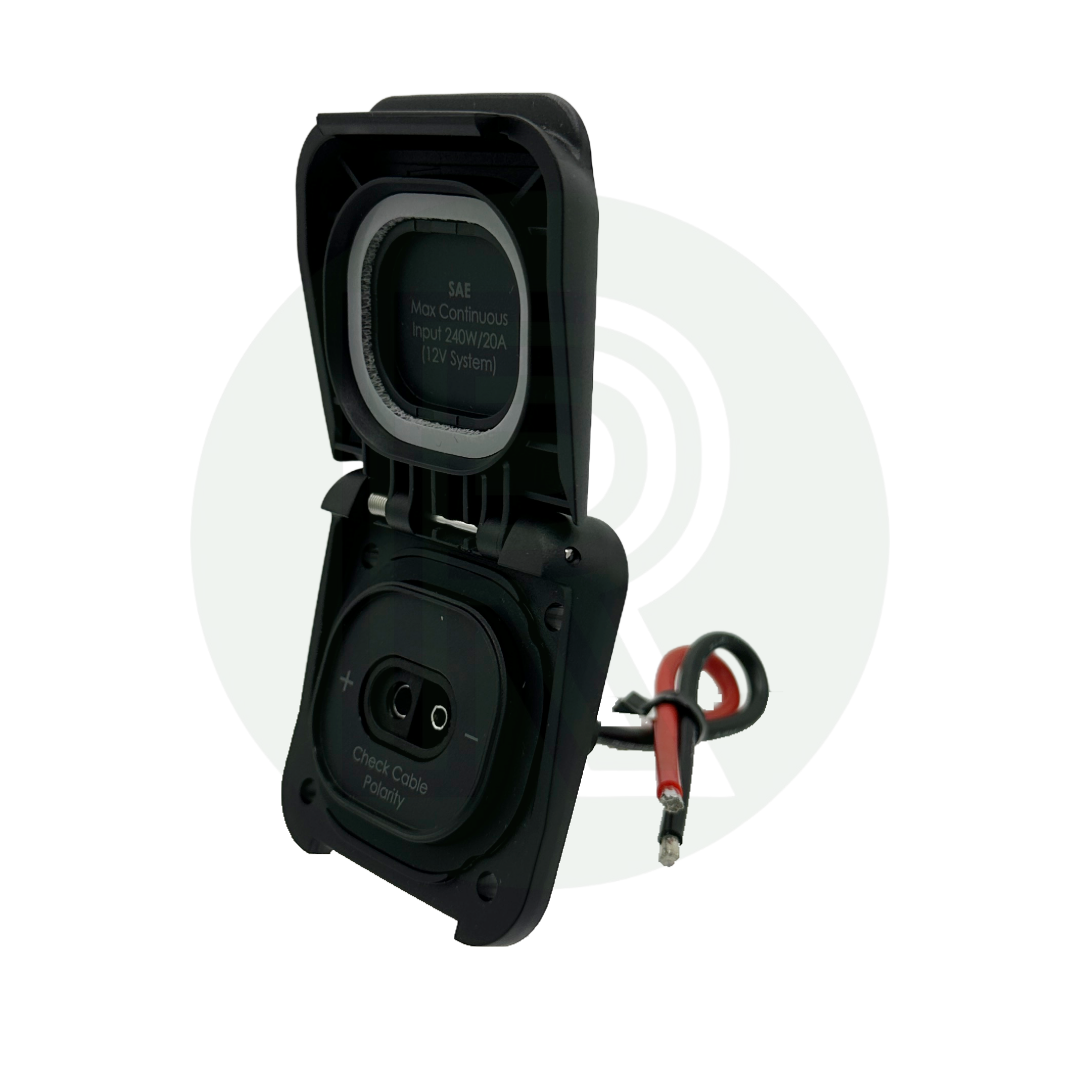

• Open waterproof SAE solar socket showing internal connection port and labeled polarity indicators.

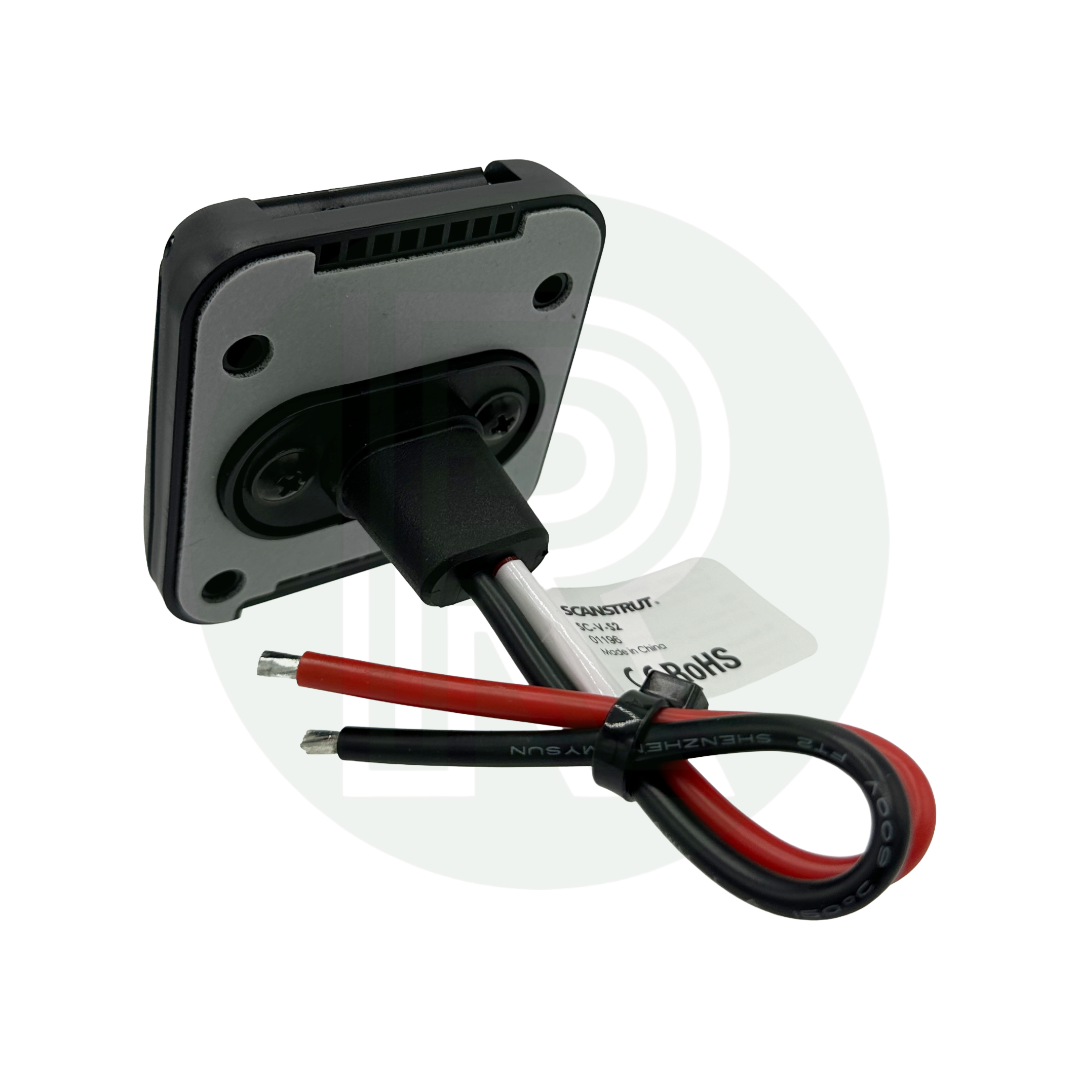

  • Rear view of the SAE solar connector showing mounting plate, gasket, and attached red and black power cables.

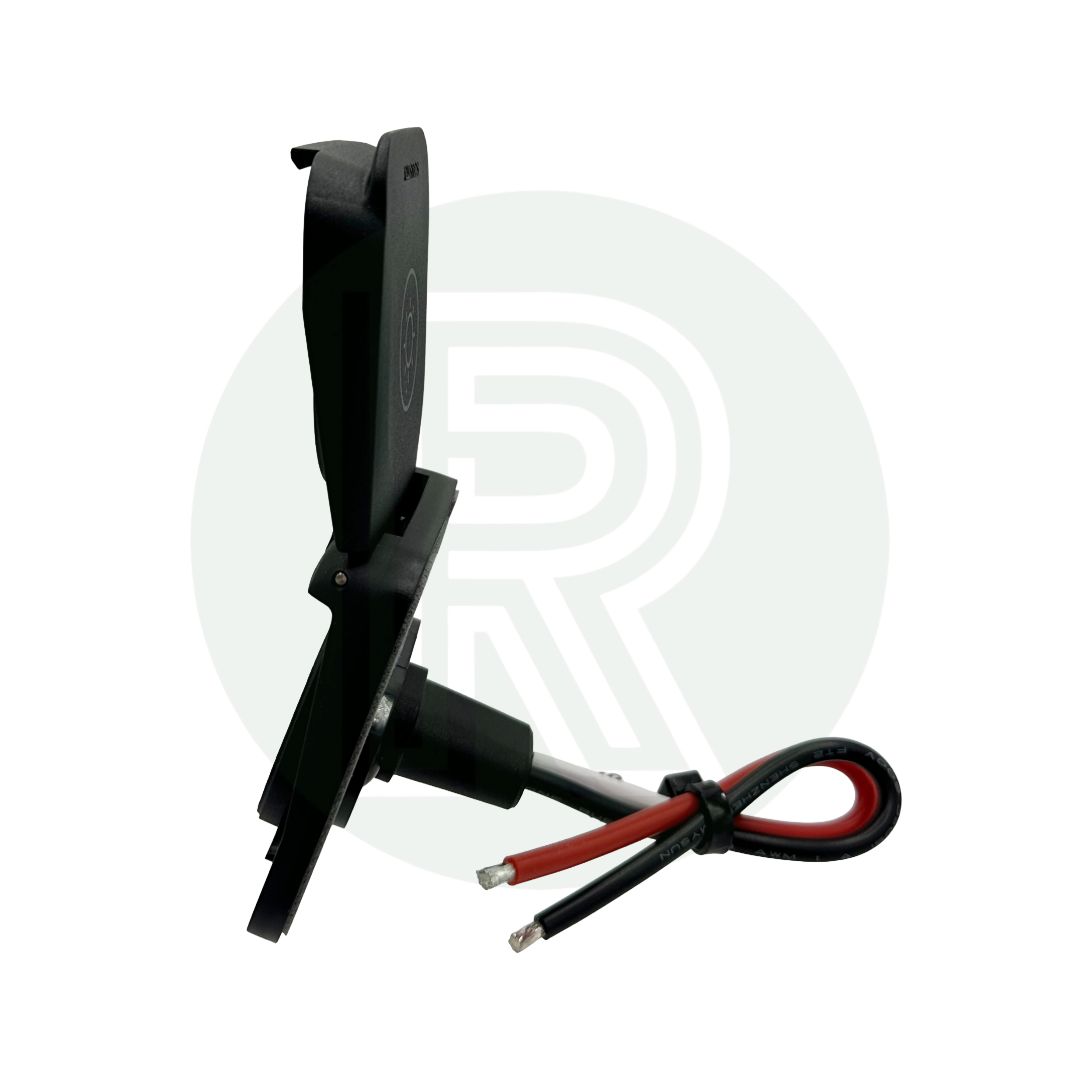

  • Side profile of the SAE solar connector with hinged lid and protruding cable housing.

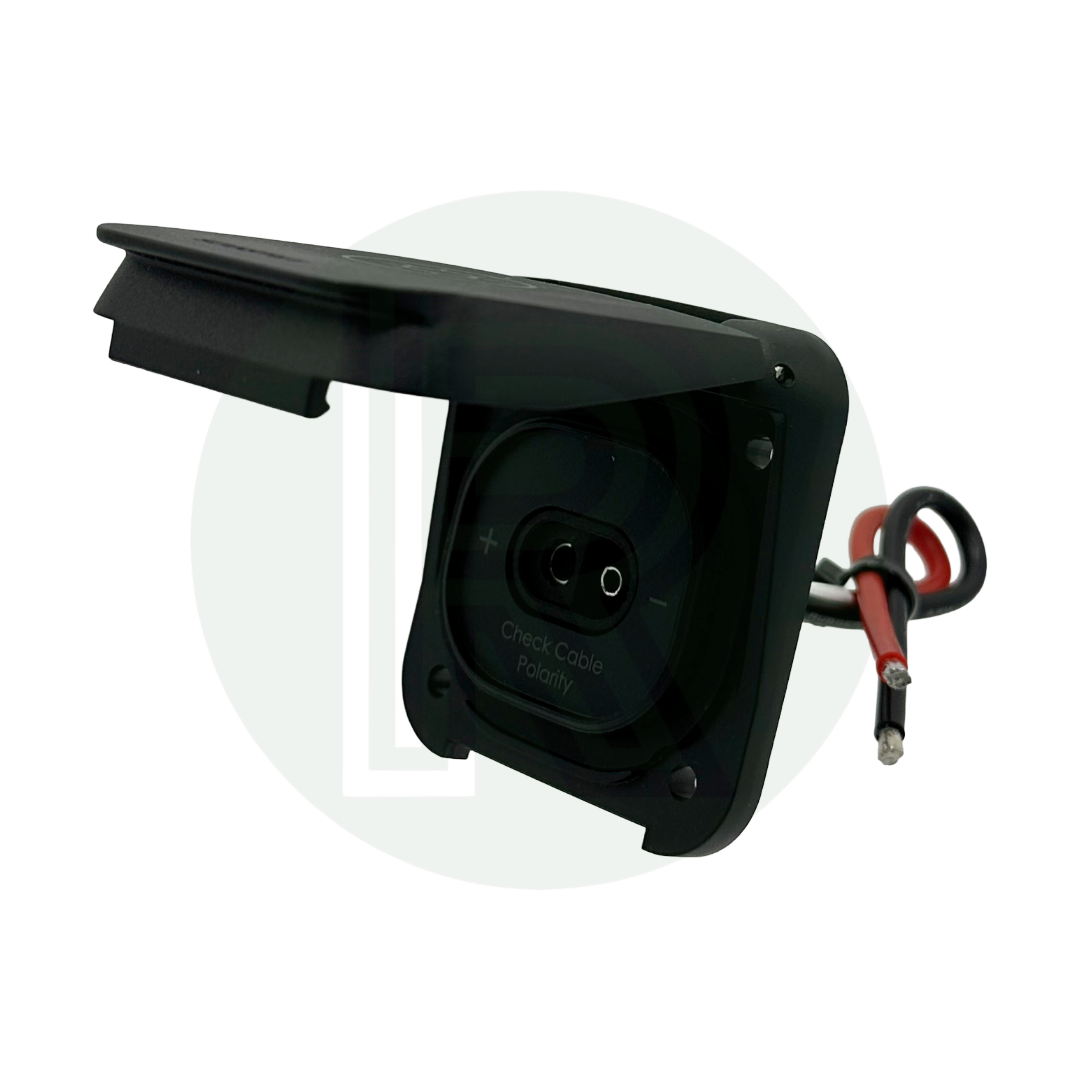

  • Black waterproof SAE solar connection socket with hinged protective cover, showing front panel with positive and negative terminals and attached red/black wires.

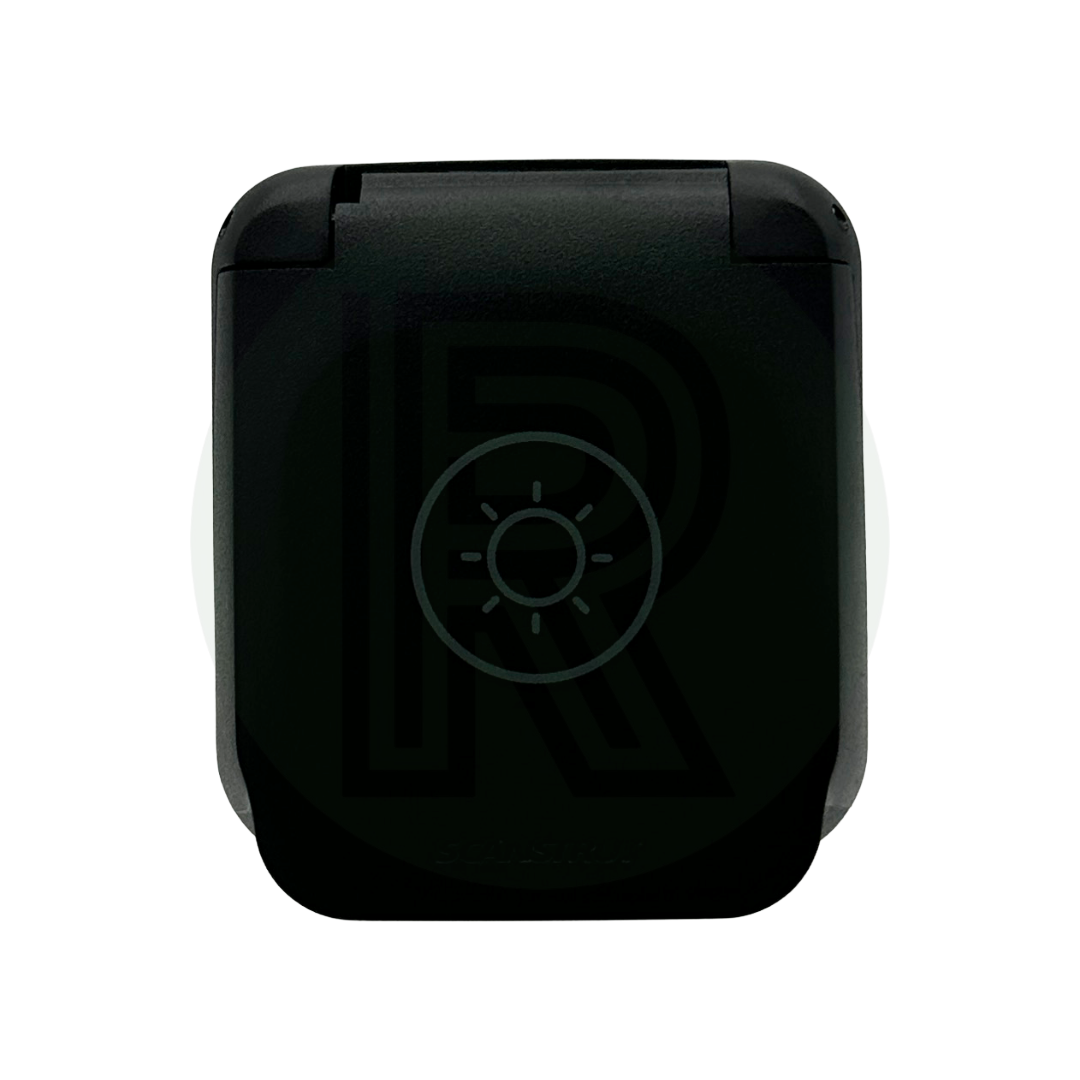

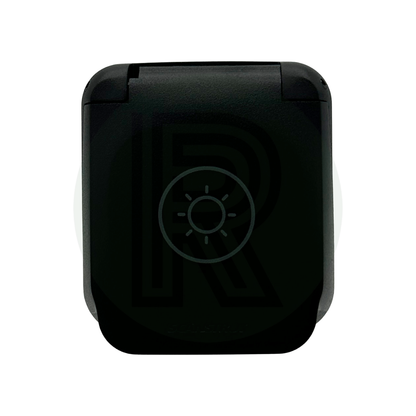

  • Front view of closed SAE solar socket with a sun icon on the lid, compact square design in matte black.

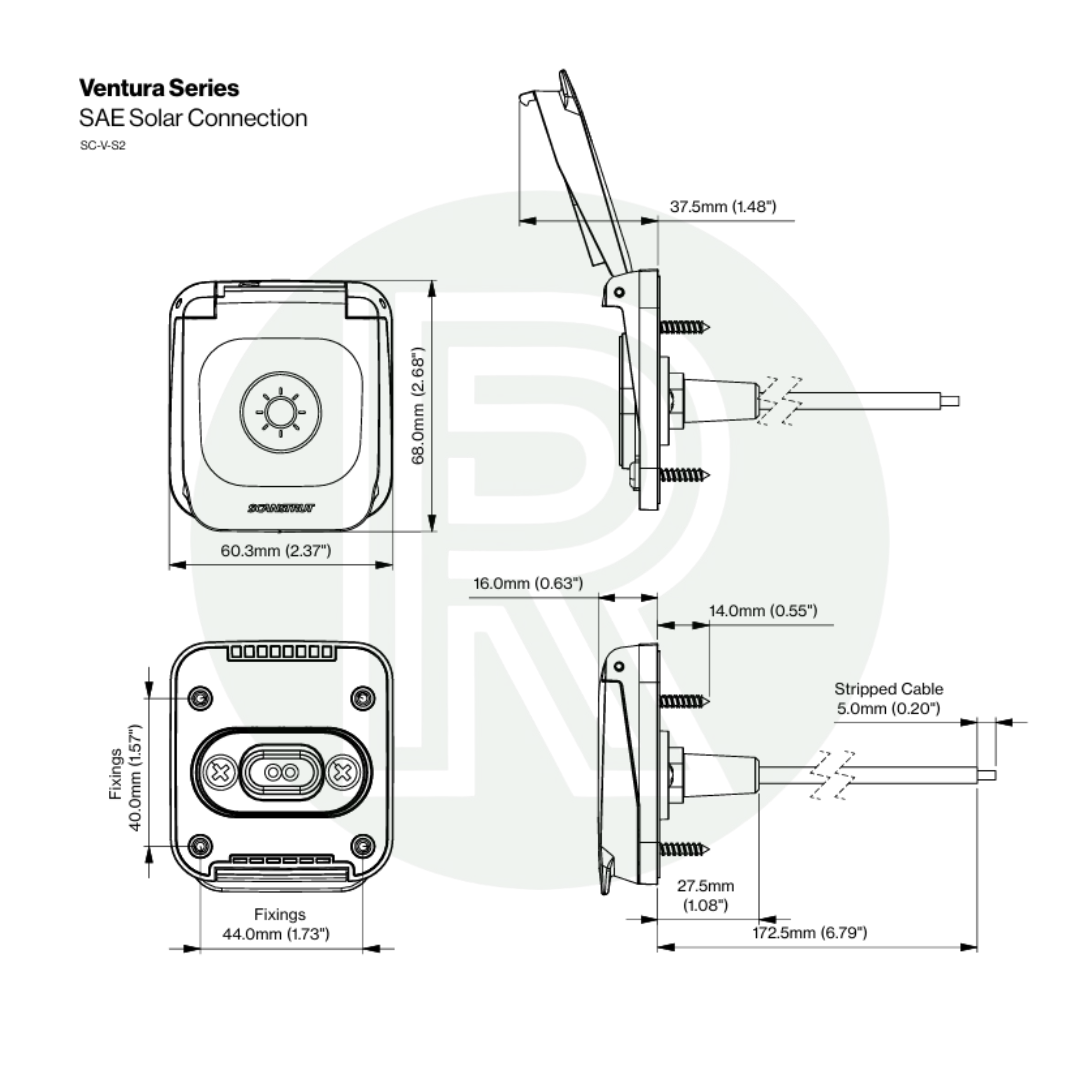

  • Technical drawing of the SAE solar connector with dimensions, front and side views, and cable length details.

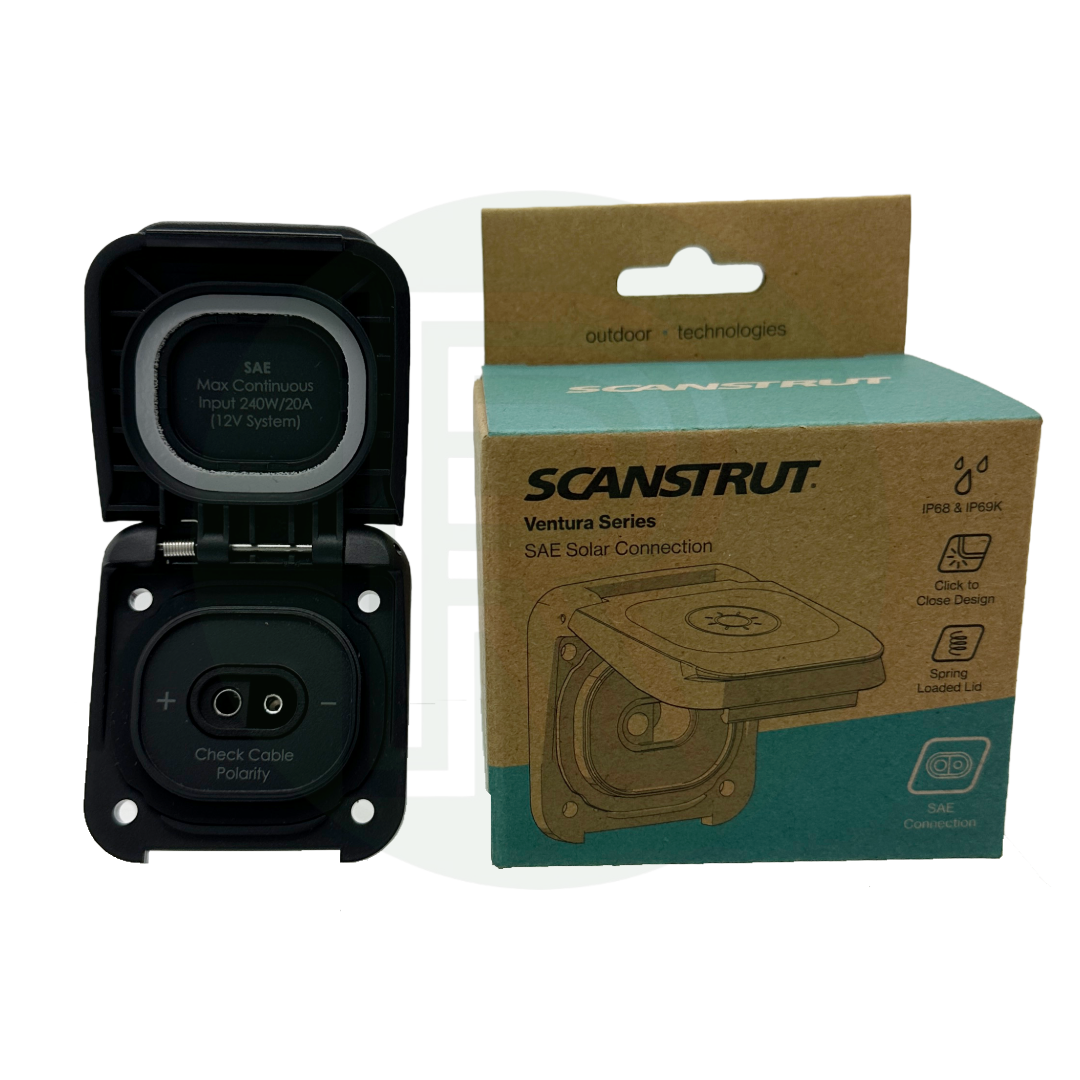

  • SAE solar connection port open next to retail packaging labeled “Scanstrut Ventura Series SAE Solar Connection.”

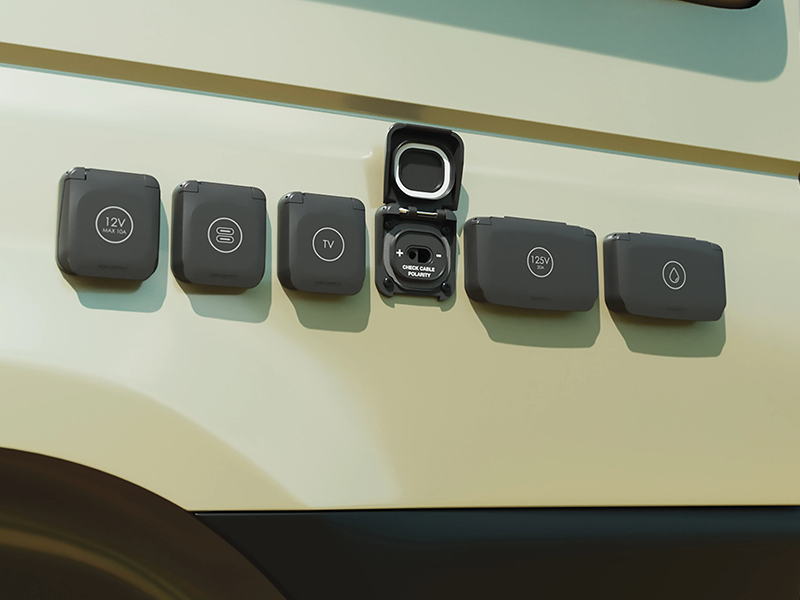

  • Scanstrut Ventura external power solar and utility sockets installed on a motorhome
1 8

Scanstrut Ventura SAE Power Socket 12V 24V Waterproof IP68

Scanstrut Ventura SAE Power Socket 12V 24V Waterproof IP68

£29.95 inc. VAT
£29.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Downloads & Guides

Installation
Manual Fitting
Template

The Scanstrut Ventura SAE Power Socket provides a robust, weatherproof external DC connection for motorhomes, campervans, caravans, overland vehicles and boats.

Featuring an SAE connection rated up to 20A, it is particularly suited to connecting portable solar panels and other compatible 12V or 24V DC equipment. It supports up to 240W on a 12V system and 480W on a 24V system.

The socket is supplied pre-wired with 150mm of 4mm² (12AWG) tinned copper cable, helping simplify installation and providing excellent corrosion resistance for leisure vehicle and marine applications.

Part of the Scanstrut Ventura Series, the socket features a spring-loaded protective lid and durable exterior housing. With the lid fully closed, the front is rated IP68 and IP69K, providing excellent protection against water, dust and demanding exterior conditions.

We also sell other Scanstrut Ventura solar and power connections, including the XT60 30A and Anderson SB50 50A versions, allowing you to choose the connection and current rating best suited to your installation.

Features

  • SAE external power and solar connection
  • Suitable for 12V and 24V DC systems
  • Rated up to 20A
  • Up to 240W at 12V / 480W at 24V
  • Pre-wired with 150mm of 4mm² tinned copper cable
  • IP68 / IP69K protection with lid closed
  • Spring-loaded protective lid
  • Ideal for motorhomes, campervans and caravans

Technical Specifications

  • Connection type: SAE
  • Maximum current: 20A
  • Maximum voltage: 24V DC
  • Maximum power at 12V: 240W
  • Maximum power at 24V: 480W
  • Cable size: 4mm² / 12AWG
  • Cable length: 150mm
  • Cable material: Tinned copper
  • Cable bend radius: 18mm
  • Waterproof rating: IP68 / IP69K, front only with lid closed
  • Overall width: 60.3mm
  • Overall height: 119mm
  • Certification: CE / RoHS
View full details

Frequently Asked Questions

The Ventura SAE provides a convenient external DC power connection, particularly for connecting portable solar panels to motorhomes, campervans, caravans and overland vehicles.

Yes. The SAE connection is rated up to 24V DC, making it suitable for both 12V and 24V electrical systems.

The SAE connection is rated to a maximum of 20A, subject to correct cable sizing, fusing and installation.

It supports up to 240W on a 12V system or 480W on a 24V system, making it suitable for a wide range of portable solar panel installations.

Yes. The front of the socket is rated IP68 and IP69K when the protective lid is fully closed, making it suitable for external motorhome, campervan and caravan installations.

Yes. It is supplied with 150mm of 4mm² (12AWG) tinned copper cable, ready for integration into a suitable DC electrical system.

Yes. SAE connector polarity can vary between manufacturers, so the polarity of the equipment being connected must match the Scanstrut socket. An appropriate polarity adaptor can be used where necessary.
