The Truma Gas BBQ Point with white Click Flap provides a convenient external connection to your caravan or motorhome's onboard LPG supply, allowing compatible outdoor gas appliances to be connected without having to carry and connect a separate gas bottle and regulator.
Ideal for use with a gas barbecue, outdoor cooker or other compatible LPG appliance, the BBQ Point connects to the vehicle's gas installation using 8 mm gas pipe. Truma describes the product as an outdoor gas socket specifically designed for gas extraction outside the vehicle.

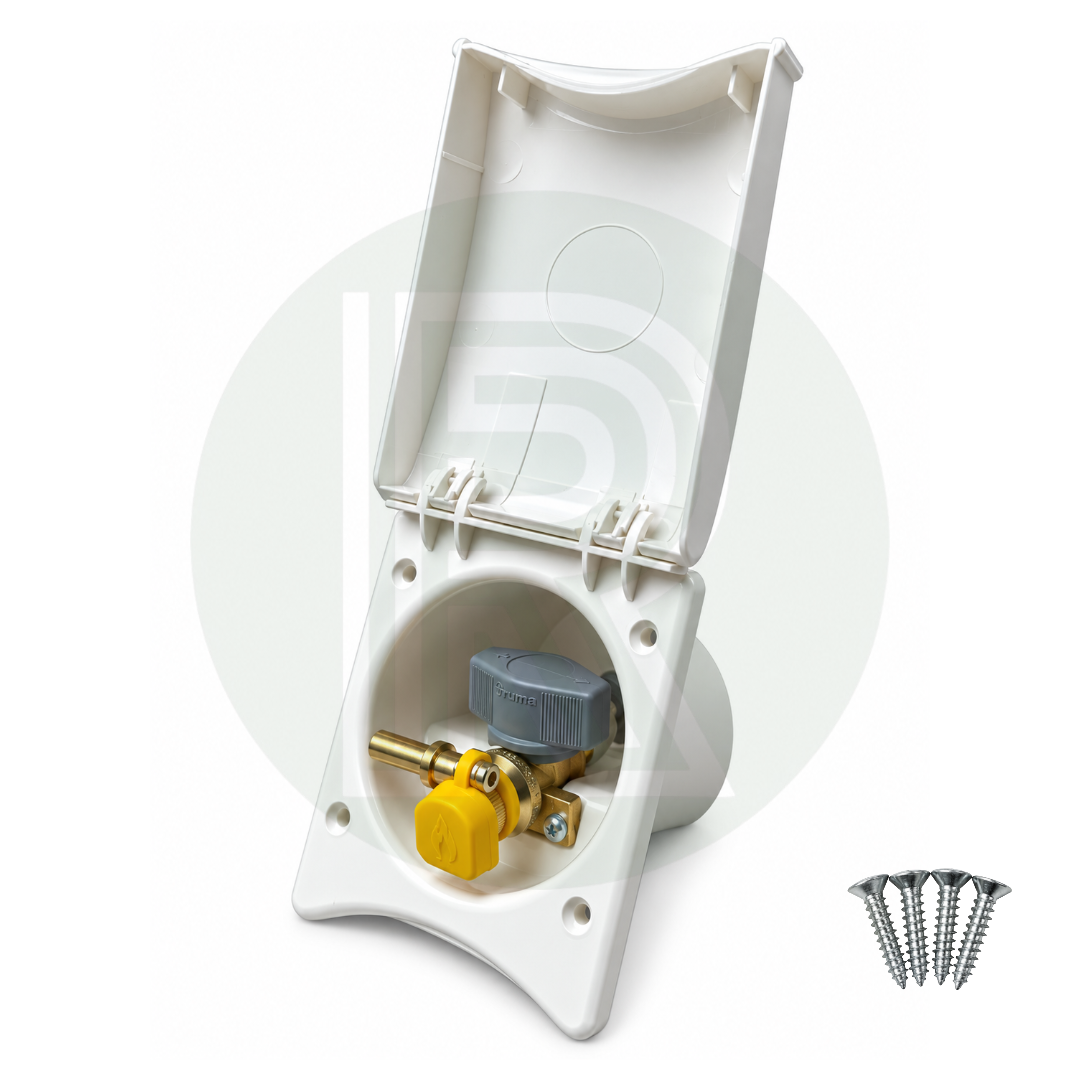

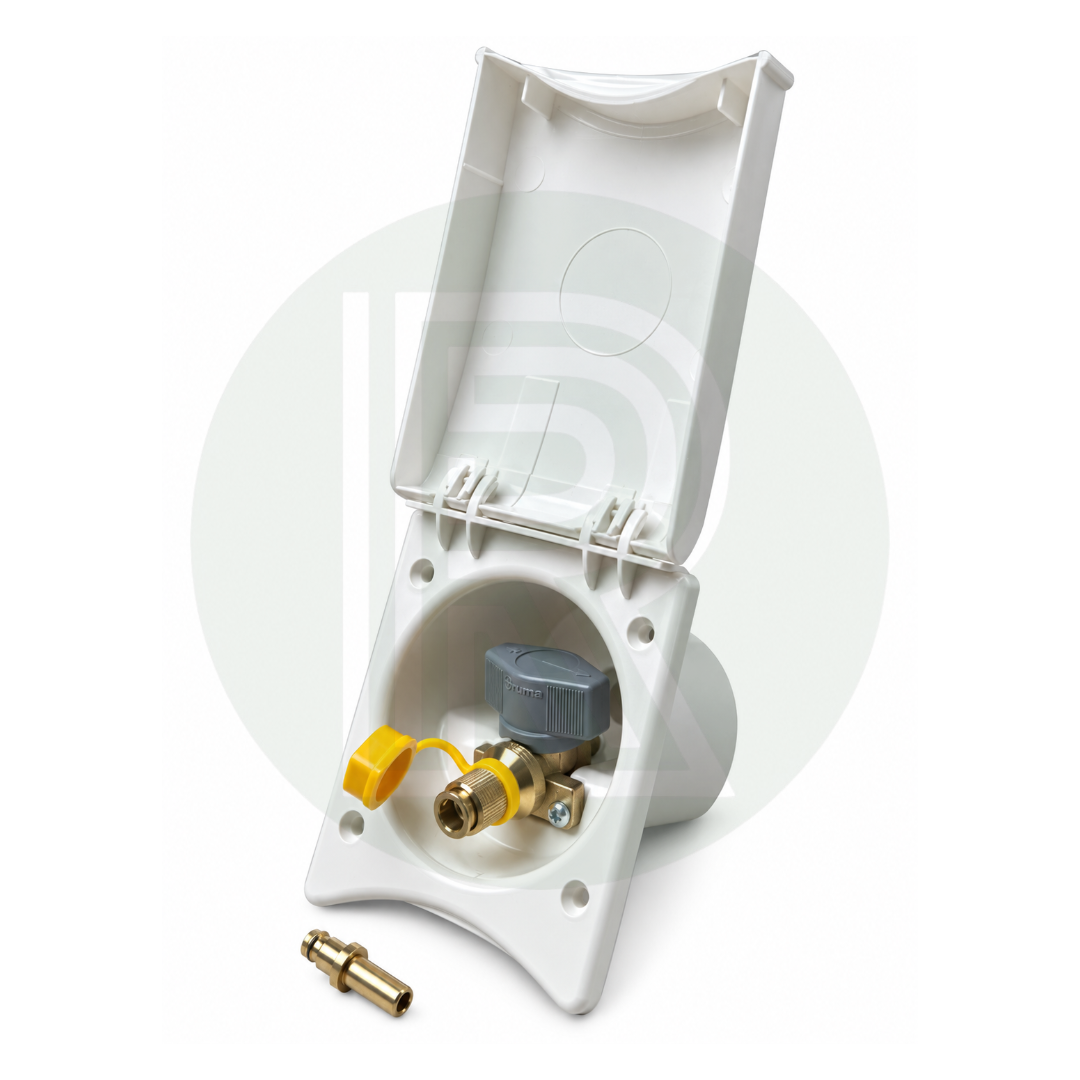

The integrated on/off control tap allows the external supply to be isolated when it is not required, while the quick-release gas connection makes connecting and disconnecting a suitable gas hose straightforward.

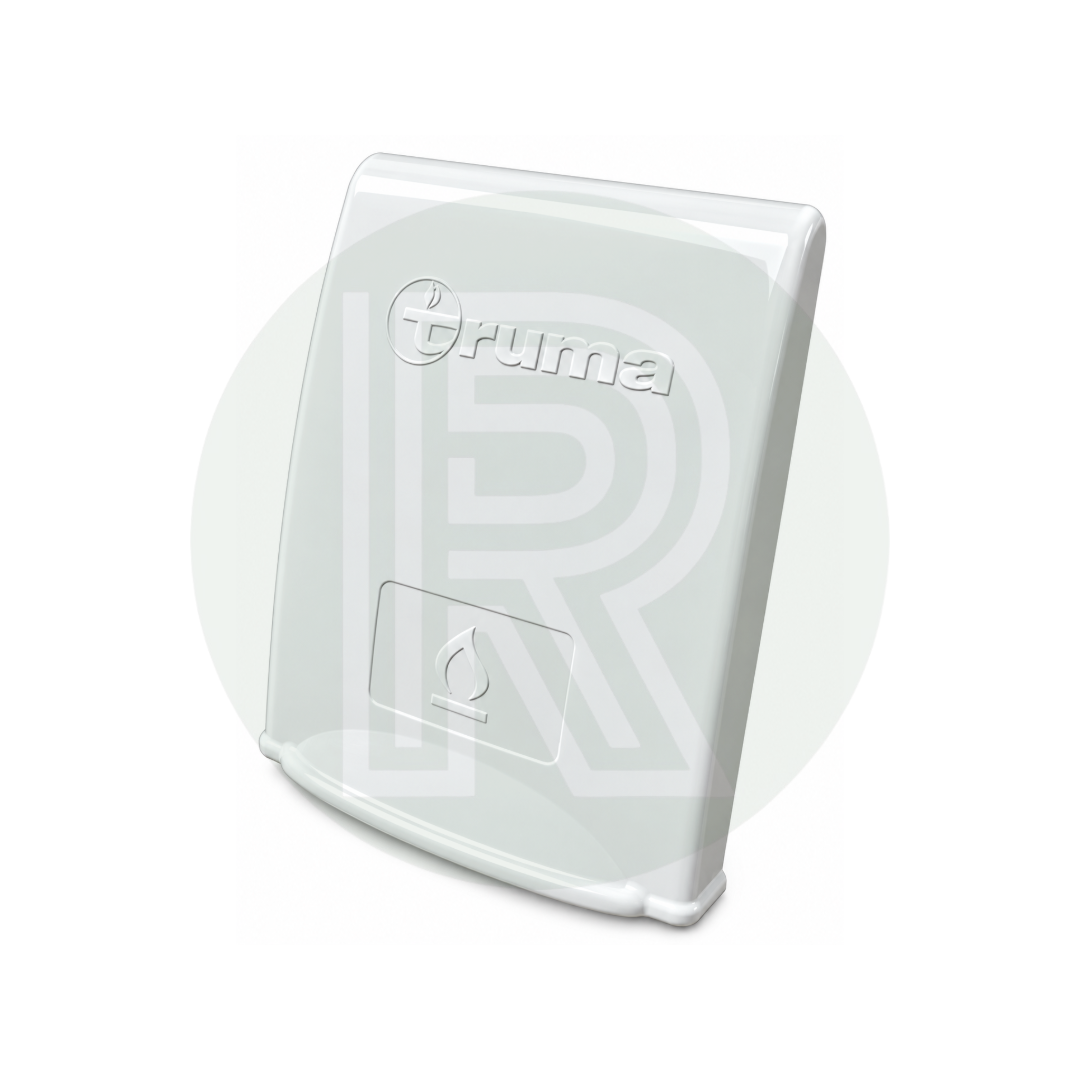

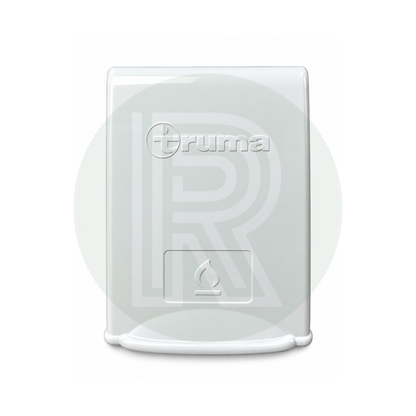

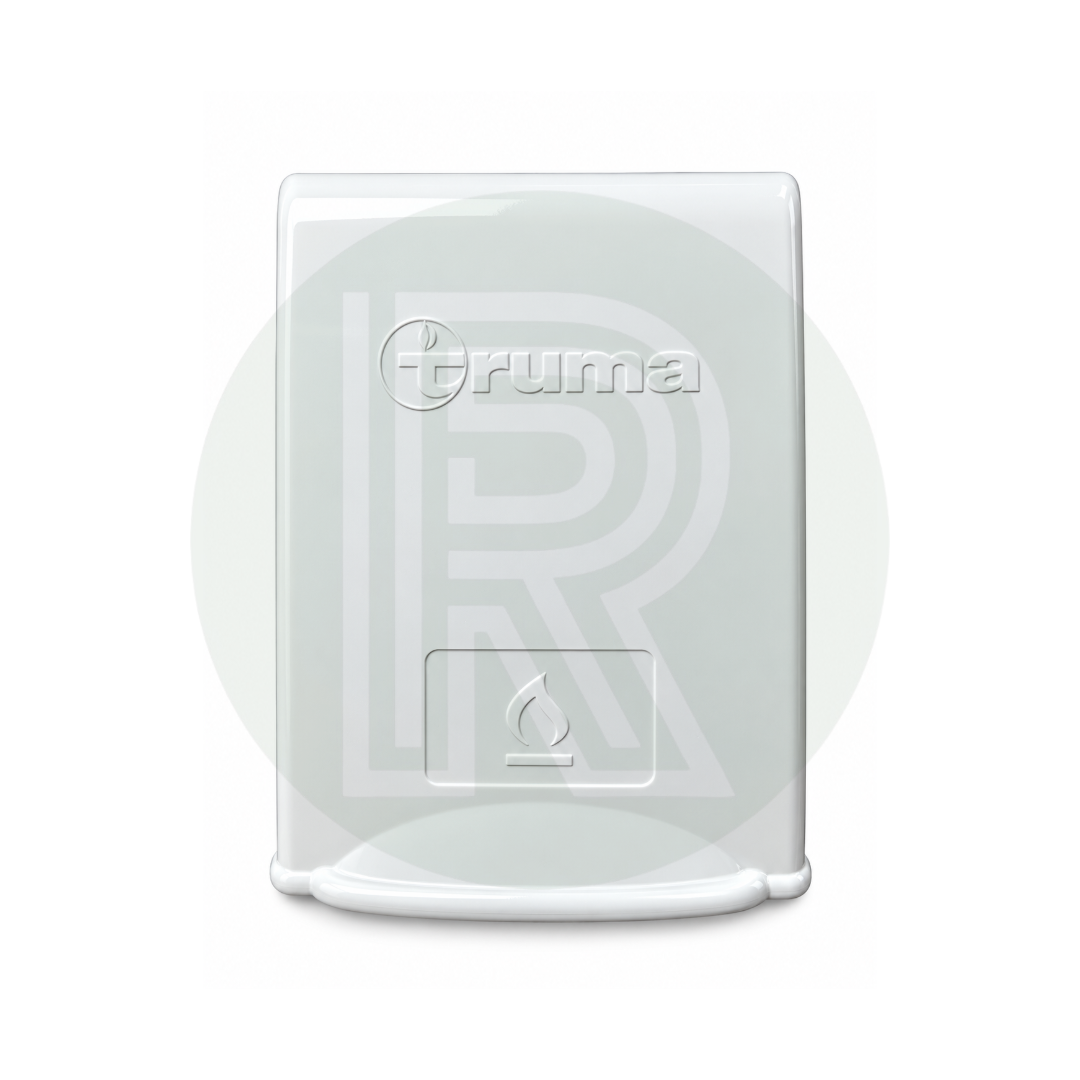

The connection is housed behind a neat white external Click Flap, providing a tidy factory-style finish on the side of a caravan, campervan or motorhome.
The external flap measures approximately 145 mm x 105 mm and the unit requires an 80 mm cut-out for installation.
Truma specifically states that its outdoor gas socket is only permitted for gas extraction and that feeding gas into the system through the socket is prohibited.
This product forms part of the vehicle's LPG installation and must be installed and tested in accordance with the applicable gas regulations and Truma's current installation instructions.
The BBQ Point is an outlet only. It must not be used as an LPG filling point, external gas inlet or method of supplying gas back into the vehicle's gas system.
It provides an external connection to the LPG system already installed in your caravan or motorhome. This allows a suitable gas barbecue, outdoor cooker or other compatible gas appliance to use the vehicle's onboard gas supply.
Normally, no. The purpose of the BBQ Point is to allow a compatible appliance to take gas from the caravan or motorhome's existing regulated LPG installation.

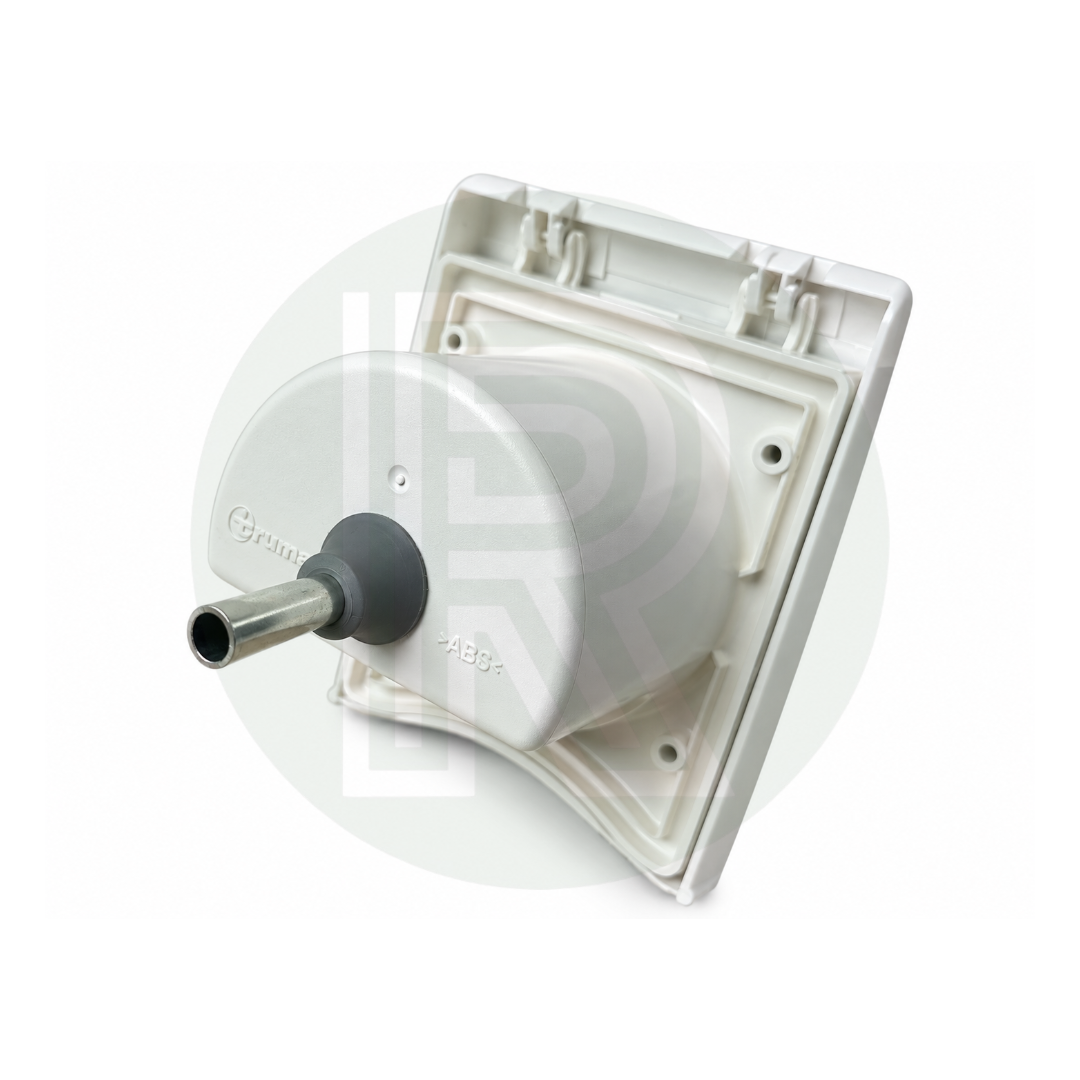

The BBQ Point is designed for connection to 8 mm gas pipe.
Yes. The BBQ Point incorporates an on/off control tap so the external gas outlet can be isolated.
Yes. It uses a quick-release connection designed to make connecting and disconnecting the appropriate external gas hose straightforward.
The external flap is approximately 145 mm x 105 mm.
Because the BBQ Point becomes part of the vehicle's LPG installation, it should be installed and tested by a suitably competent gas installer in accordance with the applicable regulations and Truma's installation instructions.
An 80 mm cut-out is required for installation of the Truma Gas BBQ Point.
