The Thetford S260-S Separation Toilet is a modern waterless toilet designed for motorhomes, campervans and caravans, offering a practical alternative to a conventional cassette toilet for those looking for greater independence when travelling and camping off-grid.
Instead of collecting all waste in a conventional cassette, the S260-S separates urine and solid waste at the toilet bowl. Urine is directed into a removable 7.5 litre urine tank, while solid waste is collected separately in a 7 litre solids container.
As the toilet operates without flushing water, it helps conserve the vehicle's onboard fresh-water supply and eliminates the need for a conventional toilet flush system or chemical toilet additives.
The S260 range is based on Thetford's popular C260 cassette toilet platform, providing a familiar and comfortable design. The ergonomically designed bowl incorporates a side-operated blade that visually covers the solid waste container when required.

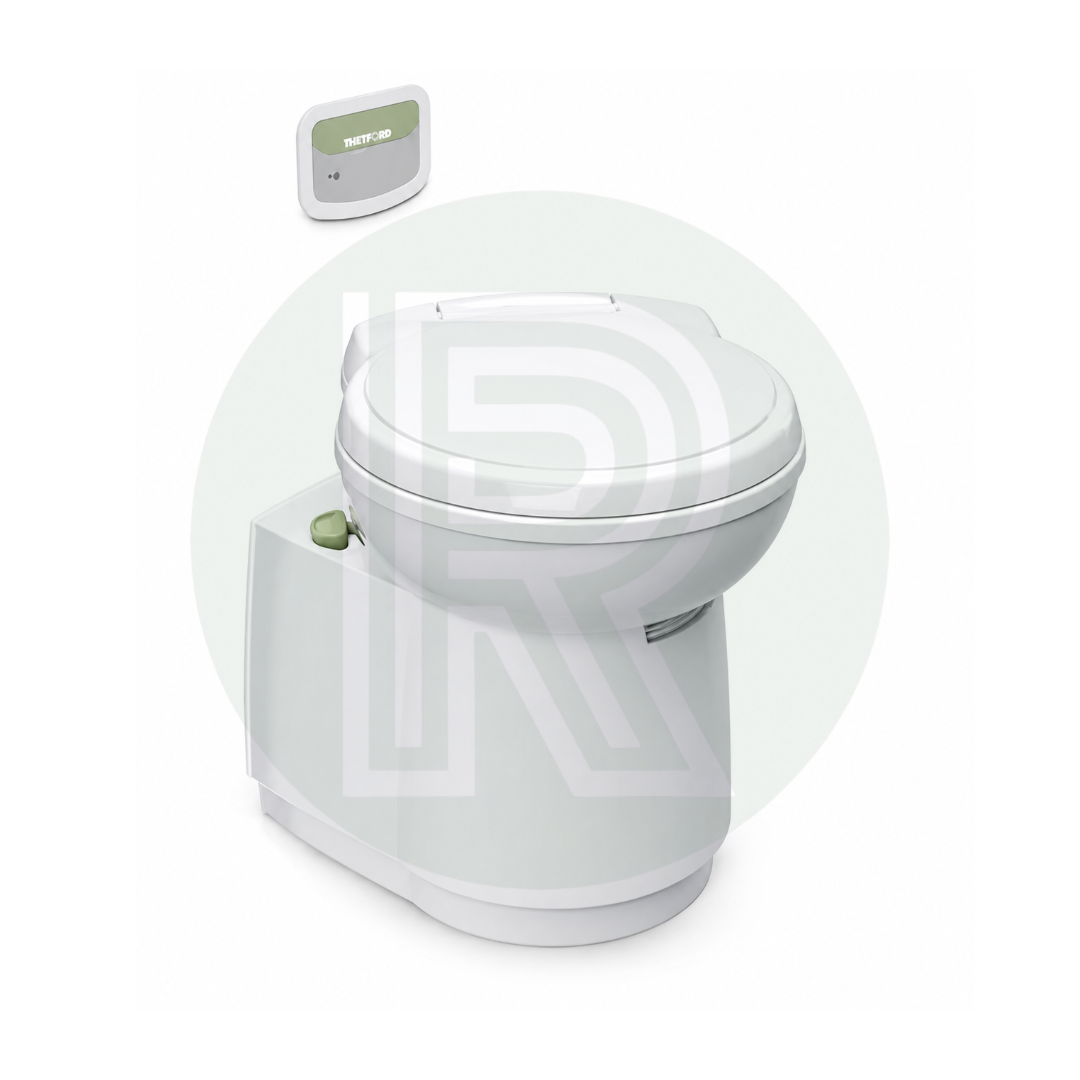

The S260-S also features an electronic urine tank level indicator, allowing you to monitor when the liquid waste tank needs emptying. A specially designed leak-free connection helps reduce the risk of spills when removing the urine tank.
Both waste containers can be accessed through the vehicle's exterior service door, allowing them to be removed without carrying waste through the living area.
The S260-S is the recessed installation version of the S260 separation toilet, designed for installations where the rear section of the toilet can be incorporated into the bathroom wall or furniture.
Features
- Waterless separation toilet for motorhomes and campervans
- Separates liquid and solid waste at the bowl
- 7.5 litre removable urine tank
- 7 litre removable solids container
- Electronic urine tank level indicator
- No flushing water required
- Blade visually covers the solid waste container
- Leak-free urine tank connection

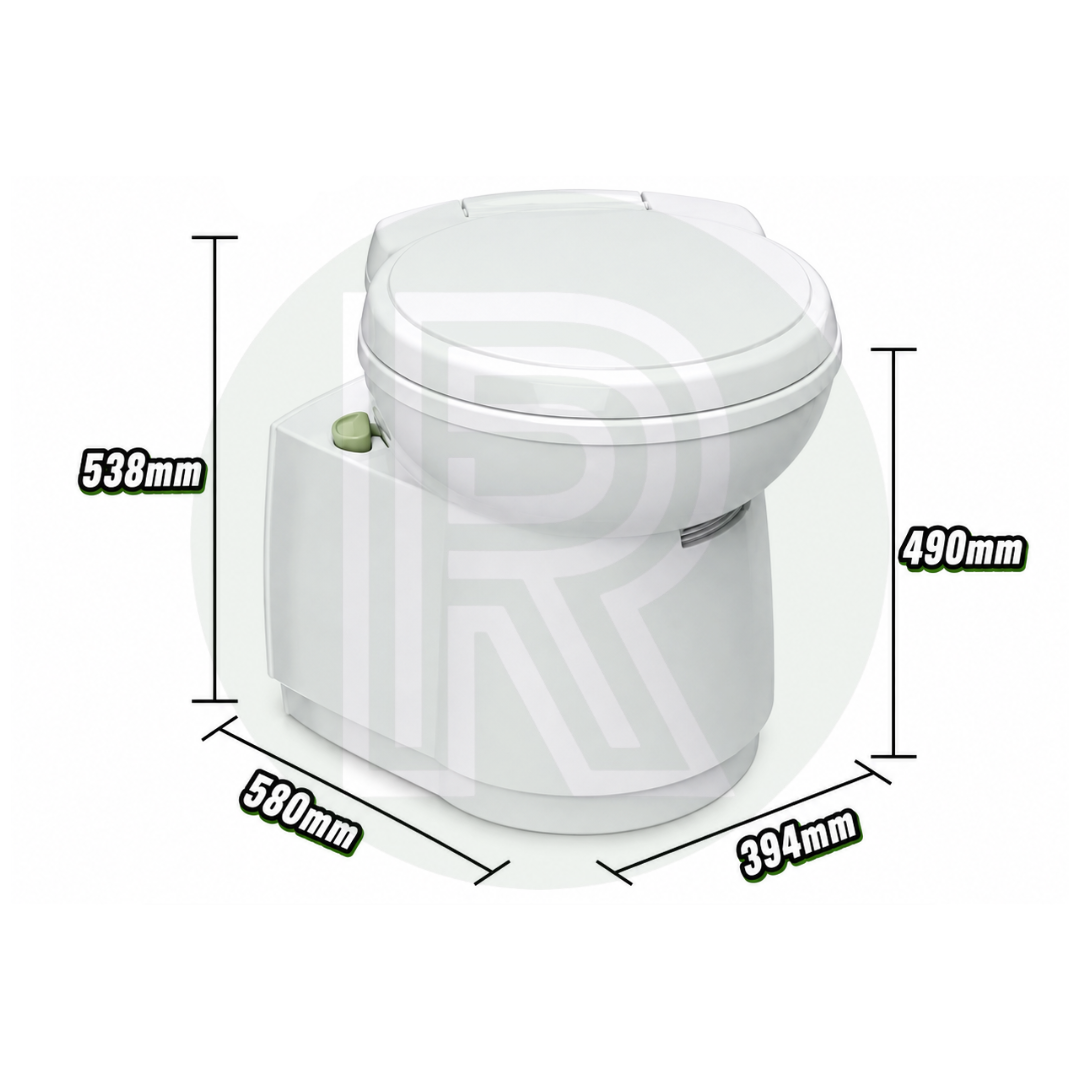

Technical Specifications
- Model: Thetford S260-S
- Type: Waterless separation toilet
- Installation type: Recessed
- Urine tank capacity: 7.5 litres
- Solids container capacity: Approximately 7 litres
- Urine tank level indicator: Electronic
- Seat height: 467mm
- Bowl material: Plastic
- Urine tank material: Recycled plastic
- Solids container material: Recycled plastic
- Water required: No
- Electrical connection: 4-pole plug
- Weight: Approximately 7.1kg
- Service door: Thetford Door 3
- Service door orientation: Landscape
- Maximum user weight: 120kg
Please note: The external service door is not supplied and should be purchased separately if required.
Share
Frequently Asked Questions
The S260-S uses a specially designed bowl to separate urine and solid waste at source.
Urine is directed into a separate removable tank, while solid waste passes into a separate solids container.
Keeping the two waste streams separate allows the toilet to operate without a conventional water flush or chemical toilet cassette.
No. The S260-S is a waterless separation toilet and does not need to be connected to the motorhome or campervan's fresh-water system for flushing.
This helps conserve onboard water and makes the toilet particularly useful for off-grid touring.
The S260-S has a 7.5 litre removable urine tank.
Unlike the S220-S, which uses a mechanical level indicator, the S260-S incorporates an electronic urine tank level indicator.
The removable solids container has a capacity of approximately 7 litres.
Solid and liquid waste are kept separate, helping to reduce moisture within the solids container.
The S260-S has an electronic urine tank level indicator and uses a 4-pole electrical connection.
An electrical supply is therefore required for the electronic level indication.
The optional S260 Electric Ventilator Kit also requires a 12V supply.
The separation system operates without conventional cassette-toilet chemical additives.
Thetford offers dedicated products for its separation toilets, including Urine Tank Fresh, Drying Agent, Bowl Cleaner and waste bags, which can be used to help with hygiene, moisture and odour control.
Yes. The S260-S incorporates a side-operated blade that visually covers the solid waste container, keeping the contents out of sight.
Yes. The S260-S features an electronic urine tank level indicator to help you identify when the urine tank needs emptying.
This is an important difference between the S260-S and S220-S, as the S220-S uses a mechanical indicator.
The urine tank and solids container are accessed through the vehicle's exterior service door.
The urine tank is removed and emptied separately, while the waste bag can be closed and removed from the solids container.
Always dispose of urine and solid waste responsibly and in accordance with local regulations.
Thetford has designed the connection between the toilet bowl and urine tank to help prevent liquid escaping when the tank is disconnected and removed.
This helps provide a cleaner and more convenient system when servicing the toilet.
Both use the same waterless separation principle and separate urine and solid waste into individual containers.
The S260-S is designed for a recessed installation, where the rear section of the toilet is incorporated into the bathroom wall or furniture.
The S260-CS has a surface-mounted rear section, making it suitable where recessing the toilet into the wall is not possible.
