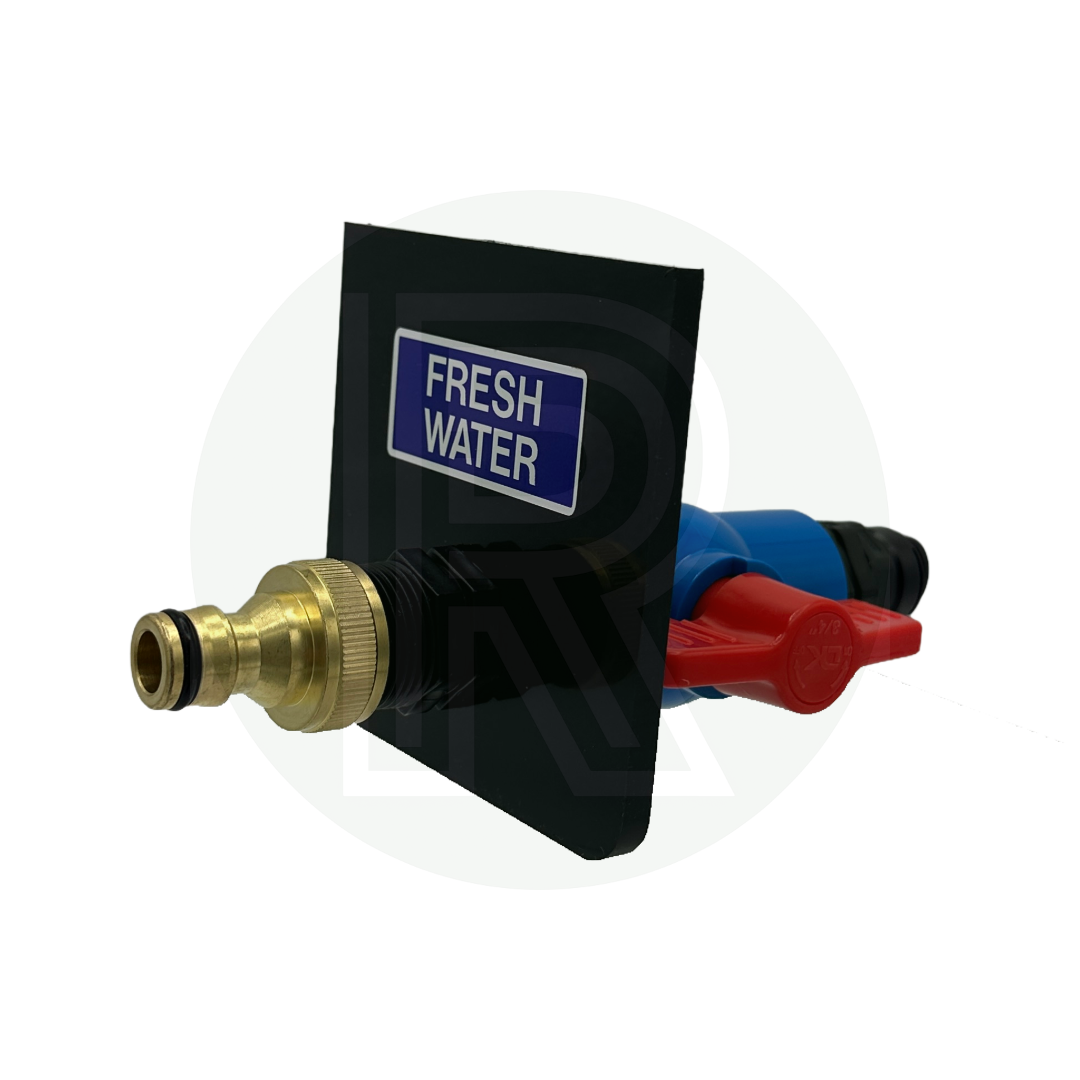

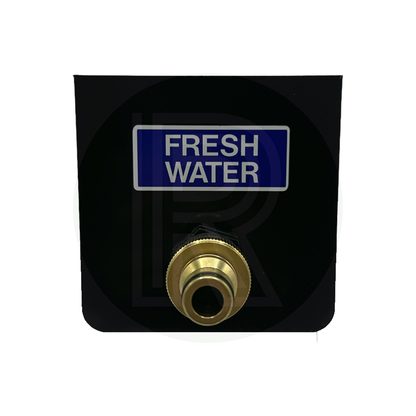

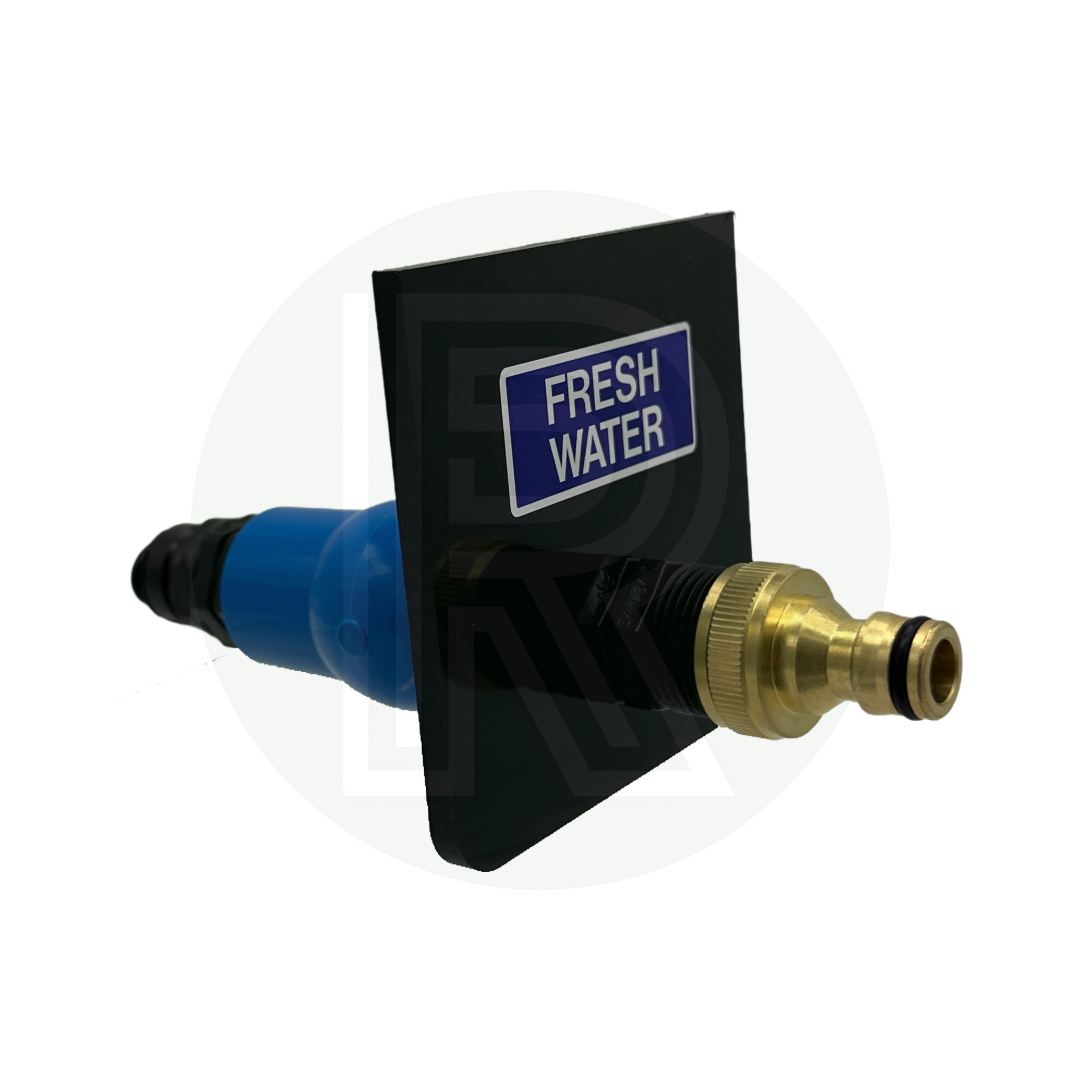

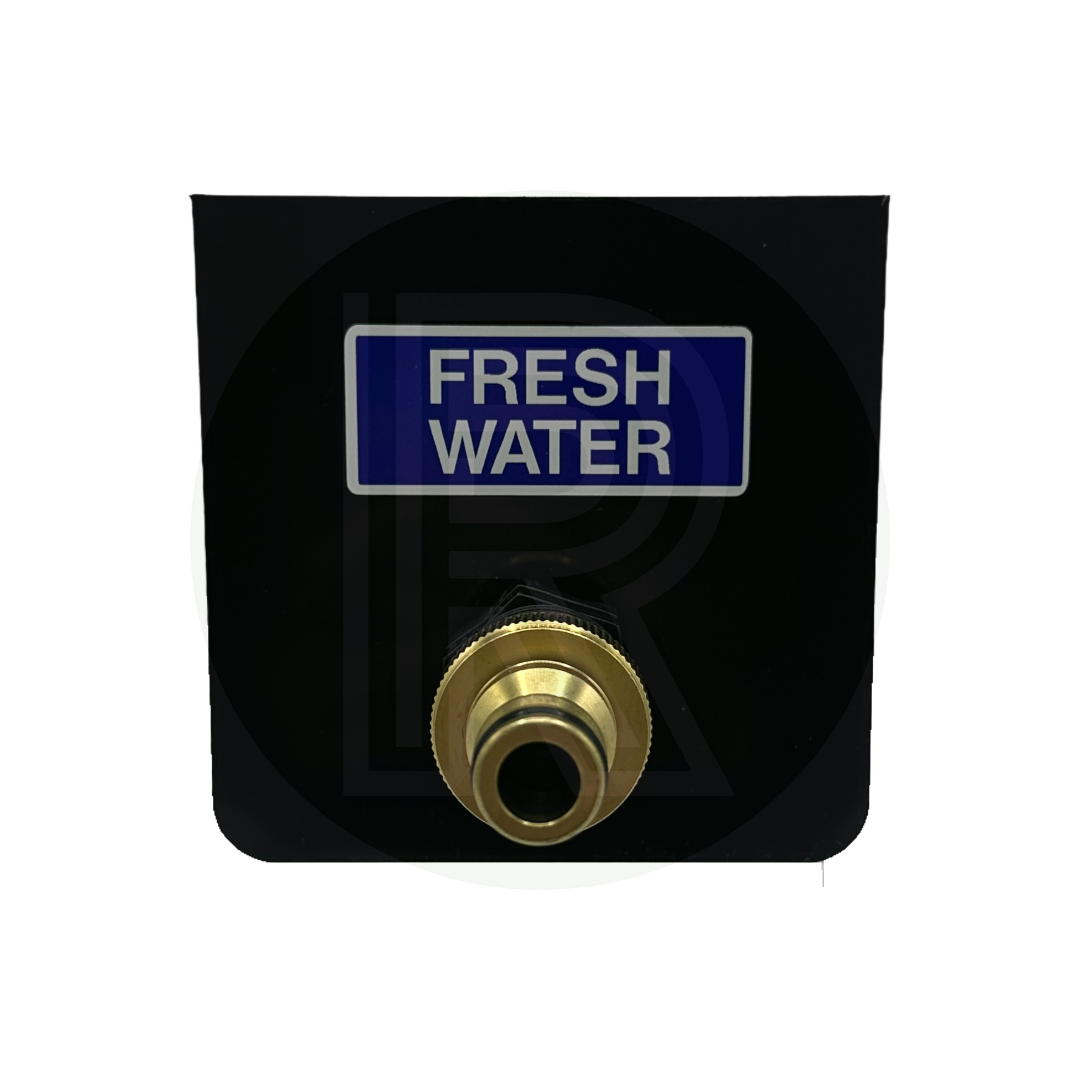

The Sill Mounted Single Fresh Water Inlet provides a neat and convenient external filling point for fresh water tanks in motorhomes, campervans and caravans.
Designed to mount underneath the vehicle sill or skirt, the assembly uses a durable 6mm black polypropylene backplate measuring 100mm x 100mm. This provides a discreet installation without requiring a conventional water filler to be mounted through the side of the vehicle.

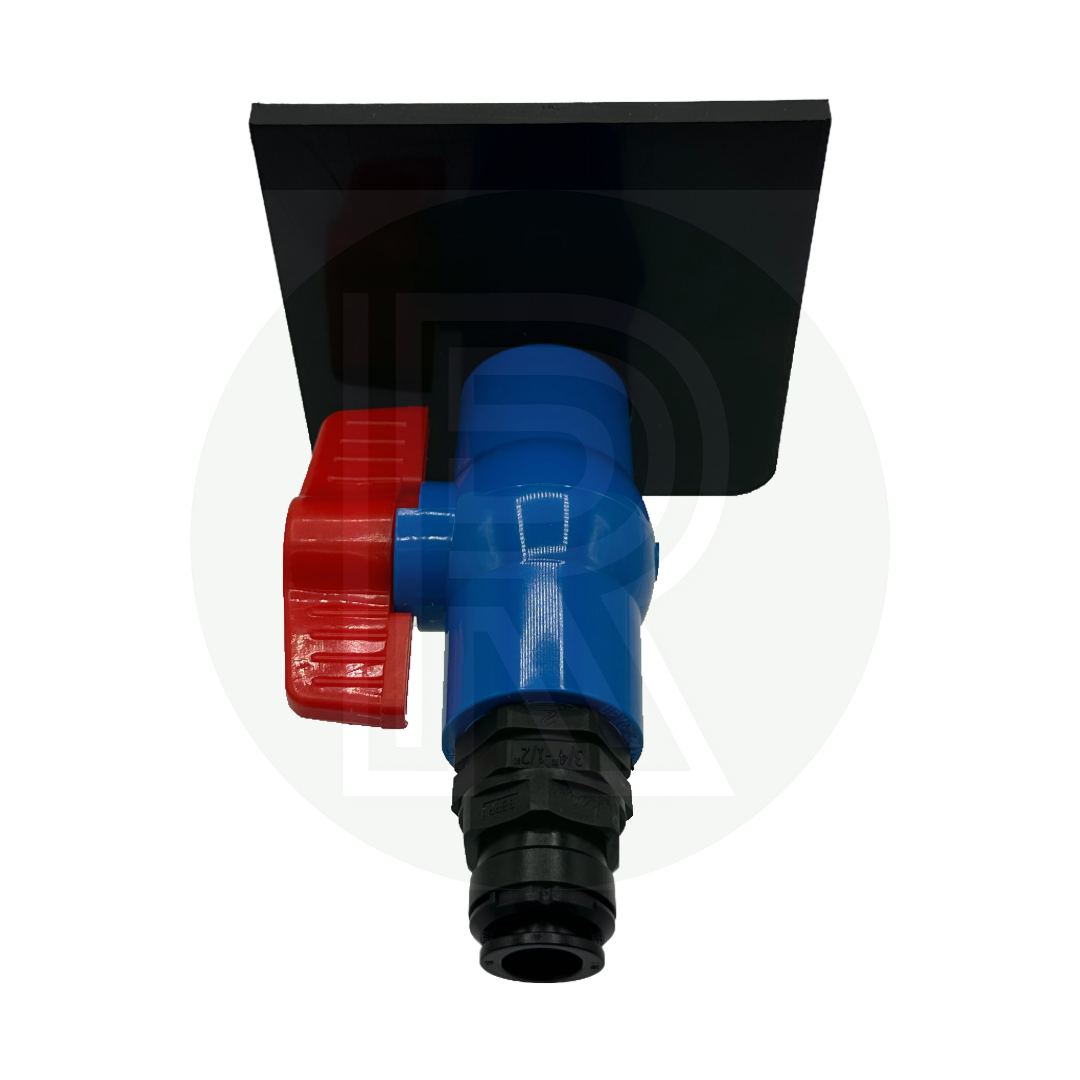

The fresh water connection is designed for 12mm semi-rigid push-fit water pipe, making it particularly suitable for campervan and motorhome conversions using 12mm plumbing systems. The push-fit connection provides a simple and secure way of connecting the inlet to your fresh water tank filling system.
The inlet can also provide a convenient connection point for a portable jet wash or pressure washer, provided the jet wash has its own self-priming/suction capability and is capable of drawing water from the vehicle's fresh water tank.

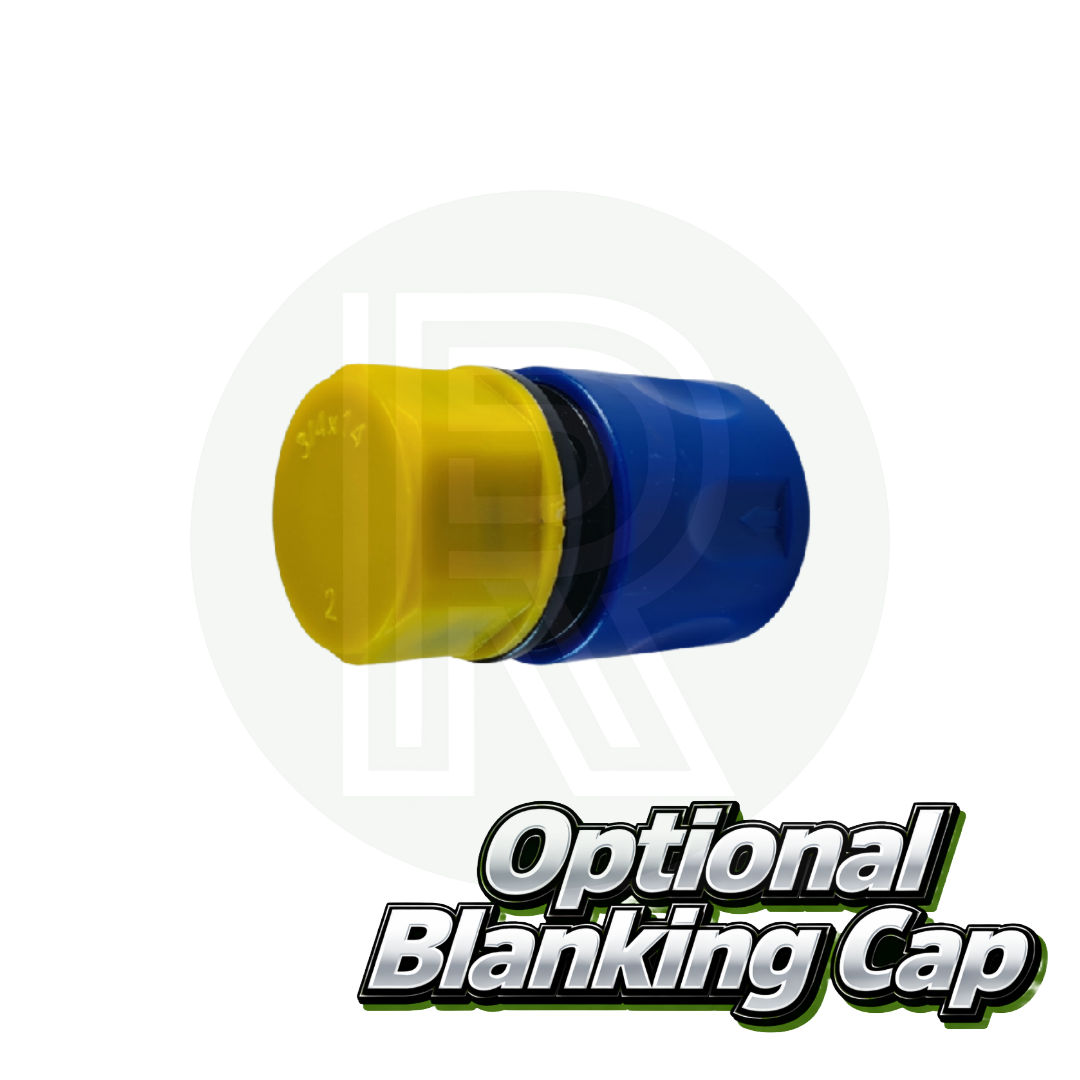

We also sell a female blanking cap for the inlet, which can be purchased separately here.
For installations requiring both fresh water filling and waste water drainage in one location, we also sell a double sill-mounted version, providing both connections neatly on a single backplate.
The inlet provides an external connection to a motorhome, caravan or campervan fresh water tank, allowing the connection point to be positioned neatly underneath the vehicle sill or skirt.
The inlet has a 12mm push-fit connection designed for compatible 12mm semi-rigid water pipe, commonly used in motorhome and campervan fresh water systems.
The black polypropylene backplate measures 100mm x 100mm and is manufactured from durable 6mm thick polypropylene.
It is designed for sill or skirt mounting, providing a discreet alternative to installing a conventional connection through the side panel of the vehicle.
Yes, it can be used as a convenient water connection for a portable jet wash or pressure washer, provided the jet wash has its own suction or self-priming capability and can draw water from your fresh water tank.
Yes. We also sell a double sill-mounted version, combining a fresh water inlet and waste water outlet on a single backplate. These are avaliable with Pushfit fittings or Barbed fittings.
