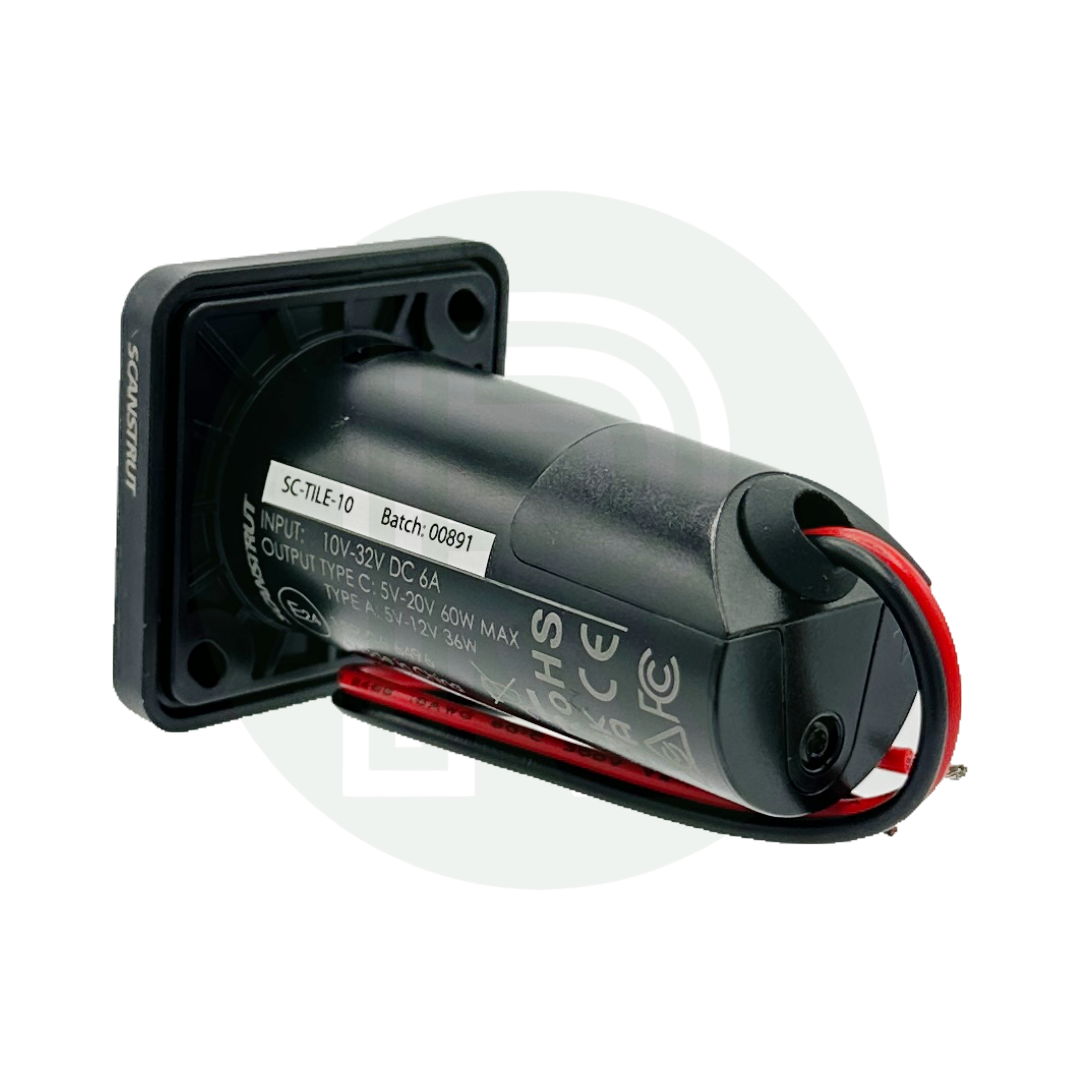

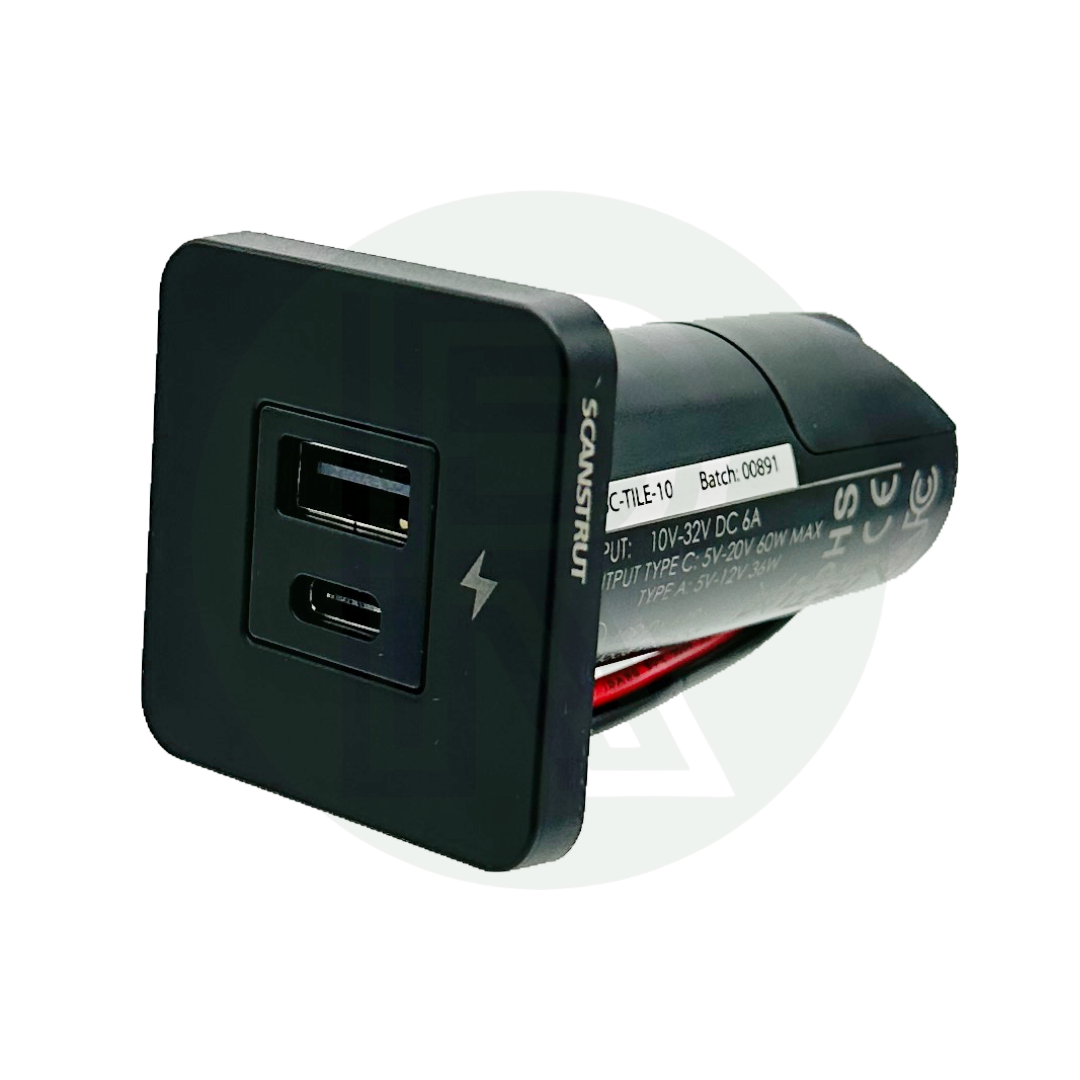

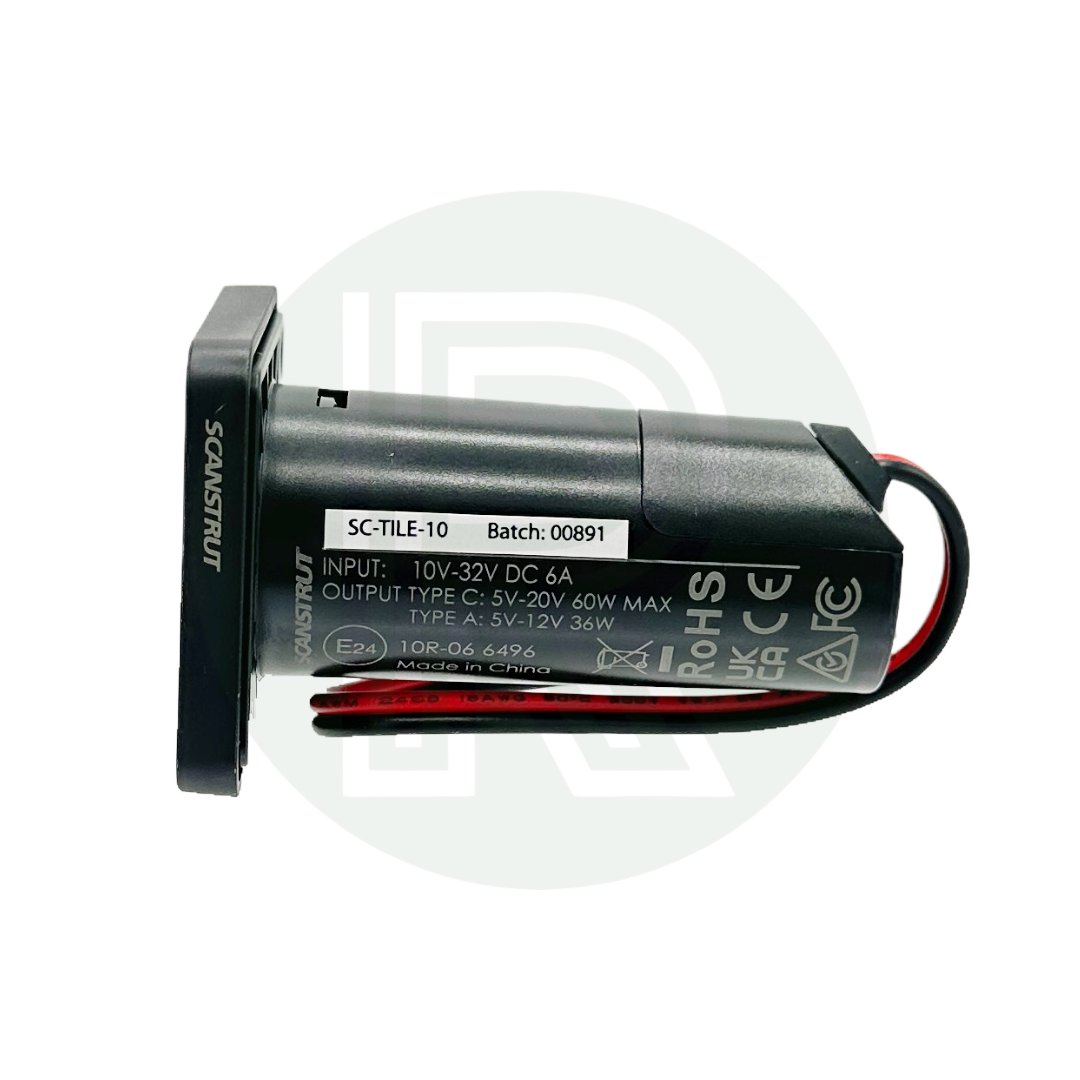

The Scanstrut TILE USB-A & USB-C Charger is a compact, low-profile charging socket designed for motorhome, campervan, caravan and marine interiors. With both USB-A and USB-C ports, it provides a versatile charging point for phones, tablets, laptops and other USB-powered devices.
Designed for both 12V and 24V electrical systems, the TILE charger delivers up to 36W on a 12V system and up to 60W USB-C charging on a 24V system. The USB-C port supports modern PD fast charging, while the USB-A connection provides compatibility with devices and cables using the traditional USB format.

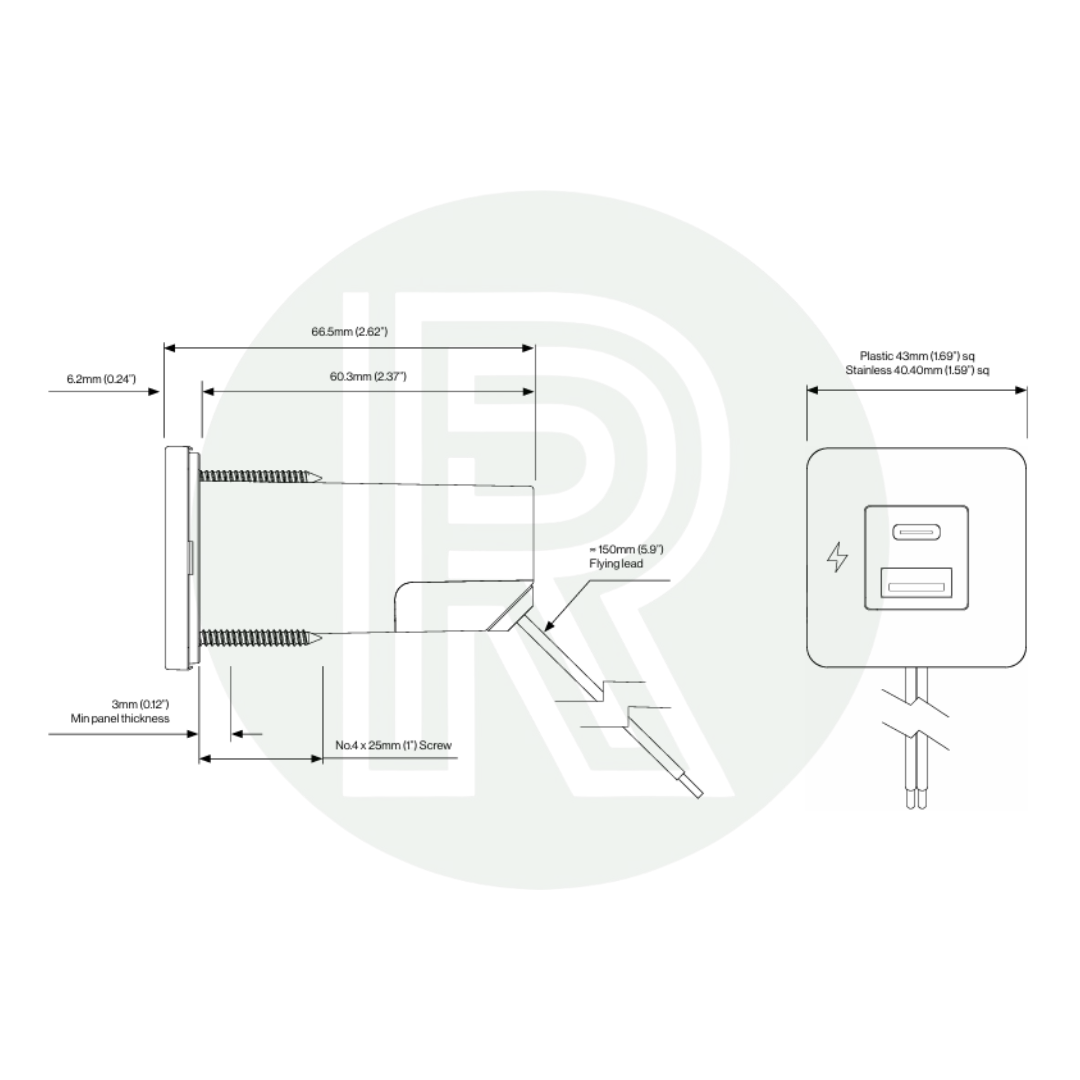

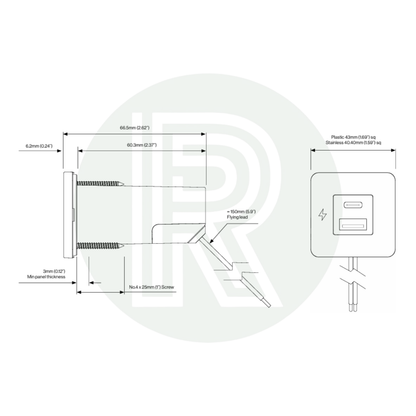

The ultra-low-profile design has a compact footprint of approximately 40mm x 40mm and requires only a 29mm installation cut-out, making it ideal where space is limited. Front fitting also makes installation straightforward in furniture, panels and other suitable interior locations.
The electronics are conformal coated to protect against moisture, helping provide additional durability in leisure vehicle and marine environments.
We also sell other Scanstrut USB chargers and power sockets, including waterproof options for locations where greater protection from water and the elements is required.
Please note: Scanstrut TILE chargers are designed for interior use only and should not be installed where direct water exposure is possible.
Yes. The charger accepts a 10–32V DC input, making it suitable for both 12V and 24V motorhome, campervan, caravan and marine electrical systems.
On a 12V system it can deliver up to 36W, while a 24V system allows up to 60W USB-C output. A 24V supply is therefore required to achieve the full 60W charging capability.
Yes. The USB-C port supports Power Delivery fast charging and can provide up to 60W on a 24V system, making it suitable for many USB-C laptops as well as tablets and phones.

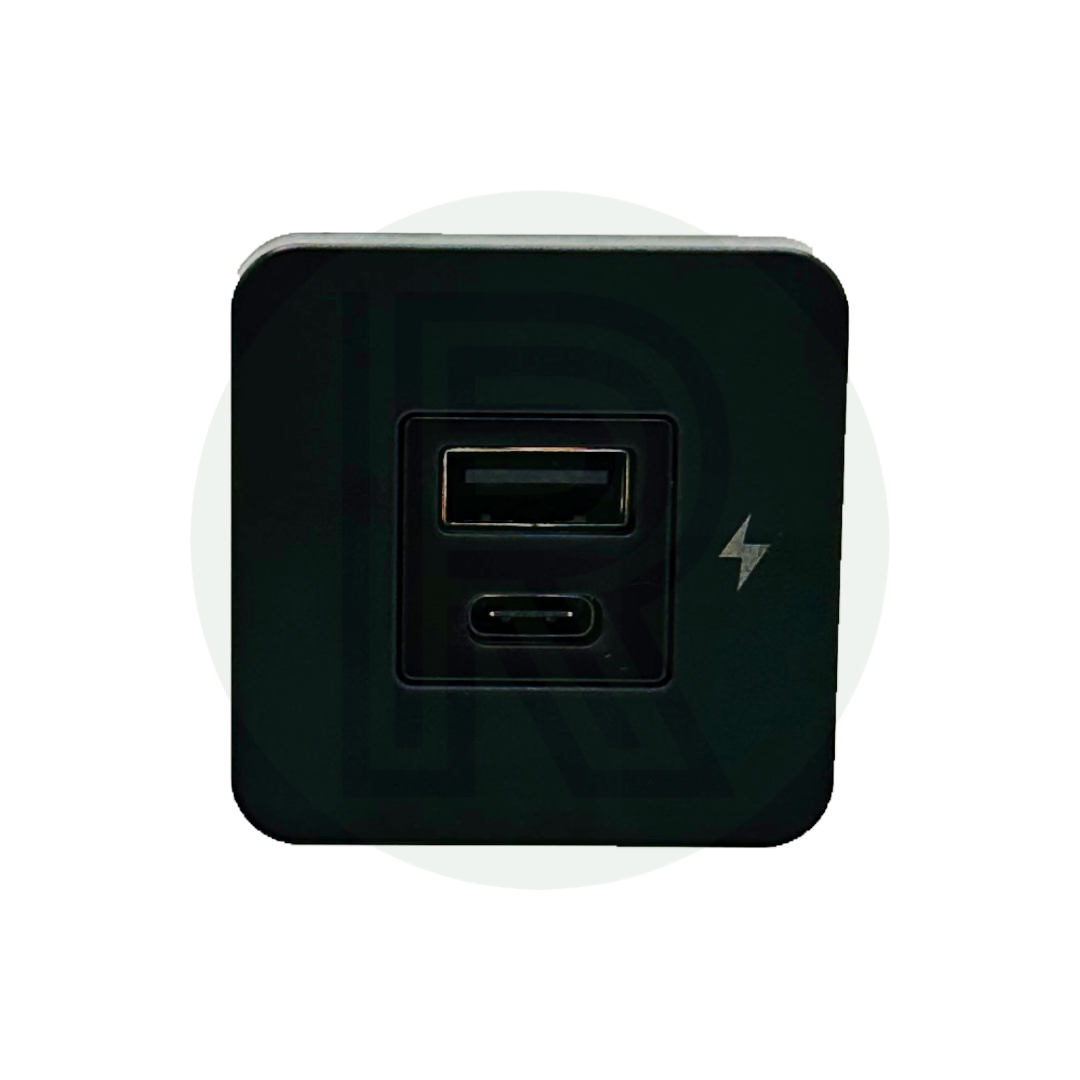

Yes. This version has one USB-A and one USB-C port, providing compatibility with both traditional and newer USB charging cables and devices.
The charger requires a 29mm diameter cut-out and has an ultra-compact footprint of approximately 40mm x 40mm, making it particularly useful where installation space is limited.
Yes. The charger supports modern USB Power Delivery and Quick Charge protocols, allowing compatible phones, tablets and other devices to charge at higher speeds.
