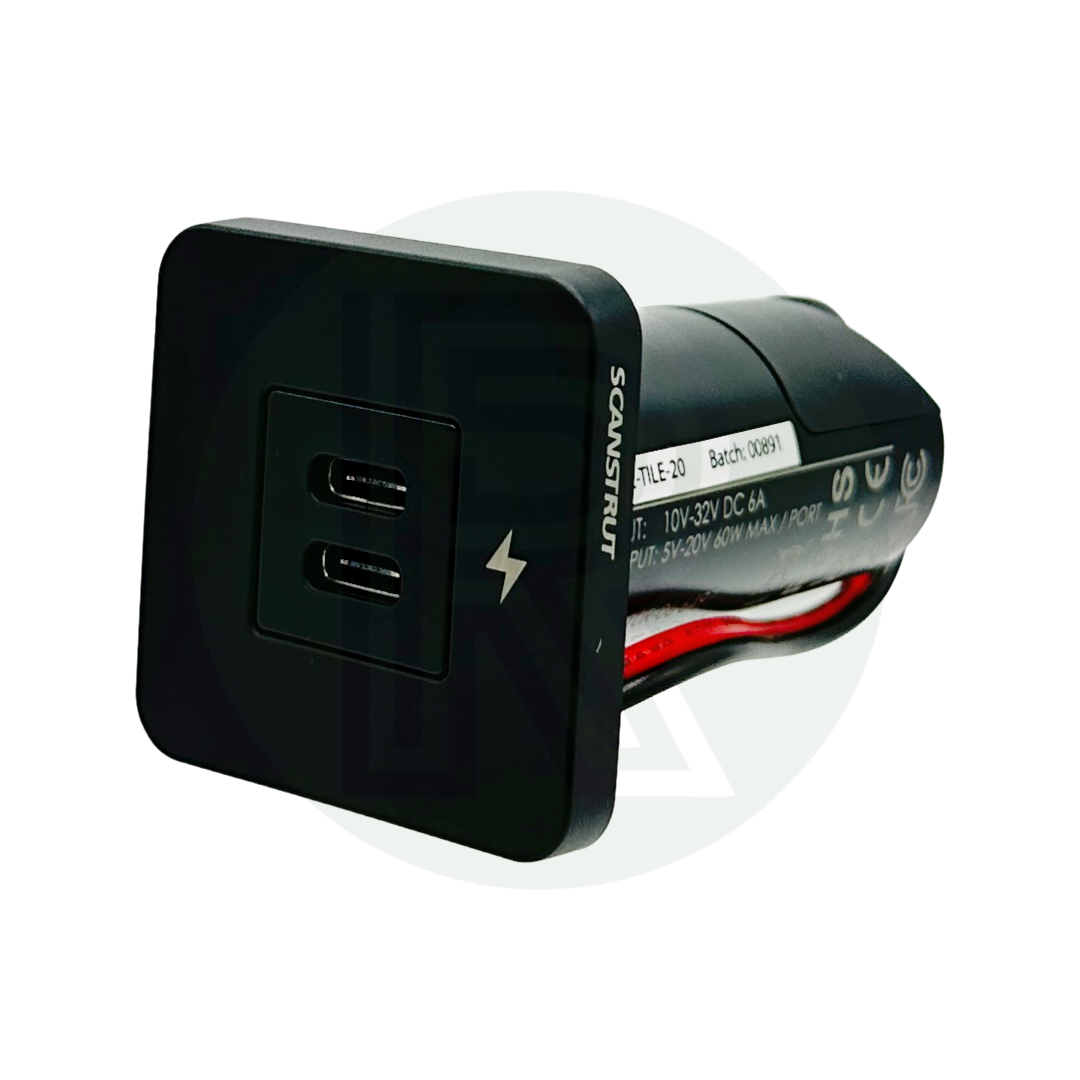

• Angled view of dual USB-C socket showing front panel and housing with wiring.

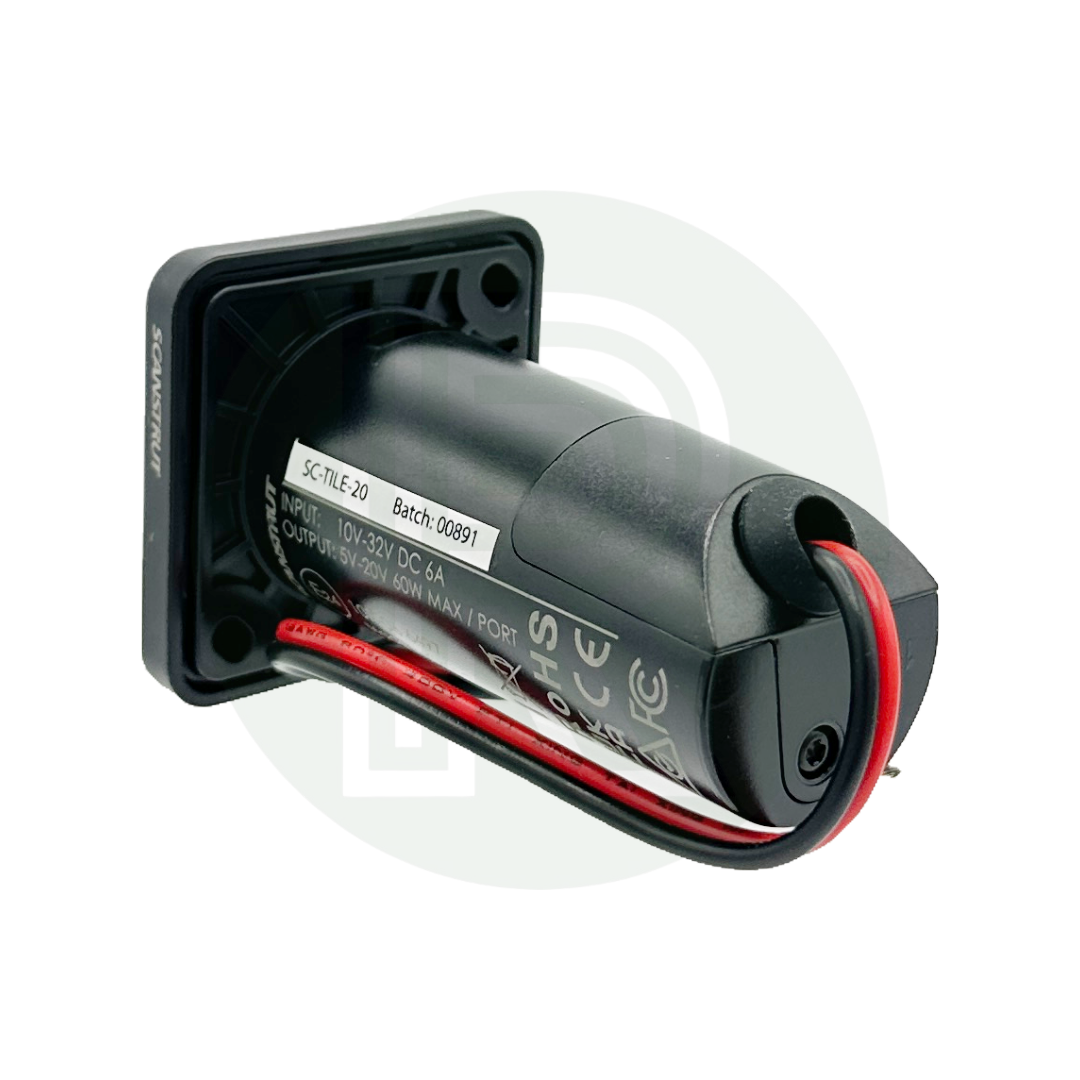

  • Rear angled view of USB-C socket showing mounting plate, cable entry, and red/black wiring.

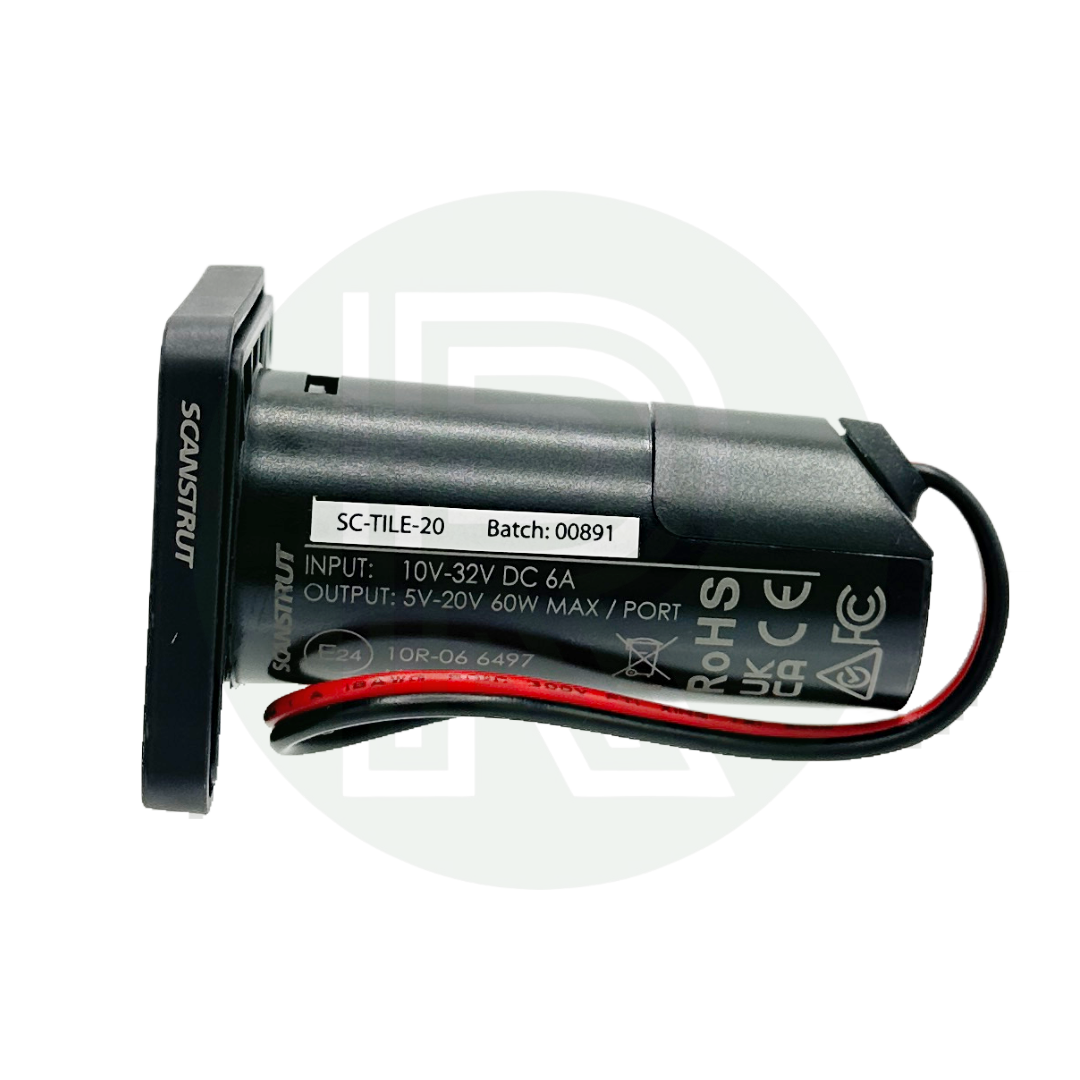

  • Side profile of USB-C socket showing cylindrical body, wiring, and printed specifications.

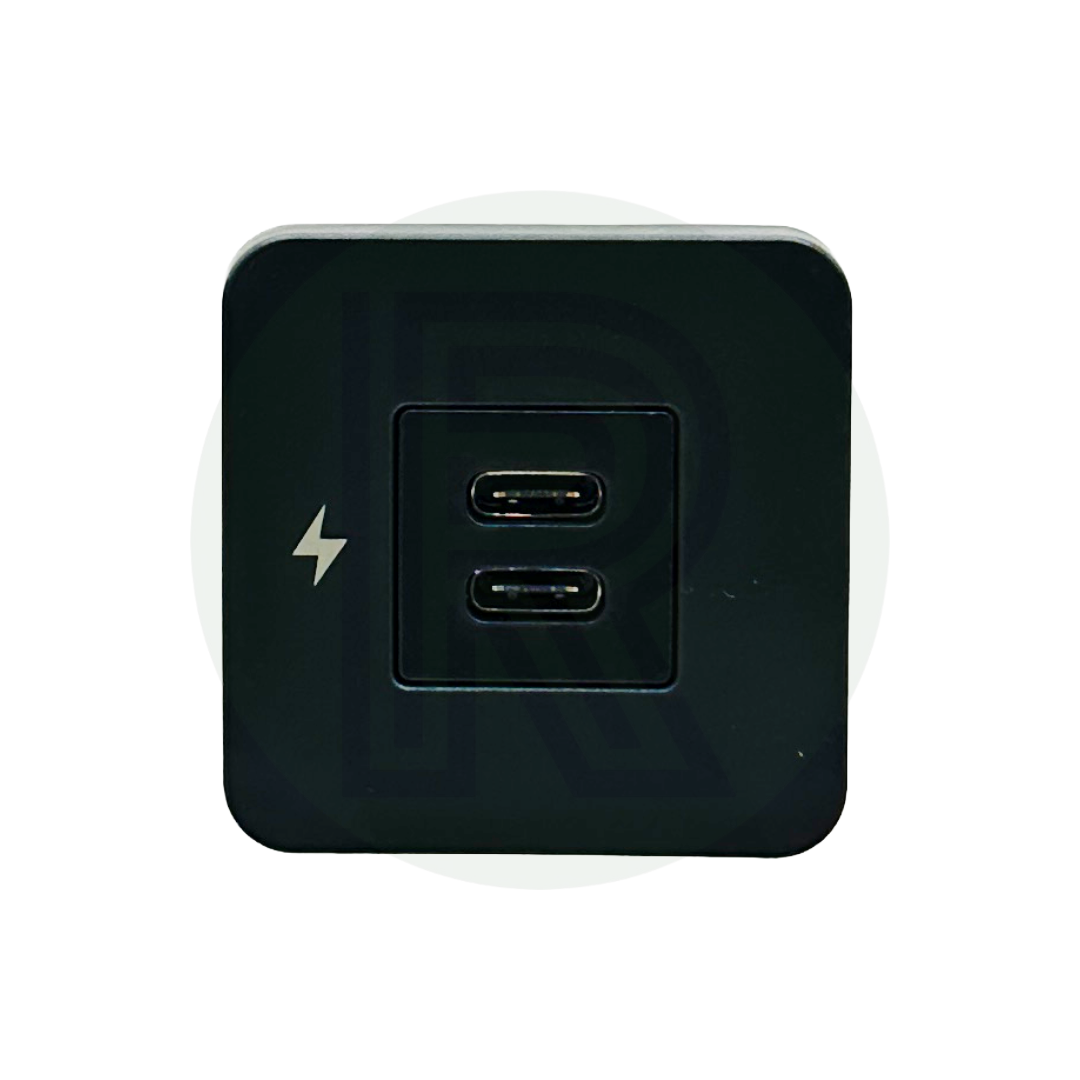

  • Front view of dual USB-C charging socket with two USB-C ports and lightning symbol on black panel.

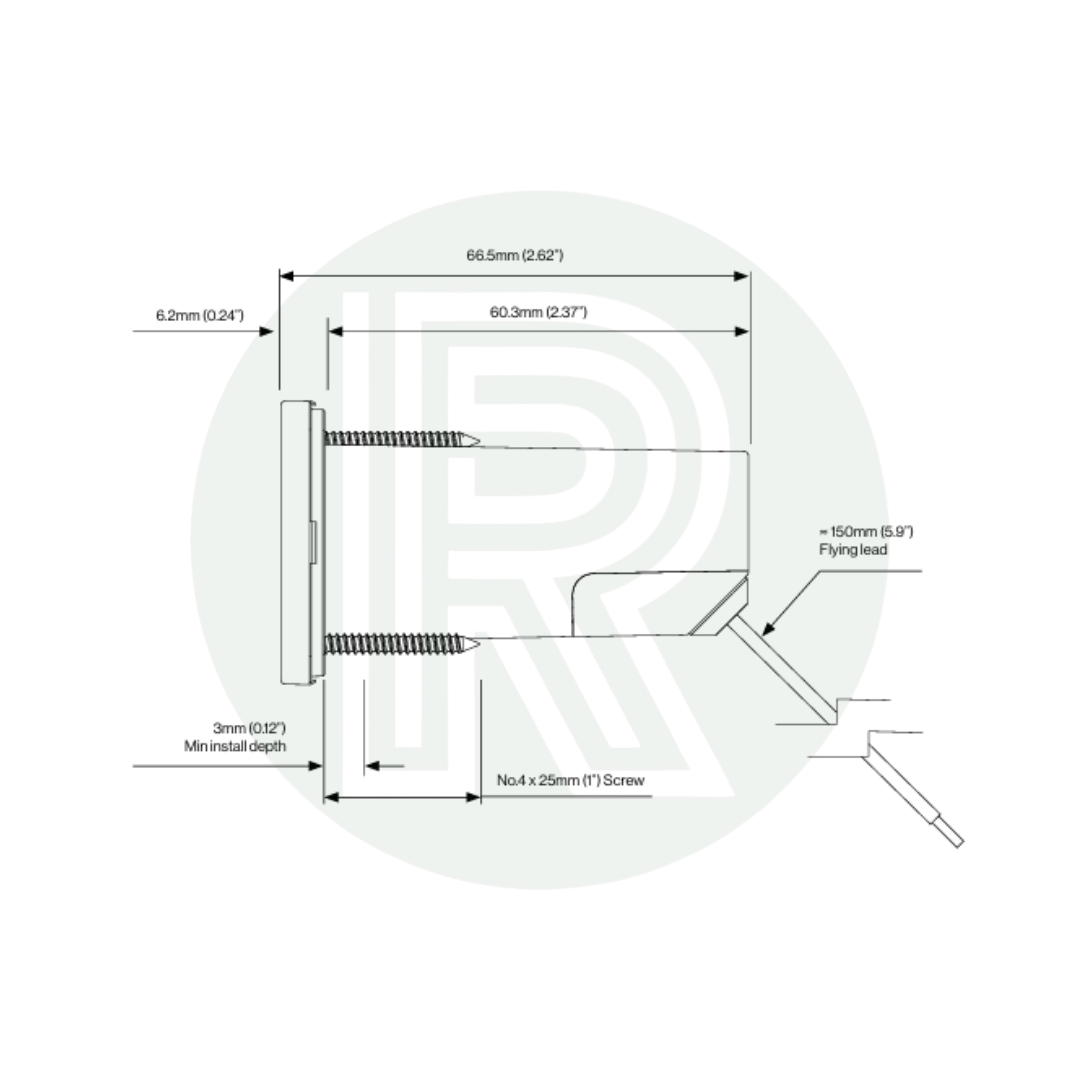

  • Technical diagram of dual USB-C interior socket with dimensions, wiring, and installation details.
  • Scanstrut interior dual USB-C charging socket packaging showing product illustration and specifications.
1 6

Scanstrut TILE Dual USB-C Charger 12V 24V

Scanstrut TILE Dual USB-C Charger 12V 24V

£46.95 inc. VAT
£46.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Downloads & Guides

Installation
Manual

The Scanstrut TILE Dual USB-C Charger is a compact, low-profile charging socket designed for motorhome, campervan, caravan and marine interiors. Featuring two USB-C ports, it provides fast charging for modern phones, tablets, laptops and other USB-C powered devices.

Designed for both 12V and 24V electrical systems, the TILE charger provides up to 36W on a 12V system and up to 60W on a 24V system. Both USB-C ports can be used simultaneously, making it a convenient charging point for two devices.

The ultra-low-profile design has a compact 43mm x 43mm black bezel and requires just a 29mm diameter cut-out, making it ideal for installation in furniture, walls and panels where space is limited. Its front-fit design also helps simplify installation.

The charger supports USB Power Delivery and Quick Charge protocols, while conformal-coated electronics provide additional protection against moisture, vibration and humidity.

We also sell the Scanstrut TILE USB-A & USB-C Charger, providing a choice between dual USB-C charging or a combination of traditional USB-A and USB-C connections.

Please note: Scanstrut TILE chargers are designed for interior use only and should not be installed where they may be directly exposed to water.

Features

  • Dual USB-C charging ports
  • Suitable for 12V and 24V systems
  • Up to 36W output on 12V
  • Up to 60W output on 24V
  • Fast charge up to two devices simultaneously
  • Ultra-low-profile compact design
  • Requires just a 29mm installation cut-out
  • Conformal-coated electronics for additional protection

Technical Specifications

  • Input voltage: 10–32V DC
  • System voltage: 12V / 24V
  • Charging ports: 2 x USB-C
  • Maximum input current: 6A
  • Recommended fuse: 10A
  • Maximum output on 12V: 36W
  • Maximum output on 24V: 60W
  • 12V USB-C output: 5V / 9V / 12V at up to 3A
  • 24V USB-C output: 5V / 9V / 12V / 15V / 20V at up to 3A
  • Charging protocols: PD 3 / QC 4
  • Standby draw: Less than 0.1W
  • Cut-out: 29mm diameter
  • Black bezel dimensions: 43mm x 43mm
  • Barrel diameter: 28mm
  • Flying lead: Approx. 150mm
  • Cable: 18AWG
  • Certification: CE, FCC, UKCA, C-Tick, RoHS, WEEE and UN ECE R10
View full details

Frequently Asked Questions

Yes. It accepts a 10–32V DC input, making it suitable for both 12V and 24V motorhome, campervan, caravan and marine electrical systems.

It provides up to 36W on a 12V system and up to 60W on a 24V system. A 24V supply is required to achieve the full 60W output suitable for fast charging many USB-C laptops.

Yes. The two USB-C ports can charge two compatible devices simultaneously, making it useful for charging phones, tablets and other USB-C equipment together.

Yes. It supports PD 3 and QC 4 fast-charging protocols, allowing compatible USB-C devices to negotiate the appropriate charging voltage and power.

Installation requires a 29mm diameter cut-out. The black version has a compact 43mm x 43mm bezel, making it particularly suitable where installation space is limited.
