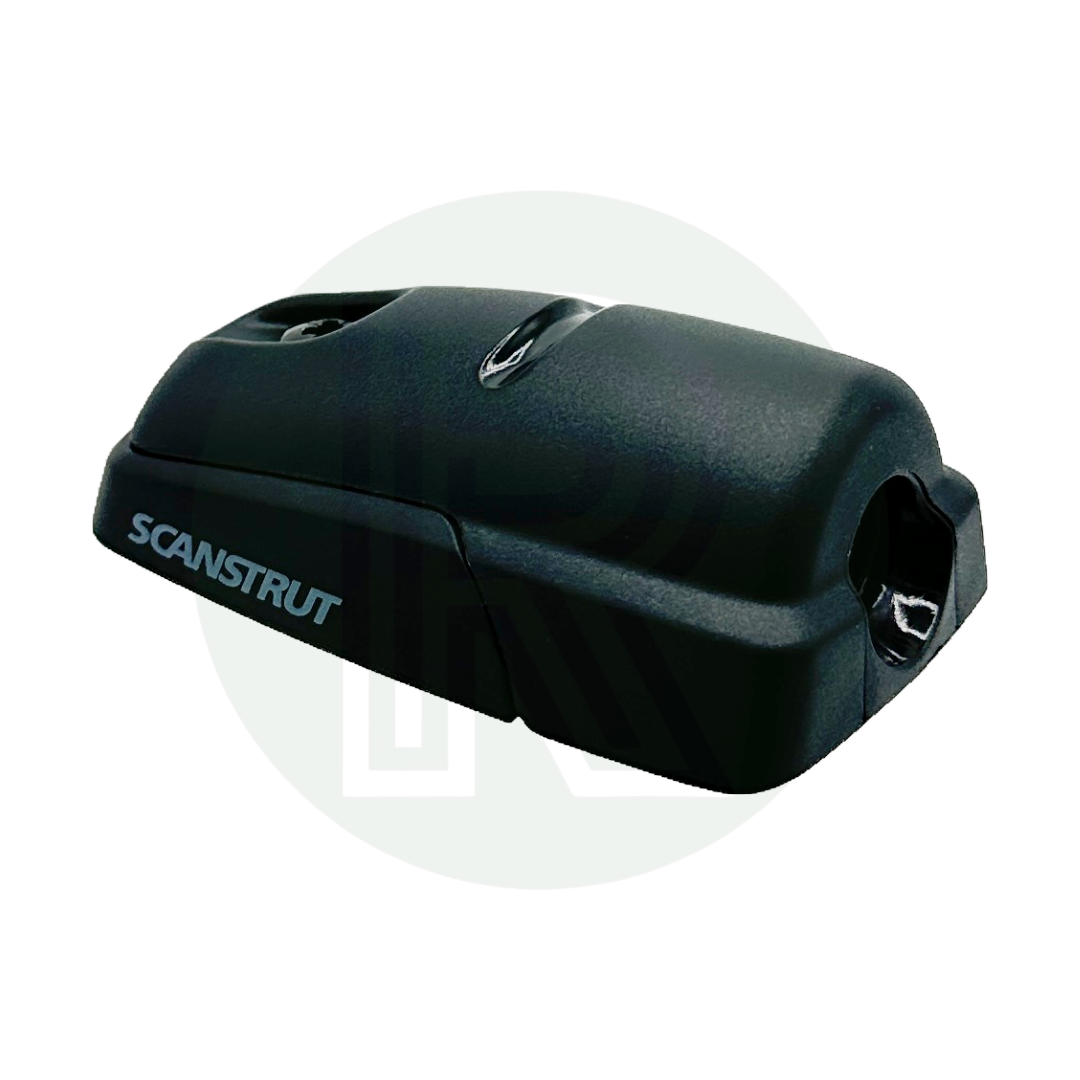

• Angled view of cable seal with cable entry point, designed for watertight cable routing.

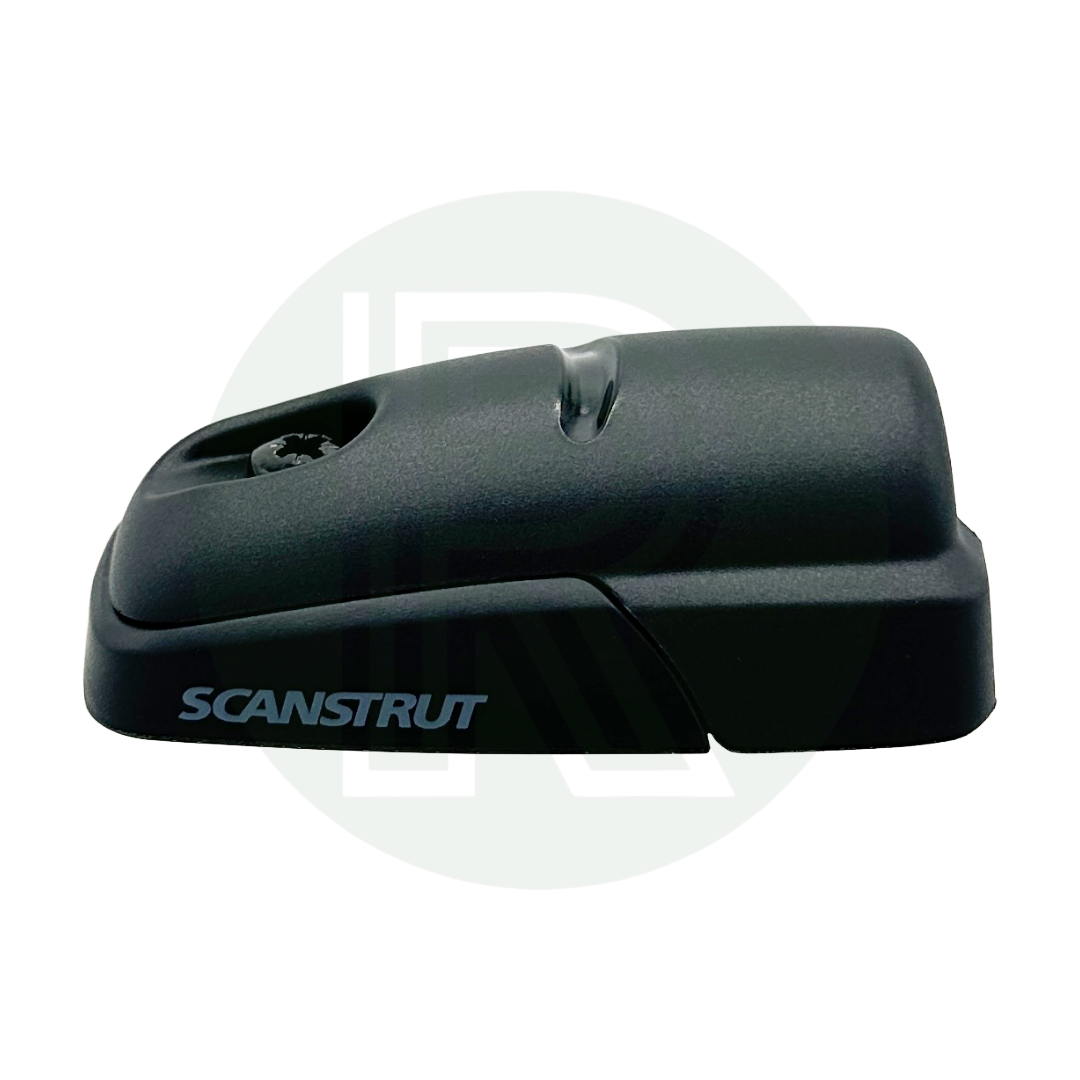

  • Side view of Scanstrut cable seal housing in black, showing low-profile waterproof design.

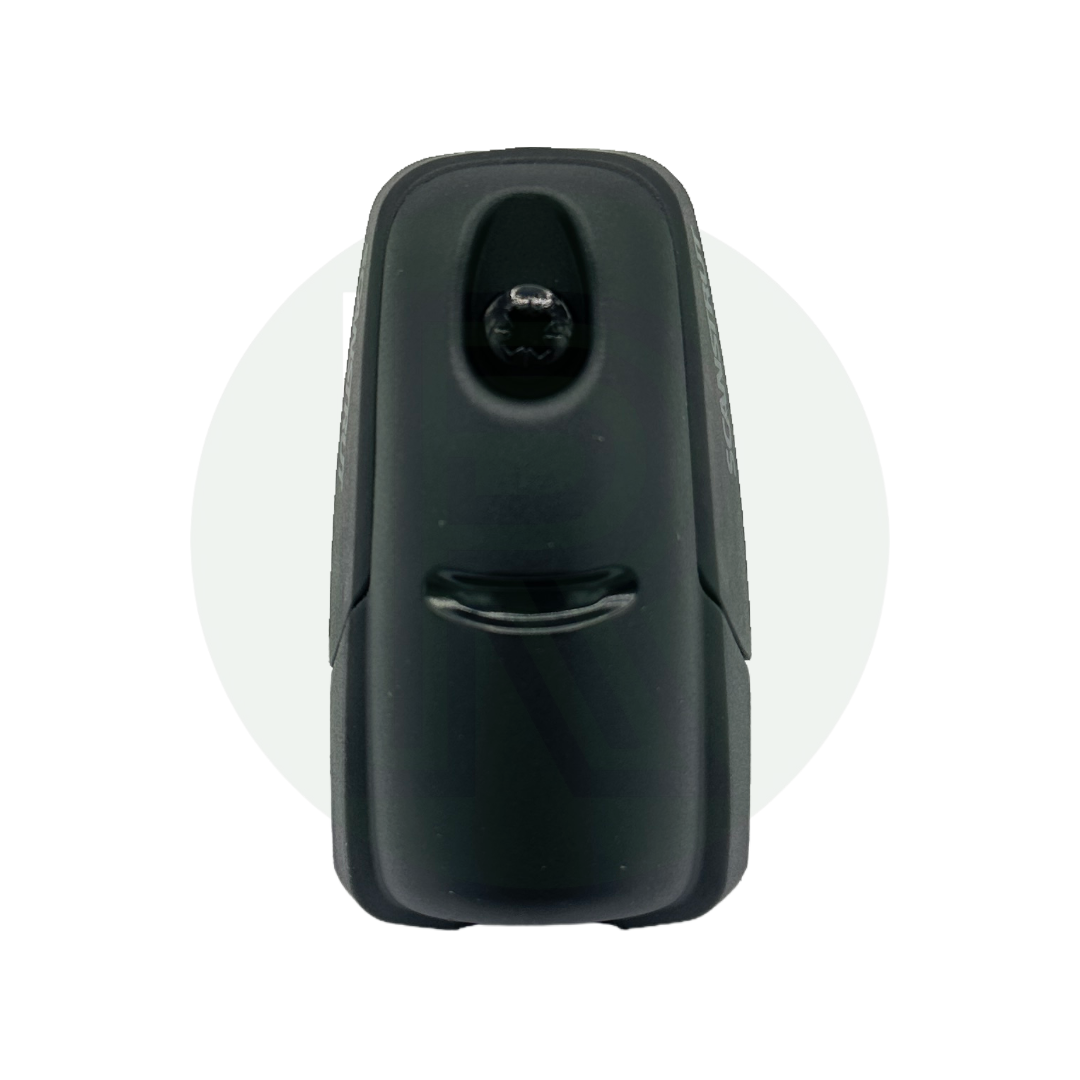

  • Top view of cable seal showing central fastening screw and curved sealing channel.

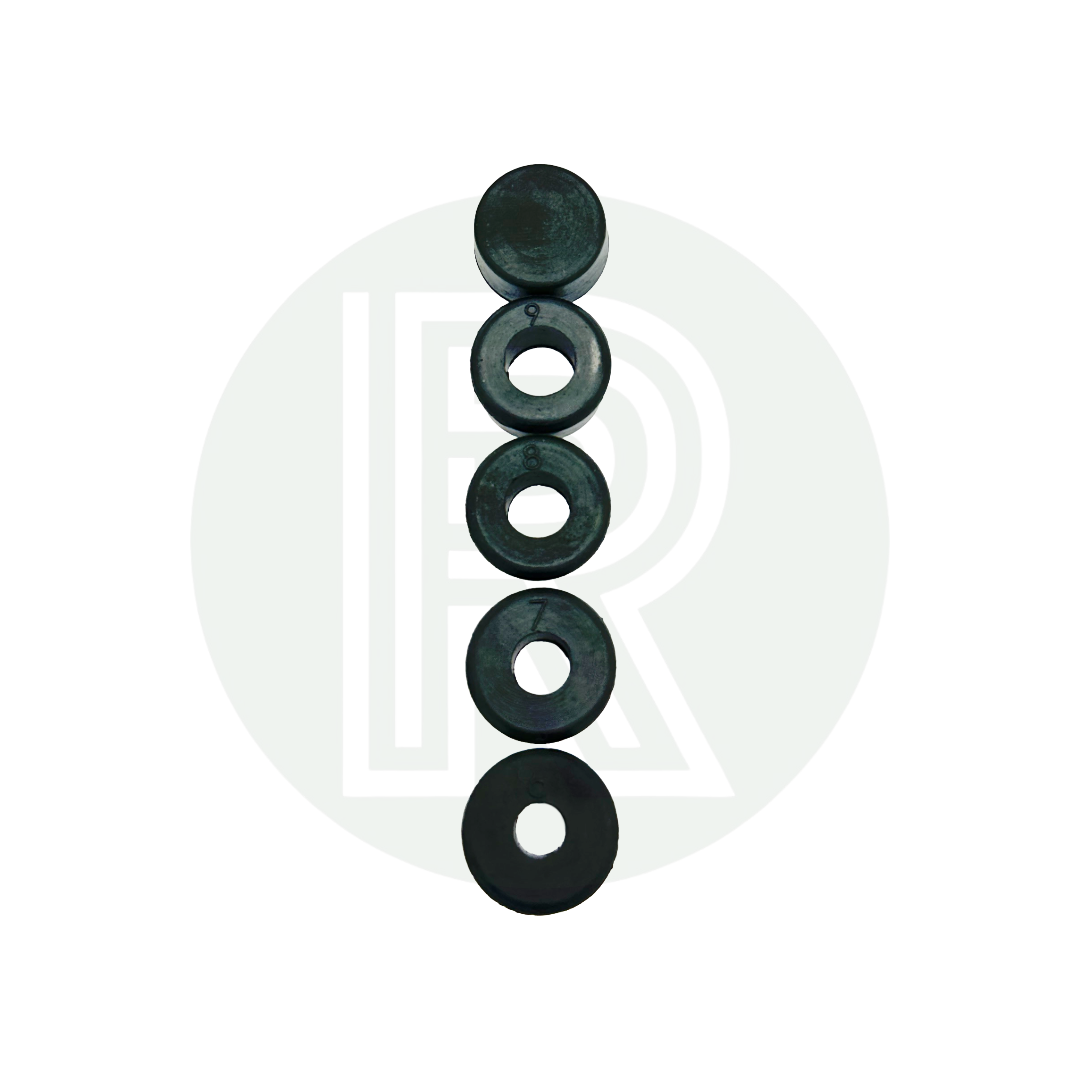

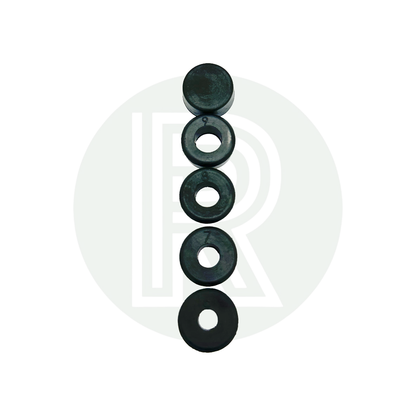

  • Set of rubber cable seal inserts in multiple sizes, each labeled for different cable diameters.

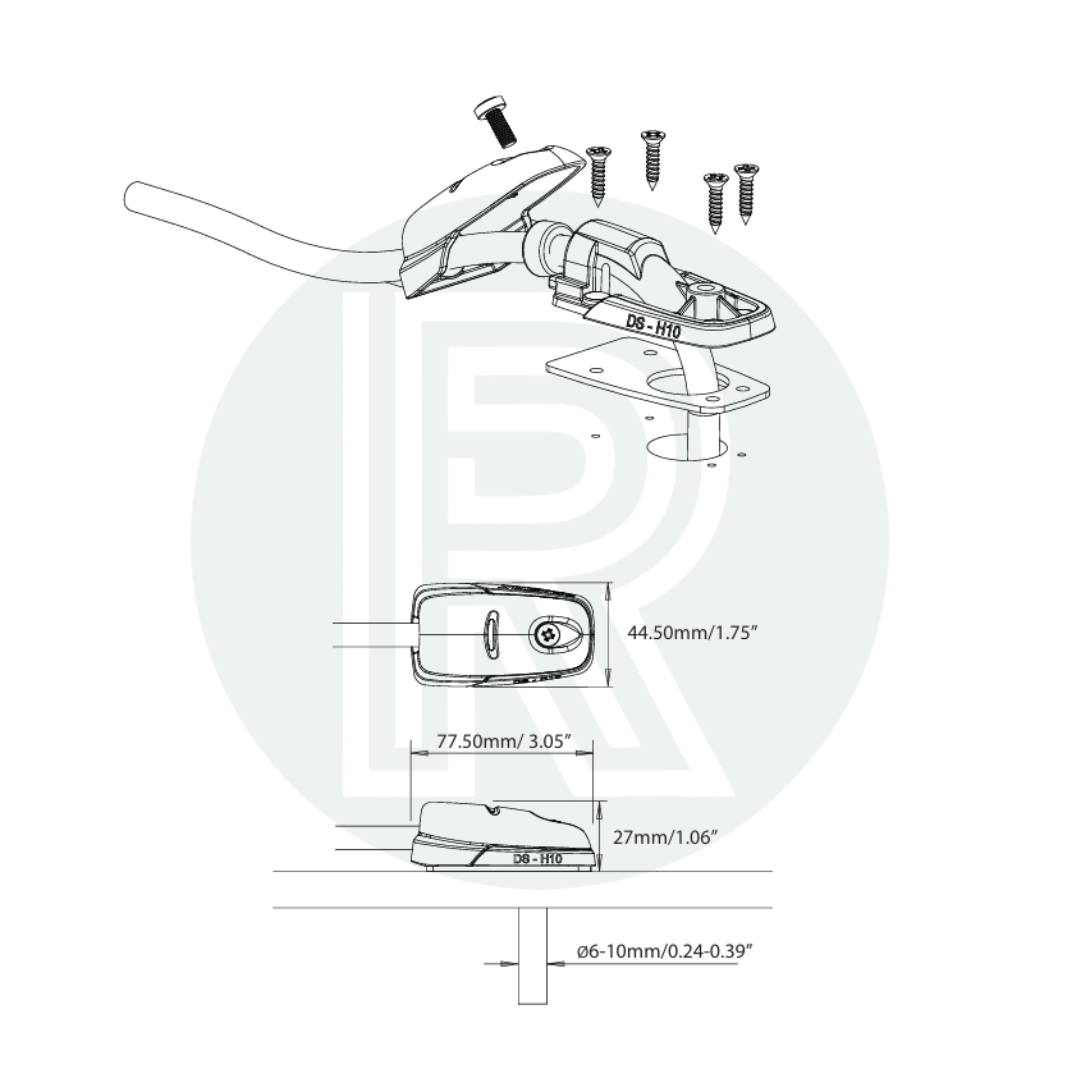

  • Technical drawing of Scanstrut cable seal showing installation method, mounting screws, and dimensions.
1 5

Scanstrut Single Cable Solar Entry Gland - 6–10mm - Black

Scanstrut Single Cable Solar Entry Gland - 6–10mm - Black

£23.95 inc. VAT
£23.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Downloads & Guides

Installation
Manual Fitting
Template

The Scanstrut Single Cable Solar Entry Gland provides a neat and watertight way to route a single electrical cable through the roof or exterior panel of a motorhome, campervan, caravan or boat.

Designed for cables between 6mm and 10mm in diameter, it is particularly suitable for solar panel installations, as well as light bars, aerials and other exterior electrical equipment.

The horizontal design allows the cable to enter from the side, creating a compact, low-profile installation. Scanstrut supplies 6mm, 7mm, 8mm, 9mm and 10mm pre-drilled sealing bungs, plus a self-drill blank bung, allowing the seal to be matched closely to the diameter of your cable.

The gland is manufactured from UV-stable, hard-wearing and impact-resistant materials, making it suitable for exposed exterior installations. A supplied gasket helps create a watertight seal between the gland and mounting surface.

For solar installations using separate positive and negative cables, we also sell Scanstrut Double Cable Solar Entry Glands, allowing two cables to pass through a single gland.

Features

  • Designed for a single 6–10mm cable
  • Ideal for motorhome and campervan solar installations
  • Low-profile horizontal cable entry
  • Supplied with 6–10mm pre-drilled bungs
  • Self-drill blank bung also included
  • UV-stable and impact-resistant construction
  • Designed for a watertight exterior installation

Technical Specifications

  • Cable capacity: 1 cable
  • Cable diameter: 6–10mm
  • Cable entry: Horizontal
  • Colour: Black
  • Overall length: 77.5mm
  • Overall width: 44.5mm
  • Height: 27mm
  • Cable entry hole: 25mm
  • Pre-drilled bungs: 6mm, 7mm, 8mm, 9mm and 10mm
  • Self-drill blank bung: Included
  • Gasket: Included
  • Application: Solar and exterior electrical cable entry



View full details

Frequently Asked Questions

This version is designed for one cable between 6mm and 10mm in outside diameter, making it suitable for a wide range of solar and exterior electrical cables.

Yes. Scanstrut specifically identifies these cable seals as suitable for solar panels and other exterior electronics, making it ideal for routing a solar cable through a motorhome, campervan or caravan roof.

The gland includes 6mm, 7mm, 8mm, 9mm and 10mm pre-drilled bungs, together with a self-drill blank bung for installations requiring a custom cable opening.

Installation requires a 25mm diameter cable entry hole through the mounting surface.

The gland measures approximately 77.5mm long x 44.5mm wide x 27mm high, providing a compact and low-profile exterior cable entry.

Yes. It can be used for other suitable 6–10mm electrical cables, including those for light bars, aerials and other exterior equipment.
