iMass Instantaneous LPG/Gas Water Heater

iMass Instantaneous LPG/Gas Water Heater

Regular price £635.00 inc. VAT
Regular price Sale price £635.00 inc. VAT
Sale Sold out
Shipping calculated at checkout.
Quantity

Downloads & Guides

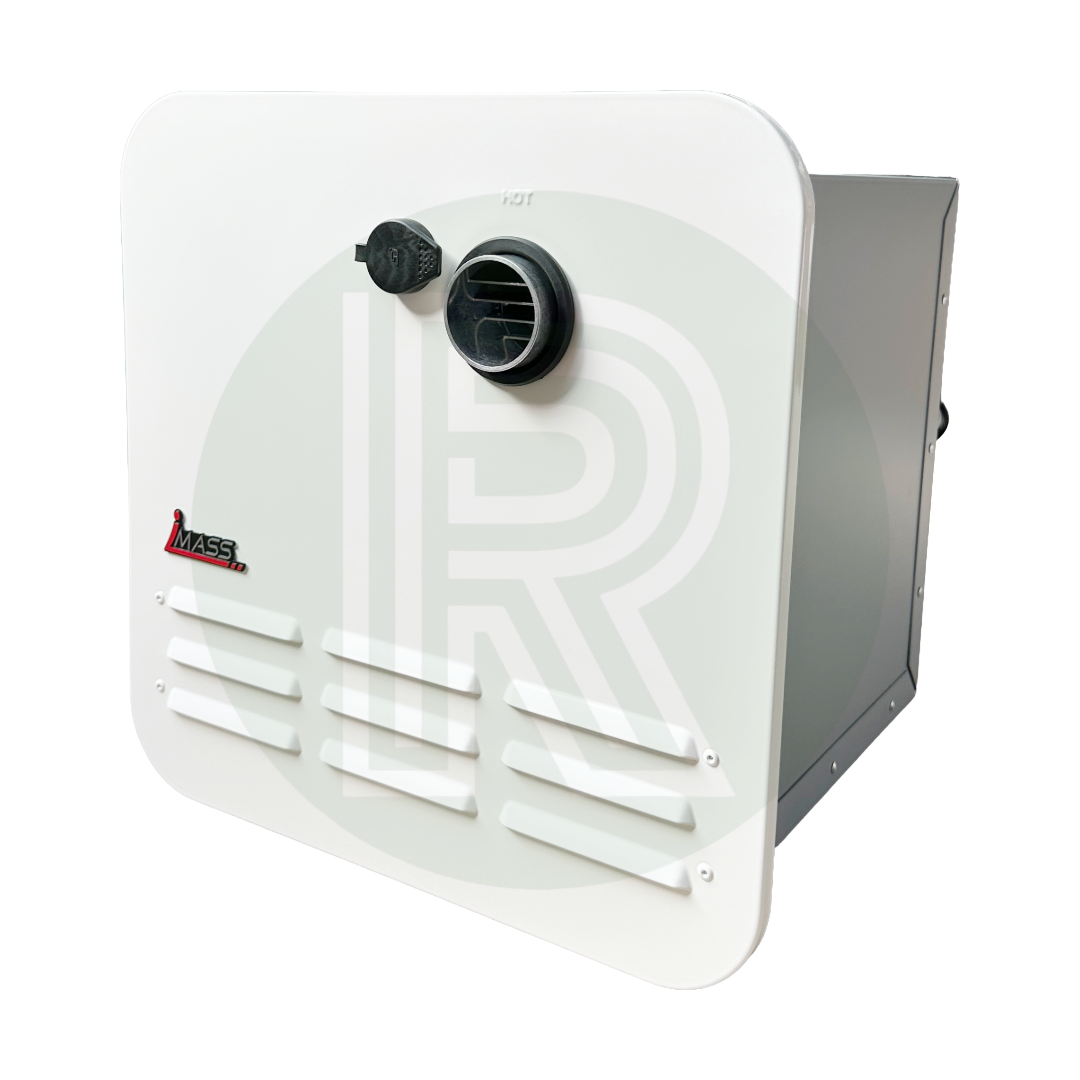

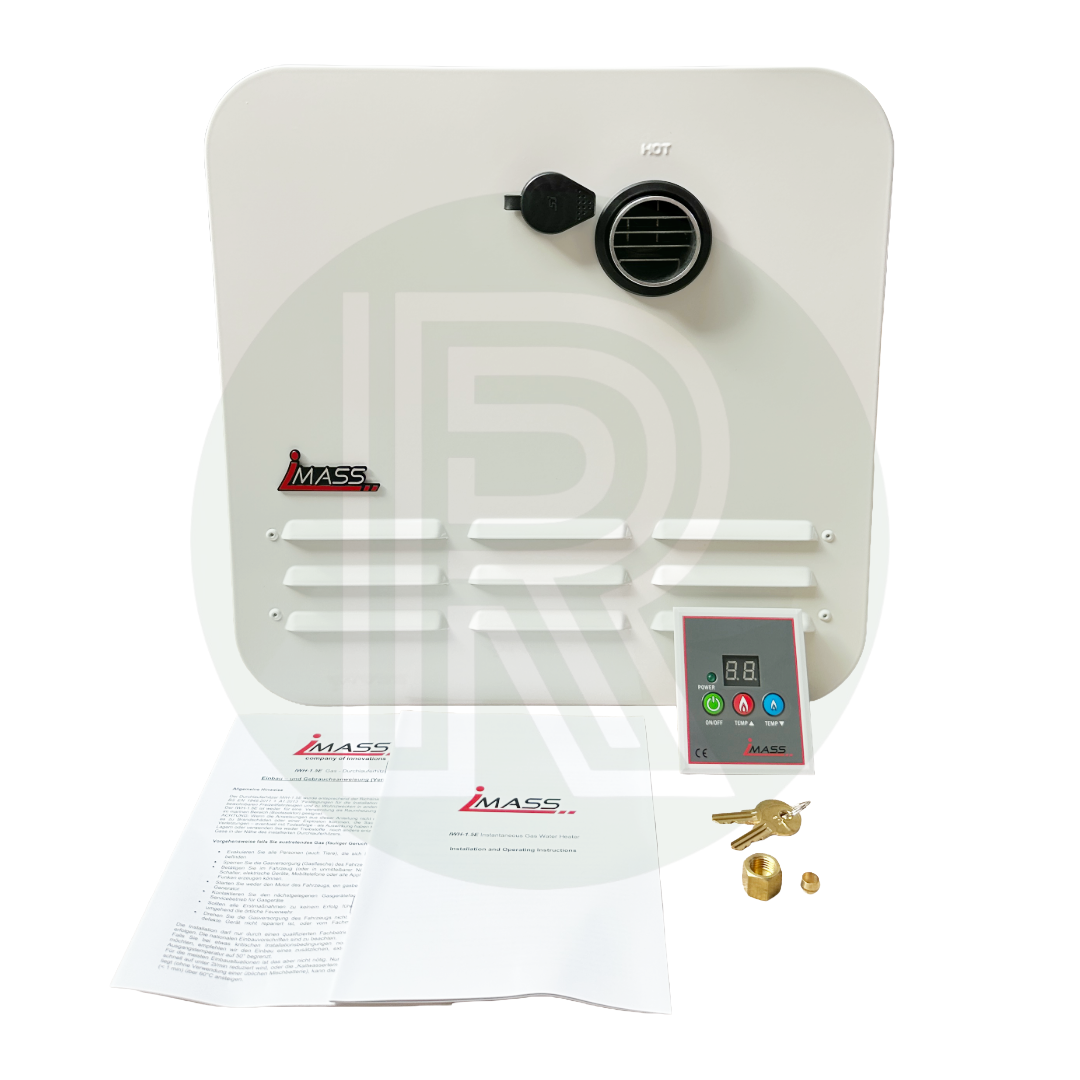

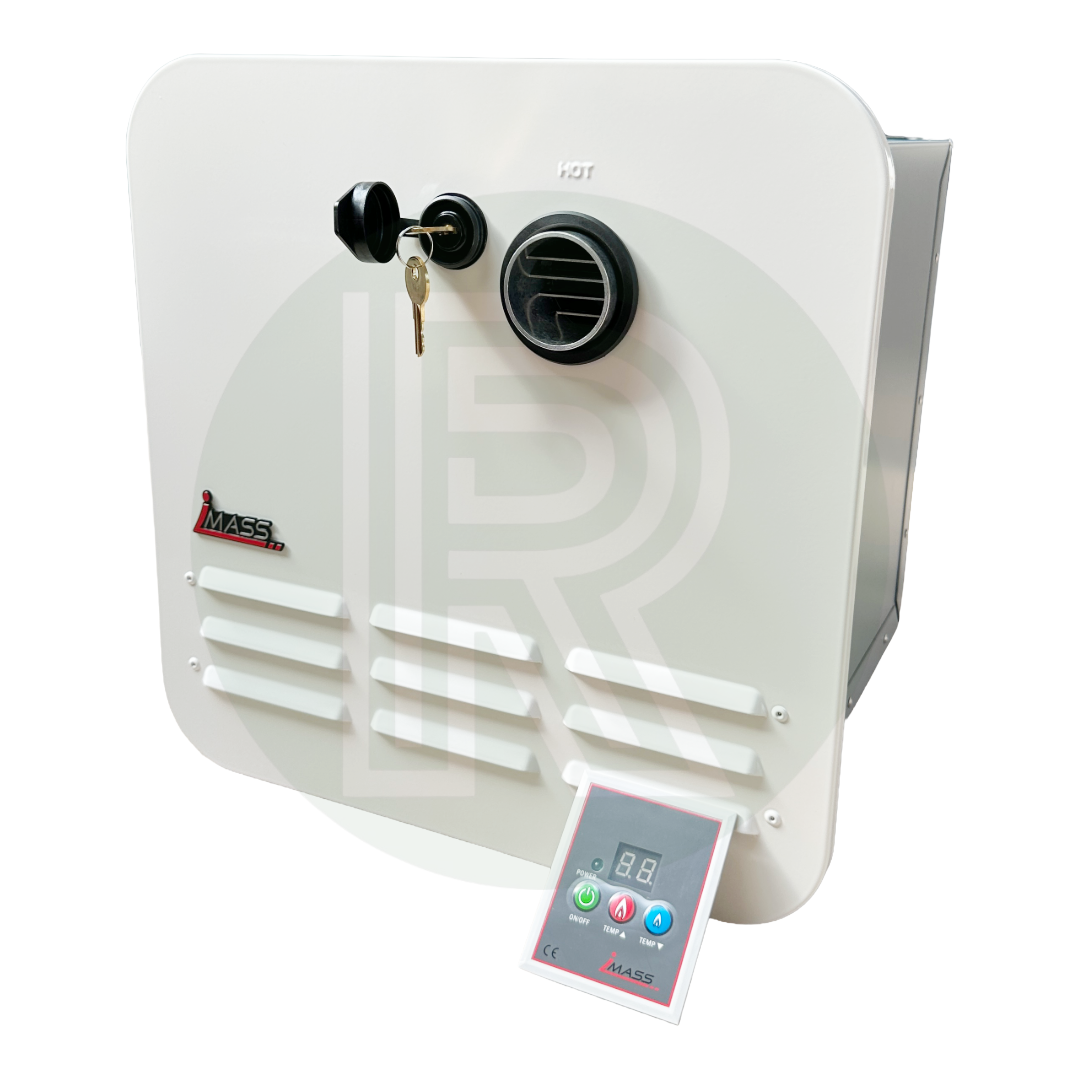

The iMass IWH-1.5 E Instantaneous LPG Gas Water Heater provides continuous hot water on demand for motorhomes, campervans, van conversions and horseboxes, without the need for a conventional hot water storage tank.

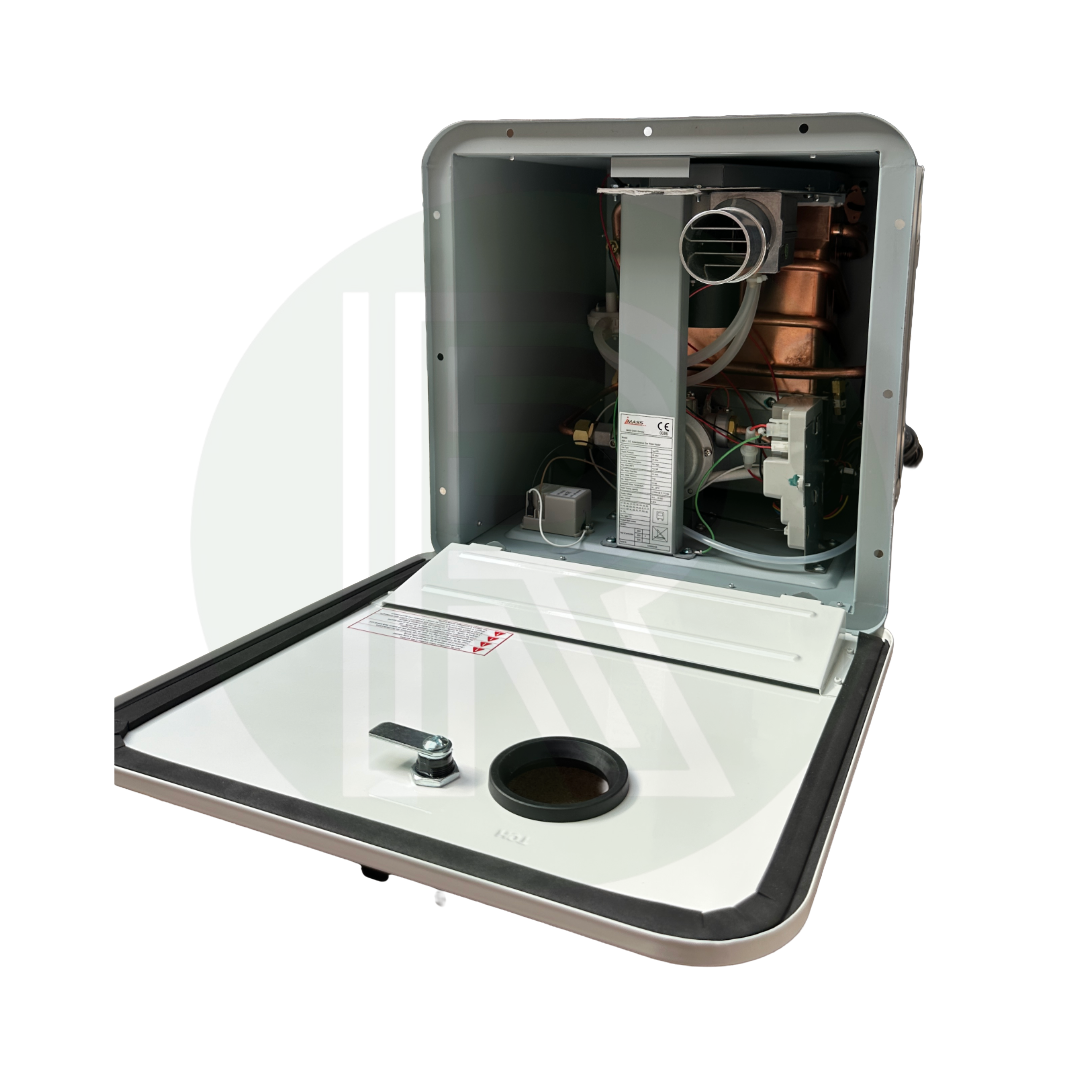

Using a high-efficiency copper heat exchanger and an electronically controlled modulating burner, the heater warms water as it passes through the unit. This eliminates the need to keep a tank of water heated and reduces unnecessary standby energy consumption.

Powered by LPG and a 12V DC electrical supply, the compact system delivers up to 10kW of heating output, with adjustable water temperatures between 35°C and 60°C using the digital control panel.

Ideal for showers, washing up and external shower points, the iMass offers a practical hot water solution for leisure vehicles where space, weight and energy efficiency are important.

Key Features

• Instantaneous hot water without a storage tank
• Continuous hot water supply while sufficient water, gas and power are available
• High-efficiency operation of up to 92%
• Electronically controlled modulating LPG burner
• Digital temperature adjustment from 35°C to 60°C
• Automatic activation when sufficient water flow is detected
• Copper heat exchanger for efficient heat transfer
• Low electrical consumption from a 12V DC supply
• No continuous standby water heating
• Compact design for space-limited installations
• Suitable for motorhomes, campervans and horseboxes
• Compatible with suitable internal and external shower installations

Technical Specifications

• Manufacturer: iMass
• Model: IWH-1.5 E
• Fuel Type: LPG – Propane (G31) / Butane (G30)
• Gas Supply Pressure: 30 mbar
• Maximum Burner Output: 10kW
• Minimum Burner Power: 5kW
• Maximum Gas Consumption: 765g/h
• Thermal Efficiency: Up to 92%
• Water Temperature Range: 35°C–60°C
• Typical Water Flow Rate: 5 litres per minute
• Temperature Rise at 3.3L/min: 37.7°C
• Maximum Water Pressure: 5.0 bar
• Startup Time: Less than 60 seconds (typically around 10 seconds)
• Typical Exhaust Temperature: Approximately 90°C

Electrical Specifications

• Supply Voltage: 12V DC
• Operating Voltage Range: 10.5–15V DC
• Current Consumption: 0.44A
• Operating Power Consumption: 5.28W

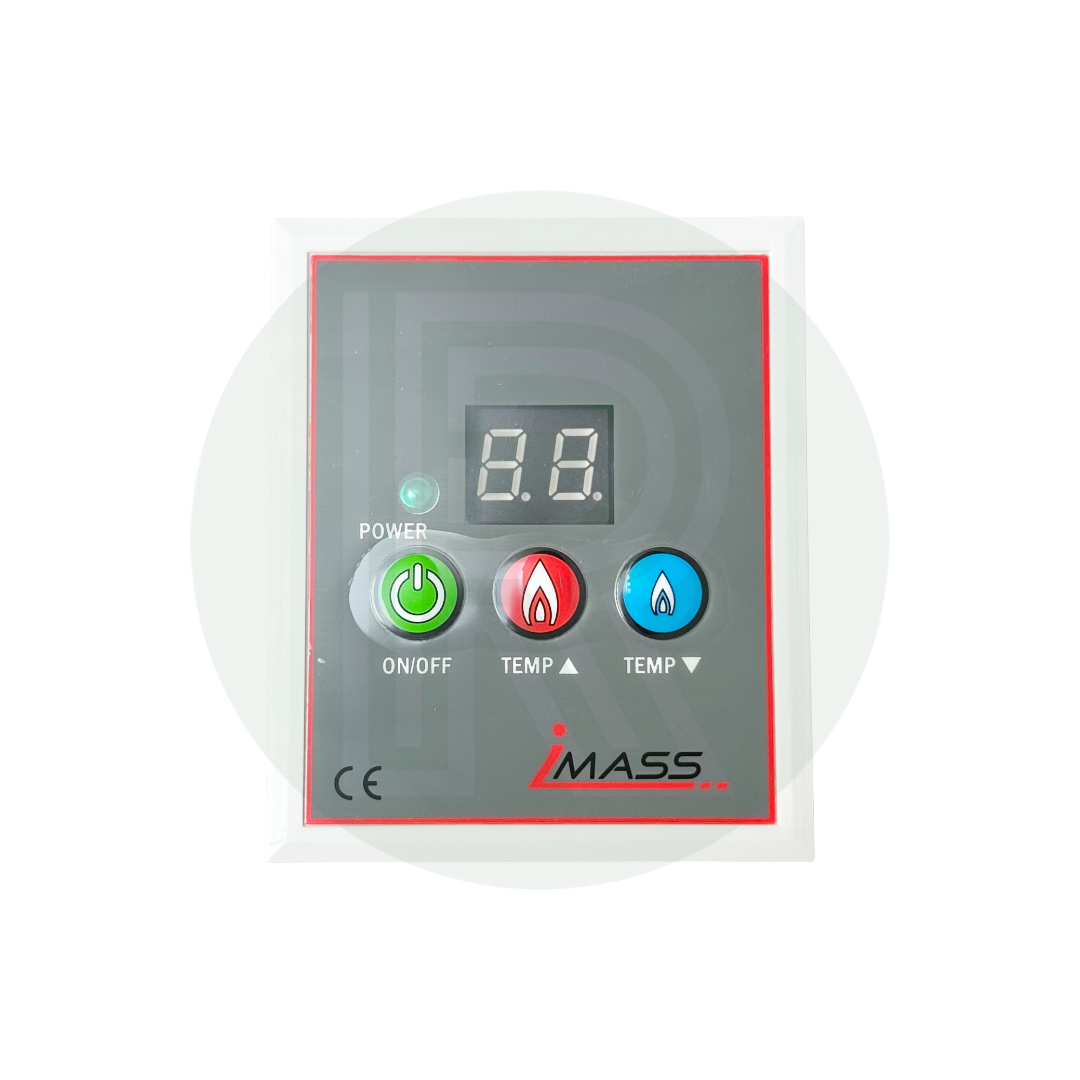

• Temperature Control: Digital remote control panel

Dimensions & Weight

• Weight: 12.1kg

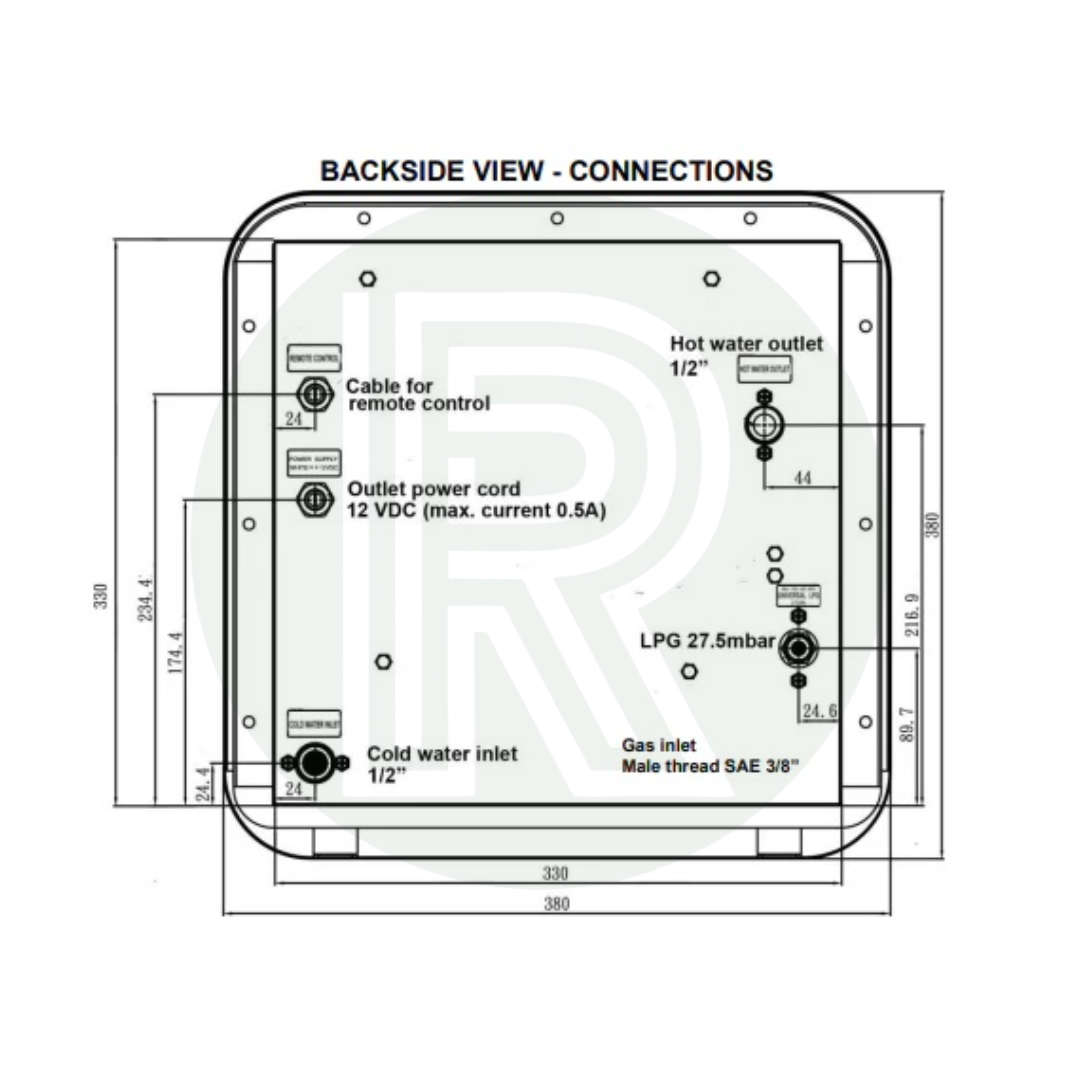

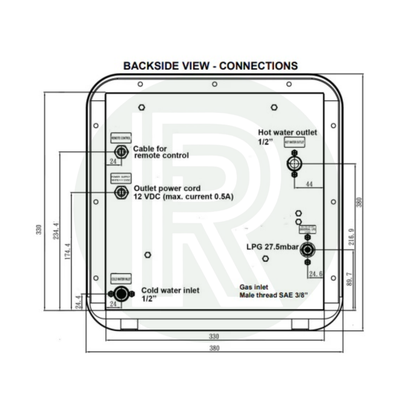

• External Panel Dimensions: 380mm × 380mm
• Required Wall Cut-Out: 330mm × 330mm

Installation Information

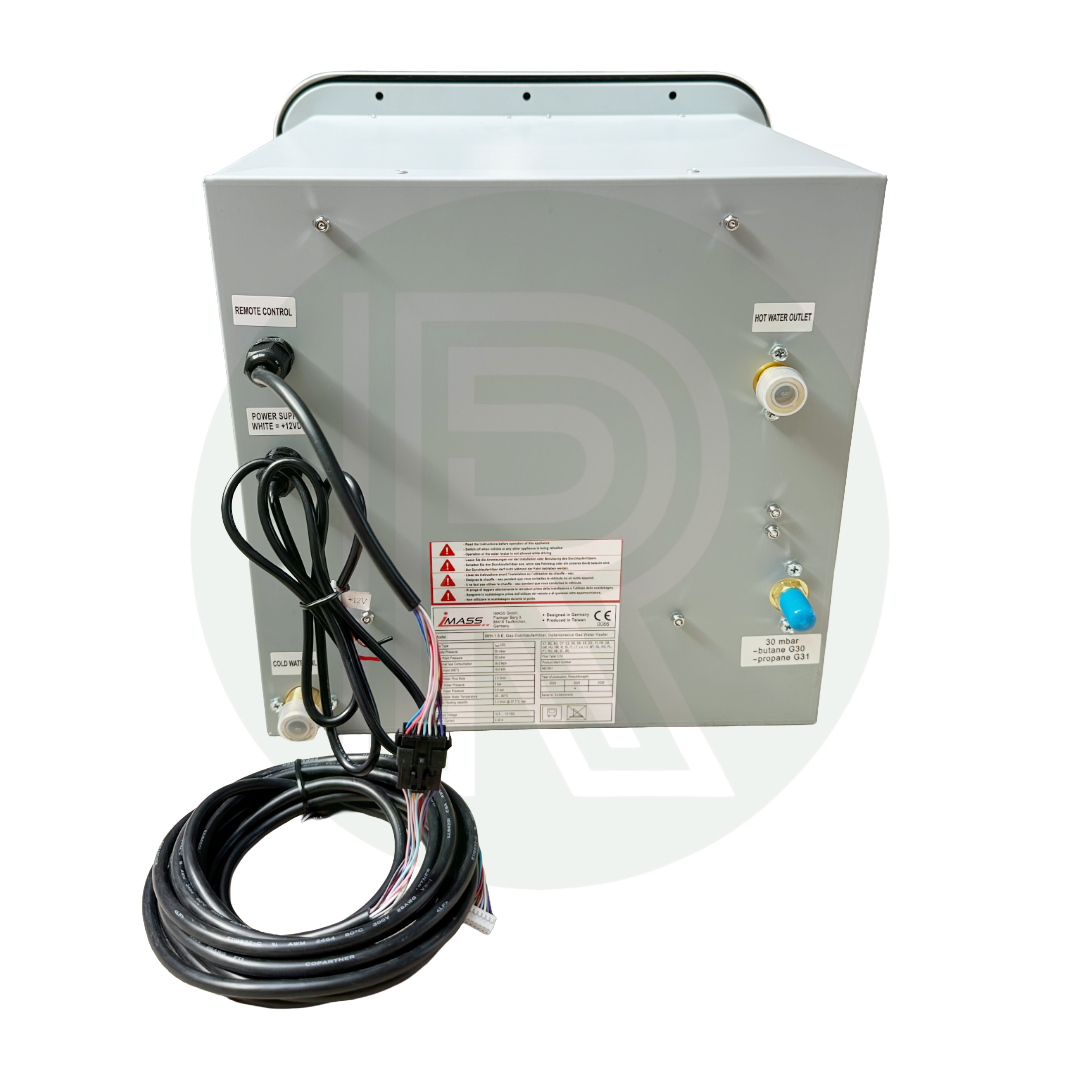

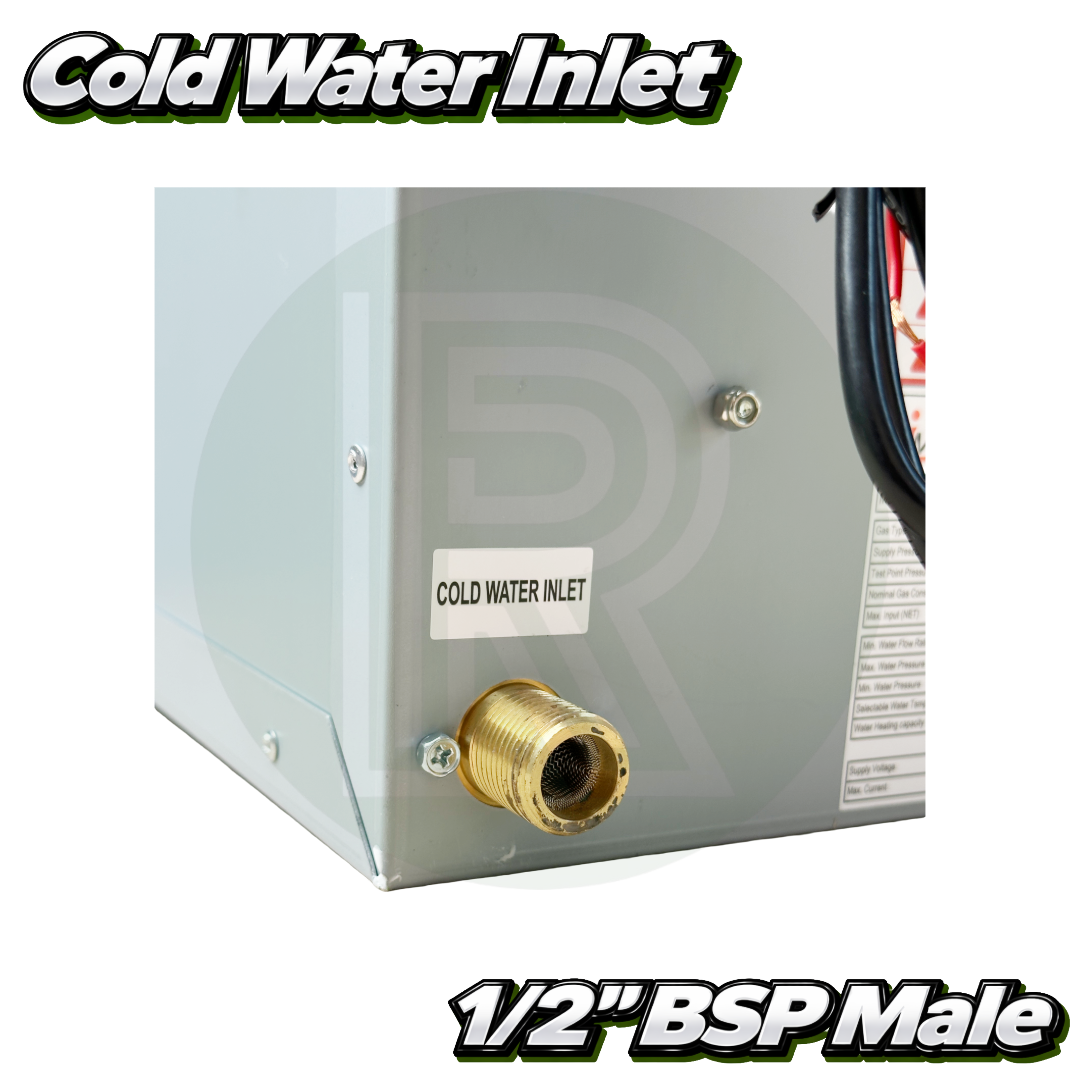

The iMass IWH-1.5 E requires a suitable LPG supply, 12V DC electrical connection and compatible pressurised freshwater system.

Installation must follow the manufacturer's instructions, including the specified wall opening, ventilation, exhaust arrangements and safety clearances.

Gas installation and commissioning must be carried out by a suitably qualified engineer competent in LPG leisure vehicle systems.

Important: Check the manufacturer's installation instructions for minimum water flow and pressure requirements, approved installation locations and any additional components required before purchasing.

View full details

Frequently Asked Questions

The heater automatically activates when sufficient water flow is detected. Cold water passes through a copper heat exchanger, where it is heated by an LPG burner before reaching the hot water outlet. Unlike a conventional boiler, there is no stored volume of hot water to heat in advance.

Yes, the heater is designed for continuous hot water production and can supply a compatible motorhome or campervan shower. The available shower flow and temperature depend on the incoming water temperature, water pressure and selected temperature setting.

At maximum burner output, gas consumption is approximately 765g per hour. During normal use, consumption will vary according to hot water demand and the amount of heating required. Because the burner operates only when hot water is needed, there is no gas consumption for maintaining a stored tank of hot water.

Yes, the iMass IWH-1.5 E operates from a 12V DC supply, so a 240V mains connection is not required. This makes it suitable for off-grid motorhomes and campervans with an appropriately sized leisure battery and electrical system.

The heater requires a compatible pressurised freshwater supply capable of maintaining sufficient flow and pressure to activate the burner. The maximum permitted water pressure is 5.0 bar. Check the manufacturer's minimum operating requirements before selecting a pump, as not all caravan water pumps will necessarily be suitable.

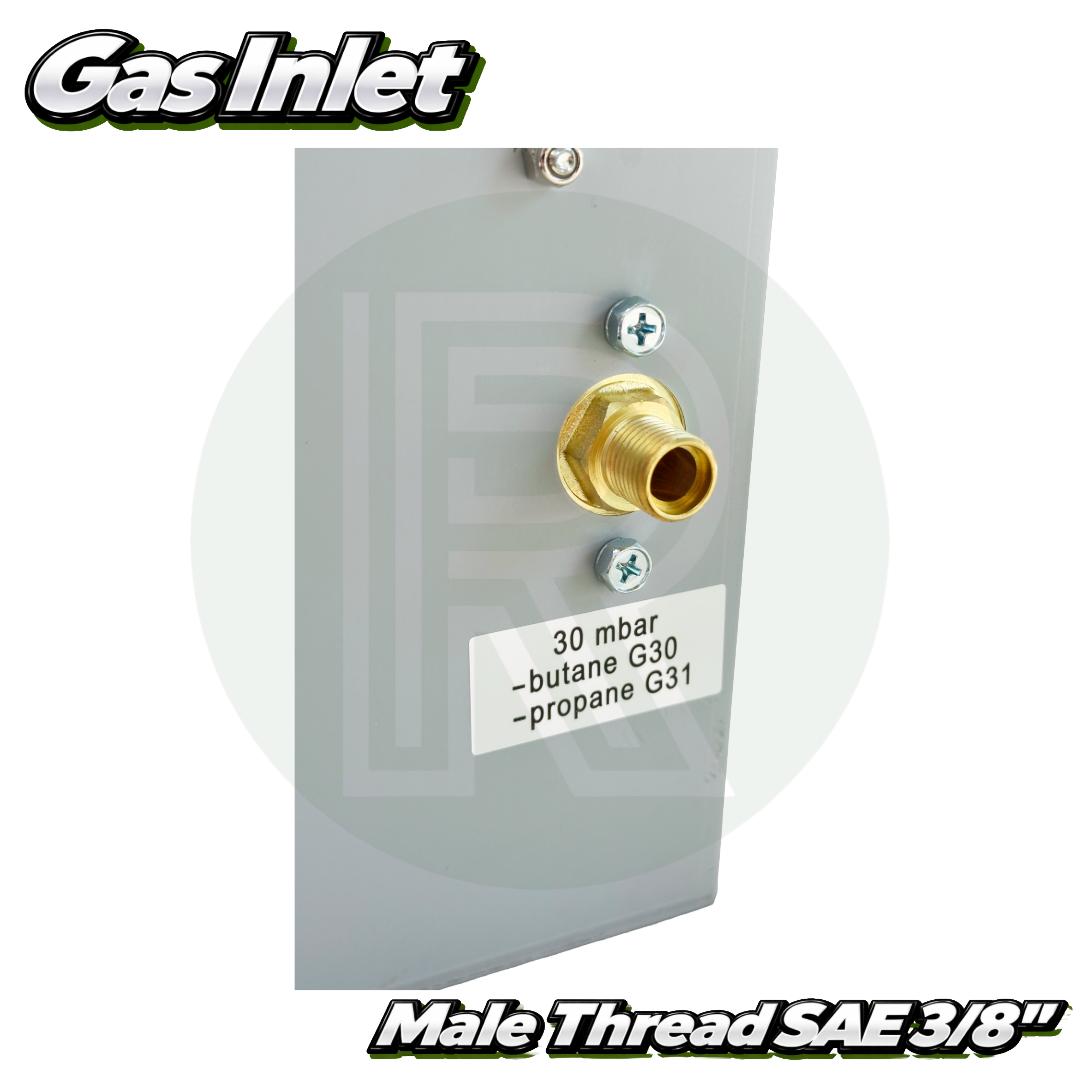

Yes, the heater is specified for propane (G31) and butane (G30) LPG supplies operating at 30 mbar. The correct gas regulator and installation arrangements must be used in accordance with the manufacturer's instructions.

A conventional motorhome boiler heats and stores a fixed quantity of water, which can run out during use and requires time to reheat. An instantaneous heater warms water as it flows through the system, avoiding storage capacity limitations. However, its heating performance is still limited by burner output, incoming water temperature and flow rate.

The heater requires a wall cut-out measuring 330mm × 330mm, with an external panel measuring 380mm × 380mm. The unit weighs approximately 12.1kg. Additional installation space and clearances must be allowed in accordance with the manufacturer's instructions.

Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
