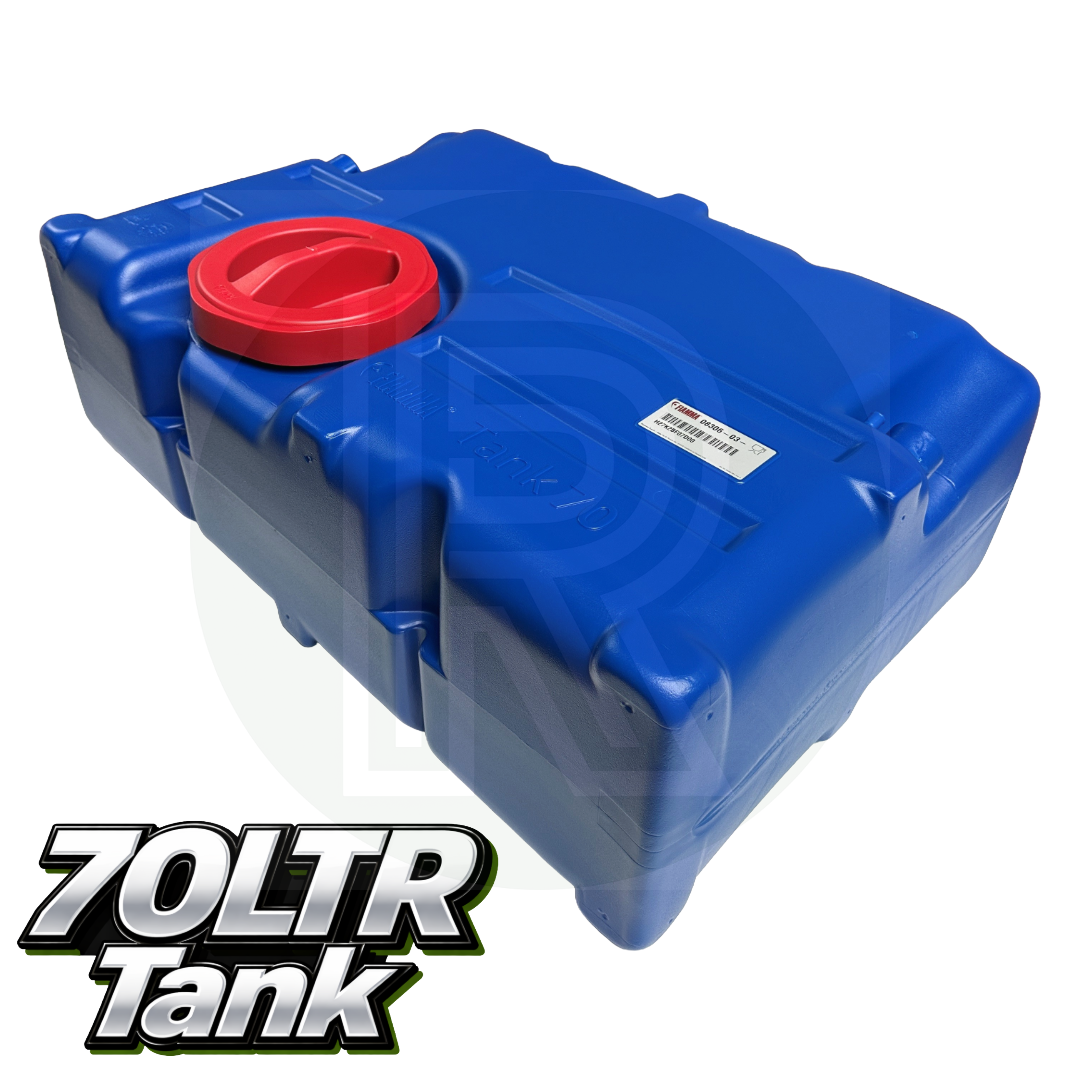

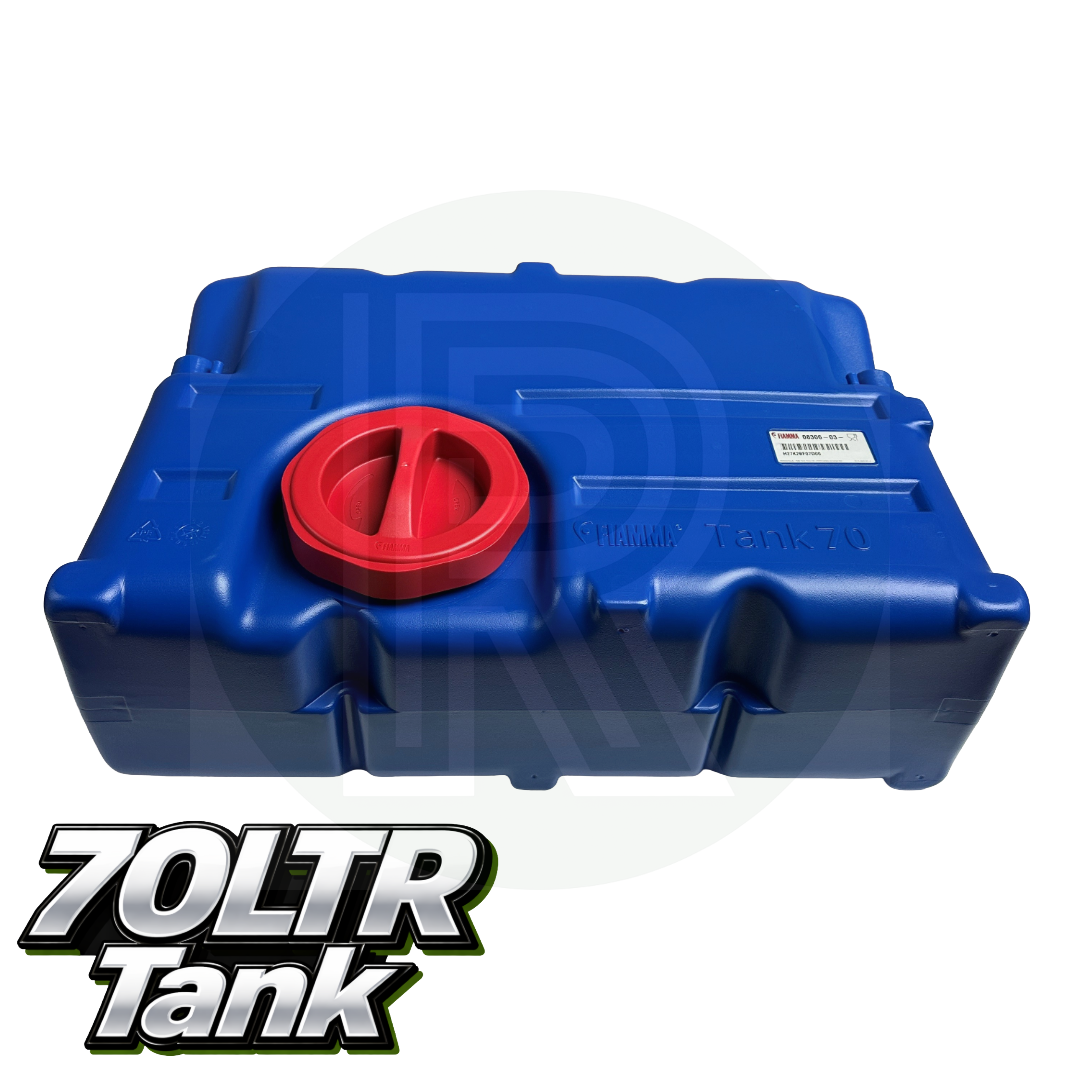

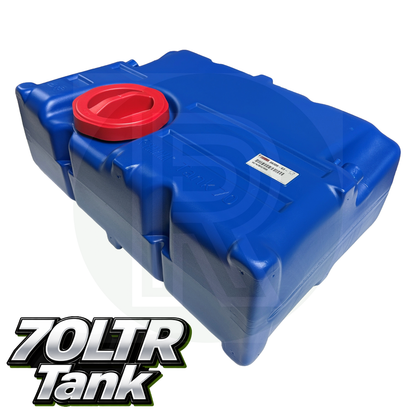

The Fiamma Tank 70 Flat Fresh Water Tank is a popular onboard water storage solution for campervans, motorhomes and van conversions, providing a large fresh water supply in a compact, low-profile tank.
Manufactured by Fiamma, the Tank 70 is produced from non-toxic material suitable for storing fresh water and features Fiamma's distinctive dark blue construction. The tank is KTW certified and is designed specifically for use within leisure vehicles.
Its relatively shallow 240 mm profile makes it particularly useful where installation height is limited. It can be installed horizontally on the floor or vertically against a suitable structure, allowing the tank to be incorporated beneath seating, beds, kitchen units or within other suitable internal storage areas.
A large removable watertight red access cap provides access to the inside of the tank, making installation, inspection and periodic cleaning considerably easier.
The tank incorporates multiple connection positions, allowing the installer to select a suitable outlet location for the particular water system layout.
Features
- Fiamma Tank 70 onboard fresh water tank
- Suitable for campervans, motorhomes and van conversions
- Low-profile rectangular design
- Can be installed horizontally or vertically
- Manufactured from non-toxic material
- Suitable for fresh water storage
- KTW certified
- Large watertight access cap
- Multiple connection positions for flexible plumbing layouts
- Suitable for use with pressure or submersible pump water systems
- Installation fittings supplied with the tank
- Dark blue finish
Technical Specifications
- Manufacturer: Fiamma
- Product: Tank 70
- Nominal product size: 70 litre
- Current Fiamma stated capacity: 65 litres
- Length: 710 mm
- Width: 470 mm
- Height: 240 mm
- Empty weight: approximately 4.4 kg
- Fresh water inlet: 38 mm
- Water outlet connection: approximately 13 mm
- Material: Non-toxic plastic
- Colour: Dark blue
- Installation: Horizontal or vertical
- Application: Onboard fresh water storage
- Certification: KTW certified
Installation
The Fiamma Tank 70 is designed primarily as an onboard fresh water tank and should be installed in a suitable internal location where it can be securely supported.
Its 240 mm height makes it particularly suitable for installation beneath seating, beds and other furniture where a taller water tank may not fit.
The tank can also be installed vertically where the vehicle layout makes this more practical.
The large access cap allows access to the inside of the tank when installing additional components such as water level sensors or when carrying out cleaning and maintenance.
Always measure the intended installation area carefully before ordering and allow additional clearance for the filler hose, breather, water outlet, pipework and access cap.
When full, the water contained within the tank will add approximately 65-70 kg to the vehicle depending on the actual fill level. The tank must therefore be securely mounted and adequately supported.
Share
Frequently Asked Questions

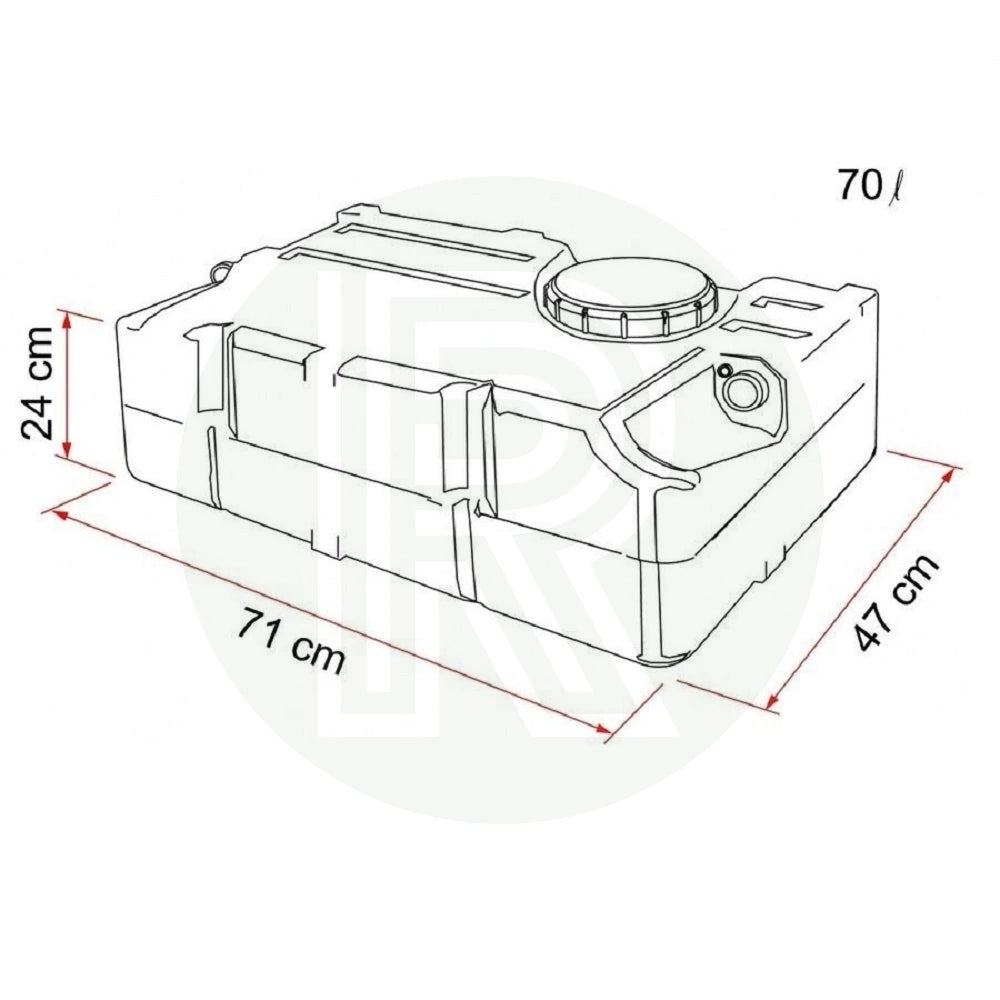

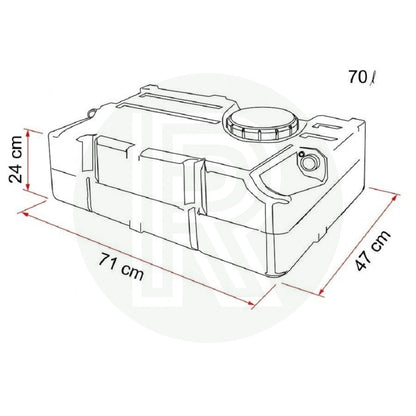

The tank measures approximately:
710 mm long x 470 mm wide x 240 mm high
Always check the available installation space before ordering and remember to allow additional room for fittings, hoses and access to the large inspection cap.
Yes. The tank is manufactured from non-toxic material for fresh water storage and Fiamma currently states that its fresh water tanks are KTW certified.
As with any onboard fresh water system, the tank and associated pipework should be cleaned and sanitised periodically.
The Fiamma Tank 70 is designed primarily as an onboard fresh water tank.
It is particularly well suited to installation beneath beds, seats, kitchen units and other suitable internal areas of a campervan or motorhome.
If you require a tank specifically for mounting underneath a vehicle, we recommend choosing one of our dedicated underslung water tanks instead.
Yes. One of the advantages of this tank is that it can be installed horizontally or vertically, depending on the available space and your water system layout.
The tank must be adequately supported and securely fixed in either orientation.

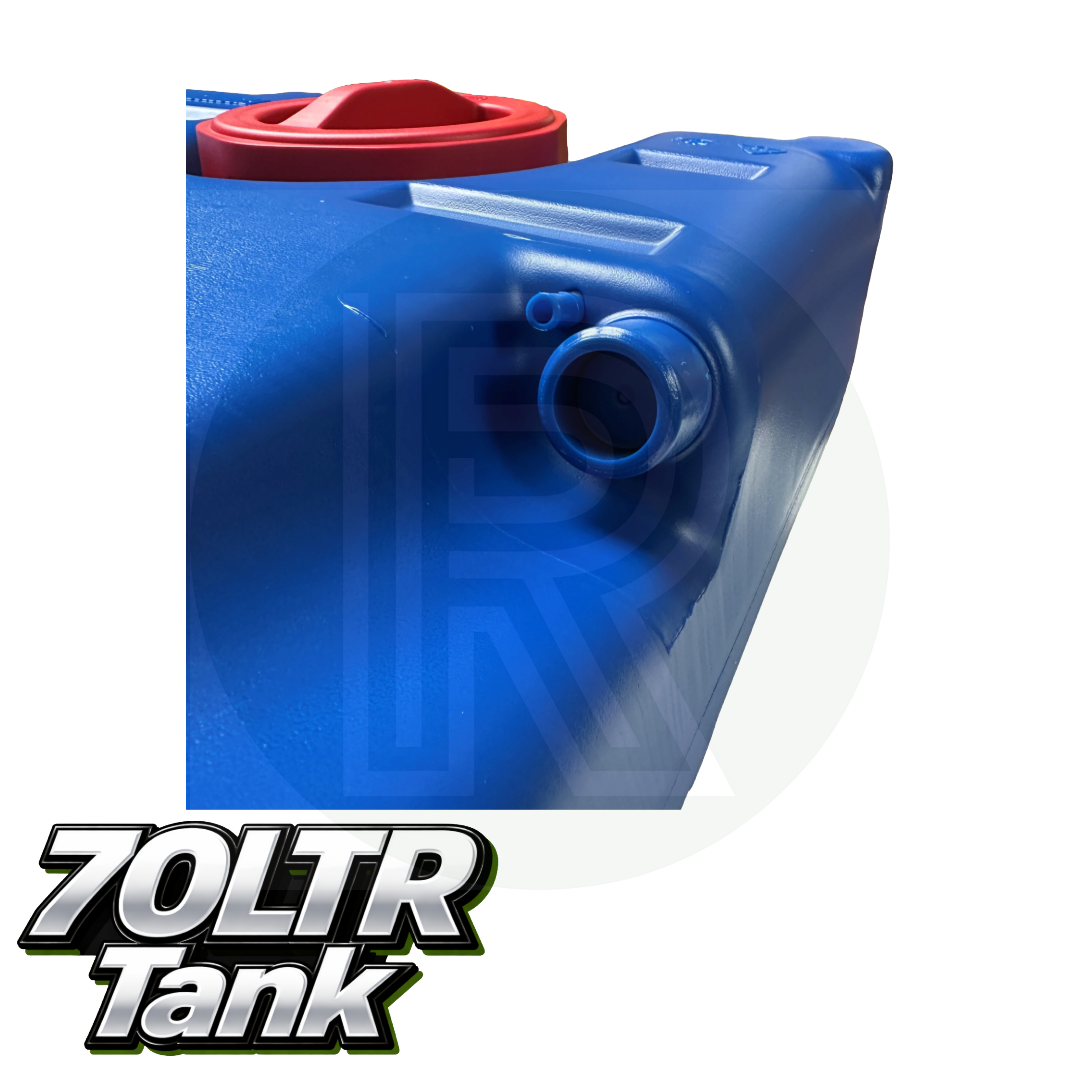

The main water inlet is approximately 38 mm diameter.
This is designed for connection to a suitable flexible fresh water filler hose and an external or internal water filler point.
The supplied outlet connections are approximately 13 mm, making them suitable for a conventional flexible hose installation.
If your campervan uses a 12 mm semi-rigid push-fit water system, an appropriate adaptor can be used between the tank outlet and the 12 mm pipework.
Yes. A fresh water tank requires a breather to allow displaced air to escape while filling and to allow air back into the tank as water is pumped out.
The breather should be routed appropriately as part of the installation and should not be blocked or sealed.

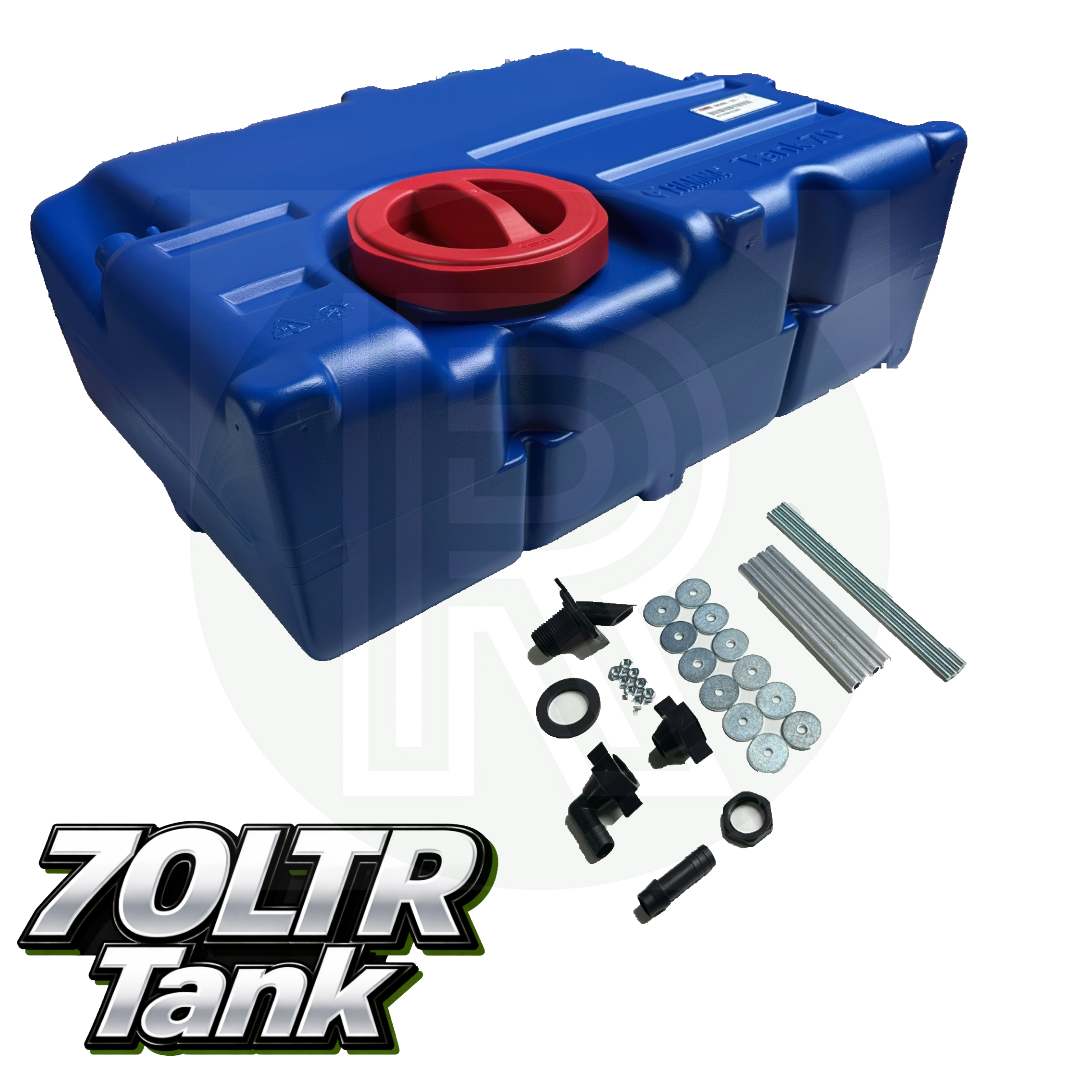

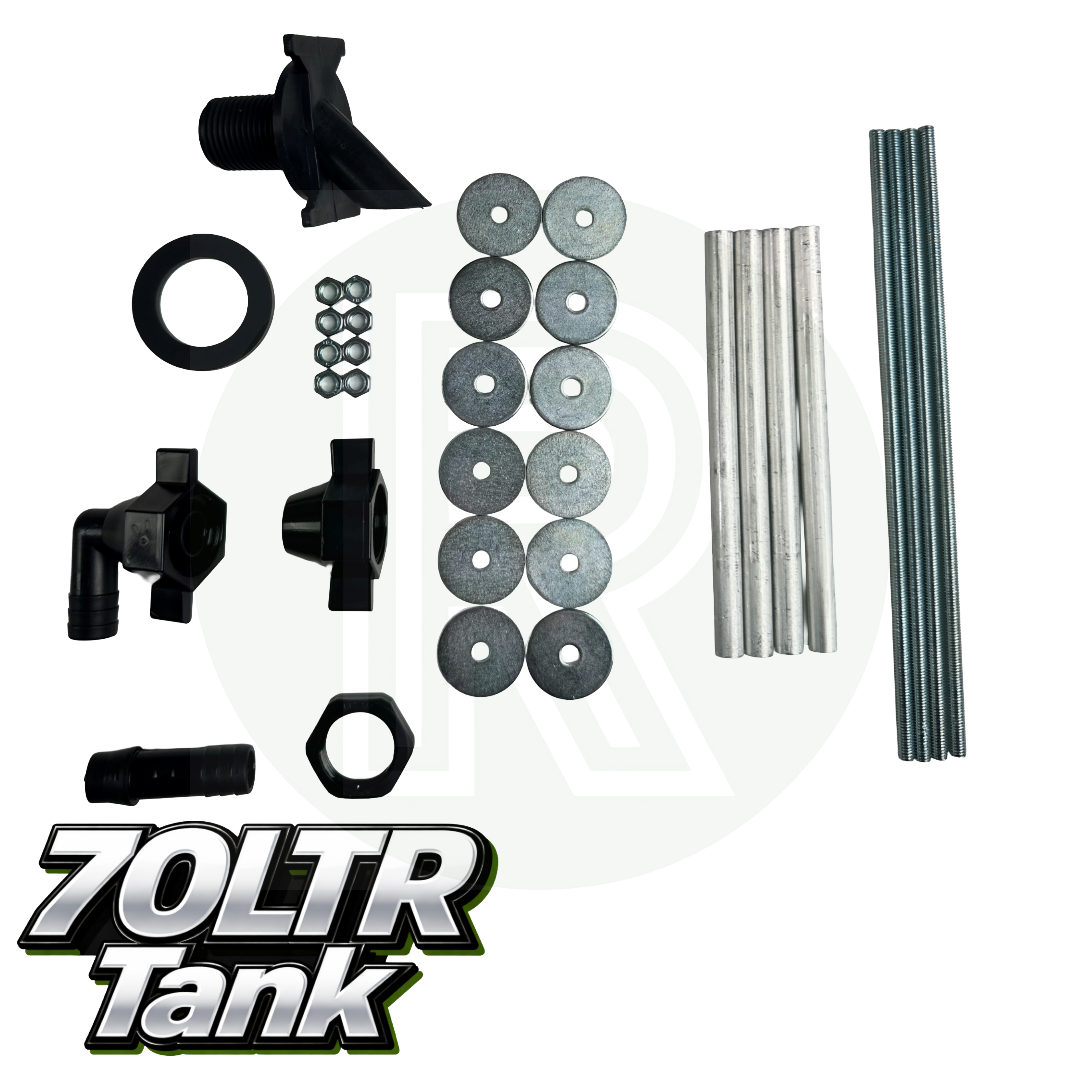

Yes. The Fiamma Tank 70 is supplied with fittings for installation.
The exact additional components required will depend on your water system. You may still require filler hose, breather hose, water pipe, clips, valves and adaptors depending on how the tank is being installed.
Yes. The tank is designed with mounting provisions and is supplied with fixing hardware.
The fixing method must be suitable for the installation location and capable of safely restraining the tank when full, particularly in a moving vehicle.
No. The Fiamma Tank 70 is a universal onboard water tank.
It can be installed in many different campervans, motorhomes and self-build conversions provided there is sufficient space and a suitable structure for securely mounting the tank.
