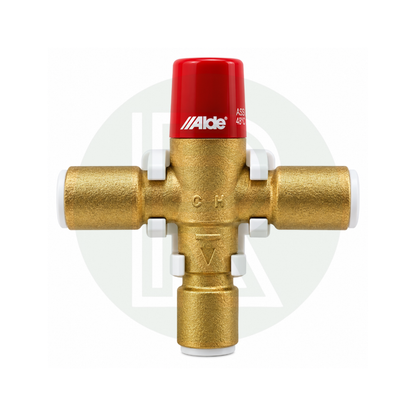

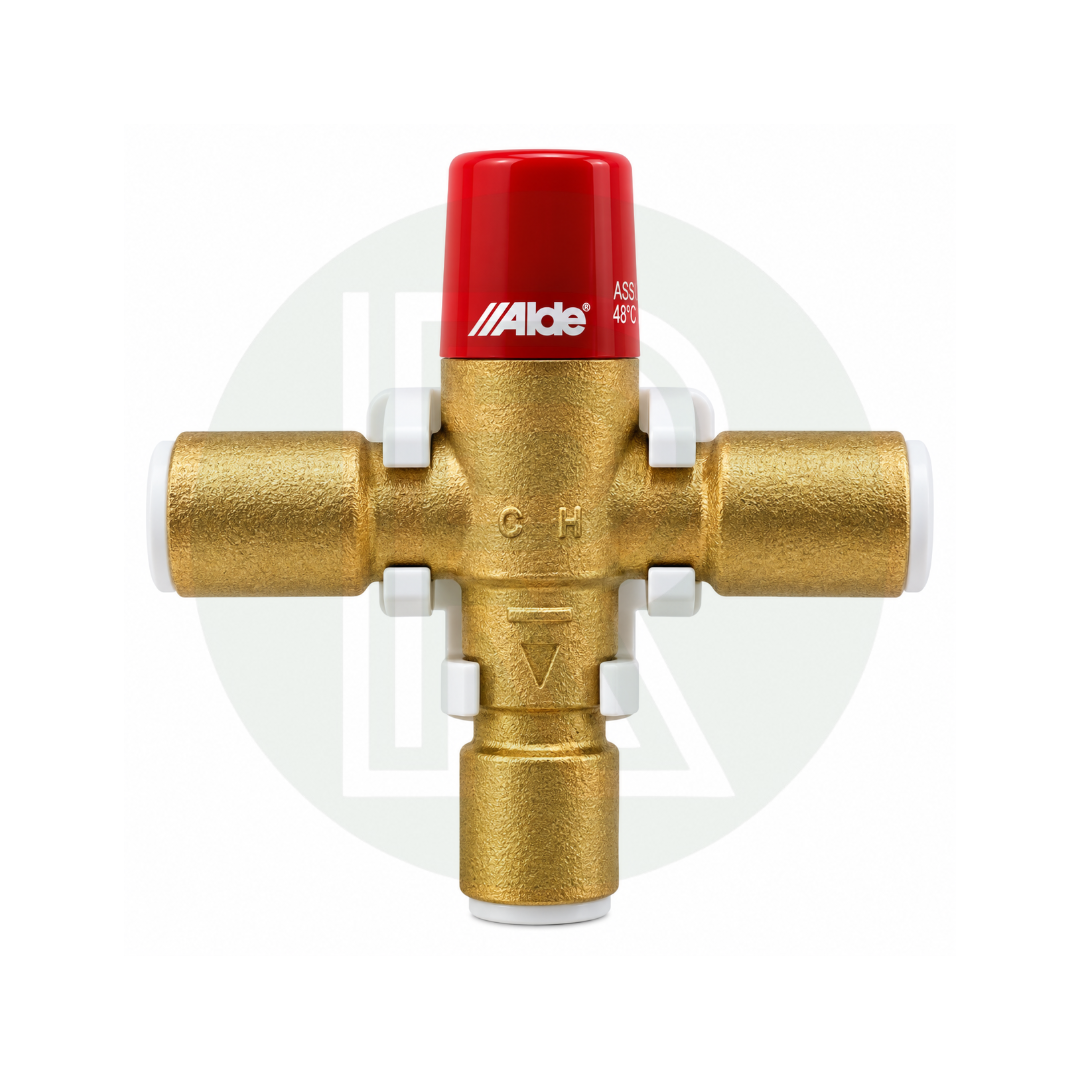

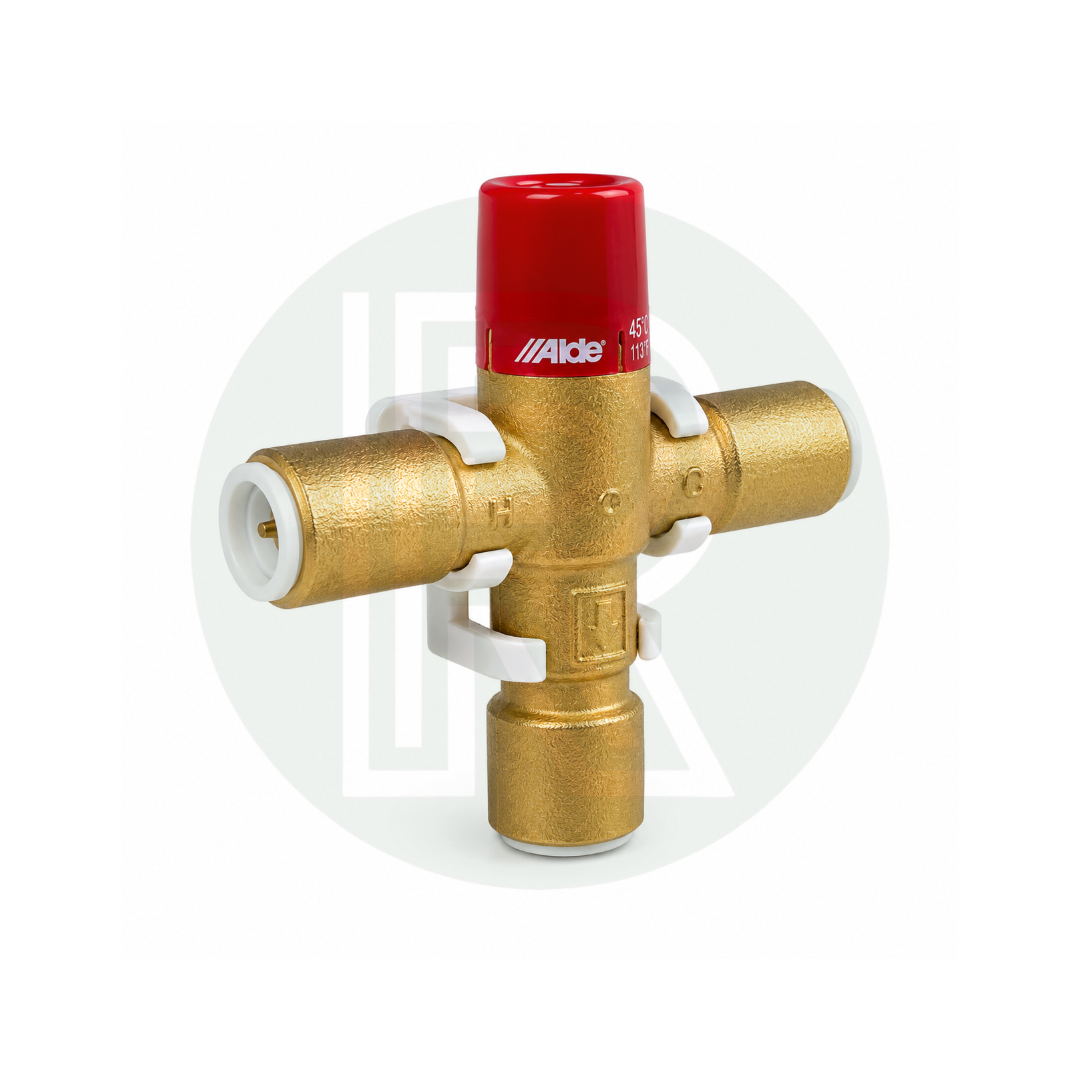

Alde Thermostatic Mixing Valve-12mm

Alde Thermostatic Mixing Valve-12mm

£85.95 inc. VAT
£85.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Alde Thermostatic Mixing Valve is designed for use with Alde hot water systems in caravans and motorhomes, mixing hot and cold water to provide a controlled and comfortable hot water temperature at your taps and shower.

The valve is factory set to approximately 41°C and can be adjusted to suit your requirements. The mixed water temperature can be adjusted between approximately 30°C and 48°C, with a normal working temperature range of 38°C to 46°C.

For additional safety, the valve incorporates scald protection. If the cold water supply is interrupted, the flow of hot water through the valve is stopped, helping to reduce the risk of excessively hot water reaching the outlet.

The valve also features built-in filters and check valves, helping protect the system against scale and other contaminants while maintaining the correct direction of water flow.

Supplied with 12mm Speedfit connections, making it suitable for compatible 12mm caravan and motorhome water systems.

Features

  • Genuine Alde thermostatic mixing valve
  • Automatically mixes hot and cold water
  • Factory set to approximately 41°C
  • Adjustable mixed water temperature
  • Built-in scald protection
  • Hot water flow stops if the cold water supply is interrupted
  • Built-in filters
  • Built-in check valves
  • 12mm Speedfit connections
  • Suitable for caravan and motorhome hot water systems

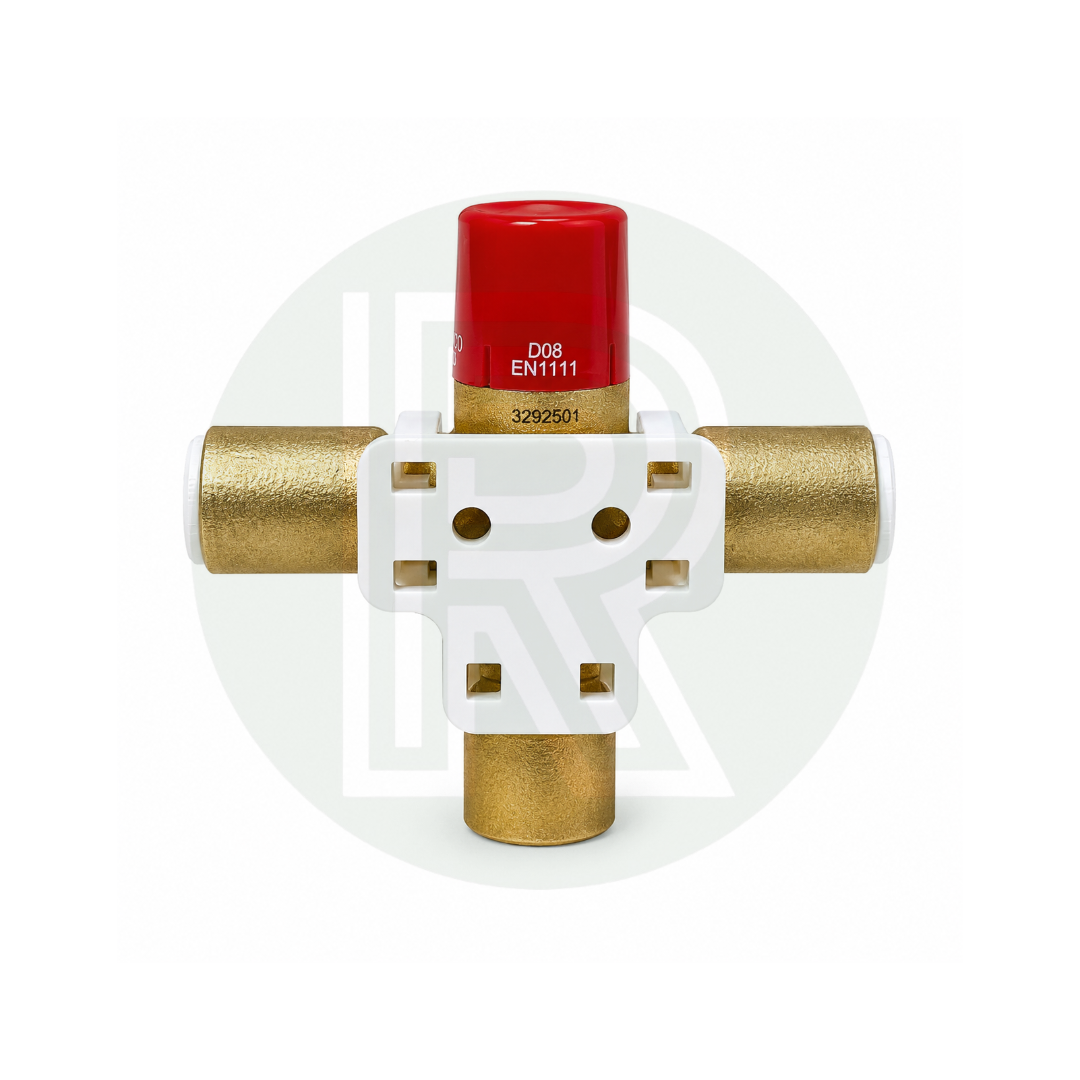

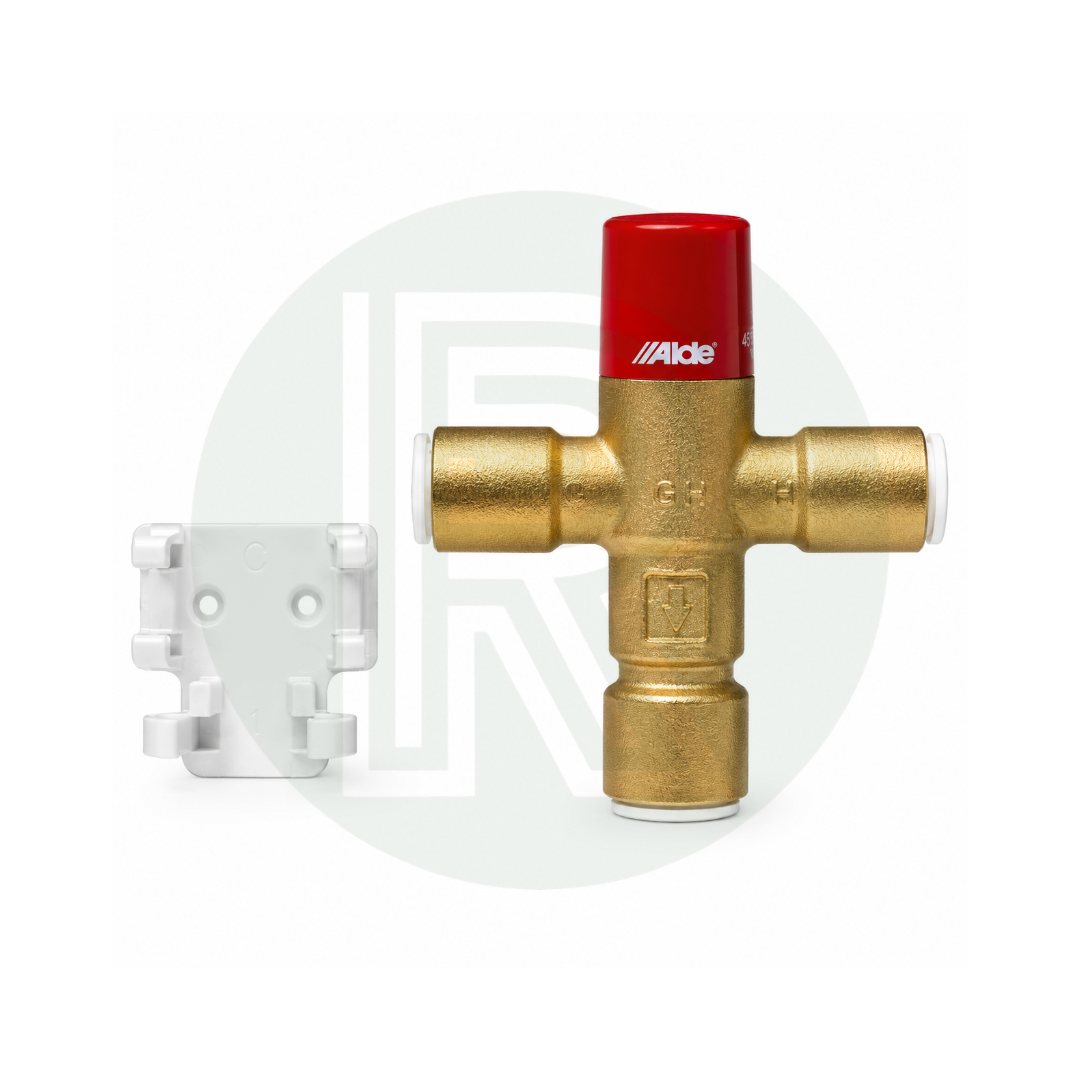

  • Supplied with mounting bracket

Specifications

  • Connections: 12mm Speedfit
  • Factory temperature setting: 41°C
  • Working temperature range: 38°C to 46°C
  • Maximum adjustable temperature range: 30°C to 48°C
  • Hot water supply temperature: 55°C to 65°C, maximum 85°C
  • Cold water supply temperature: 5°C to 25°C
  • Temperature stability: ±2°C
  • Minimum hot-to-mix temperature differential: 10°C
  • Maximum static pressure: 10 bar
  • Maximum working pressure: 5 bar
  • Minimum working pressure: 0.2 bar
  • Maximum pressure inlet differential: 10:1
  • Minimum flow rate: 1 litre per minute
  • Dimensions including bracket: 93 x 101 x 30mm
  • Weight: 282g

Installation

The valve has clearly defined connections for the hot water inlet, cold water inlet and mixed water outlet.

Alde recommends mounting the mixing valve as close as practical to the shower, taps or other outlet connections. The supplied mounting bracket allows the valve to be securely fixed in position.

Once installed, the outlet temperature can be adjusted using the control beneath the red cap.

View full details

Frequently Asked Questions

It mixes hot water from the boiler with cold water to provide a controlled mixed water temperature for your taps and shower.

The valve is factory set to approximately 41°C.

Yes. The mixed water temperature can be adjusted between approximately 30°C and 48°C.

Yes. If the cold water supply is interrupted, the valve is designed to stop the hot water flow, helping to reduce the risk of scalding.

This version is fitted with 12mm Speedfit connections for compatible caravan and motorhome water systems.

Yes. The mixing valve incorporates built-in check valves as well as filters to help protect the valve from scale and contaminants.

The maximum working pressure is 5 bar, with a maximum static pressure of 10 bar.
