57ltr Opaque Wheel Arch Water Tank

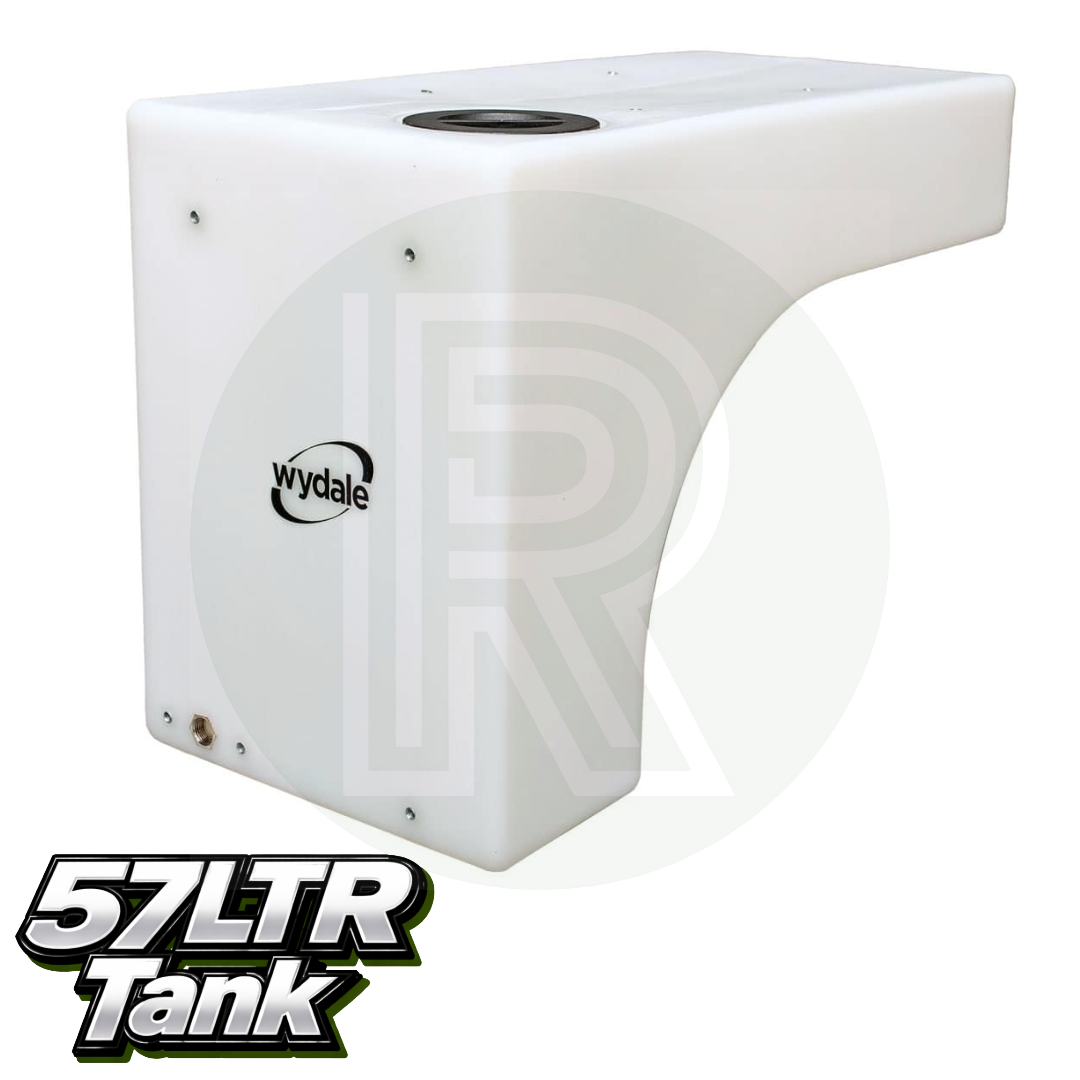

The Wydale 57 Litre Opaque Wheel Arch Water Tank is a compact fresh water storage tank designed and manufactured by Wydale Plastics for installation around the wheel arch in campervans, motorhomes, van conversions and pick-ups.

Its wheel arch profile makes efficient use of otherwise difficult-to-use space while providing a useful 57 litre nominal water capacity. At just 750mm long, it is particularly useful for conversions where a larger wheel arch tank would take up too much space.

Manufactured from tough rotationally moulded polyethylene, the tank is designed for long-term use in leisure vehicle water systems. The natural opaque finish allows the approximate water level inside the tank to be visually checked, making it particularly useful for fresh water installations.

The tank measures approximately 750mm long × 355mm wide × 500mm high and incorporates a 5" internal plain, non-vented access lid.

Integrated Connections & Mounting Points

The Wydale 57 litre tank is manufactured with 11 × M8 threaded inserts moulded into the tank, providing multiple secure mounting points.

It also incorporates a 1/2" BSP outlet, providing a ready-made connection point for your fresh water system.

Optional Fitting Kit

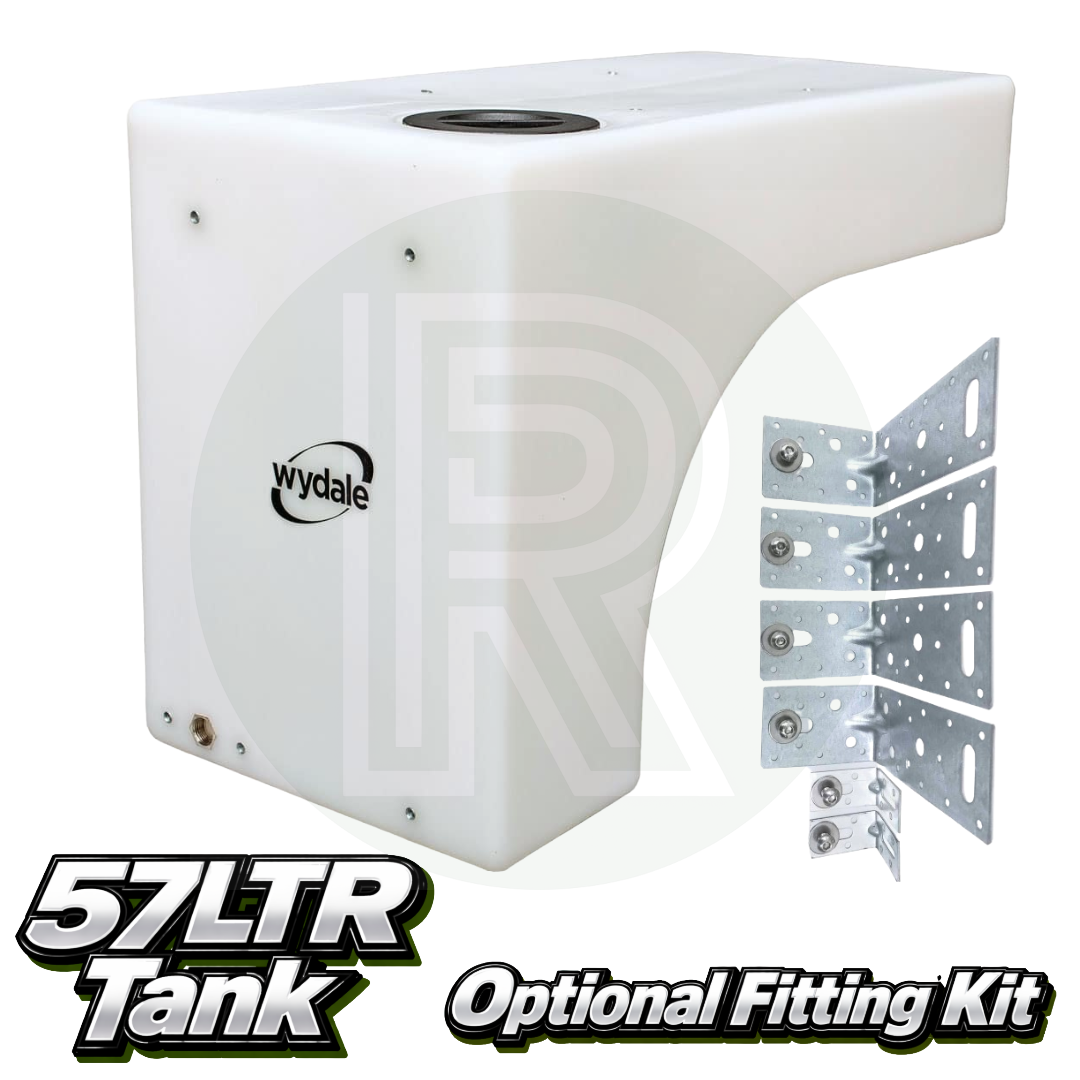

An optional Wydale WAKF57 fitting kit is available separately and can be selected when ordering if required.

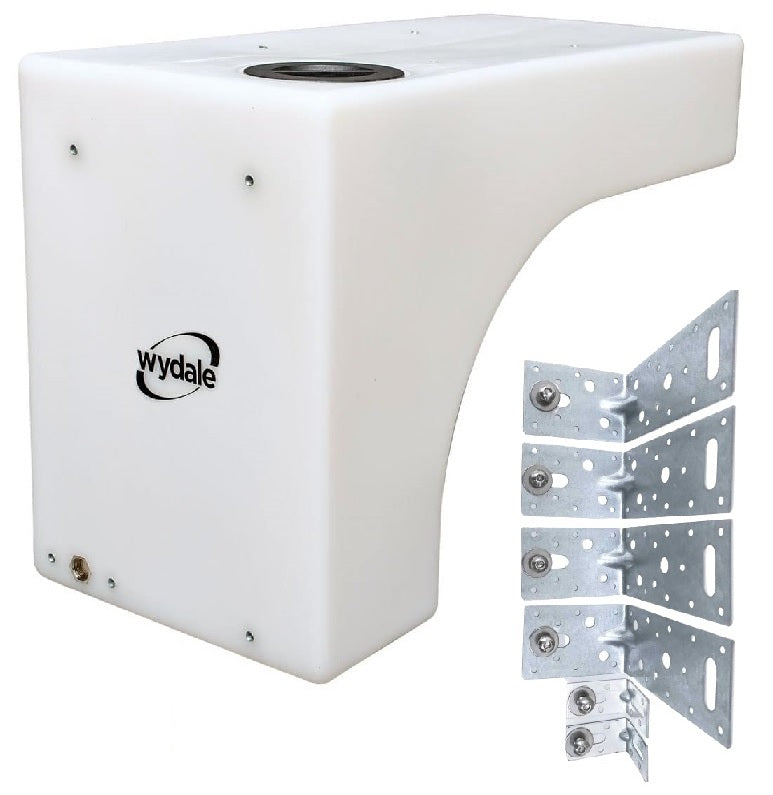

The fitting kit includes steel angle mounting brackets together with M8 stainless steel fixings and washers, designed to utilise the tank's integrated M8 mounting points.

Please note: The fitting kit is not included as standard and must be selected when ordering if required.

Adding Additional Inlets, Outlets & Breathers

Additional holes can be drilled into the tank to accommodate your chosen water inlet, outlet, breather, drain, level sensor or other tank fittings.

When deciding where to drill, remember that conventional tank fittings normally use a nut and sealing washer on the inside of the tank. You must therefore make sure the chosen position can be reached through the tank's access lid so that the internal nut and washer can be fitted and tightened.

Alternatively, a Wydale KwiQ fitting can be used where suitable. These fittings can be installed without needing to reach inside the tank to secure a separate internal nut and washer.

Features

• Genuine Wydale Plastics wheel arch water tank
• 57 litre nominal capacity
• Natural opaque polyethylene construction
• Opaque finish allows approximate water level to be seen
• Compact wheel arch design
• 11 × integrated M8 threaded mounting inserts
• 1 × 1/2" BSP outlet
• 5" internal plain non-vented access lid
• Optional Wydale mounting and plumbing kits available separately

Technical Specifications

• Manufacturer: Wydale Plastics
• Capacity: 57 litres nominal
• Colour: Natural / Opaque
• Material: Polyethylene
• Length: 750mm
• Width: 355mm
• Height: 500mm
• Weight: Approx. 6.5kg
• Access lid: 5" internal plain lid
• Lid type: Non-vented
• Outlet: 1 × 1/2" BSP
• Mounting points: 11 × M8 moulded inserts
• Baffled: No

Wydale states that quoted dimensions and volumes are subject to approximately ±3% variation due to the manufacturing process.
