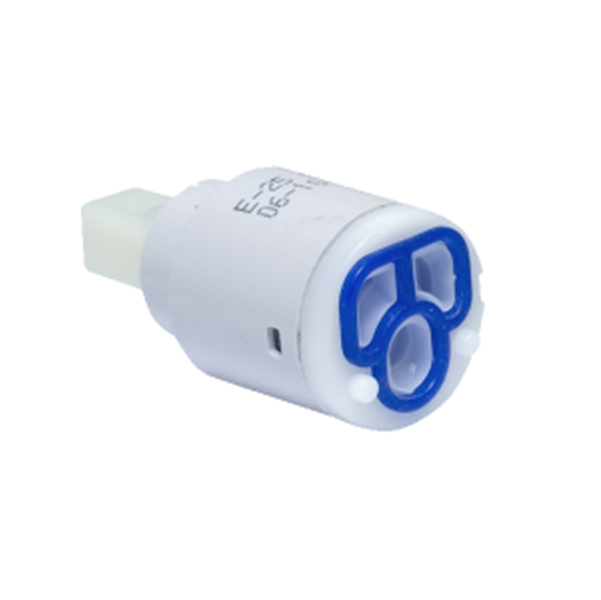

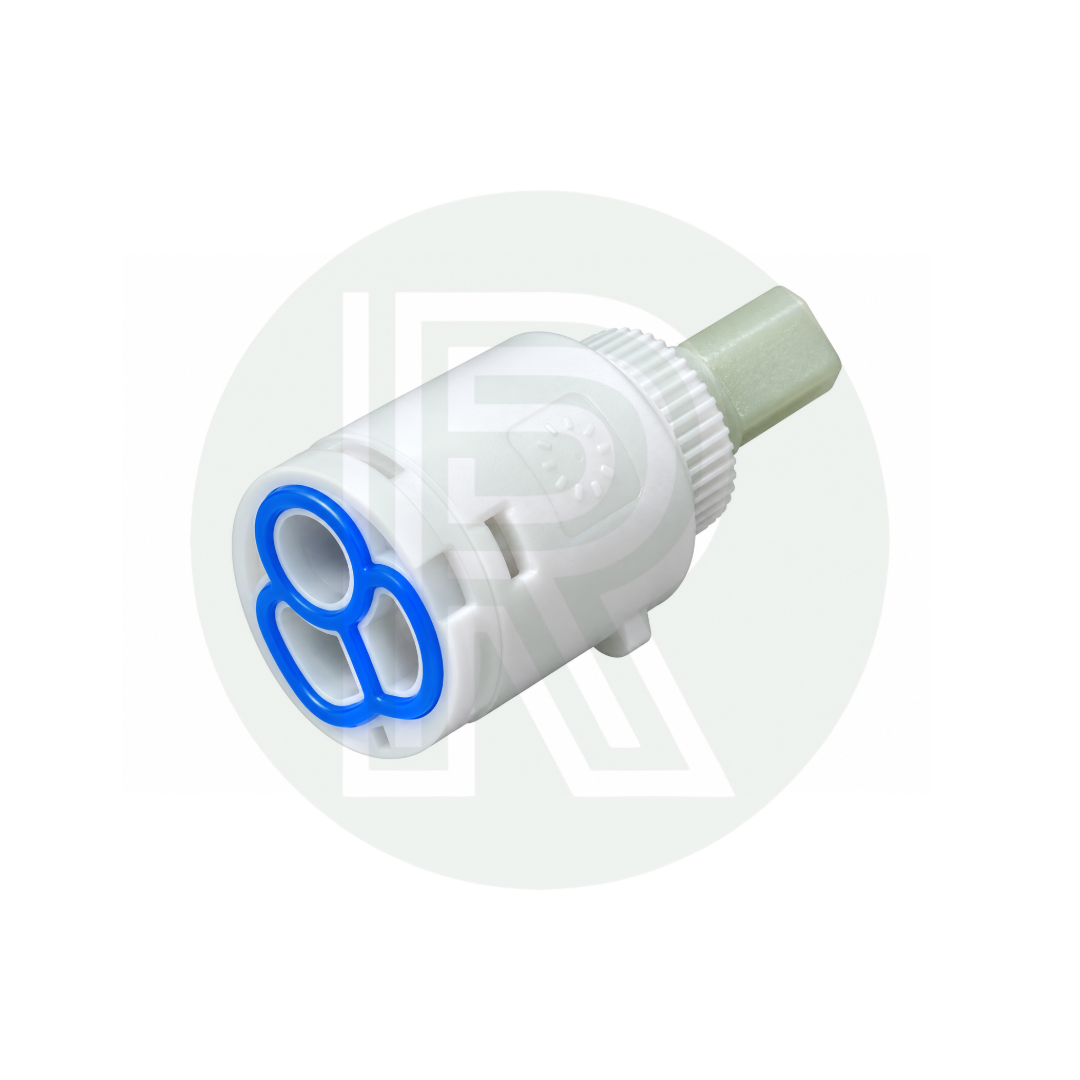

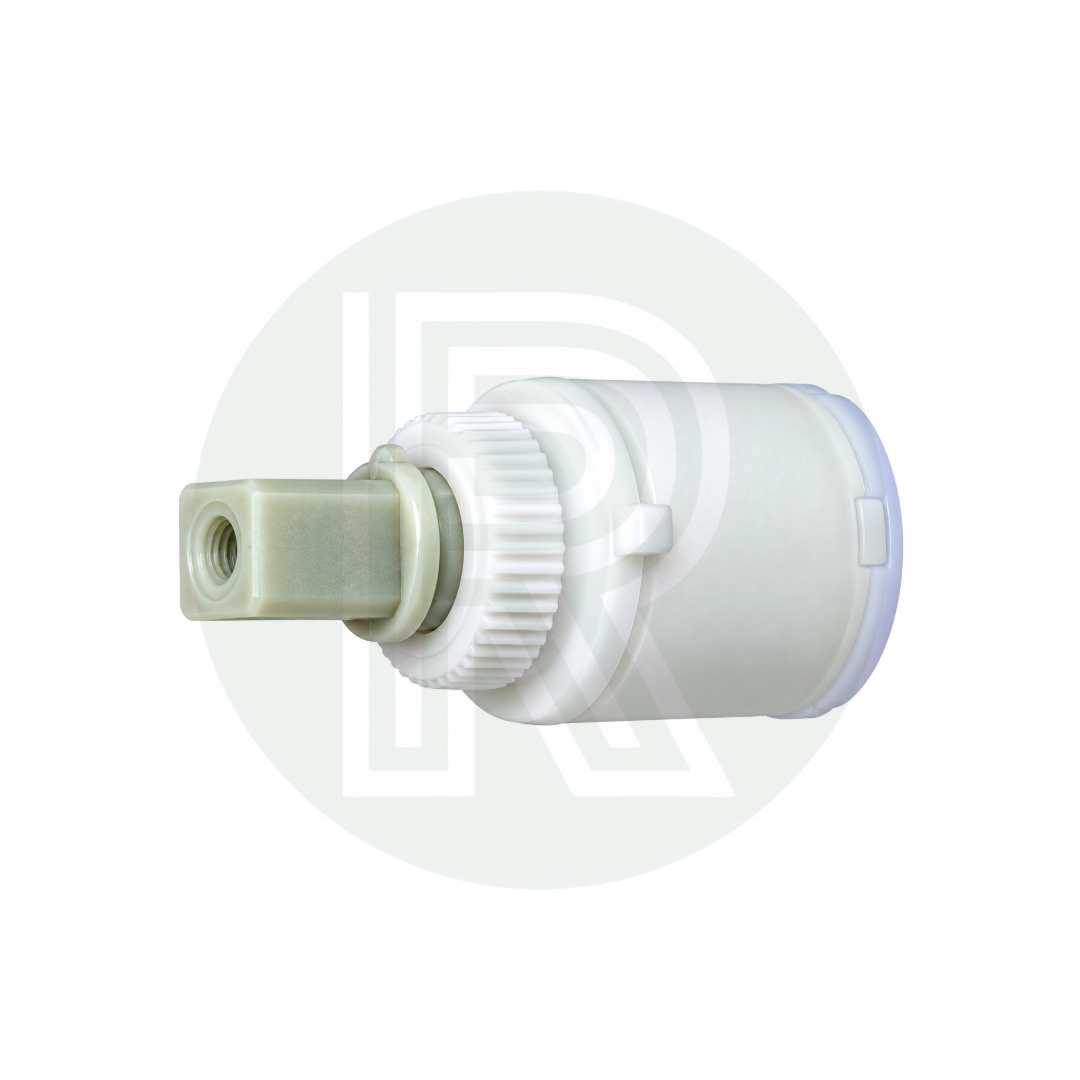

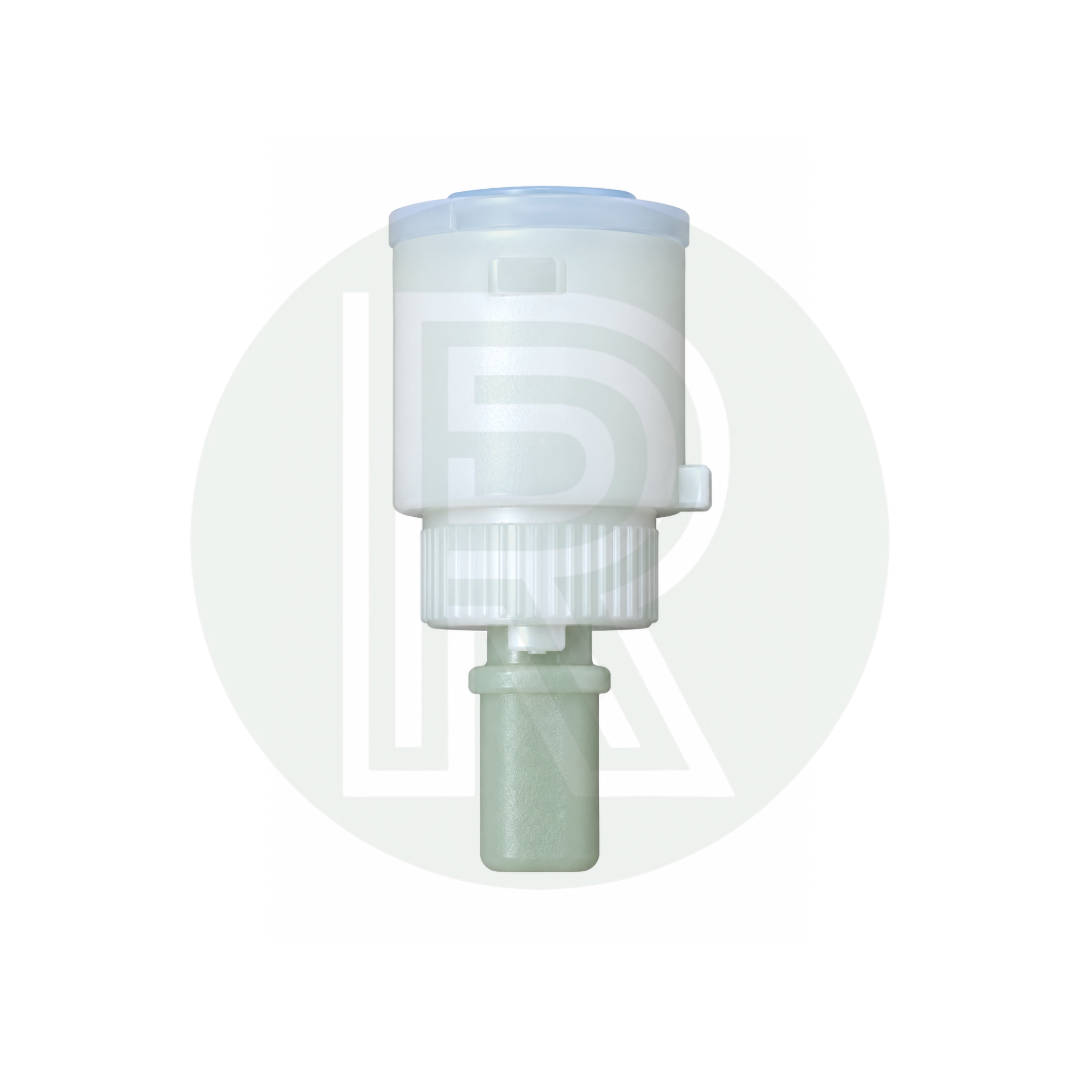

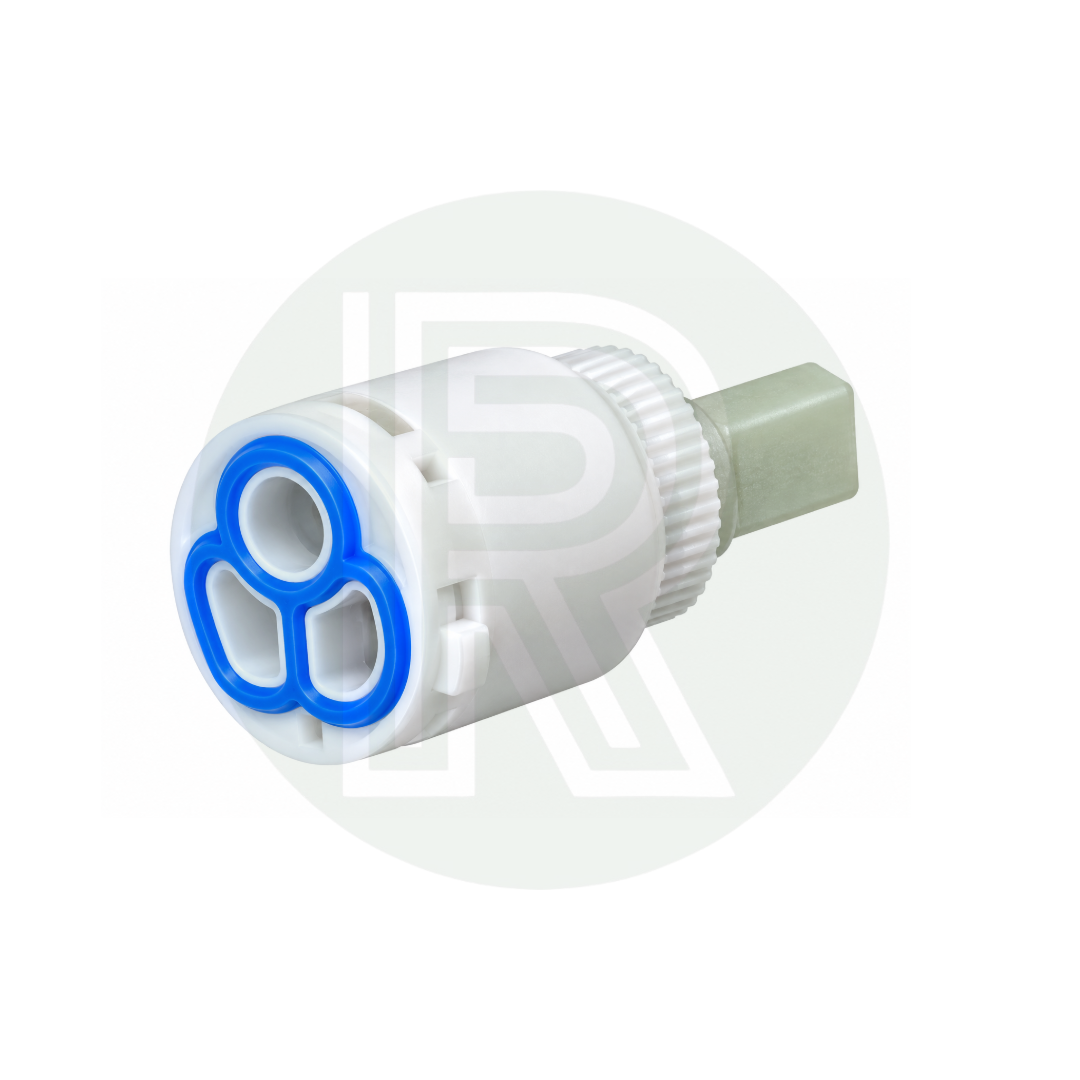

25mm Reich Ceramic Tap Cartridge
25mm Reich Ceramic Tap Cartridge
Couldn't load pickup availability
The Reich 25mm Ceramic Tap Cartridge is a replacement cartridge designed for a range of Reich single-lever mixer taps commonly fitted in caravans, motorhomes and campervans.
This 25mm ceramic cartridge controls the flow and mixing of hot and cold water within the tap, allowing smooth operation and accurate temperature adjustment. It is an ideal replacement for a worn, leaking or damaged cartridge, helping to restore your existing Reich mixer tap without replacing the complete assembly.
Ceramic tap cartridges are particularly vulnerable to frost damage during the winter months. Water retained inside the tap or plumbing system can freeze and expand, potentially cracking the cartridge housing or damaging its internal components. Replacing the cartridge can often resolve leaks or operating problems caused by freezing temperatures.
Compatible Reich Mixer Taps
This 25mm ceramic cartridge is suitable for the following Reich tap ranges:
• Reich Style
• Reich Twist
• Reich Samba
• Reich Cascade B
• Reich Vector S
• Reich Concept S
• Reich Trend S
Key Features
• Replacement 25mm ceramic mixer tap cartridge
• Designed for compatible Reich single-lever mixer taps
• Controls hot and cold water flow and temperature
• Ceramic mechanism for smooth tap operation
• Ideal for replacing leaking, worn or frost-damaged cartridges
• Suitable for caravan, motorhome and campervan water systems
• Cost-effective alternative to replacing the complete mixer tap
• Supplied individually
Installation Information
Before replacing the cartridge, turn off the water supply and release any pressure within the plumbing system.
Remove the mixer tap handle to access the cartridge retaining mechanism. Carefully remove the existing cartridge, noting its orientation, and install the replacement in the same position. Reassemble the tap, restore the water supply and check for leaks and correct operation.
Winter Frost Protection
One of the most common causes of ceramic tap cartridge failure in caravans and motorhomes is frost damage. Even when the main water tank has been drained, small amounts of water can remain trapped inside mixer taps.
When preparing your caravan or motorhome for winter storage, drain the water system thoroughly and leave mixer taps in the open, central position to help release trapped water from both the hot and cold water channels.
Important: Always check your existing cartridge dimensions and tap model before ordering to ensure compatibility.
Share

Frequently Asked Questions
This replacement cartridge is designed for compatible Reich Style, Twist, Samba, Cascade B, Vector S, Concept S and Trend S mixer taps commonly installed in caravans, motorhomes and campervans.
A leaking Reich mixer tap may be caused by a worn, damaged or frost-cracked ceramic cartridge. If water continues to drip when the tap is turned off, or leaks around the handle, replacing the cartridge may resolve the problem.
Yes. Water trapped inside the cartridge can freeze and expand during cold weather, potentially cracking the housing or damaging the internal ceramic components. Frost damage is a common cause of mixer tap failure following winter storage.
Yes. On compatible Reich mixer taps, the 25mm ceramic cartridge can be replaced separately, making it a more economical repair than purchasing a complete replacement mixer tap.
The ceramic cartridge controls the water flow and mixing of hot and cold water within a single-lever mixer tap. Moving the tap handle adjusts the water temperature and flow rate.
Turn off the water supply and release any pressure. Remove the tap handle and cartridge retaining mechanism, then carefully withdraw the existing cartridge. Fit the replacement in the correct orientation, reassemble the tap and check for leaks.
Before winter storage, thoroughly drain the caravan or motorhome water system, including the hot and cold pipework. Leave mixer taps open in the central position to help drain trapped water and reduce the risk of freezing.
Common symptoms include water dripping from the spout when the tap is closed, leaks around the handle, difficulty adjusting the water temperature or a stiff operating lever. These symptoms can indicate a worn or damaged cartridge, although other tap faults are also possible.
Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
