Seaflo 12v Diaphragm Waste Pump

Seaflo 12v Diaphragm Waste Pump

Regular price £99.95 inc. VAT
Regular price Sale price £99.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.
Quantity

The SEAFLO 12V Diaphragm Waste Pump is a powerful, self-priming waste-water pump designed for caravans, motorhomes, campervans, boats and marine installations. With a flow rate of up to 19 litres per minute, it provides an effective solution for transferring waste water from showers, sinks and holding tanks where gravity drainage is not practical.

Featuring a robust single-diaphragm design, the pump is capable of handling a mixture of air and water, making it particularly suitable for shower drainage and waste-water systems. Its non-choke valve arrangement allows waste water to pass through without requiring an additional inlet strainer, while the double outlet valves help maintain a consistent flow.

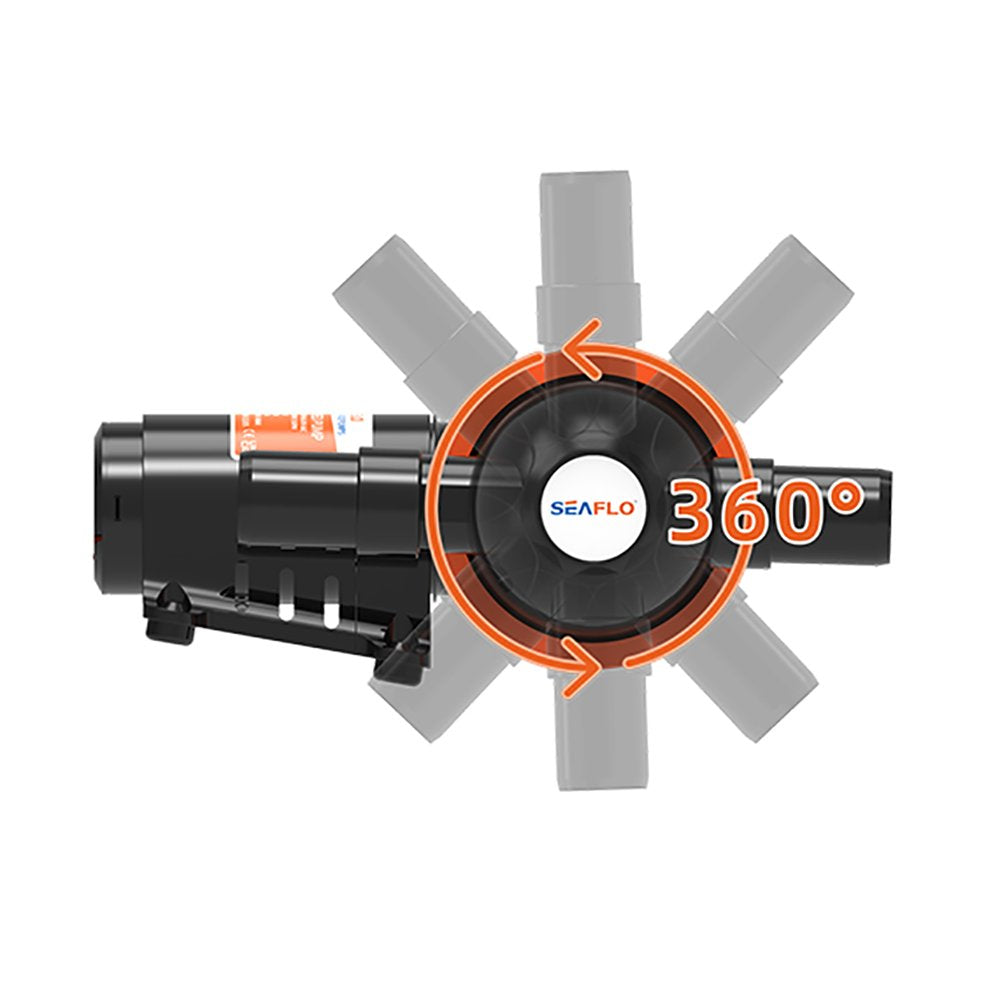

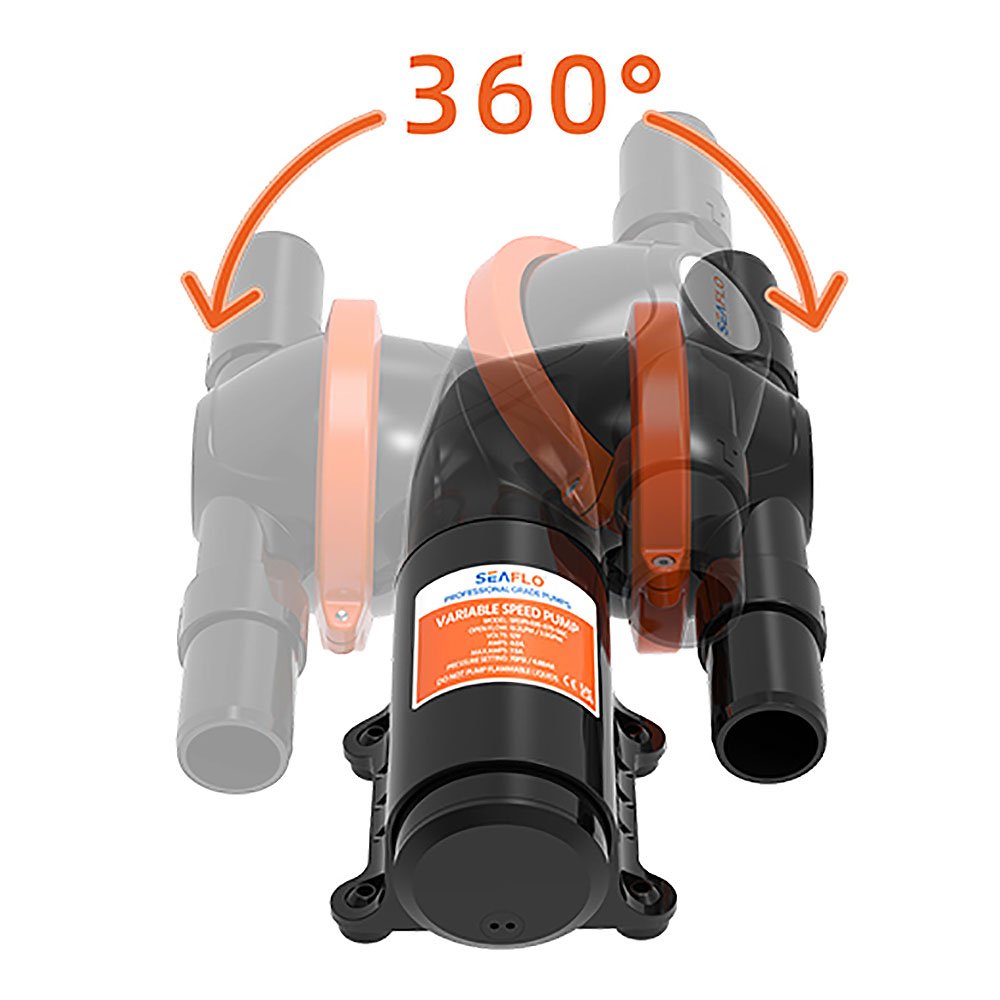

The pump features a 360-degree adjustable pump head, allowing the inlet and outlet connections to be positioned to suit your plumbing installation. Its self-priming capability of up to 3 metres and ability to run dry make it a versatile choice for a range of leisure vehicle and marine waste-water applications.

Features

• 12V DC Operation – Designed for caravan, motorhome and marine electrical systems
• 19 Litres Per Minute – Maximum open-flow capacity of 5 US gallons per minute
• Self-Priming – Capable of lifting water from up to 3 metres
• Run-Dry Capability – Designed to operate without water passing through the pump
• Single Diaphragm Design – Suitable for transferring waste water containing air and water
• 360° Adjustable Pump Head – Allows flexible positioning of plumbing connections
• Non-Choke Valve Design – No additional inlet strainer required by the manufacturer
• Double Outlet Valves – Designed to help maintain continuous water flow
• Multiple Connection Options – Designed for compatible 19mm, 25mm or 38mm ports
• Versatile Applications – Suitable for shower drains, sink drainage and compatible waste-water systems

Specifications

• Brand: SEAFLO
• Model: SFMTP1-07
• Voltage: 12V DC
• Pump Type: Single Diaphragm Waste Pump
• Maximum Open Flow: 19 L/min (5 US GPM)
• Maximum Current Draw: 8A
• Maximum Suction Lift: 3 metres

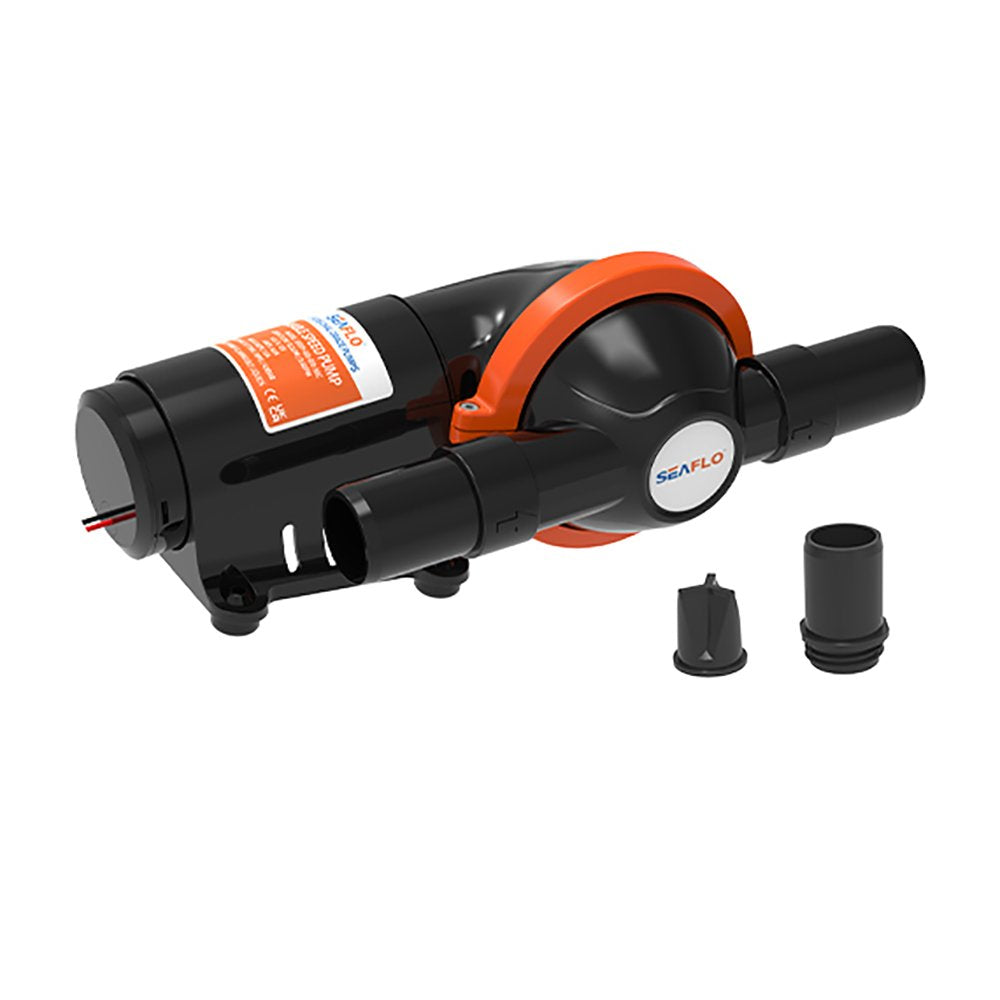

• Port Sizes: 19mm (3/4"), 25mm (1") or 38mm (1½") fittings supplied
• Pump Head: 360° Adjustable
• Priming: Self-Priming
• Run-Dry Capability: Yes

Applications

Ideal for installations where waste water needs to be pumped from a shower tray, sink or holding tank to a higher drainage point or another suitable waste-water outlet. The diaphragm design is also rated by SEAFLO for handling unmacerated toilet waste in appropriately designed systems.

Please Note: This is a waste-water transfer pump and is not intended for supplying pressurised drinking water to taps or showers. Check your required hose connection sizes, electrical supply and installation requirements before ordering. The stated 19 L/min flow rate is the maximum open-flow figure; actual performance will depend on pipework, suction height and discharge restrictions.

View full details

Frequently Asked Questions

The SEAFLO 12V Diaphragm Waste Pump is designed to transfer waste water from showers, sinks and holding tanks in caravans, motorhomes, campervans and boats. It is particularly useful where gravity drainage is not possible or where waste water needs to be pumped to a higher discharge point.

The pump has a maximum open-flow rate of 19 litres per minute (5 US gallons per minute). Actual flow rates will vary depending on the length and diameter of the pipework, suction height and any restrictions within the waste-water system.

Yes. The pump features a diaphragm design that allows it to run dry without immediate damage. This is particularly useful in shower drainage applications where water may flow intermittently. However, unnecessary extended dry running should be avoided.

Yes. The pump is self-priming and capable of lifting water from up to 3 metres under suitable installation conditions. This allows it to be positioned above the waste-water collection point, providing greater flexibility when installing the pump in confined spaces.

The SEAFLO diaphragm waste pump is designed to accommodate compatible 19mm (3/4"), 25mm (1") and 38mm (1½") hose connections, depending on the adaptors fitted. All sized fittings are included in the box.

Yes. The pump is particularly suitable for shower drainage systems in campervans, motorhomes and boats. Its diaphragm design allows it to handle a mixture of air and water, making it ideal for applications where the water supply is intermittent or the shower tray is positioned below the main waste-water outlet.

The pump features a non-choke valve design intended to handle waste water without requiring an additional inlet strainer. However, preventing large debris, hair and other unsuitable materials from entering the drainage system will help maintain reliable operation and reduce the risk of blockages.

Yes. The pump can be used to transfer waste water from a suitable holding tank to an appropriate disposal point, provided the installation is within the pump's operating specifications. Its self-priming capability and 19 litres per minute maximum flow rate make it useful for transferring grey water where a gravity-fed outlet is not practical.

Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
