12v/55psi/11.30Ltr Seaflo Series 42 Water Pump - Retail Packed With Fittings
12v/55psi/11.30Ltr Seaflo Series 42 Water Pump - Retail Packed With Fittings
Couldn't load pickup availability
The SEAFLO Series 42 12V 11.3L/min 55PSI Water Pump is a powerful, self-priming diaphragm pump designed for caravans, motorhomes, campervans, boats and van conversions. Delivering a maximum flow rate of 11.3 litres per minute and a pressure rating of 55 PSI (3.8 bar), this pump provides a reliable solution for pressurised fresh-water systems supplying taps, showers and other onboard water outlets.
Featuring a four-chamber diaphragm design, the SEAFLO Series 42 provides dependable water delivery with an integrated automatic pressure switch that starts and stops the pump according to water demand. Its self-priming capability allows flexible installation, while its run-dry capability provides additional protection during occasional interruptions to the water supply.
Supplied retail packed with connection fittings, the pump is suitable for replacing an existing water pump or installing a new fresh-water system. Its compact construction and rubber mounting feet help minimise vibration and operating noise, making it particularly suitable for leisure vehicle installations.
Features
• 12V DC Operation – Suitable for leisure vehicle and marine electrical systems
• 11.3 Litres Per Minute – Maximum flow rate for supplying compatible taps and showers
• 55 PSI Pressure – Automatic pressure-controlled operation up to approximately 3.8 bar
• Four-Chamber Diaphragm – Designed for dependable water delivery
• Automatic Pressure Switch – Starts and stops the pump according to water demand
• Self-Priming Design – Allows installation above the water supply tank within its rated suction lift
• Run-Dry Capability – Tolerates occasional operation without water
• Rubber Mounting Feet – Help minimise vibration and operating noise

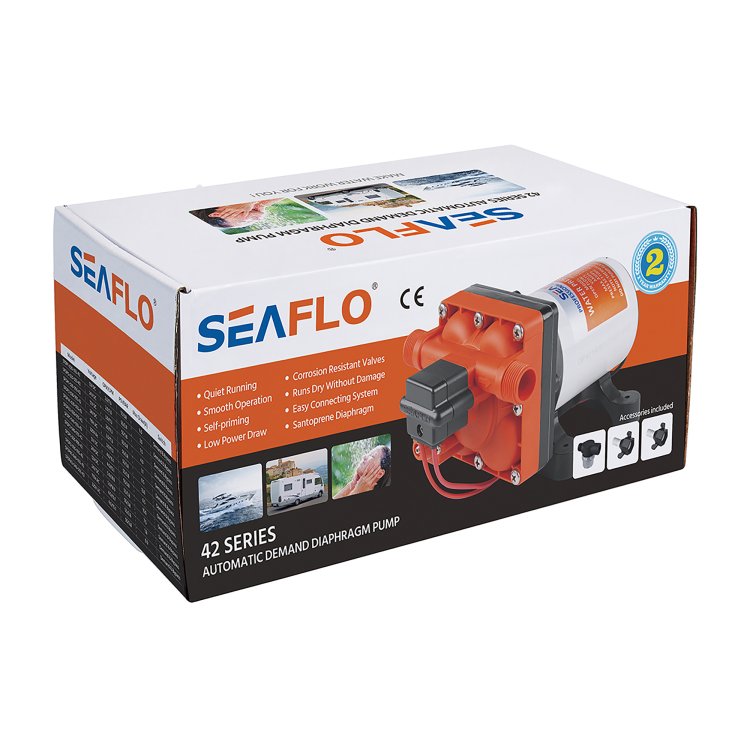

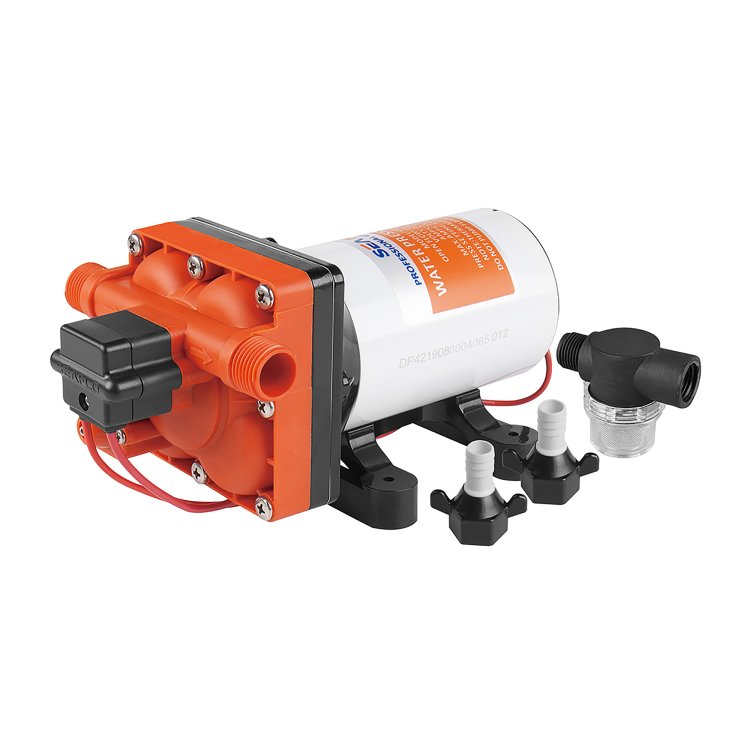

• Retail Packed With Fittings – Supplied with connection fittings for installation
• Versatile Applications – Ideal for caravans, motorhomes, campervans, boats and van conversions
Specifications
• Brand: SEAFLO
• Series: 42
• Voltage: 12V DC
• Maximum Flow Rate: 11.3 Litres Per Minute (3 US GPM)
• Pressure Rating: 55 PSI (3.8 bar)
• Pump Type: Four-Chamber Diaphragm
• Pressure Switch: Automatic
• Priming: Self-Priming
• Run-Dry Capability: Yes
• Mounting: Rubber Mounting Feet
• Packaging: Retail Box
• Supplied With: Water Pump and Connection Fittings
Installation Information
The pump should be connected to a suitably rated 12V DC electrical supply and installed between the fresh-water tank and the vehicle's pressurised plumbing system. An inlet strainer is recommended to help prevent debris from entering the pump, while a compatible accumulator tank can help smooth water flow and reduce pressure fluctuations.
Please Note: The 55 PSI rating is relatively high for some caravan and motorhome plumbing systems. Always check that your water heater, taps, pipework and other components are suitable for this pressure before installation. The maximum flow rate is measured under favourable conditions and may be lower in normal use.
Share

Frequently Asked Questions
The SEAFLO Series 42 is designed for pressurised fresh-water systems in caravans, motorhomes, campervans, boats and van conversions. Its 11.3 litres per minute maximum flow rate makes it suitable for supplying compatible taps, showers and other water outlets.
Yes. The pump features an integrated automatic pressure switch that starts the pump when system pressure drops as a tap or shower is opened. When the outlets are closed and pressure reaches approximately 55 PSI, the pump automatically switches off.
Yes. The four-chamber diaphragm design allows the pump to tolerate occasional dry running without immediate damage. This is useful when initially priming the system or if the water tank becomes empty. However, prolonged unnecessary dry running should be avoided.
An accumulator tank is not normally essential because the Series 42 features internal bypass technology to help reduce pump cycling. However, adding a compatible accumulator may further smooth water flow and reduce frequent starting and stopping in certain installations.
The pump operates from a 12V DC electrical supply. SEAFLO lists a maximum current draw of 14A for the 15.1L/min, 55PSI short Series 42 model, so the wiring, fuse and electrical supply must be suitably rated. Always follow the installation instructions supplied with your pump.

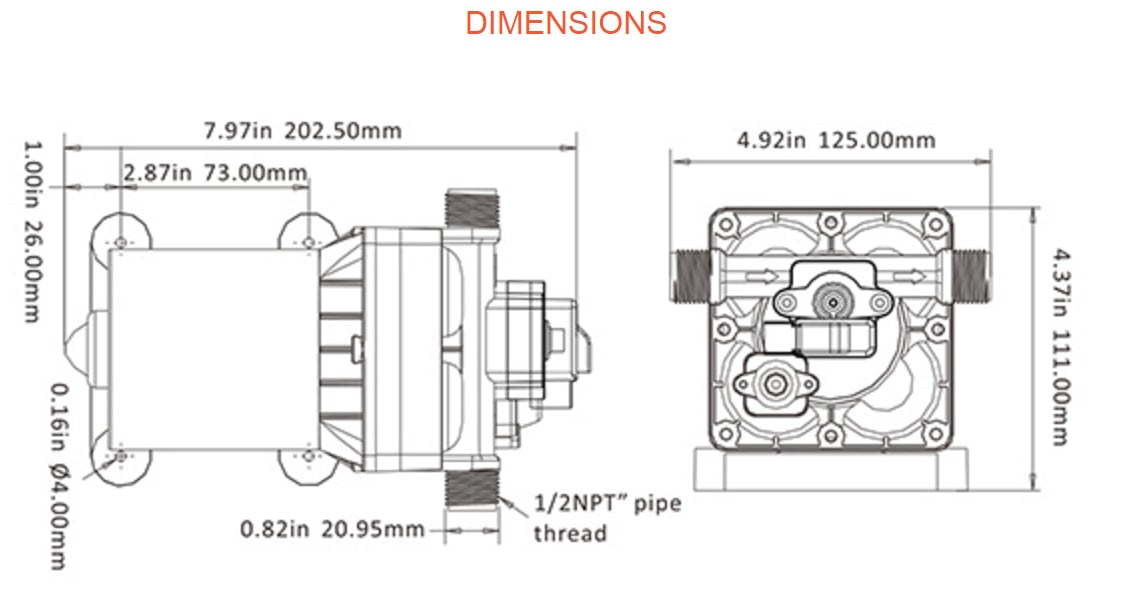

This version is supplied retail packed with connection fittings for installation. The pump uses 1/2" male NPT inlet and outlet ports, with suitable adaptors allowing connection to compatible water pipework. Check the fittings included in your particular package to ensure they match your plumbing system.
Yes. The pump is self-priming and can draw water from a tank positioned below the pump, provided the installation remains within its rated suction lift. SEAFLO specifies a self-priming capability of approximately 1.8 metres under suitable conditions.
The 55 PSI (3.8 bar) rating refers to the pump's shut-off pressure rather than a constant delivery pressure. The actual operating pressure will vary according to water demand and system restrictions. It is important to ensure your pipework, water heater and fittings are suitable for this pressure.
Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
