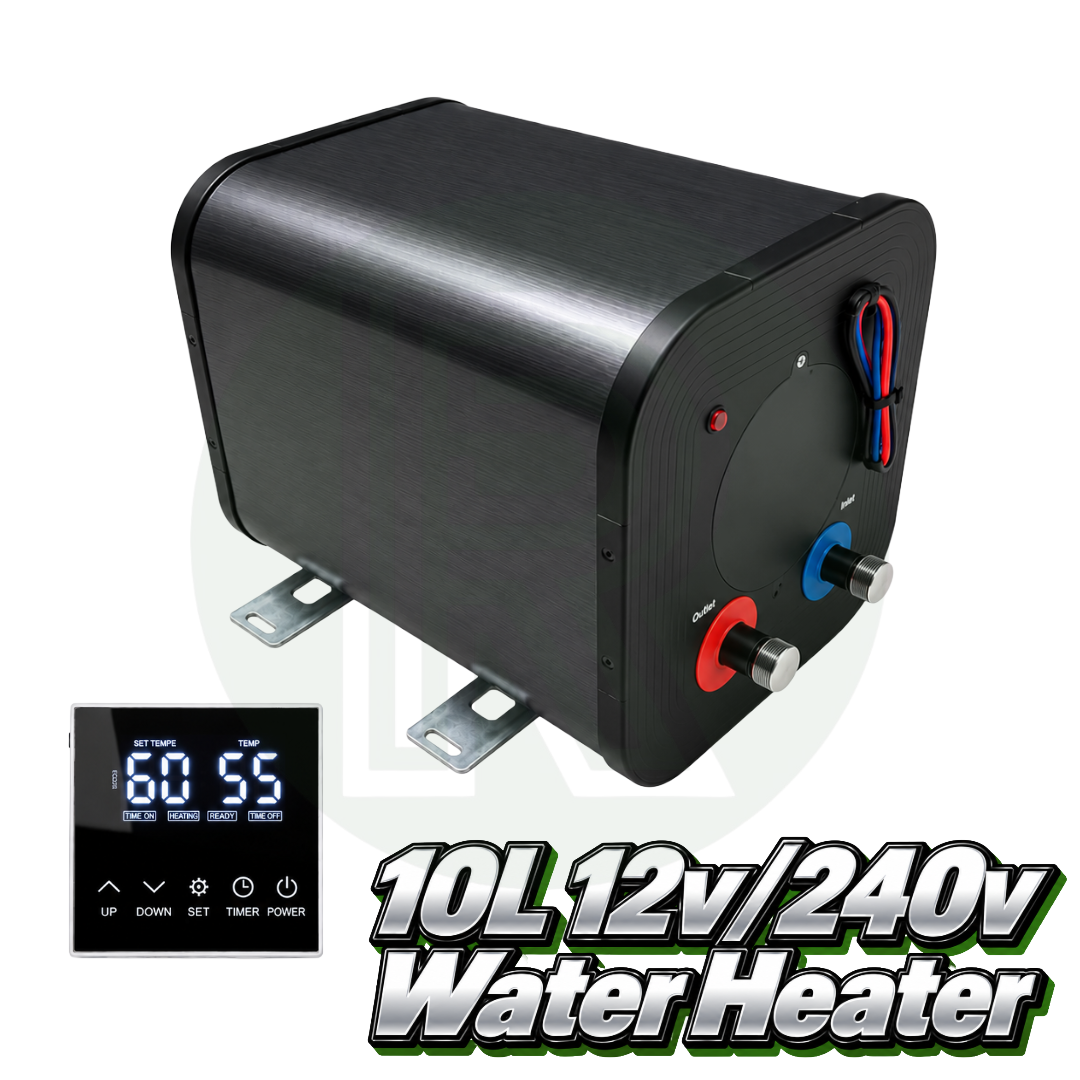

10L 12V & 240V Water Heater with LCD Display

This 10 litre dual power campervan water heater is designed to provide a reliable hot water supply for campervans, motorhomes, caravans and off-grid vehicles.

Featuring a 10 litre insulated water tank, this compact unit provides a practical supply of hot water for showers, washing up and general day-to-day use while taking up minimal installation space.

Featuring dual heating elements, the unit can operate from either a 12V leisure battery when travelling or camping off-grid, or a 230/240V mains hook-up when on site. The integrated LCD display and adjustable thermostat make it easy to monitor and control your preferred water temperature.

Its compact rectangular design allows installation in a wide range of campervan conversions while remaining compatible with most 20–30 PSI water pumps. It can also be used as part of a solar dump system when paired with a suitable solar controller.

Features

• 10 litre insulated hot water tank
• Dual power operation — 12V DC (220W) and 230/240V AC (1600W)
• LCD temperature display with adjustable thermostat
• Independent thermostatically controlled heating elements
• Suitable for off-grid and campsite hook-up use
• Compatible with most 20–30 PSI water pumps
• Compact rectangular design for easy installation
• Can be used with a suitable solar dump controller

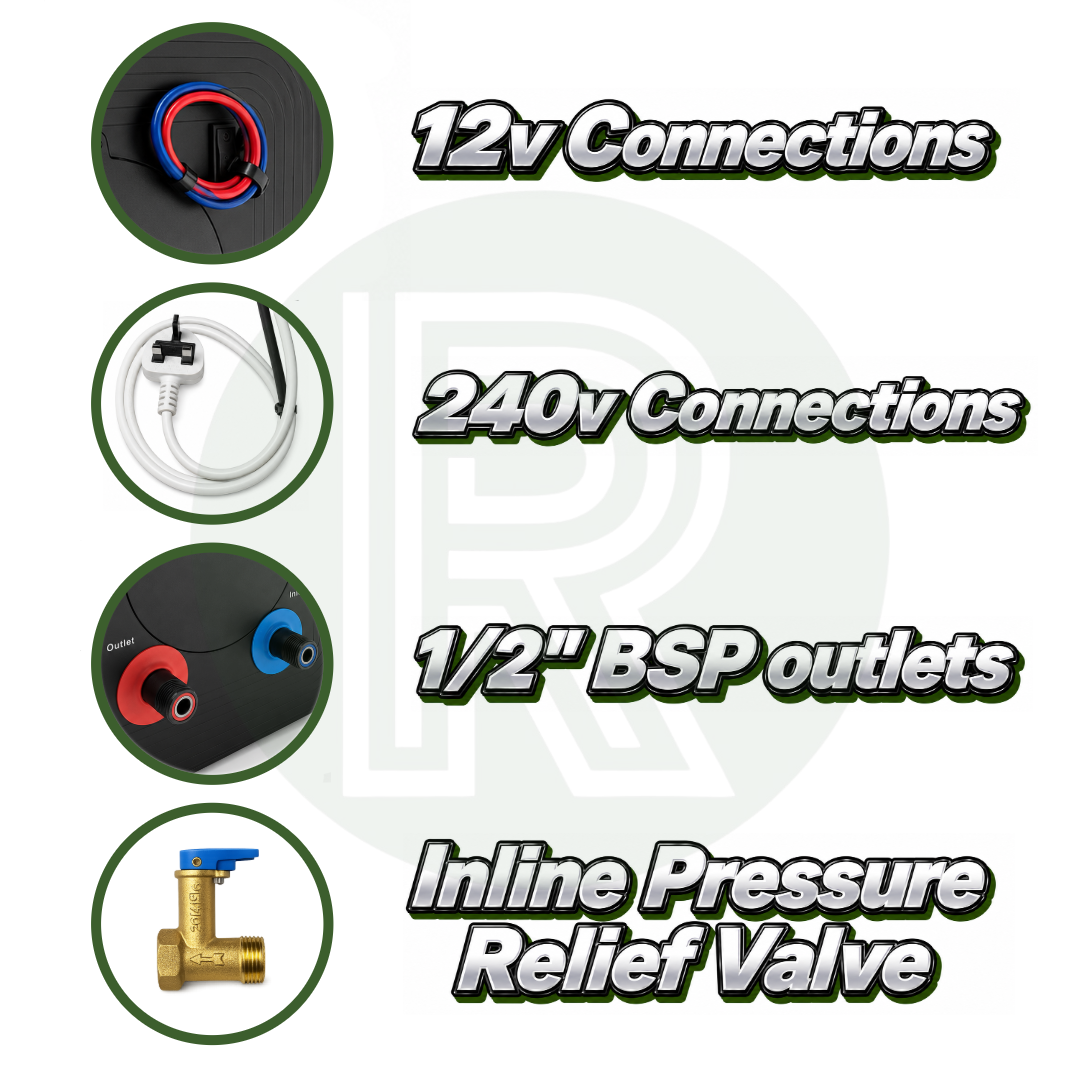

• Includes security water inlet valve and drain valve

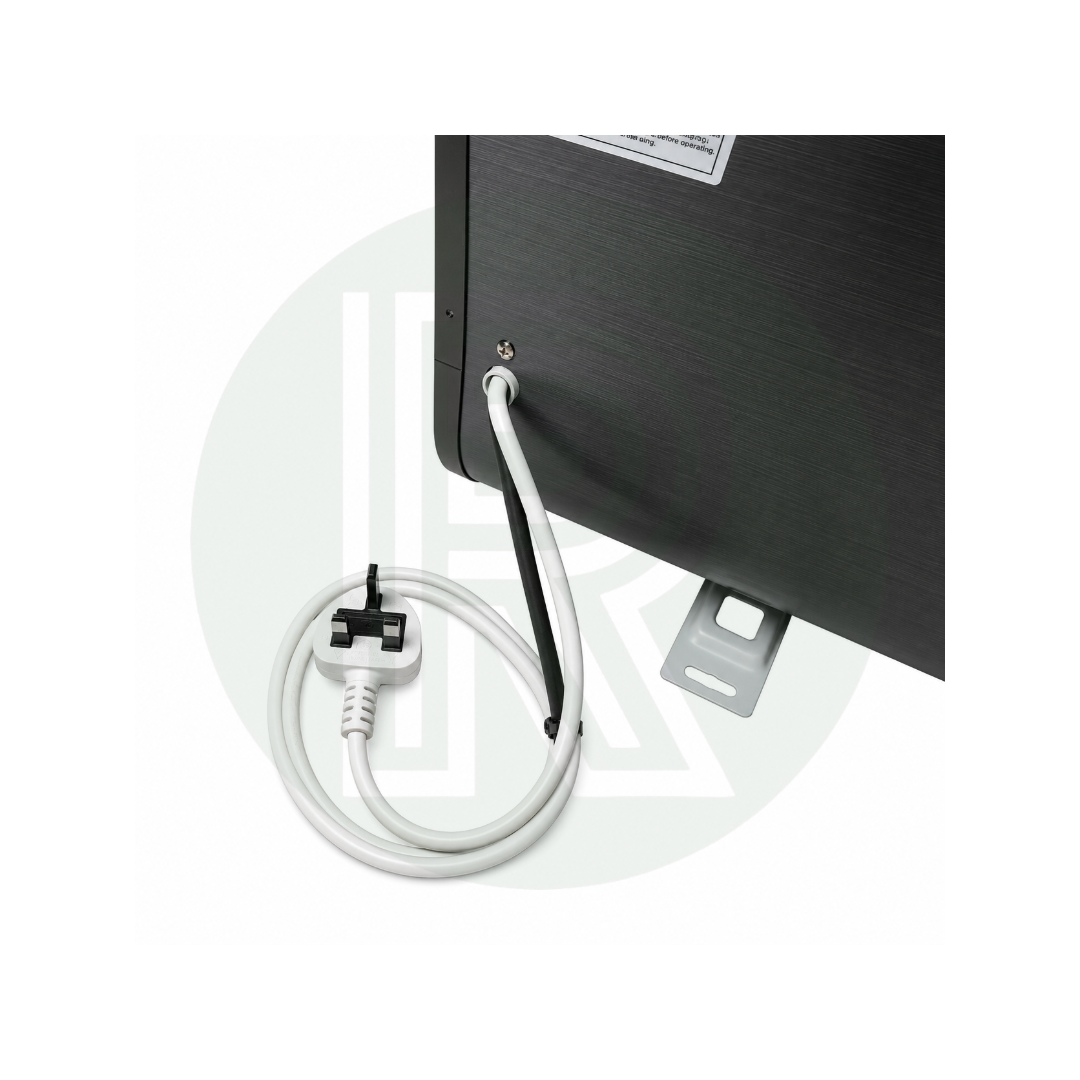

• Standard UK 230V plug supplied
• 12V bare wire connections
• Ideal for campervans, motorhomes, caravans and van conversions

Specifications

• Capacity: 10 Litres
• Dimensions: 350mm (L) × 300mm (W) × 290mm (H)
• Weight: 7kg (empty)
• 12V Heating Element: 220W
• 230/240V Heating Element: 1600W
• Voltage: 12V DC / 230–240V AC
• Display: LCD
• Temperature Control: Adjustable thermostat
• Water Connections: Standard fittings
• Recommended Pump Pressure: 20–30 PSI
• Recommended Leisure Battery: 100Ah
• Recommended Solar Array: 350–400W
• Shape: Rectangular
• Application: Campervans, motorhomes, caravans, off-grid hot water systems

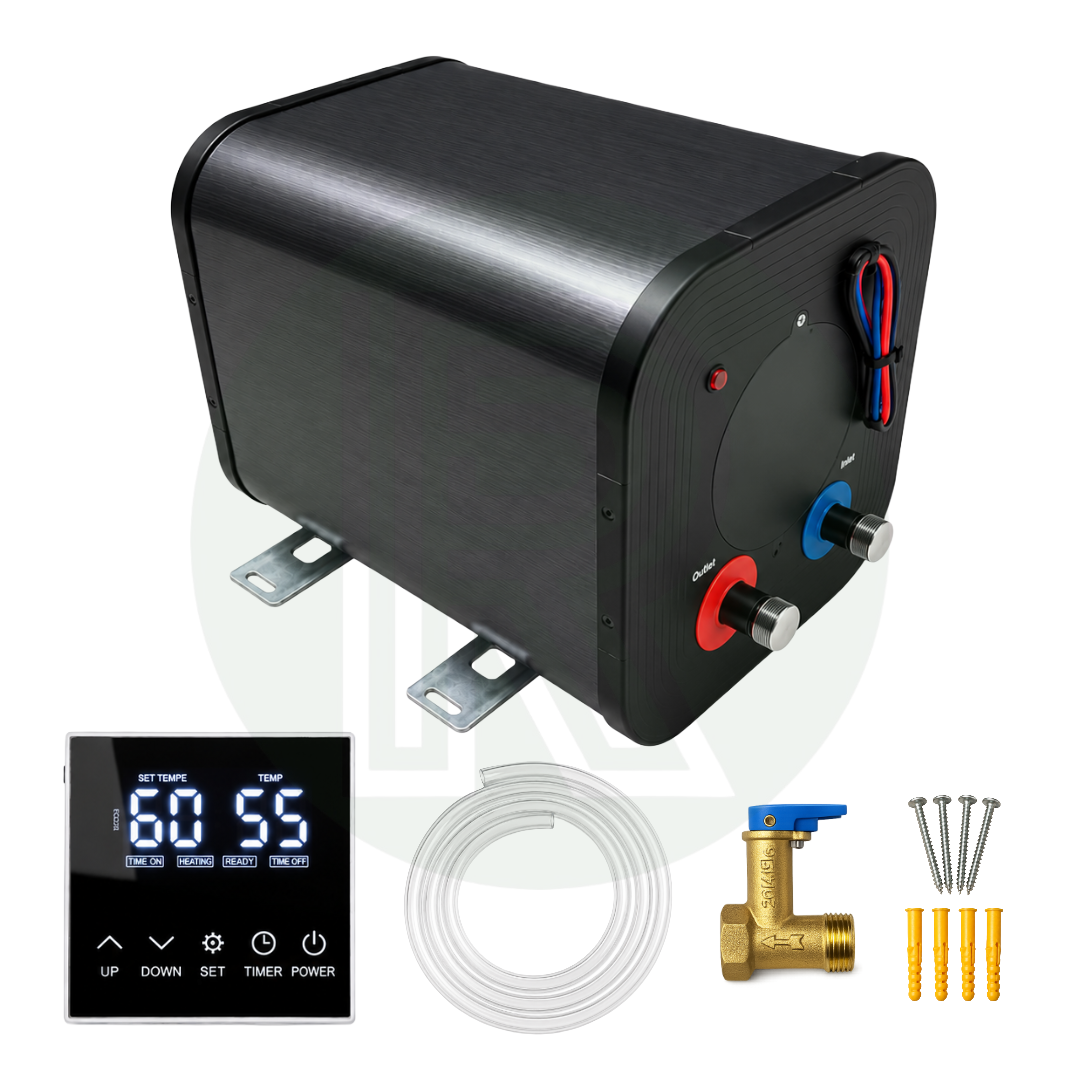

Package Includes

• 10L Dual Power Water Heater
• LCD Temperature Display & Connection Cables

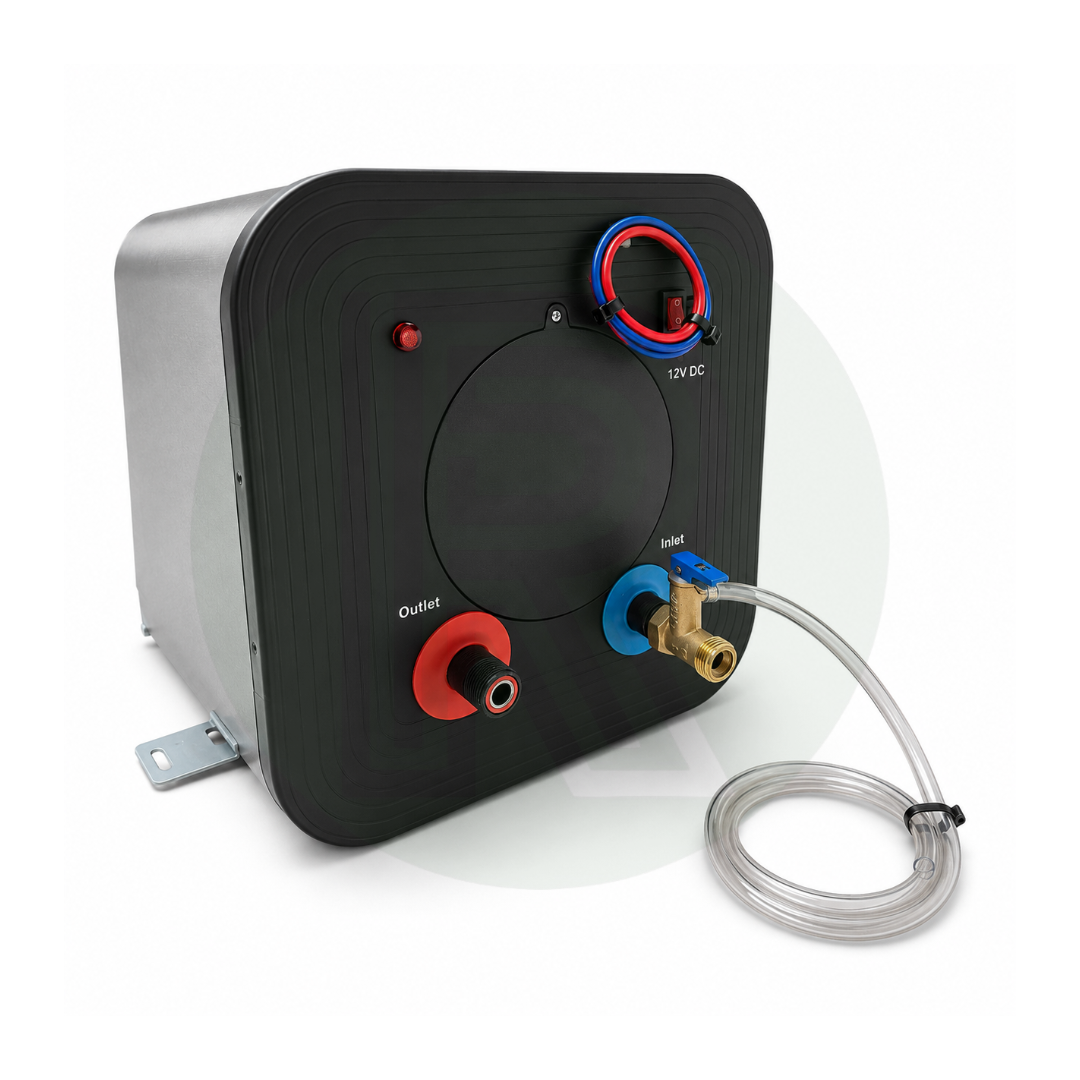

• Inline Pressure Relief / Non-Return Valve
• Pressure Relief Valve Tubing
