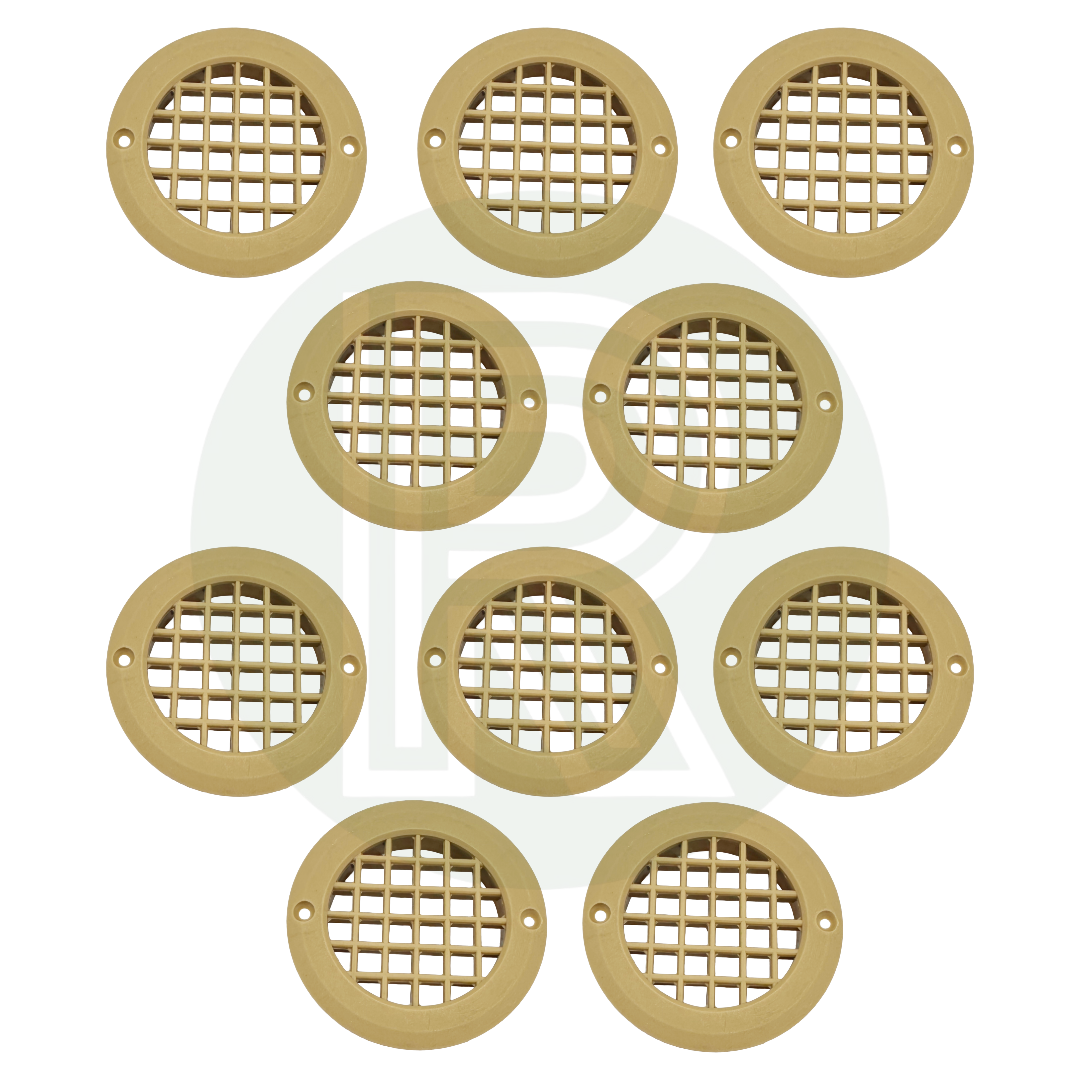

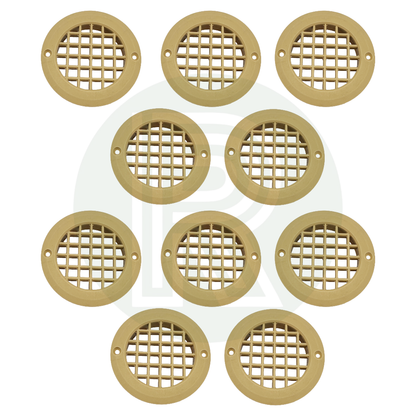

• Beige round vent grille pack of 10 for caravan motorhome campervan furniture and ventilation installations

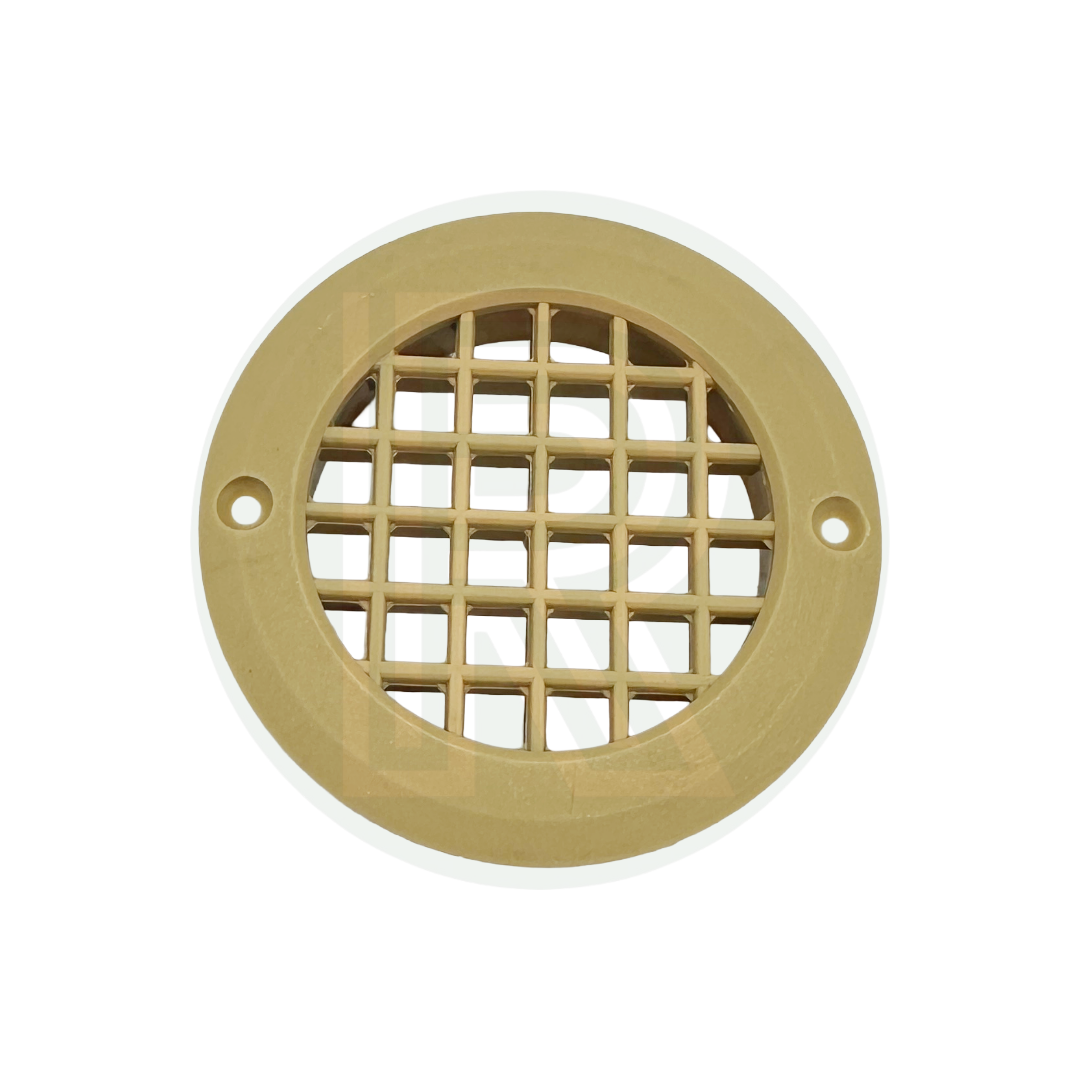

  • Beige round ventilation grille with fixing holes for campervan caravan and motorhome conversion projects
1 2

10 x Beige Gas Drop Out Floor Short Tail Vents

10 x Beige Gas Drop Out Floor Short Tail Vents

£13.95 inc. VAT
£13.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This round vent grille provides effective ventilation for motorhomes, campervans, caravans, boats and other leisure vehicle applications. Designed to promote airflow around appliances, cupboards and enclosed spaces, it helps improve ventilation and reduce the build-up of heat and condensation.

The vent requires a 55mm diameter hole to be cut for installation, while the external face measures 75mm in diameter for a neat and professional finish. With a stem length of 12mm, it is ideally suited for installation through furniture board, cabinetry and vehicle wall panels.

Offering a free flow area of 730mm², this vent provides excellent airflow and is suitable for a wide range of ventilation requirements. Depending on your installation, additional floor vents may also be required.

Features

  • Round ventilation grille
  • Suitable for motorhomes, campervans, caravans and boats
  • Provides effective airflow for appliances and enclosed spaces
  • Ideal for furniture board and wall panel installations
  • Neat low-profile design
  • Durable plastic construction
  • Also available in Grey and Black

Specifications

  • Face Diameter: 75mm
  • Required Cut-Out: 55mm Diameter
  • Stem Length: 12mm
  • Screw Hole Centres: 65mm
  • Free Flow Area: 730mm²
  • Material: Plastic

Important Information

This vent requires a 55mm diameter hole for installation. Fixing screws are not included. Depending on your application and appliance requirements, additional floor ventilation may also be necessary.

View full details

Frequently Asked Questions

A gas drop out floor vent provides a permanent ventilation opening through the floor of a caravan, motorhome or campervan. It allows heavier-than-air LPG gases, such as propane and butane, to escape safely in the event of a leak.

LPG is heavier than air and will collect at the lowest point of a vehicle if a leak occurs. A correctly installed drop out vent helps the gas escape beneath the vehicle, improving safety and helping to meet LPG installation requirements.

Drop out vents should be installed through the vehicle floor at the lowest point of the gas locker or LPG cylinder compartment, following the appliance or vehicle manufacturer's recommendations and any relevant gas installation standards.

The short tail design makes installation easier where floor depth is limited while still providing effective permanent ventilation beneath the vehicle.

Can't find the answer you're looking for?
Give our technical team a call on 01271 611015 (Option 2) and we'll be happy to help.
