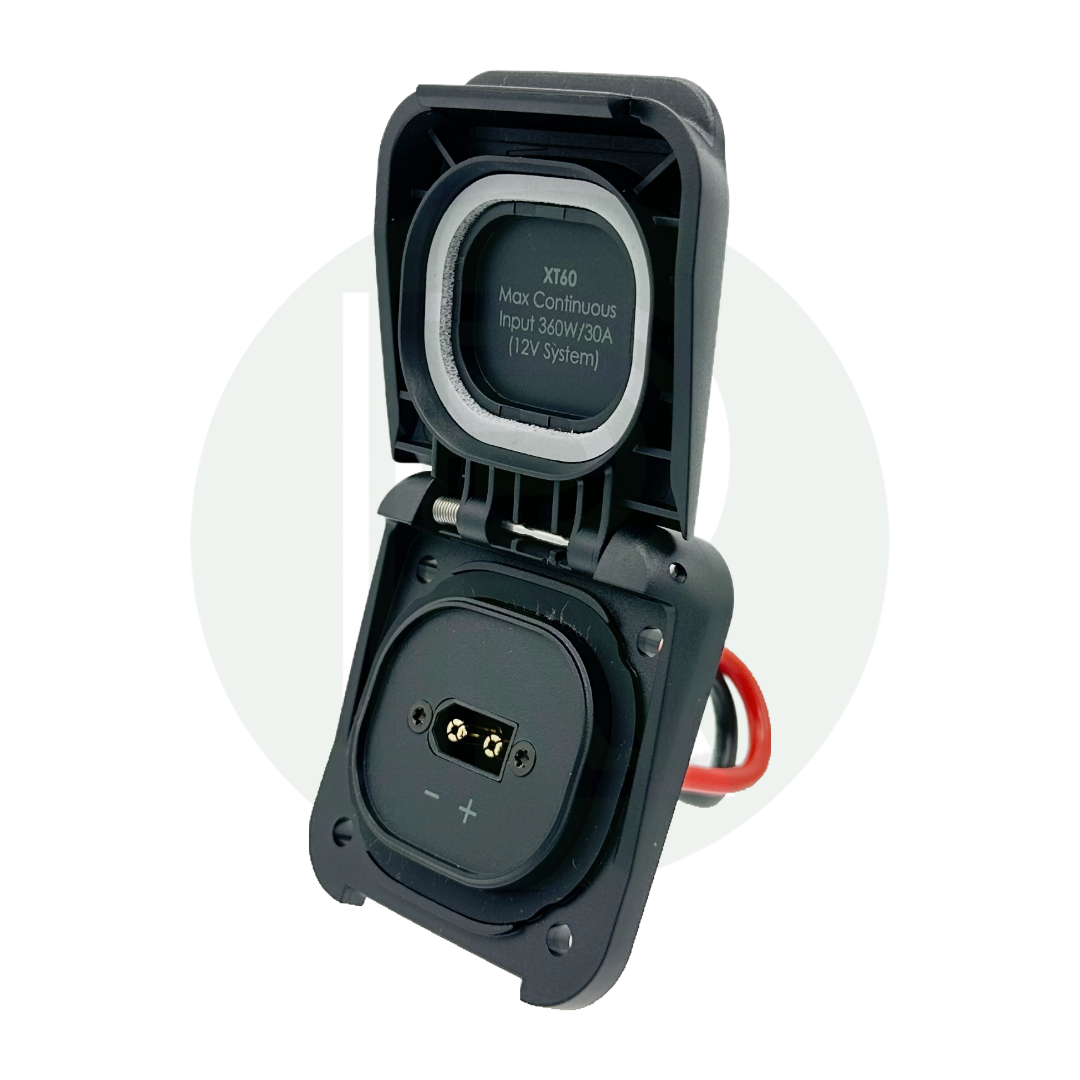

  • Angled front view of XT60 solar connection with open lid revealing internal connector and polarity markings.

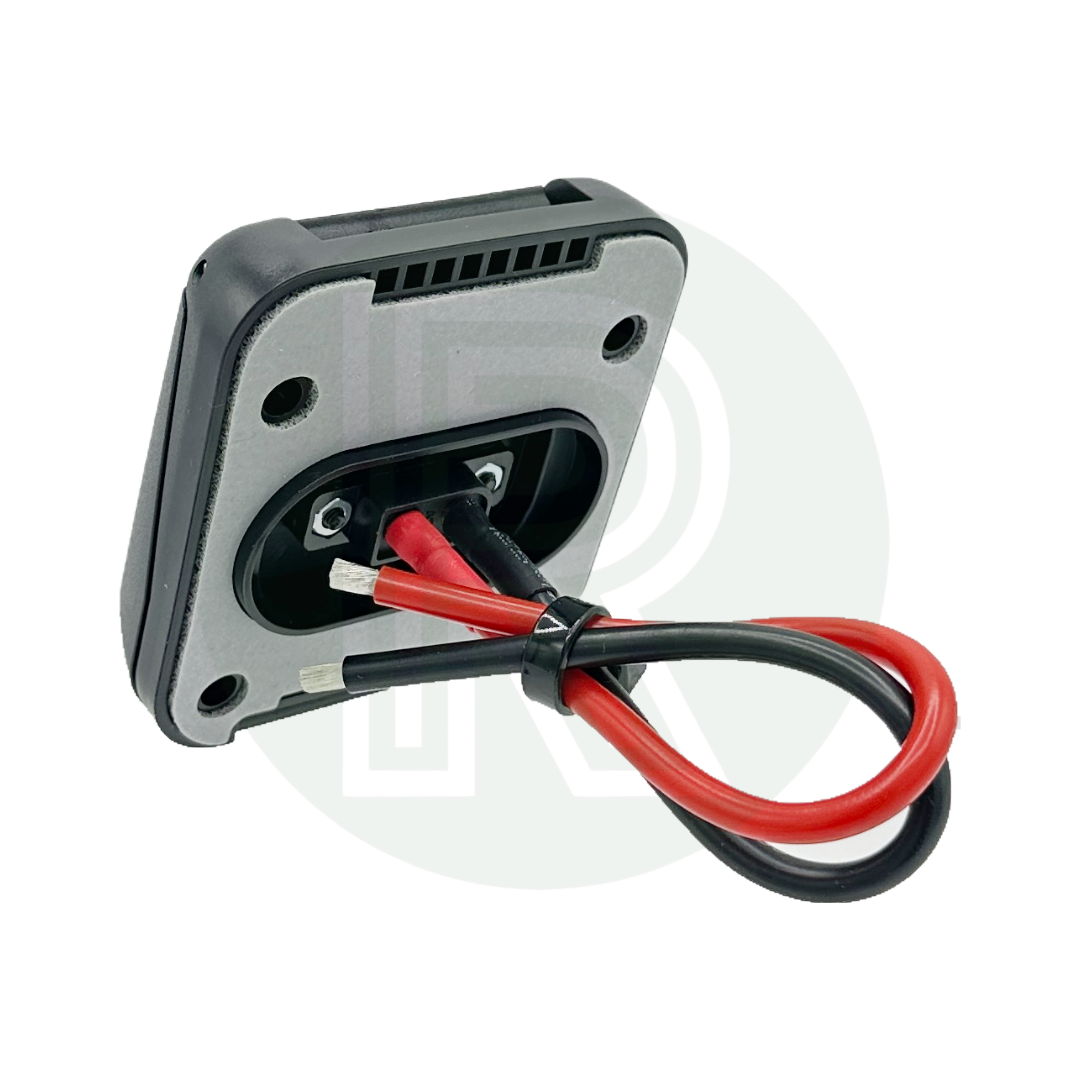

  • Rear view of XT60 solar connection showing electrical terminals, mounting plate, and cable wiring.

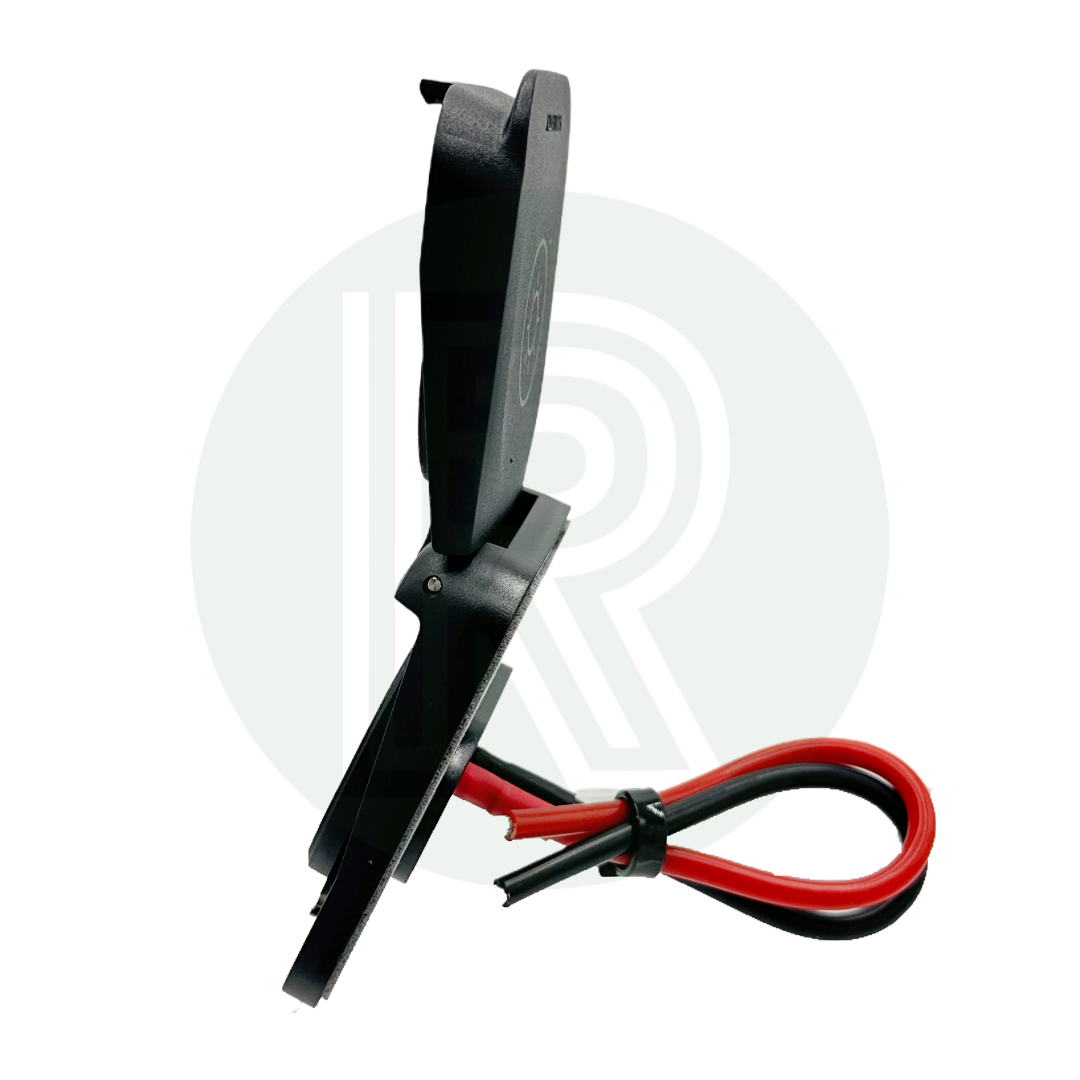

  • Side view of Scanstrut Ventura XT60 solar connection with hinged waterproof lid and attached red and black wiring.

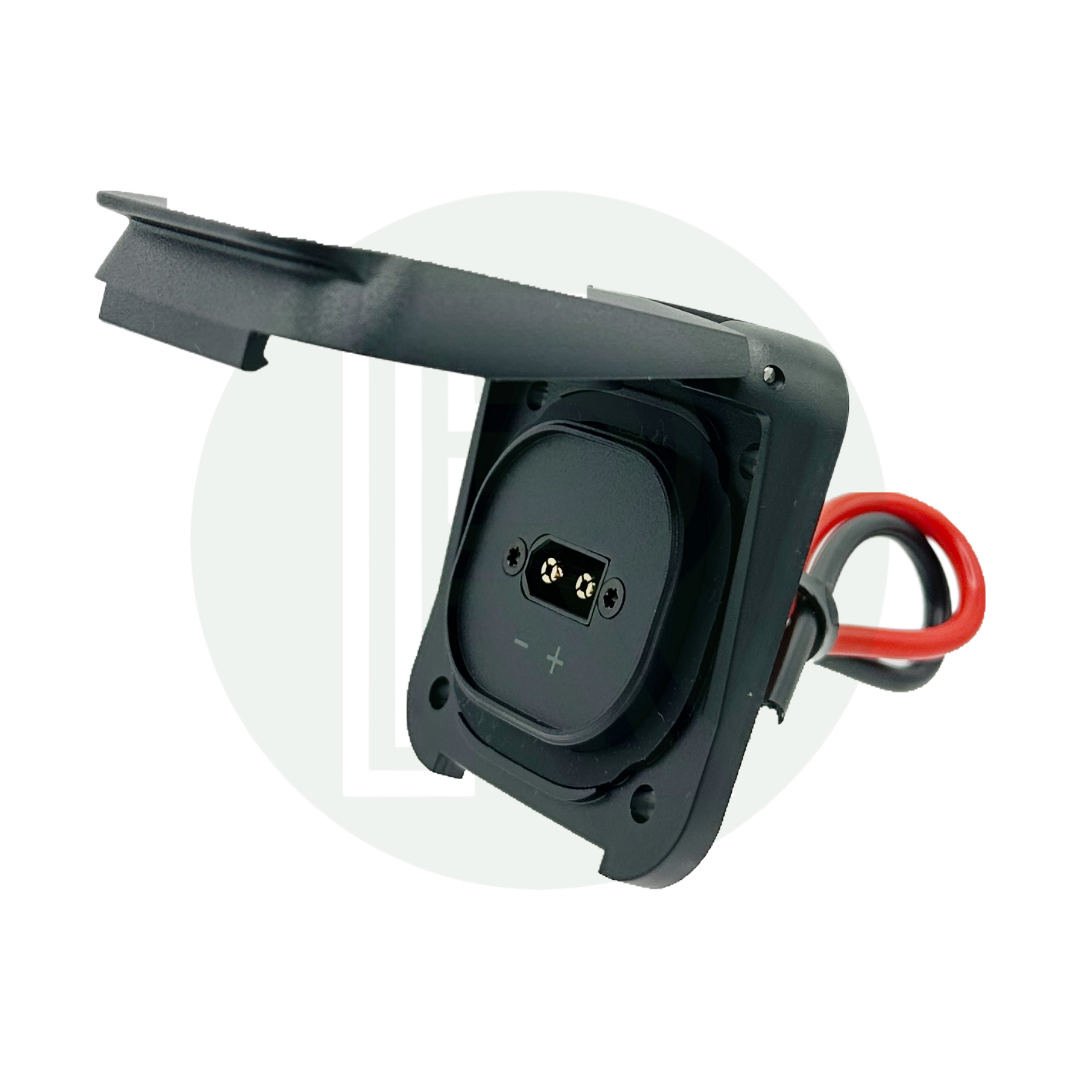

  • Rear view of XT60 solar connection showing electrical terminals, mounting plate, and cable wiring.

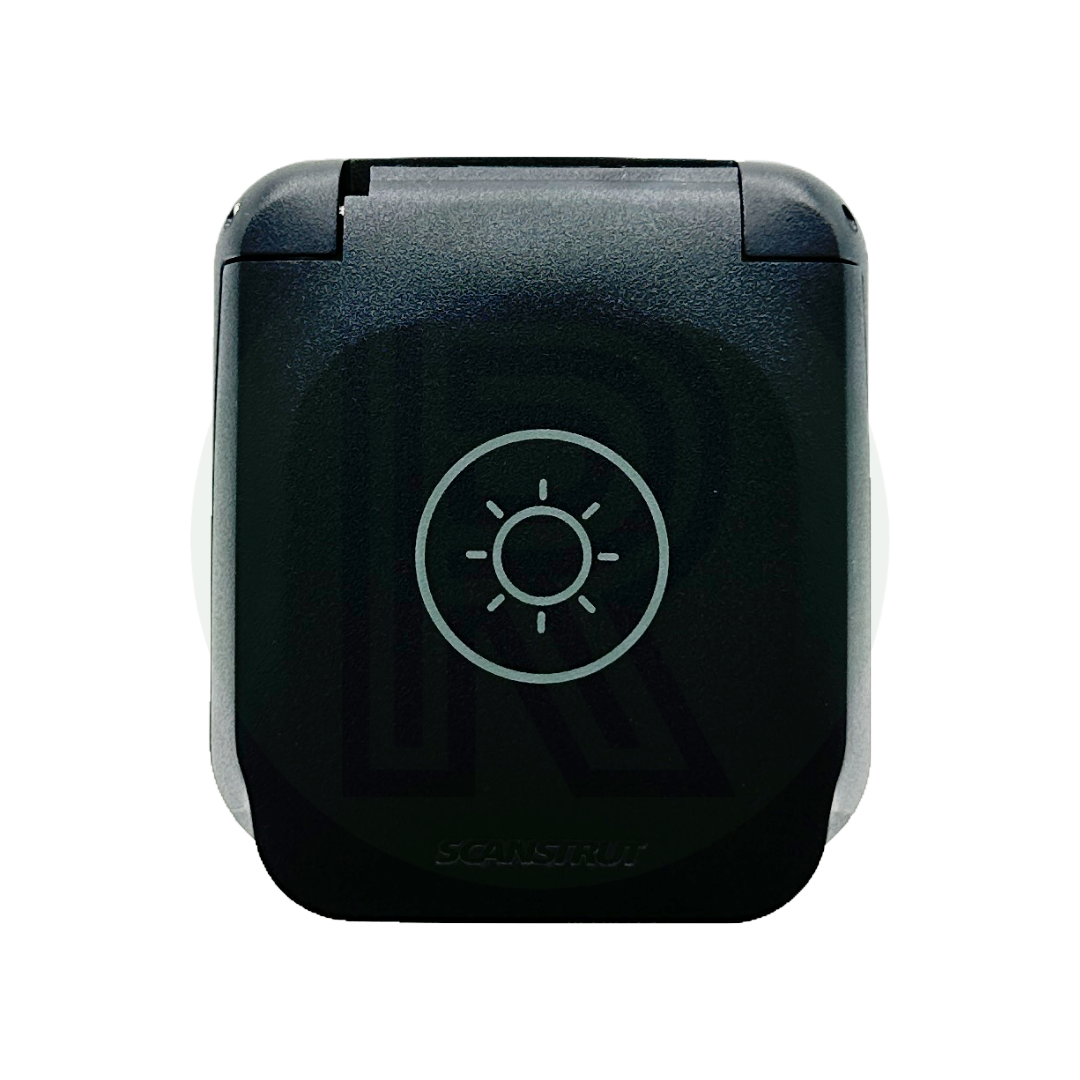

  • Front view of XT60 solar connection with closed protective lid featuring solar icon on black panel.

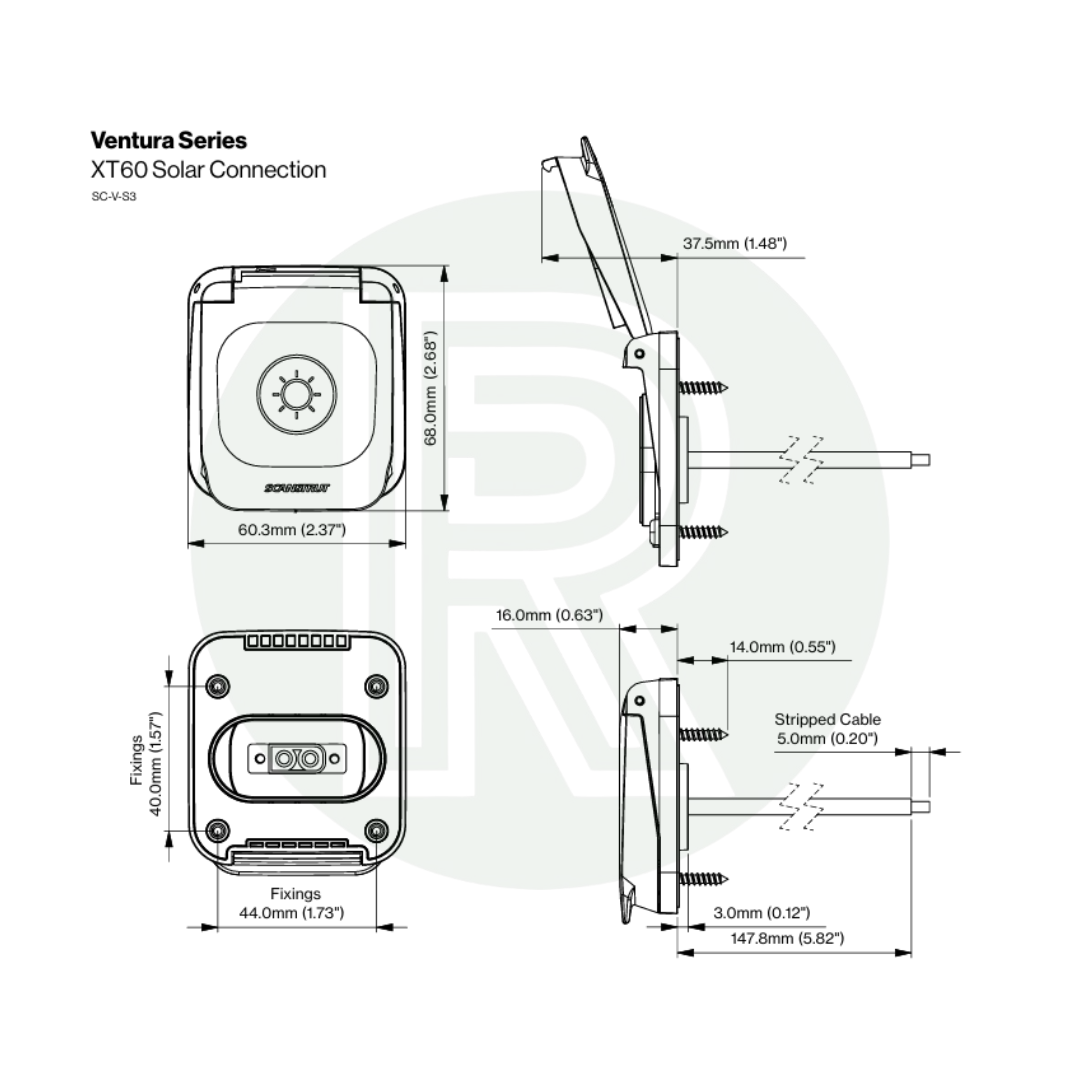

  • Technical diagram of XT60 solar connection showing dimensions, mounting layout, and wiring specifications.

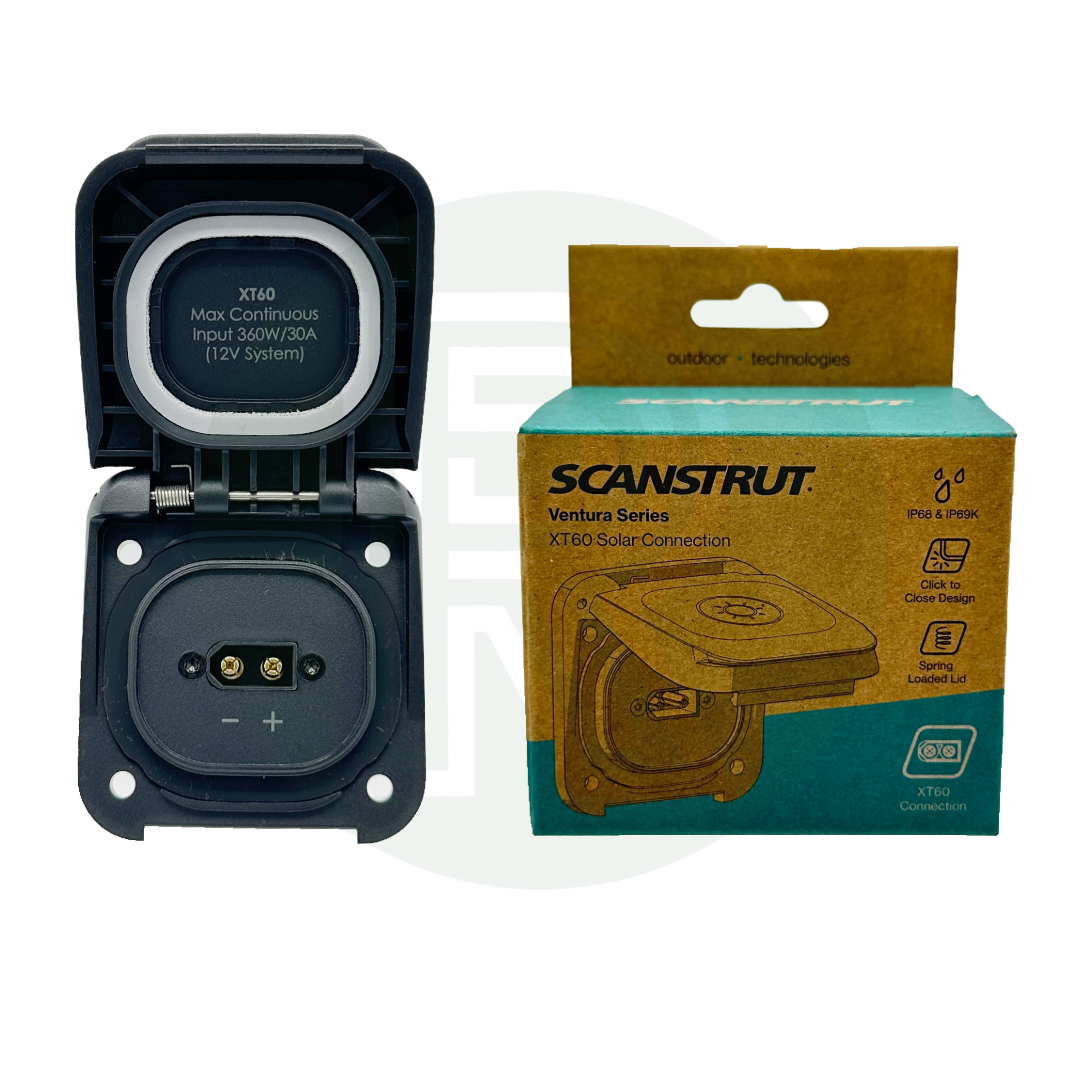

  • XT60 solar connection with open lid displayed next to Scanstrut Ventura Series retail packaging.
1 8

Scanstrut Ventura XT60 Power Socket 30A

Scanstrut Ventura XT60 Power Socket 30A

£25.95
£25.95
Sale Sold out
VAT included. Shipping calculated at checkout.

Downloads & Guides

📄 Installation
Manual 📄 Fitting
Template

Ventura XT60 Power Socket – High-Performance Outdoor Power Connection

Power your setup with confidence using the Scanstrut Ventura Series XT60 Power Socket, designed for reliable, high-current connections in campervans, 4x4s, and off-grid systems.

Whether you're charging from solar panels, powering appliances, or connecting external battery systems, this rugged XT60 socket delivers secure, efficient power in any environment.

Built for the outdoors, its fixed, low-profile design ensures a stable connection even on rough terrain, while supporting higher voltage systems up to 48V.

Part of the Ventura Series, it integrates seamlessly with matching water, solar, and power sockets for a clean, professional installation.

Key Features & Benefits

  • XT60 waterproof connection – Reliable high-current power transfer
  • High power capacity – Supports up to 30A continuous load
  • 12V–48V compatible – Ideal for advanced off-grid systems
  • Fully waterproof (IP68 & IP69K) – Built for extreme outdoor conditions
  • Marine-grade 316 stainless steel – Corrosion-resistant durability
  • Secure click-to-close lid – Protects against water and debris
  • Compact, low-profile design – Clean and professional finish
  • UV resistant construction – Designed for long-term outdoor exposure
  • Ventura Series compatible – Matches other sockets for a uniform look

Electrical Specifications

  • Connection Type: Amass XT60EW-M Male Waterproof
  • Compatible Connectors:
    • XT60W-F Female Waterproof (IP65 in use)
    • XT60-F Standard Female
  • Max Current:
    • 30A continuous
    • 60A instantaneous
  • Max Voltage: 500V DC
  • Max Power Delivery:
    • 360W (12V)
    • 720W (24V)
    • 1440W (48V)
  • Rear Cable Size: 4mm² (12AWG)
  • Rear Cable Length: 150mm (6") tinned copper wire
  • Rear Cable Bend Radius: 18mm (0.71")
  • Waterproof Rating: IP68 & IP69K (front when lid closed)
  • Certification: CE, ROHS

What’s Included

  • Ventura Series XT60 power socket with 150mm pre-wired cables to the rear

Built for Harsh Outdoor Use

  • Marine-grade 316 stainless steel construction
  • Fully waterproof and dustproof design
  • UV resistant for long-term durability
  • Engineered for rugged environments and off-grid use

Easy Installation

  • Fits standard 25mm (1") holesaw cut-out
  • Integrated gasket for a watertight seal
  • Spring-loaded lid with 180° opening
  • 90° hold-open feature for convenience
