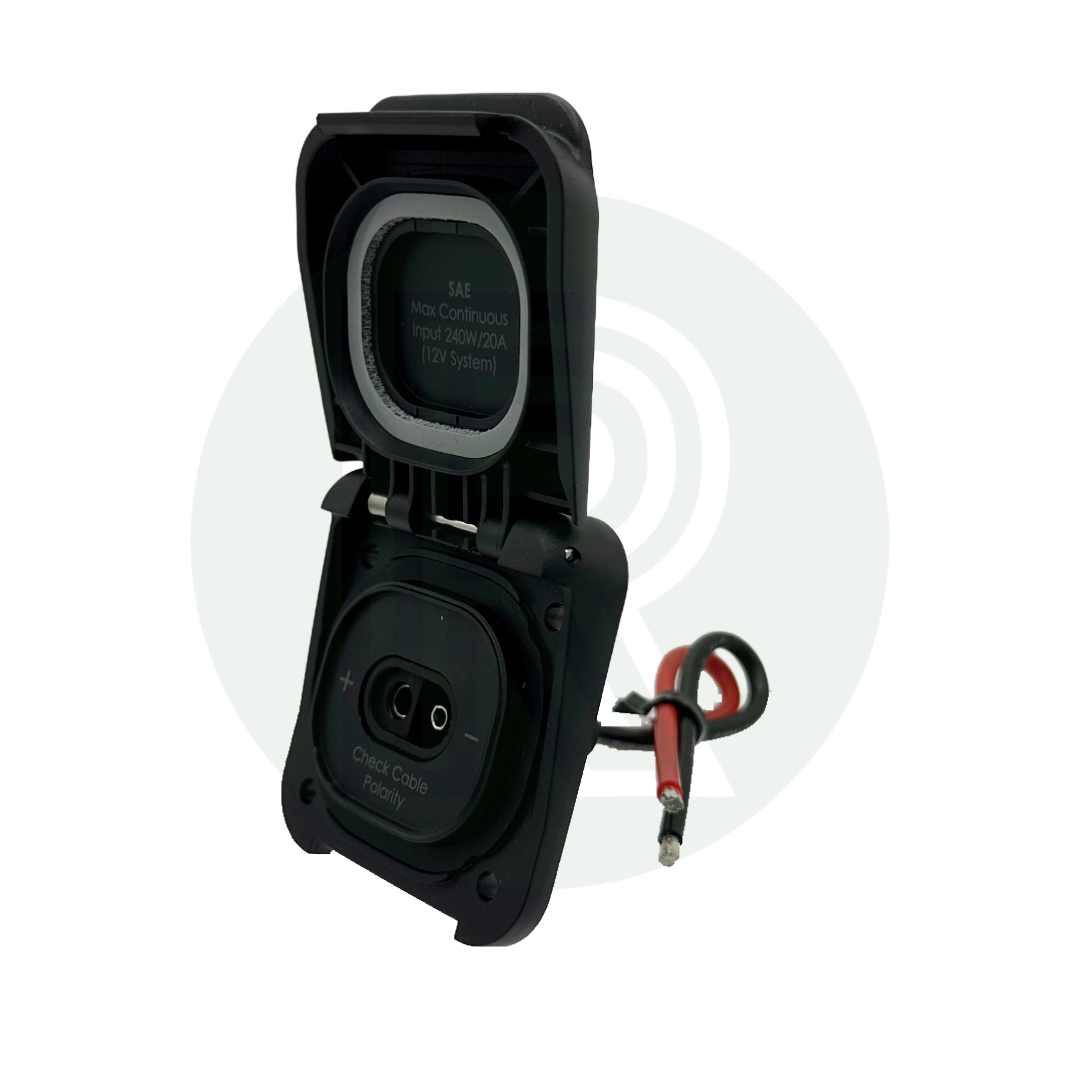

  • Open waterproof SAE solar socket showing internal connection port and labeled polarity indicators.

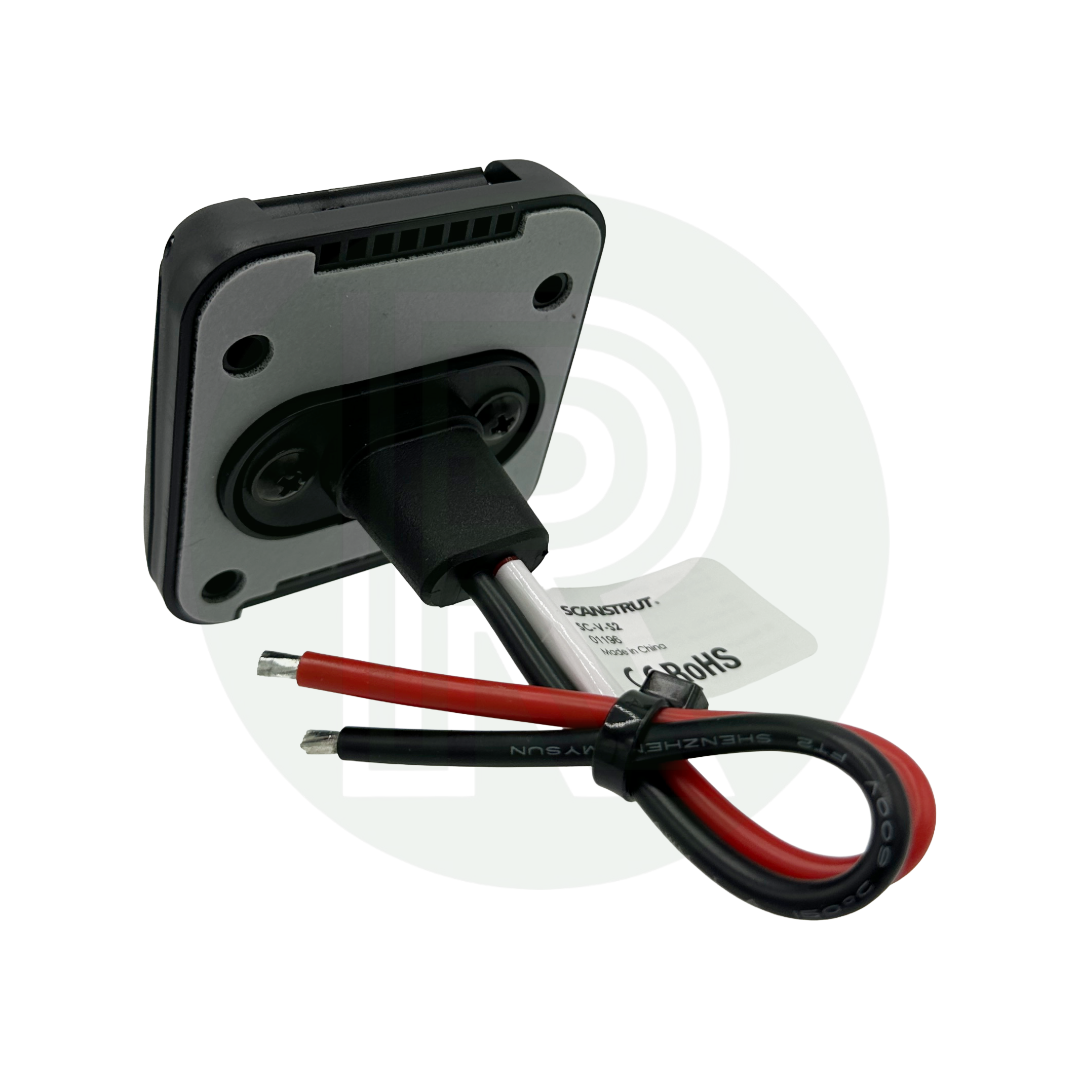

  • Rear view of the SAE solar connector showing mounting plate, gasket, and attached red and black power cables.

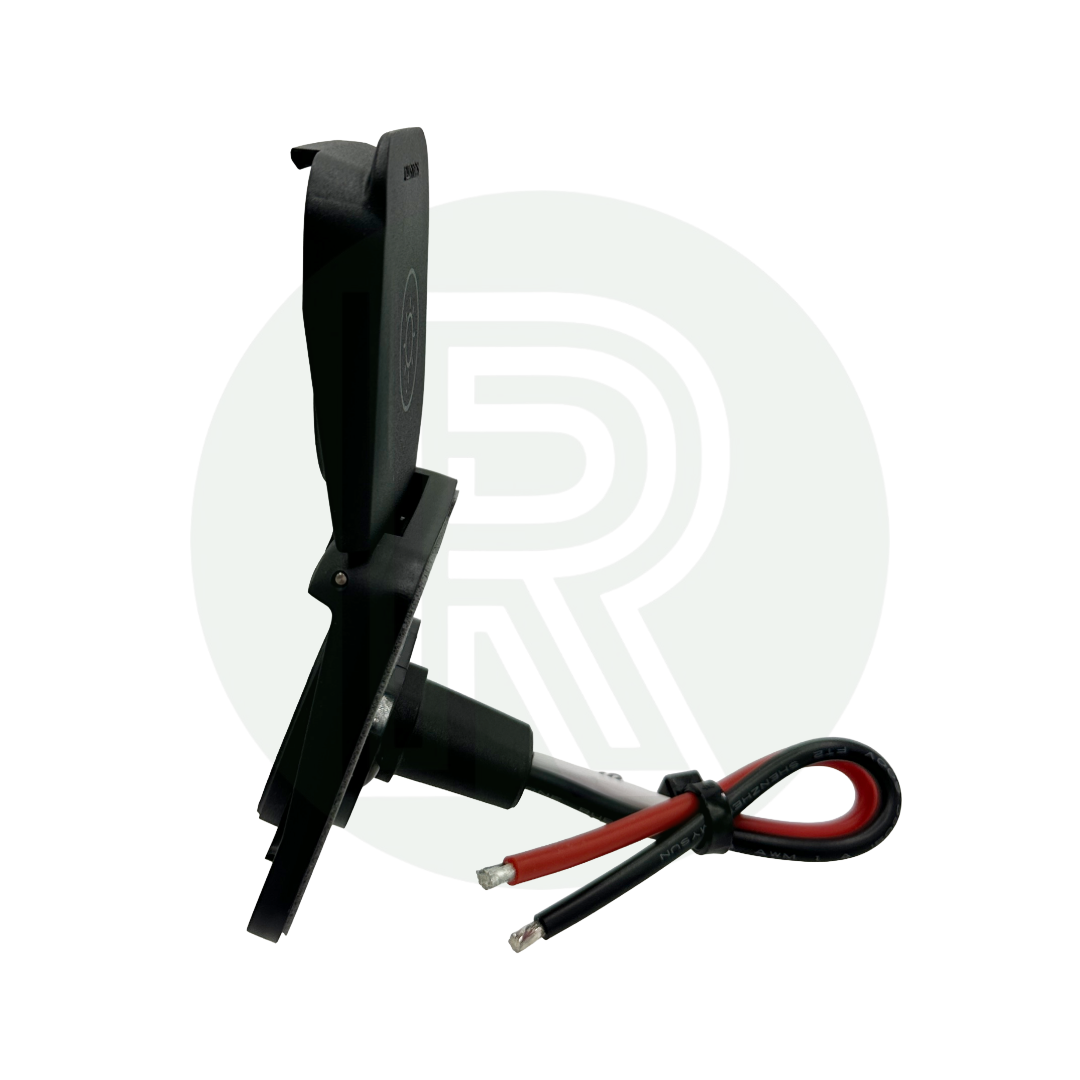

  • Side profile of the SAE solar connector with hinged lid and protruding cable housing.

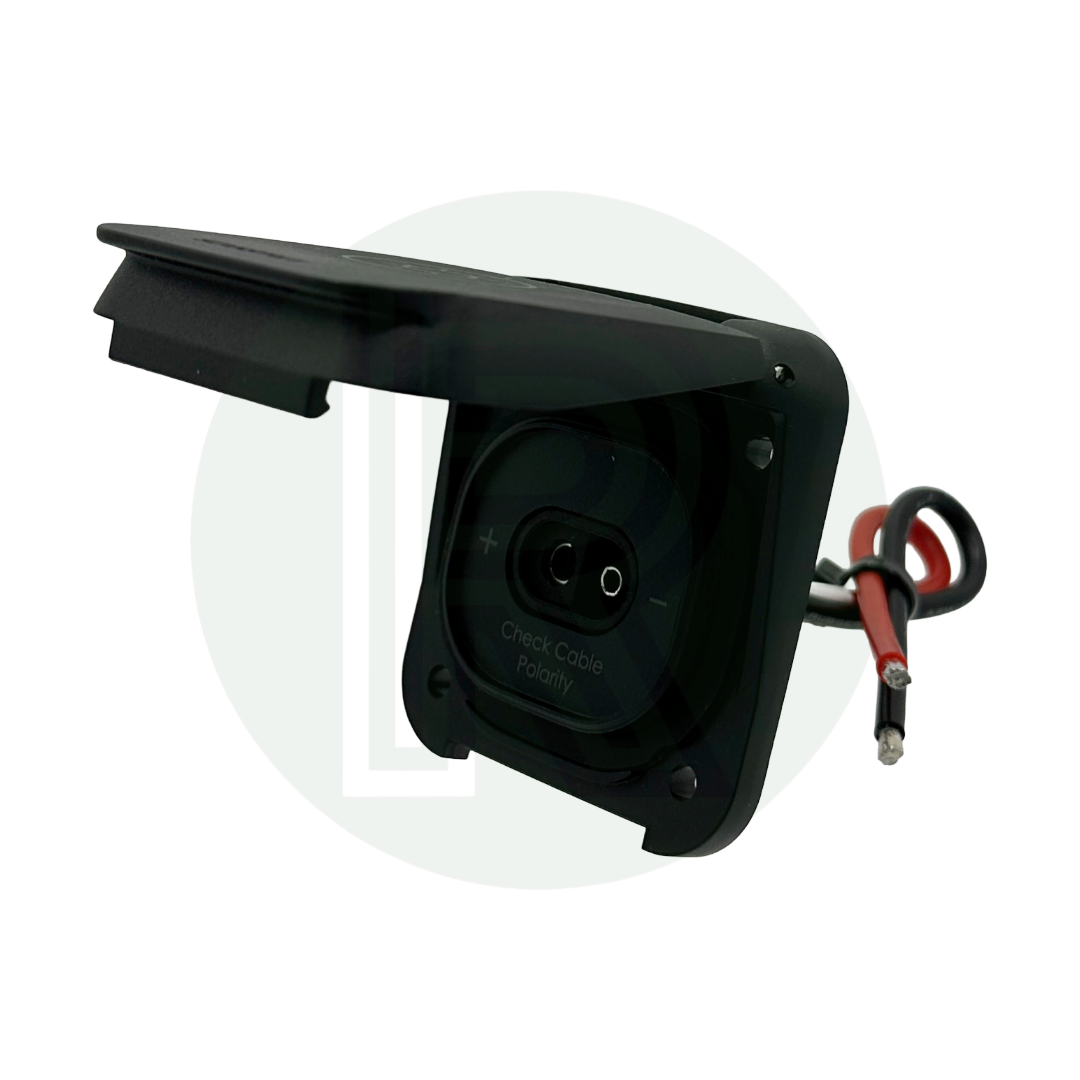

  • Black waterproof SAE solar connection socket with hinged protective cover, showing front panel with positive and negative terminals and attached red/black wires.

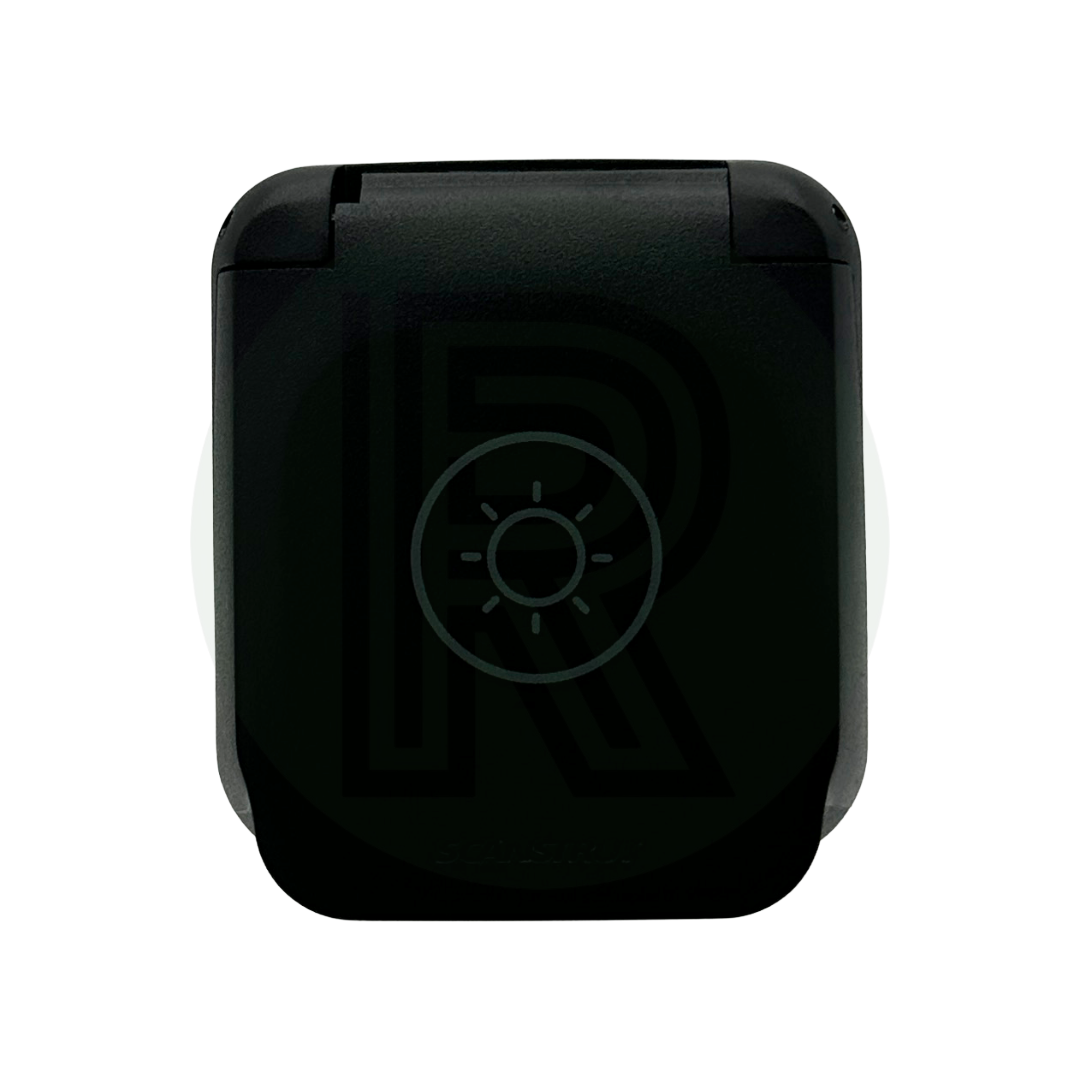

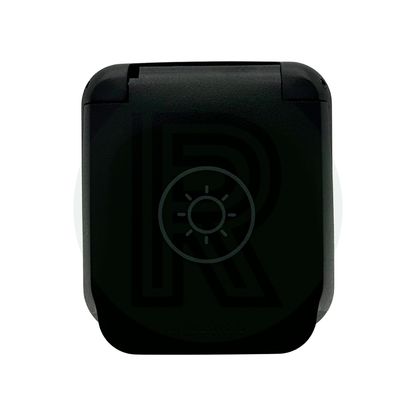

  • Front view of closed SAE solar socket with a sun icon on the lid, compact square design in matte black.

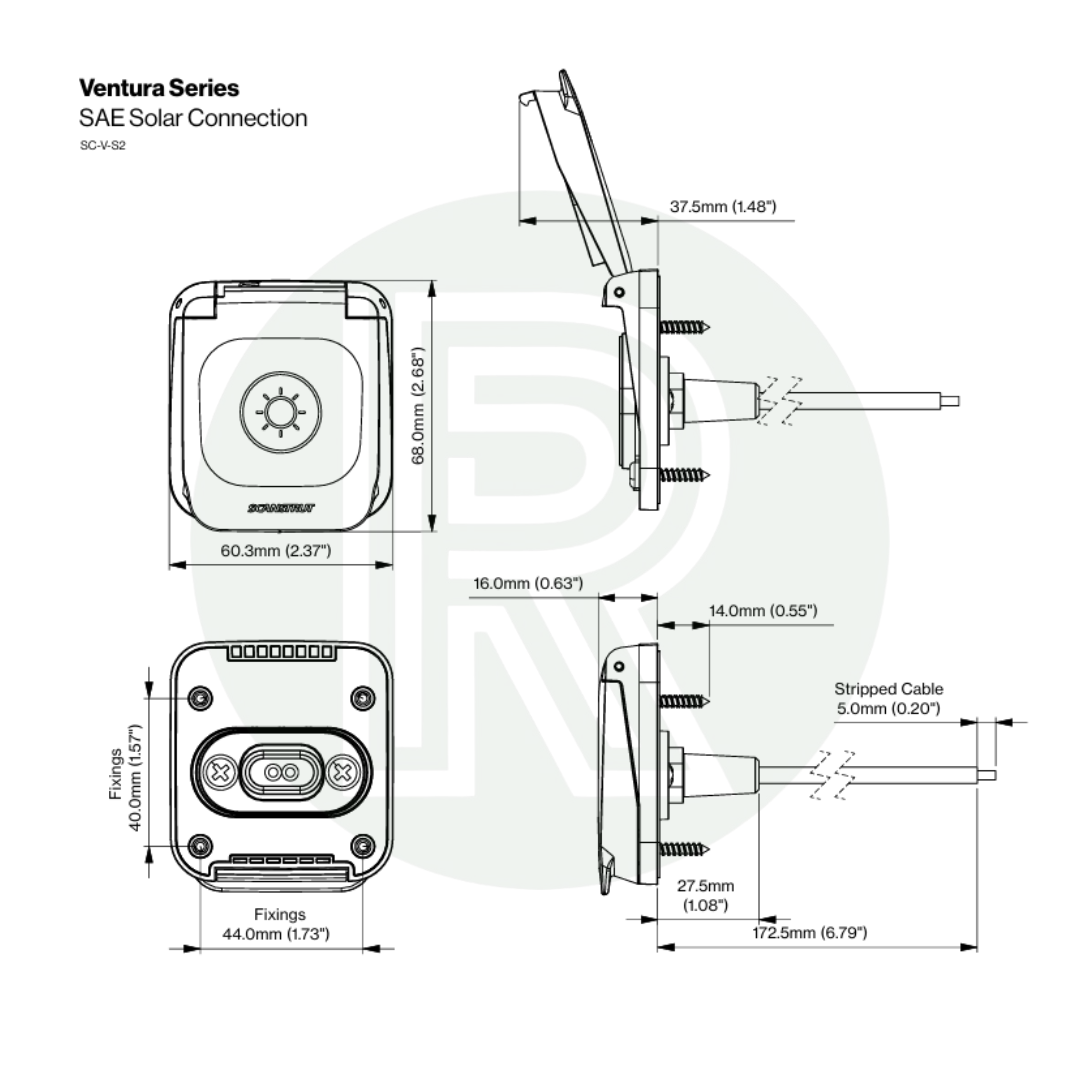

  • Technical drawing of the SAE solar connector with dimensions, front and side views, and cable length details.

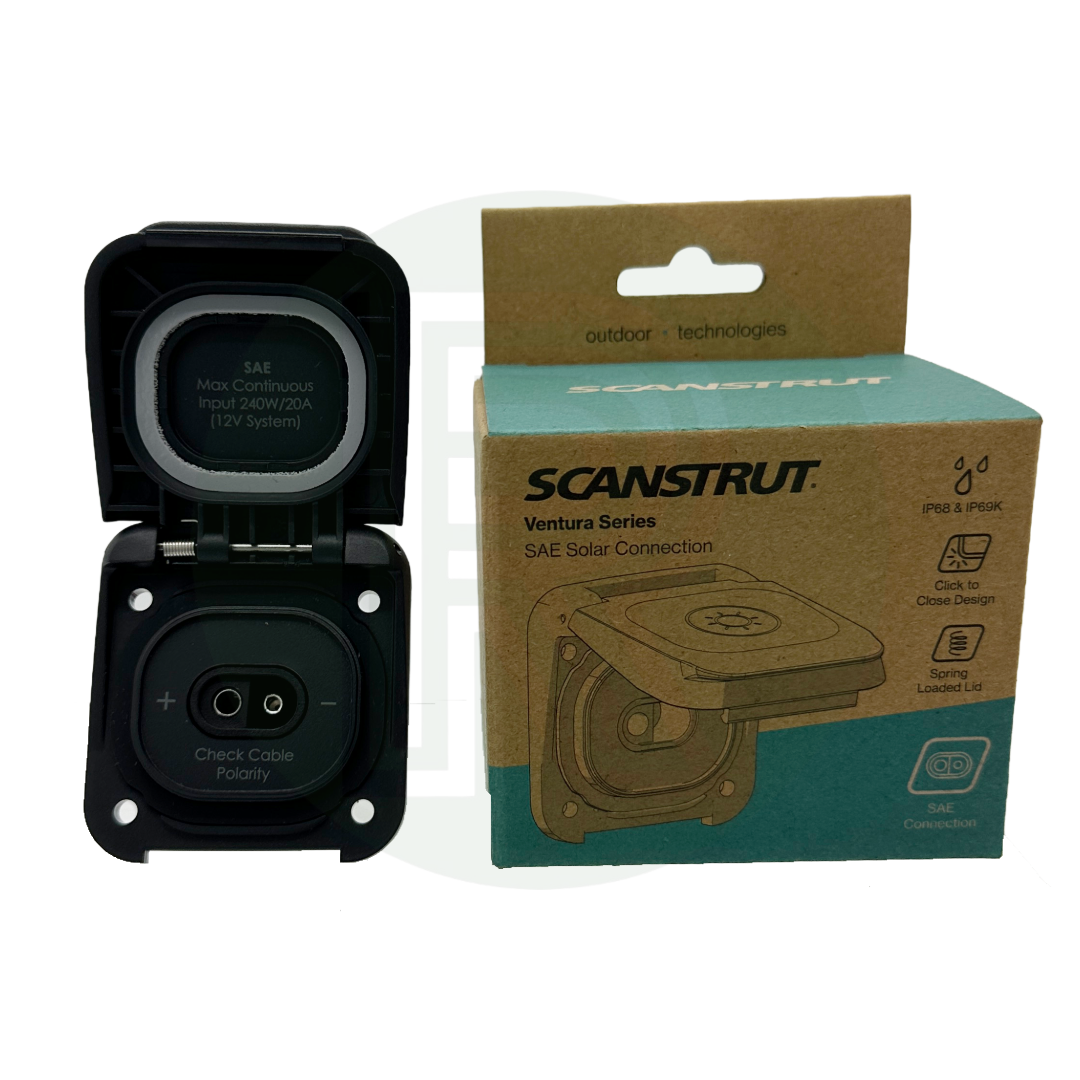

  • SAE solar connection port open next to retail packaging labeled “Scanstrut Ventura Series SAE Solar Connection.”
1 8

Scanstrut Ventura SAE Power Socket 12V 24V Waterproof IP68

Scanstrut Ventura SAE Power Socket 12V 24V Waterproof IP68

£29.95
£29.95
Sale Sold out
VAT included. Shipping calculated at checkout.

Downloads & Guides

📄 Installation
Manual 📄 Fitting
Template

Ventura SAE Power Socket – Durable Outdoor Power Connection

Upgrade your setup with the Scanstrut Ventura Series SAE Power Socket, designed to provide quick, reliable external power access for campervans, boats, and off-grid systems.

Perfect for connecting solar panels, battery chargers, and external devices, this SAE socket is built to handle life outdoors — from rugged overland trails to harsh marine environments.

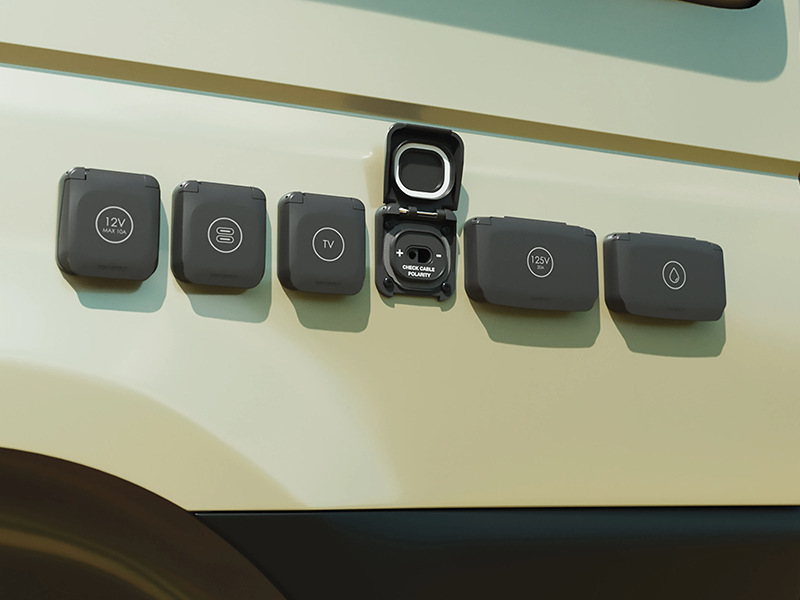

Part of the Ventura Series, it integrates seamlessly with matching water, solar, and power sockets for a clean, professional installation.

Why Choose the Ventura SAE Socket?

When you're off-grid, dependable power access is essential. This rugged, waterproof SAE socket ensures a safe and efficient connection point, helping you power your setup with confidence in any environment.

Key Features & Benefits

  • Reliable SAE connection – Ideal for solar panels, chargers, and auxiliary power devices
  • High power capacity – Supports up to 20A for demanding applications
  • Fully waterproof (IP68 & IP69K) – Designed to withstand extreme weather conditions
  • Marine-grade 316 stainless steel – Corrosion-resistant for long-term outdoor use
  • UV resistant construction – Built to last in harsh sunlight
  • Compact, low-profile design – Clean finish for professional installations
  • Ventura Series compatible – Matches other sockets for a uniform look

Electrical Specifications

  • Connection Type: SAE
  • Max Current: 20A
  • Max Voltage: 24V DC
  • Max Power:
    • 240W (12V)
    • 480W (24V)
  • Cable Size: 4mm² (12AWG)
  • Cable Length: 150mm (6") tinned copper wire
  • Waterproof Rating: IP68 & IP69K (front when lid closed)
  • Certification: CE, ROHS

What’s Included

  • Ventura Series SAE socket with pre-wired cable

Built for Harsh Outdoor Conditions

  • Marine-grade 316 stainless steel construction
  • Fully waterproof and dustproof design
  • UV resistant for long-term exposure
  • Engineered for rugged, all-weather performance

Easy Installation

  • Fits standard 25mm (1") holesaw cut-out
  • Integrated gasket for a watertight seal
  • Spring-loaded protective lid
  • 90° hold-open lid for easy access
