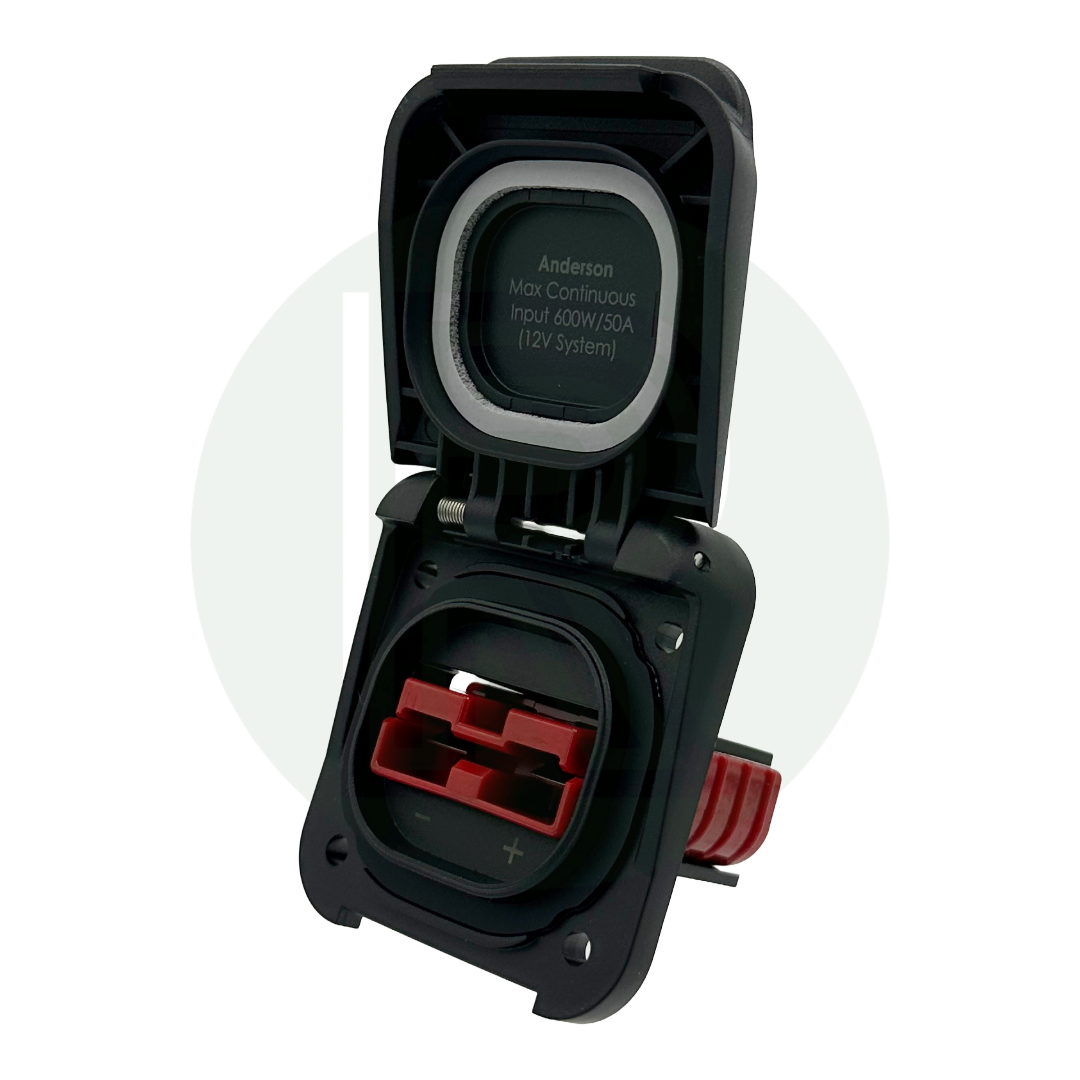

  • Front view of Scanstrut Ventura Anderson 50A solar connection with open waterproof lid and red Anderson connector visible.

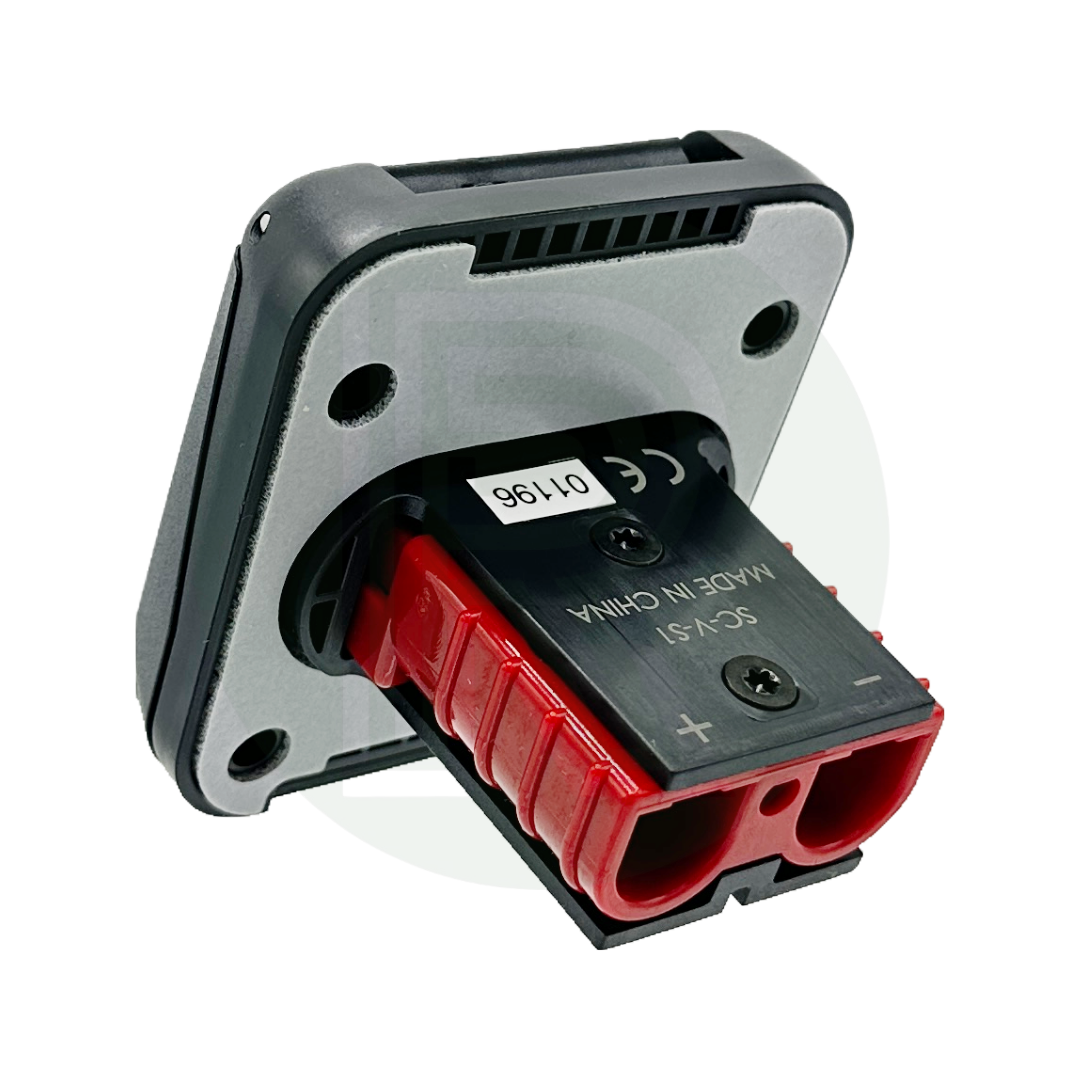

  • Rear view of Anderson 50A connection showing mounting plate, terminals, and integrated red connector housing.

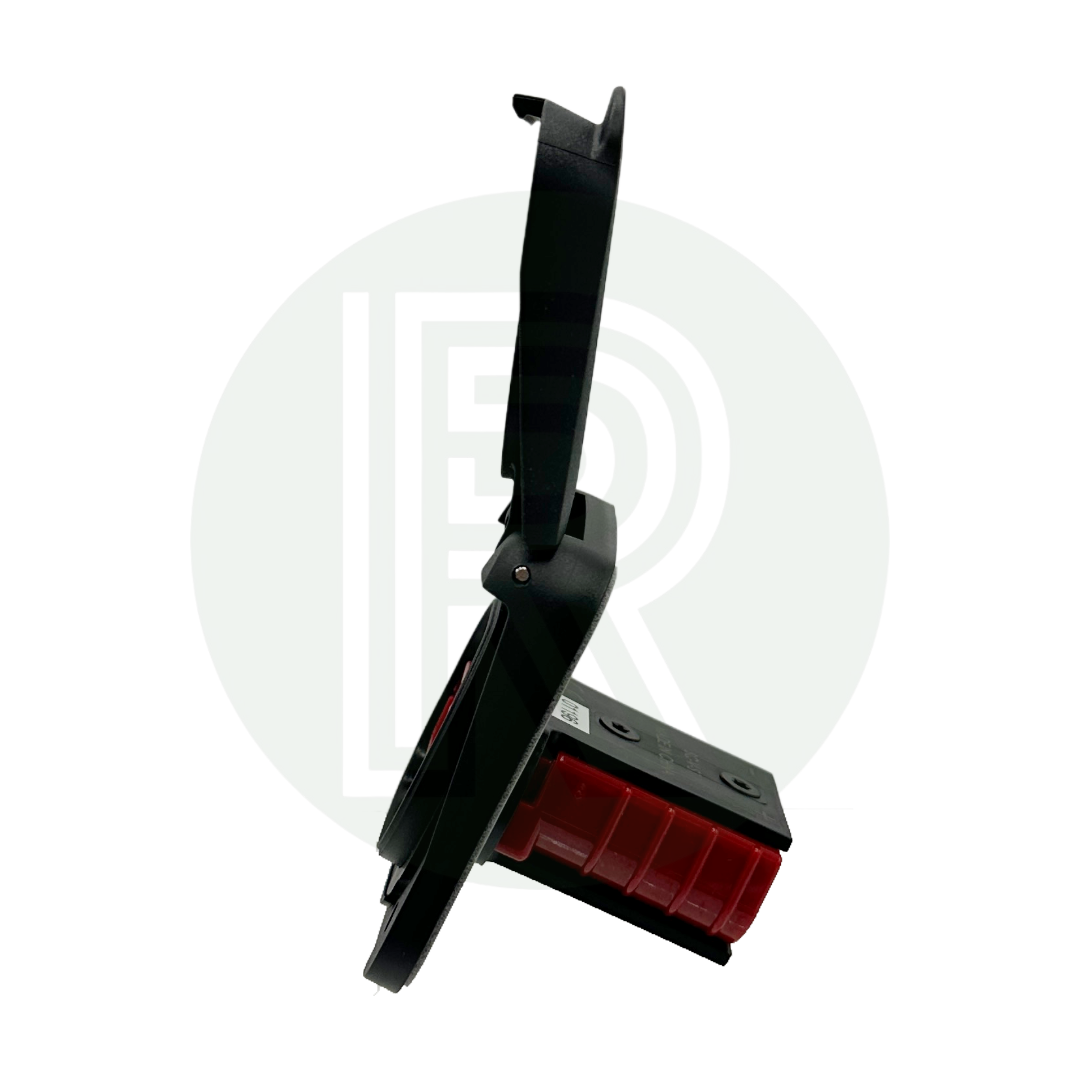

  • Side view of Anderson 50A solar connection showing hinged lid and rear-mounted connector housing.

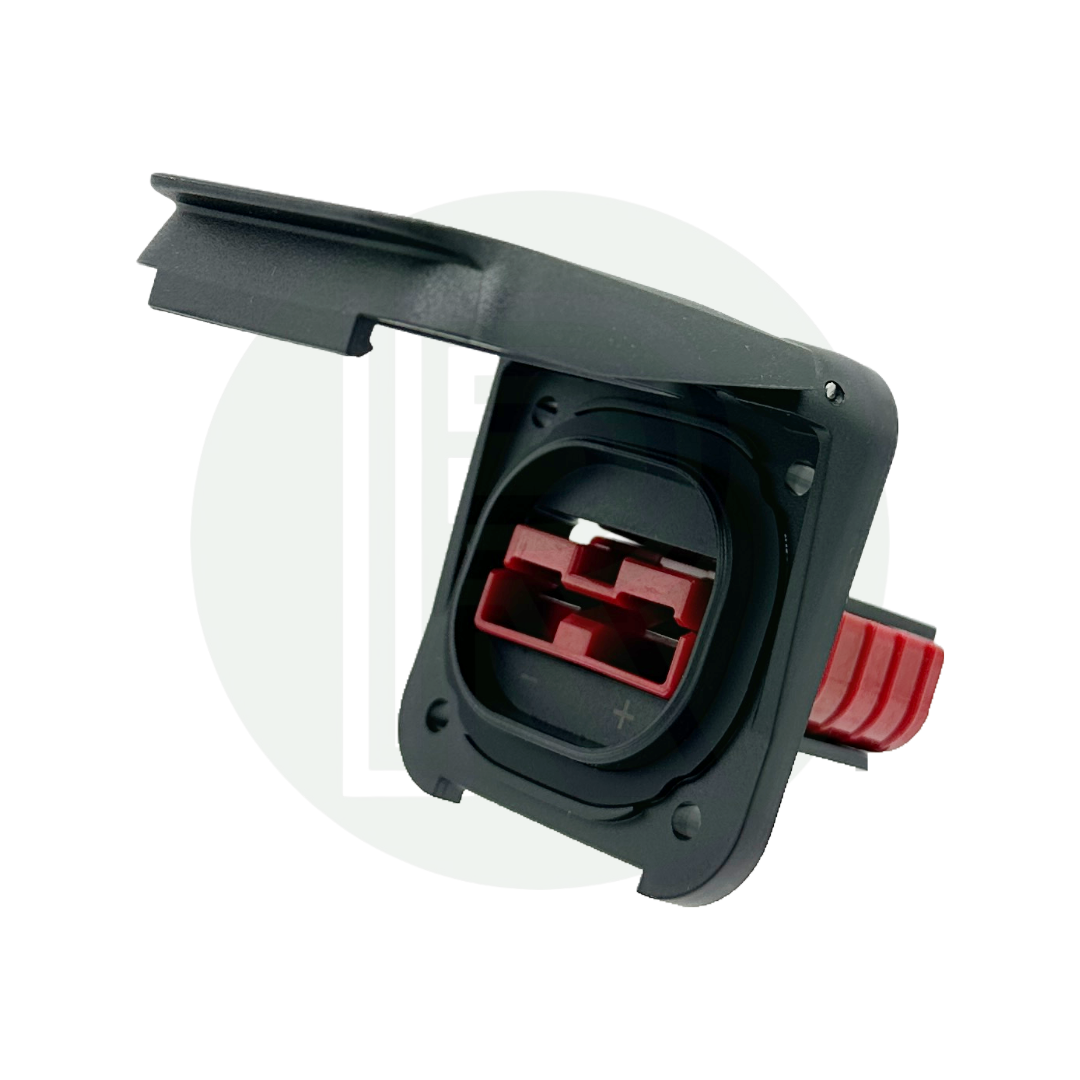

  • Angled front view of Anderson solar connection with open lid revealing red connector and polarity markings.

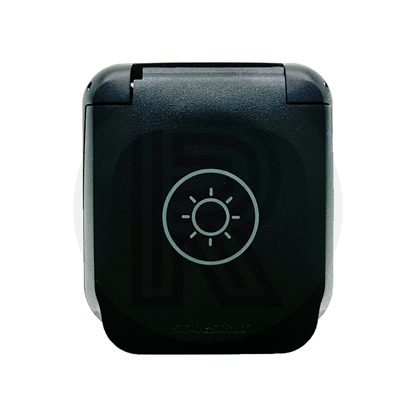

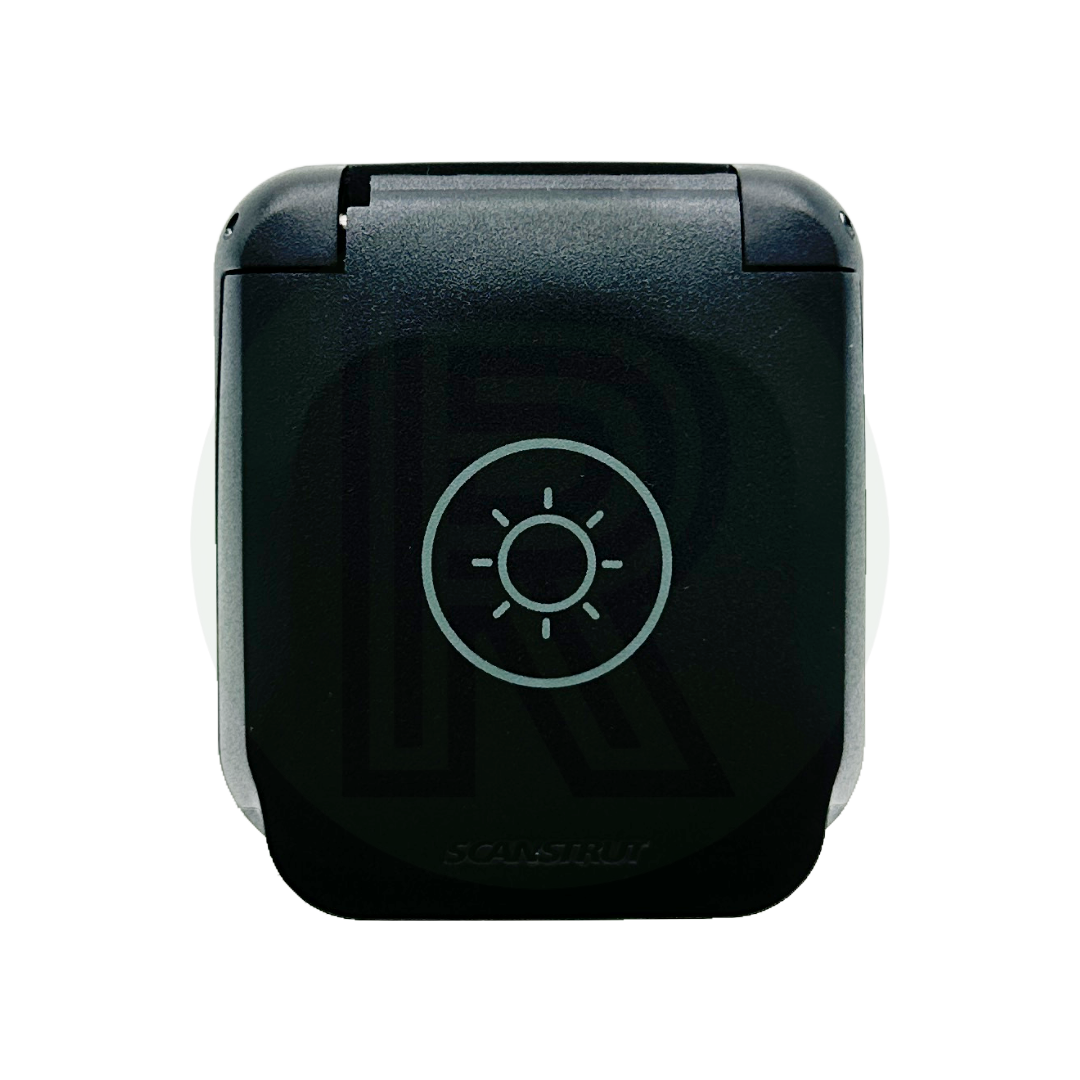

  • Front view of solar connection with closed lid featuring solar icon on black panel.

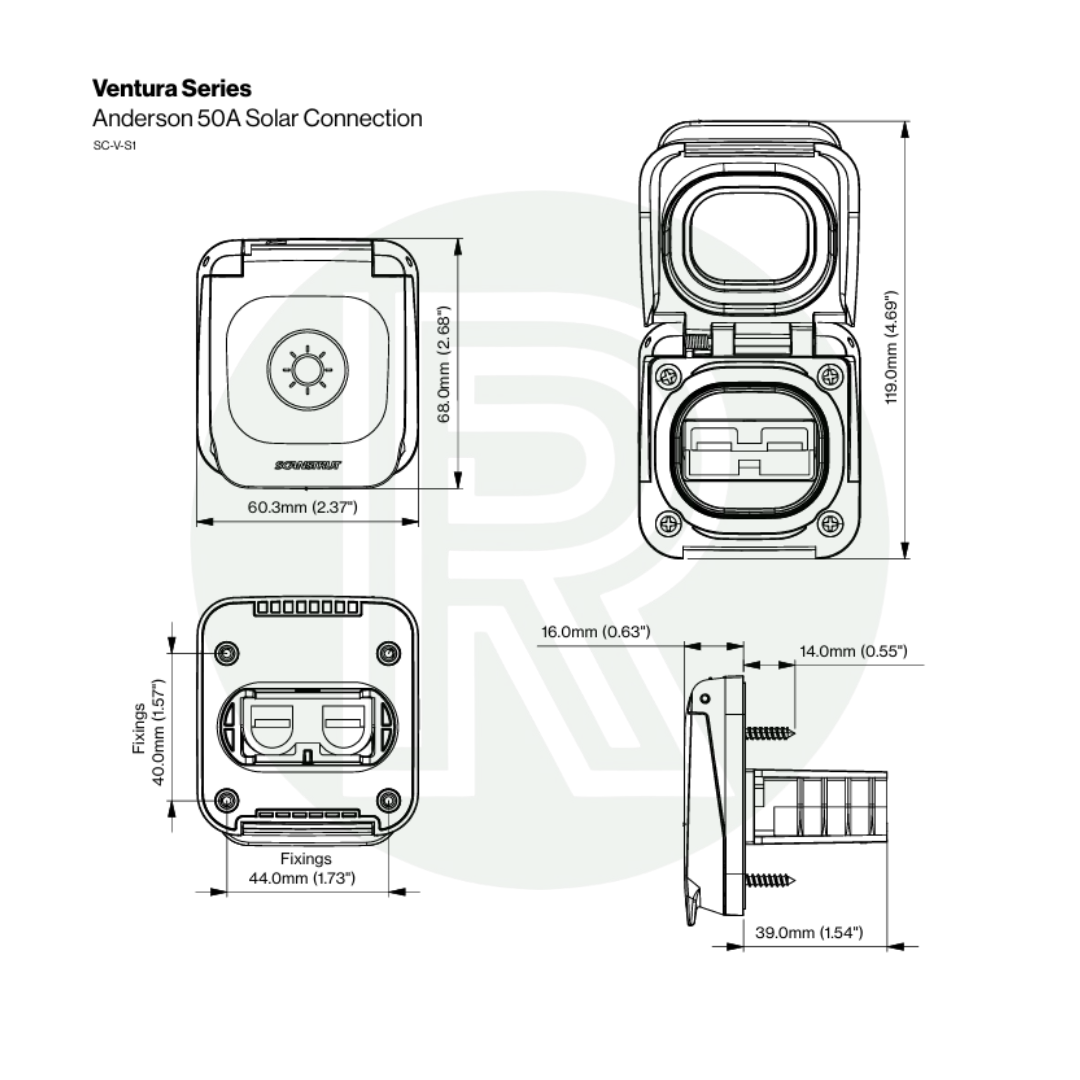

  • Technical diagram of Anderson 50A solar connection showing dimensions, mounting layout, and installation details.

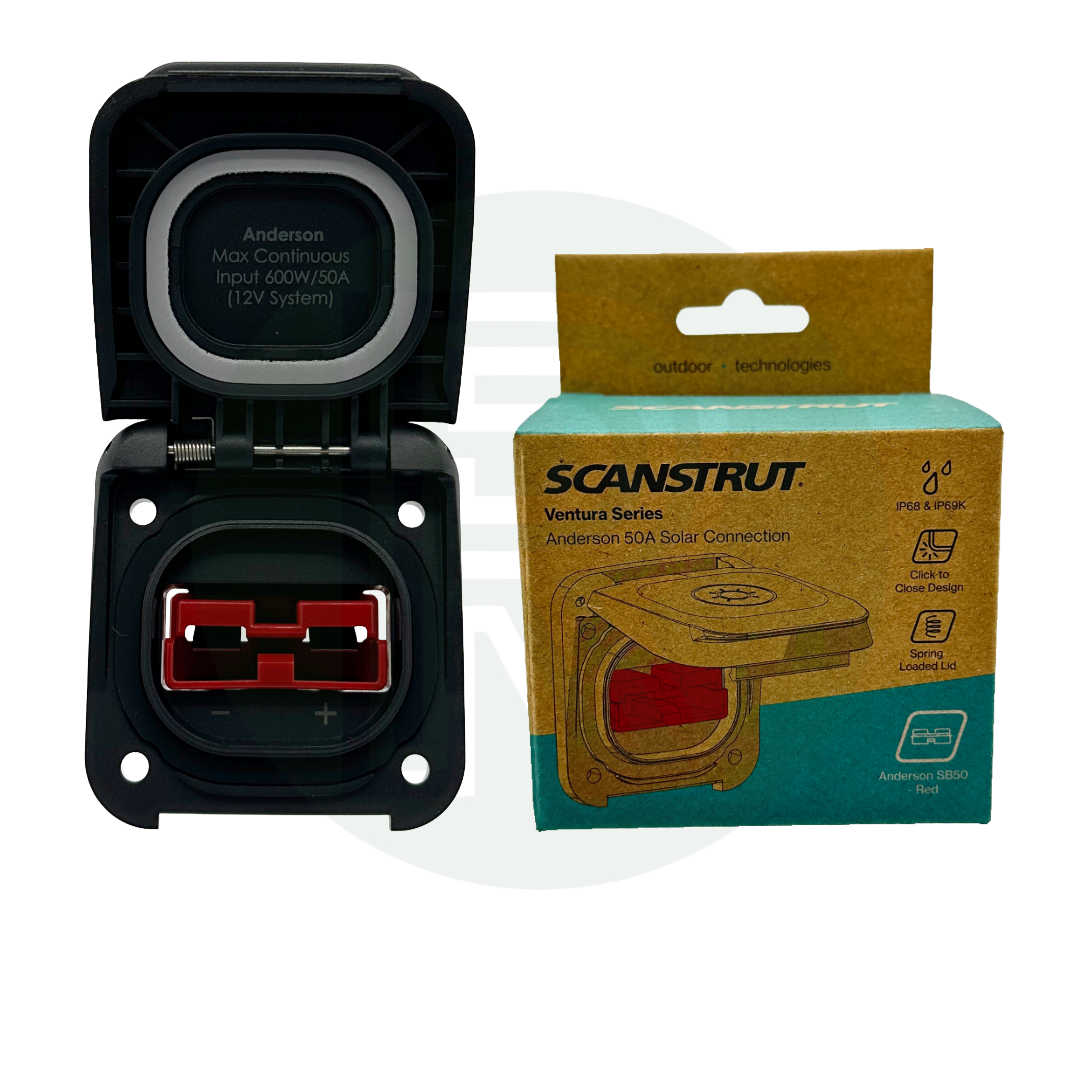

  • Anderson 50A solar connection with open lid displayed next to Scanstrut Ventura Series retail packaging.
1 8

Scanstrut Ventura Anderson Socket SB50 50A

Scanstrut Ventura Anderson Socket SB50 50A

£25.95
£25.95
Sale Sold out
VAT included. Shipping calculated at checkout.

Downloads & Guides

📄 Installation
Manual 📄 Fitting
Template

Ventura Anderson Socket SB50 – Heavy-Duty Outdoor Power Connection

Power your off-grid setup with confidence using the Scanstrut Ventura Series Anderson  Socket SB50, built for high-current connections in campervans, 4x4s, and off-grid systems.

Designed for serious outdoor use, this rugged Anderson connection provides a secure, fixed power port that won’t work loose — even on rough terrain or demanding installations.

Ideal for solar inputs, battery connections, and high-power applications, it delivers reliable performance across 12V, 24V, and 48V systems.

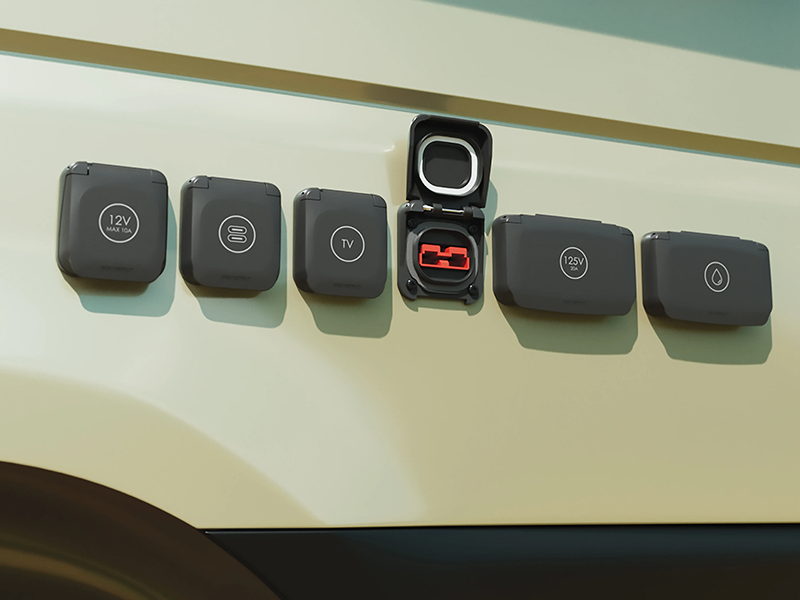

Part of the Ventura Series, it integrates seamlessly with matching power, solar, and water sockets for a clean, professional finish.

Key Features & Benefits

  • Anderson SB50 connection – Trusted high-current connector for off-grid systems
  • 50A rated performance – Ideal for demanding power applications
  • 12V–48V compatible – Suitable for advanced electrical setups
  • Fully waterproof (IP68 & IP69K) – Built for extreme outdoor conditions
  • Marine-grade 316 stainless steel – Corrosion-resistant durability
  • Spring-loaded protective lid – Keeps out water and debris
  • Built-in gasket seal – Ensures watertight installation
  • Compact, low-profile design – Clean and professional finish
  • UV resistant construction – Designed for long-term outdoor exposure
  • Ventura Series compatible – Matches other sockets for a uniform look

Electrical Specifications

  • Connection Type: Anderson SB50 (Red)
  • Max Current: 50A (with 6AWG cable)
  • Max Voltage: 600V DC
  • Max Power Delivery:
    • 600W (12V)
    • 1200W (24V)
    • 2400W (48V)
  • Waterproof Rating: IP68 & IP69K (front when lid closed)
  • Certification: CE, ROHS

Important Information

  • SB50 terminal crimps are NOT included

Compatible genuine crimps from Anderson Power:

  • 6AWG / 16mm² (Part No. 5900)
  • 8AWG / 10mm² (Part No. 5952)
  • 12–10AWG / 4–6mm² (Part No. 5915)

What’s Included

  • Ventura Series Anderson SB50 socket unit

Built for Harsh Outdoor Use

  • Marine-grade 316 stainless steel construction
  • Fully waterproof and dustproof design
  • UV resistant for long-term durability
  • Engineered for rugged off-grid and overland environments

Easy Installation

  • Standard panel installation
  • Integrated gasket for watertight sealing
  • Spring-loaded lid for protection
  • 90° hold-open feature for ease of use
