Scanstrut TILE Dual USB-C Charger – Low Profile Interior Charging

Upgrade your interior with the Scanstrut TILE Series Dual USB-C Charger, a sleek and compact charging solution designed specifically for RVs, campervans, and modern vehicle interiors.

With its ultra-low profile and minimal footprint, this charger integrates neatly into your setup while delivering powerful, high-speed charging for everyday devices.

Designed for convenience and style, the TILE Series is ideal for modernising your interior space without compromising on performance.

Key Features & Benefits

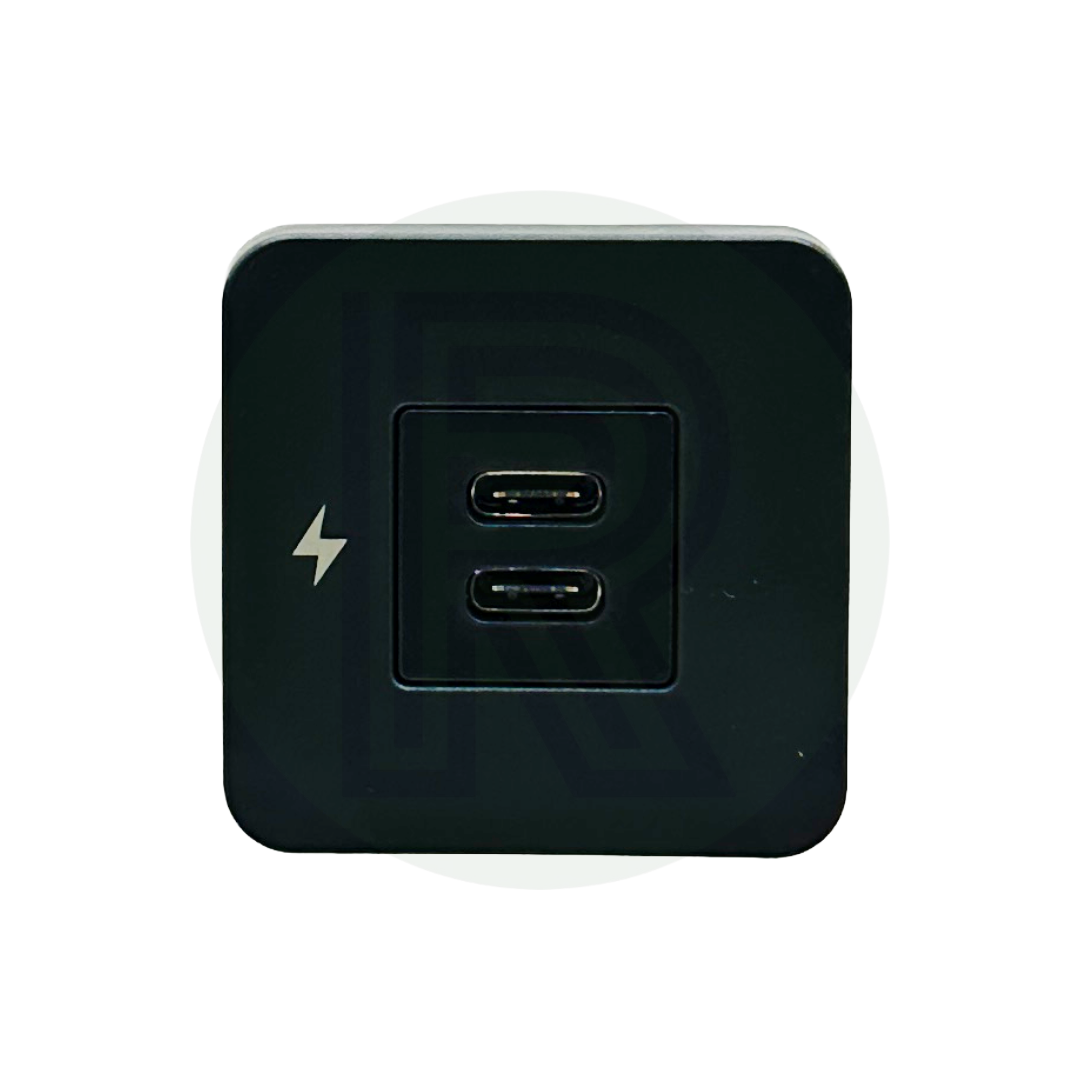

• Dual USB-C fast charging ports – Charge two devices simultaneously
• High power output – Up to 60W on 24V systems, ideal for laptops and tablets
• 12V & 24V compatible – Works across a wide range of vehicle systems
• Ultra-low profile design – Clean, low-profile finish
• Compact footprint – Requires only a 29mm hole for installation
• Front-fit installation – Quick and simple fitting process
• Moisture-protected electronics – Conformal coated for durability
• Modern interior styling – Designed to complement premium RV interiors

Charging Performance

• USB-C Output:
  • 12V System: Up to 36W
  • 24V System: Up to 60W
• Supports fast charging for:
  • Laptops
  • Tablets
  • Smartphones
  • USB-C powered devices

Note: Full 60W output is available on 24V systems. For best performance, use high-quality USB-C cables (C to C or C to Lightning).

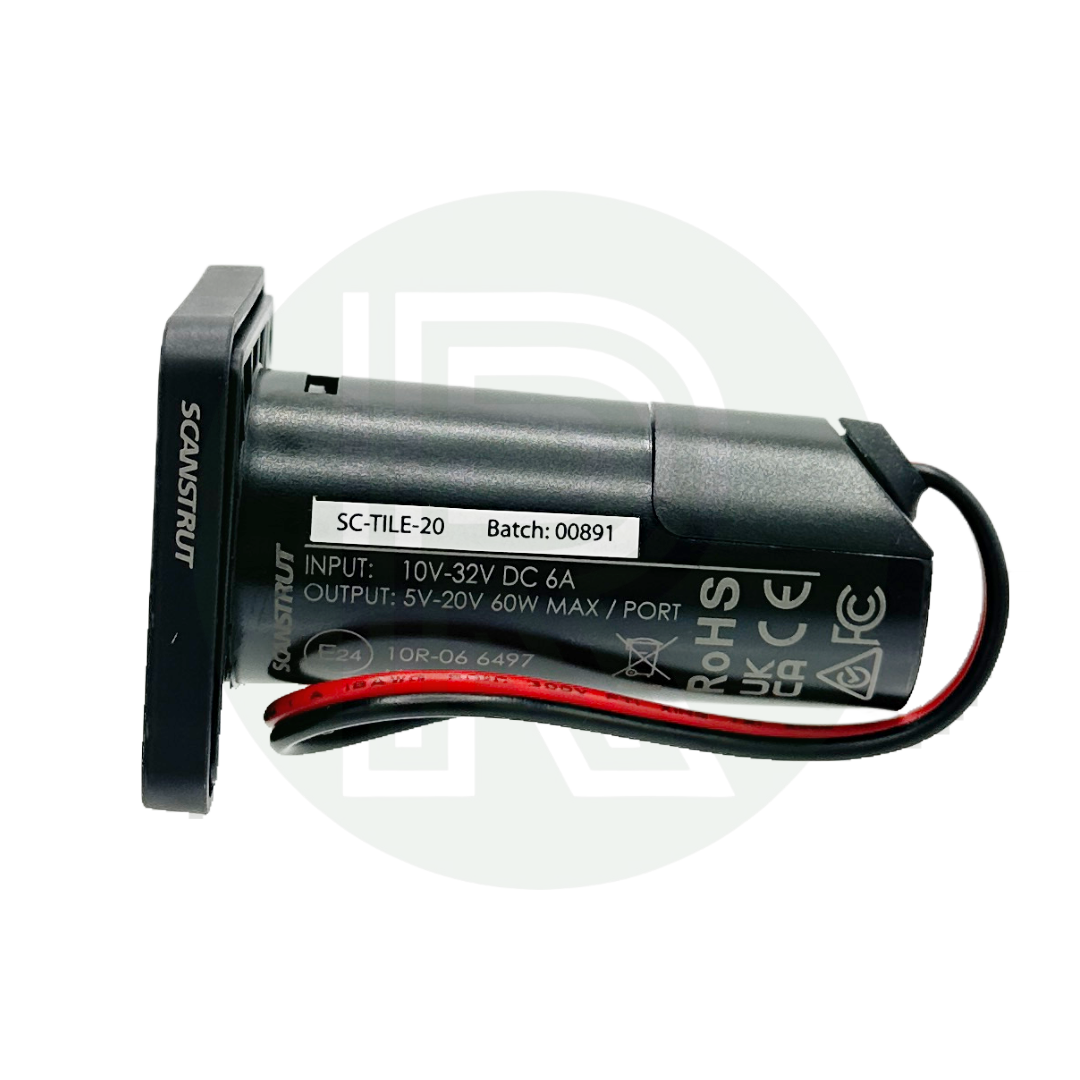

Electrical Specifications

• Input Voltage: 10–32V DC (12V / 24V systems)
• Input Current: Max 6A (10A fuse recommended)

USB-C Output (12V System):

• 5V⎓3A
• 9V⎓3A
• 12V⎓3A

USB-C Output (24V System):

• 5V⎓3A
• 9V⎓3A
• 12V⎓3A
• 15V⎓3A
• 20V⎓3A
• Standby Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEEE

What’s Included

• Scanstrut TILE Dual USB-C charger unit

Built for Interior Use

• Designed specifically for internal installations
• Conformal coated electronics for moisture resistance
• Durable, high-quality construction
• Clean, modern aesthetic for premium interiors

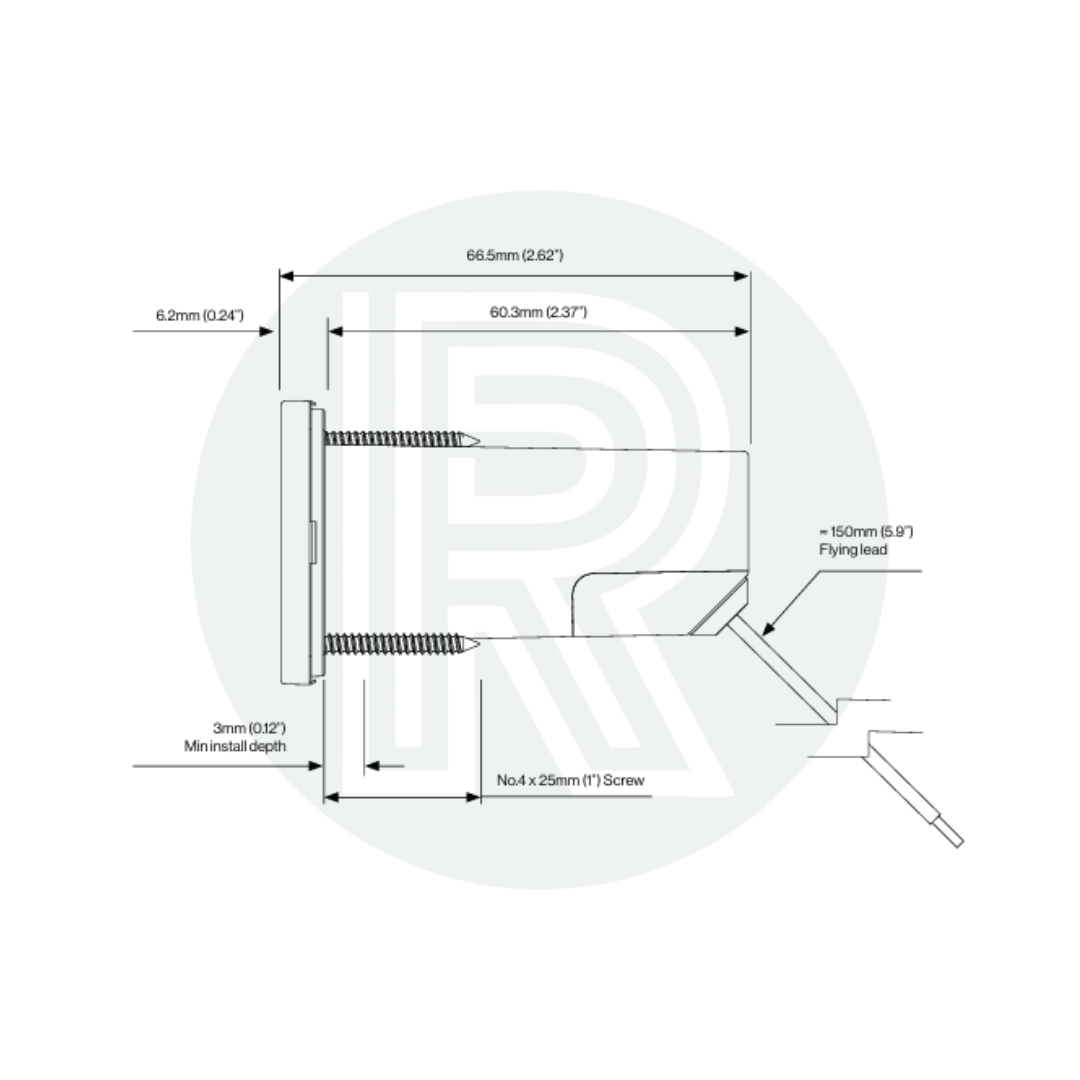

Easy Installation

• Requires 29mm (1.14") holesaw cut-out
• Compact 40mm footprint
• Front-fit design for simple installation
• Low-profile finish for a neat appearance

Important:
This product is designed for interior use only. Do not install in areas exposed to water.
