92ltr & 62ltr Ducato/Boxer/Relay L3 &L4 Underslung Water Tanks (X250&X290)

🚐 UNDERFLOOR FRESH WATER TANK SET – 92L + 62L 💧
✔️ Fiat Ducato / Peugeot Boxer / Citroën Relay / RAM ProMaster (2007-onwards – X250 & X290)

✅ VEHICLE COMPATIBILITY
✔️ Fits LWB (L3) & XLWB (L4) models
❌ NOT suitable for SWB (L1) or MWB (L2)

🔧 DESIGNED FOR PERFECT UNDERFLOOR FIT

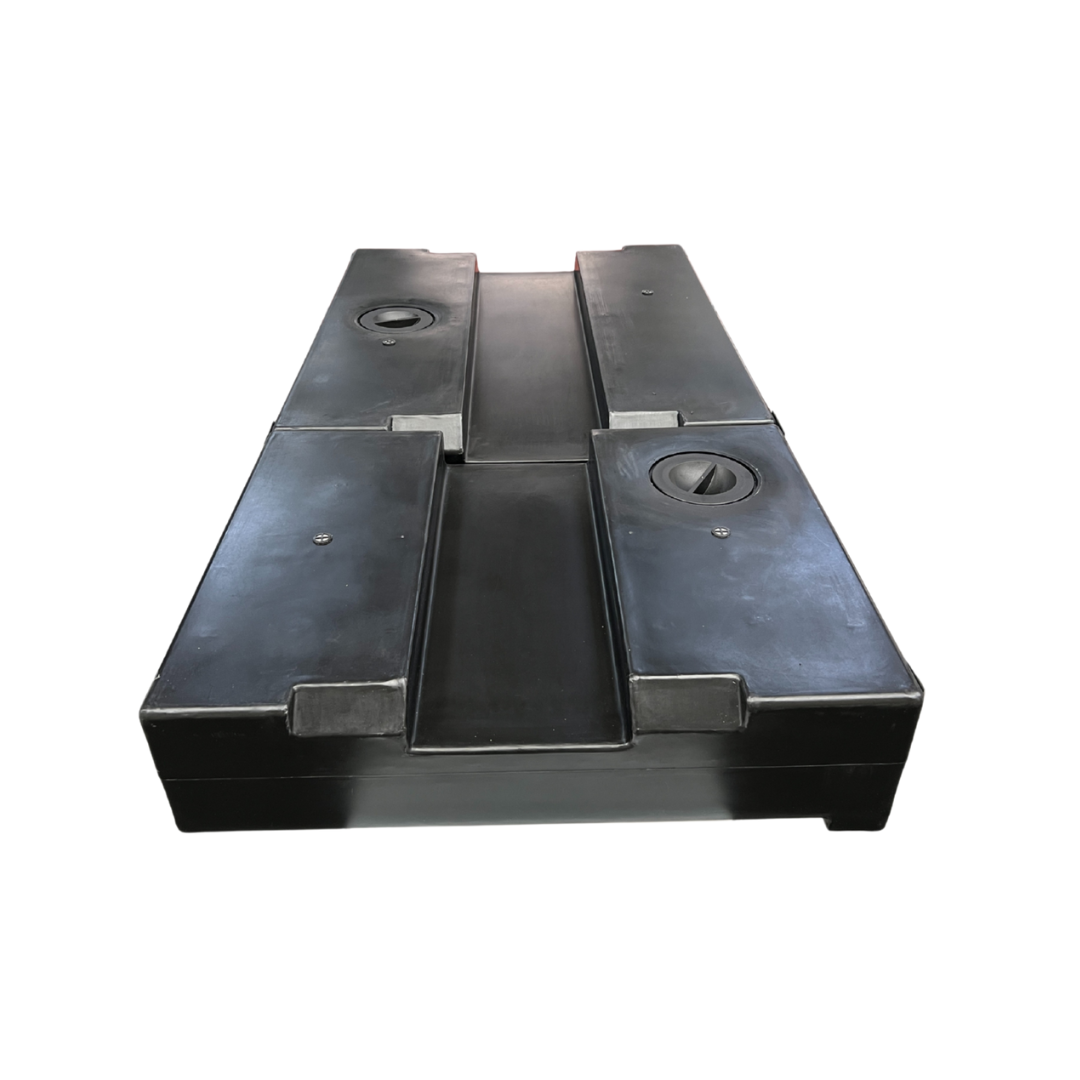

✔️ Both tanks mount centrally under the vehicle floor, in front of the rear axle beam

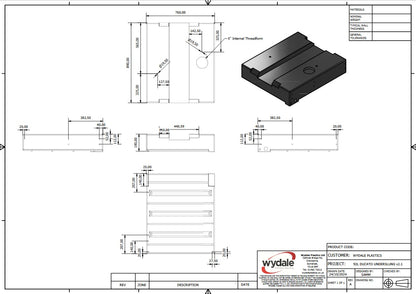

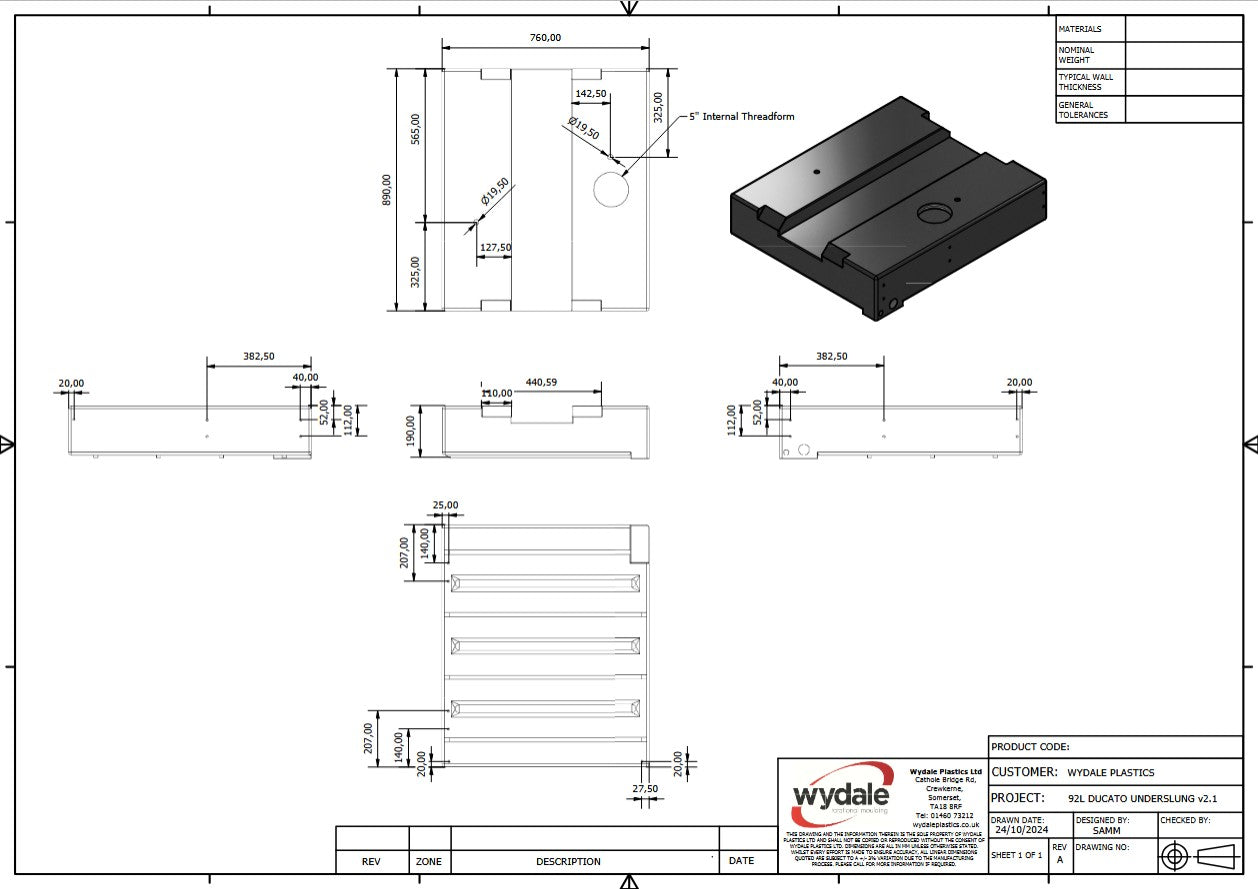

✔️ 92L tank at the rear

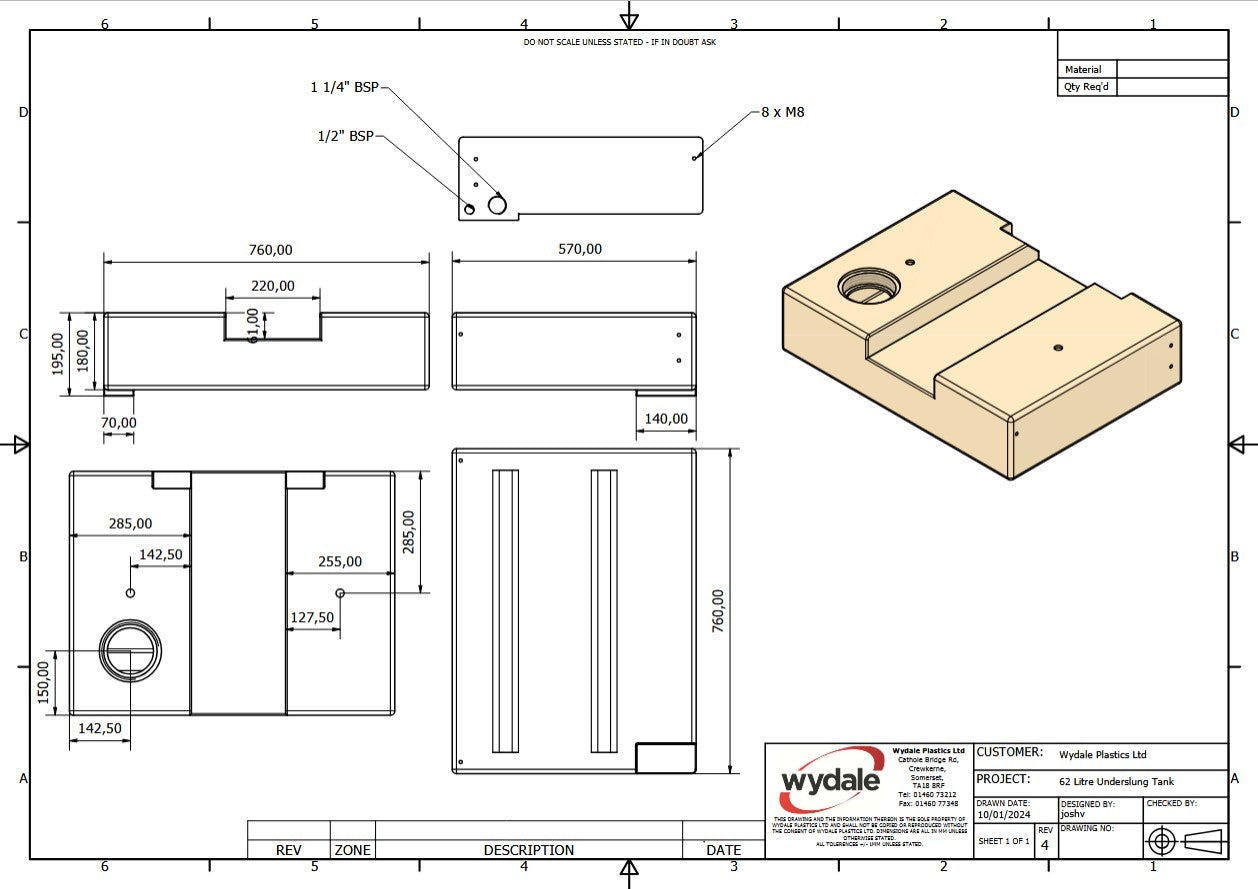

✔️ 62L tank positioned directly in front
✔️ Mounted transversely with a moulded channel to allow the handbrake mechanism to pass overhead

🛠️ EASY ACCESS & CONNECTIONS
✔️ 5″ inspection hatches with threaded lids (now located on the top of the tanks)
ℹ️ Some photos may show older bottom hatch versions – design has been updated

✔️ 2 x vents/breathers per tank (top mounted)

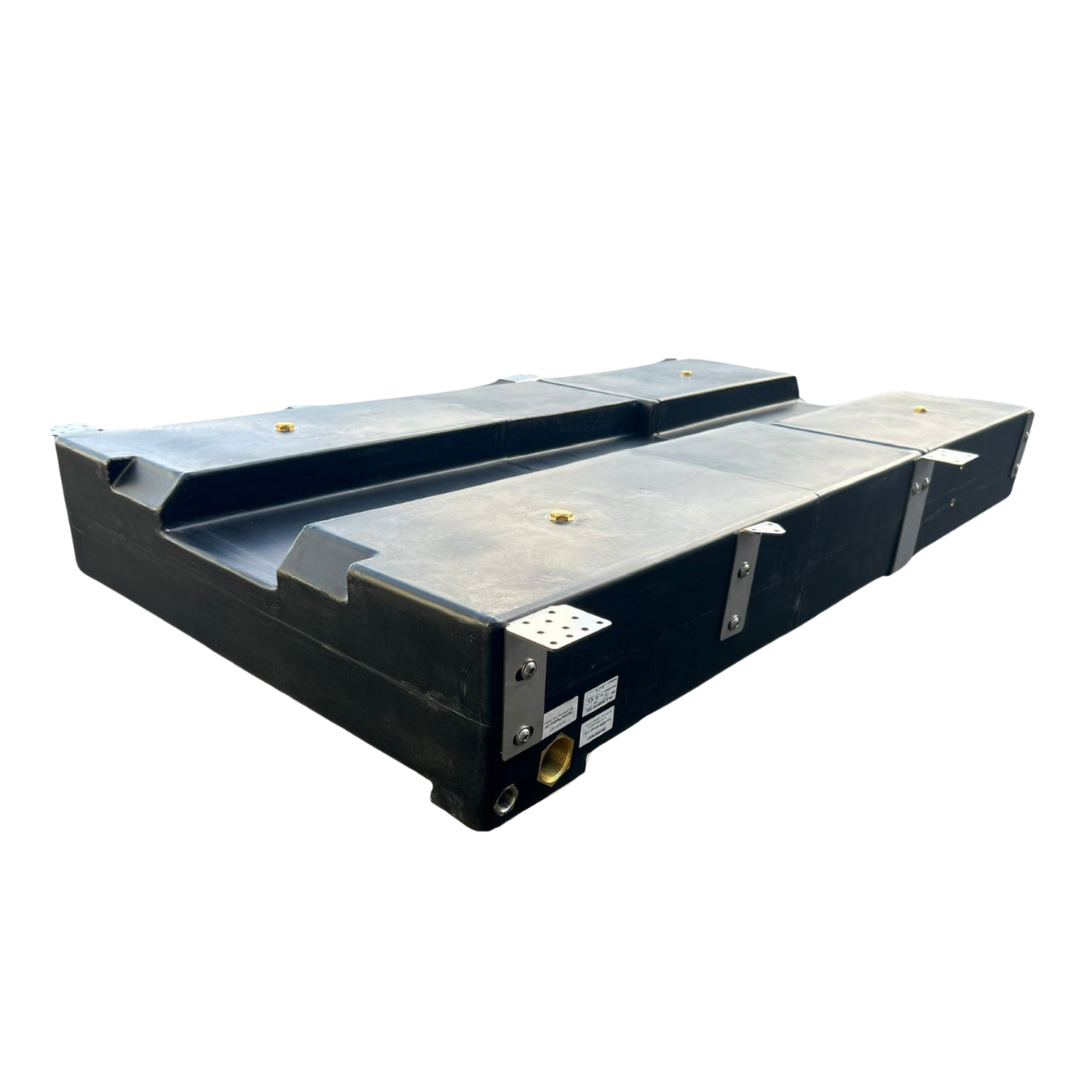

✔️ Moulded sump with threaded outlets:
✔️ 1 x 1¼″ BSP female
✔️ 1 x ½″ BSP female

📍 Connection positions:
✔️ Front 62L tank – NSF
✔️ Rear 92L tank – OSR

💪 HIGH QUALITY & BUILT TO LAST
✔️ One-piece rotationally moulded construction
✔️ Strong, durable & impact resistant
✔️ WRAS-approved polymers – suitable for potable (drinking) water
✔️ Added transverse strength via moulded underside channels

🔩 SIMPLE INSTALLATION
✔️ M8 threaded inserts moulded in during manufacture

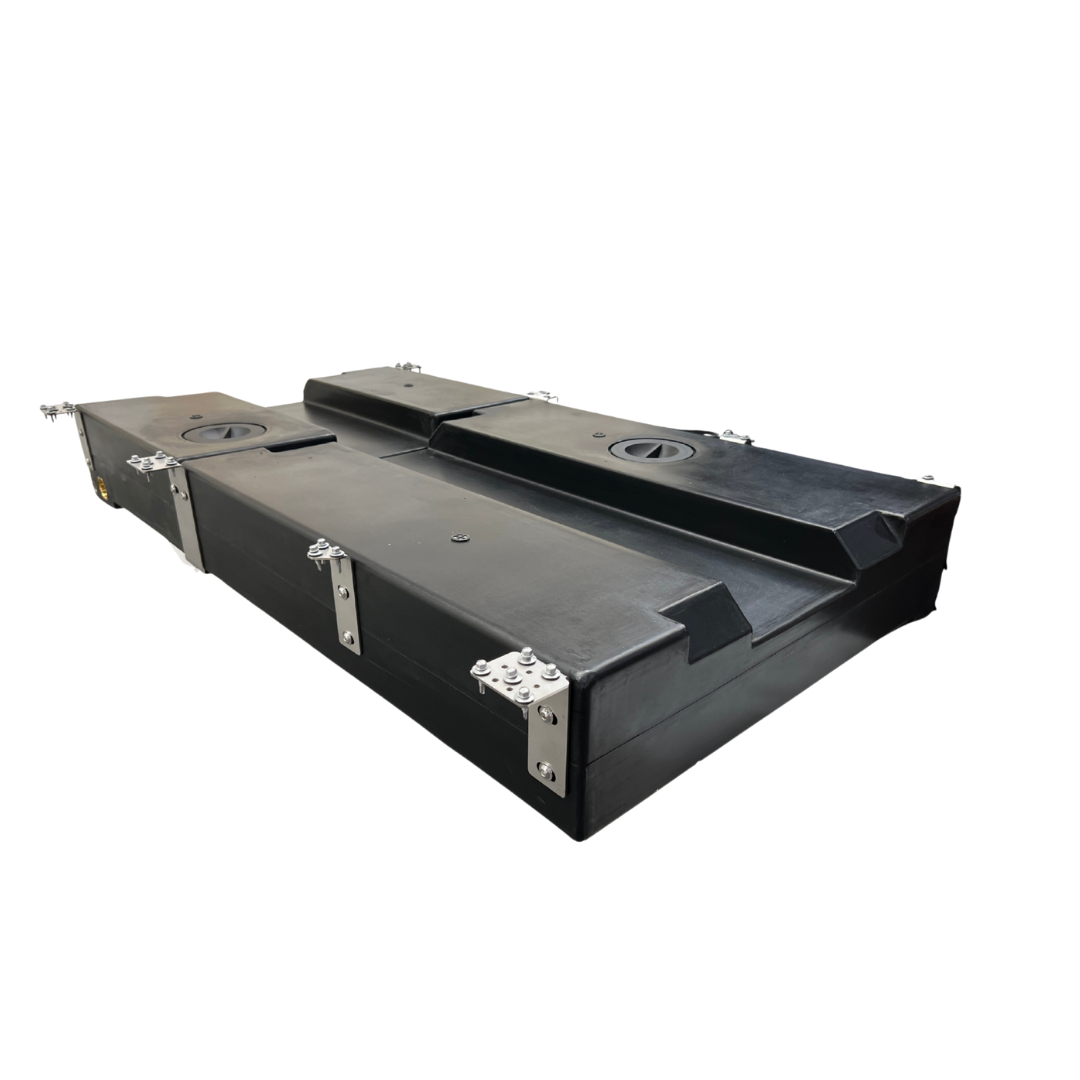

✔️ Ideal for use with optional vehicle-specific mounting bracket kits

🔧 Optional fitting kits include:
✔️ Stainless-steel brackets
✔️ M8 socket head bolts
✔️ 5.5 x 25mm TEK screws

🔄 EXPANDABLE & CUSTOMISABLE
✔️ Compatible with Wydale KwiQ fittings for additional BSP inlets/outlets (sold separately)
✔️ Matching sill-mounted Fill/Drain valve kits available
✔️ Plumbing kits also available – see our shop

⚠️ IMPORTANT NOTE – REAR AIR SUSPENSION
❗ Vehicles with factory-fitted rear air suspension (e.g. ex-ambulance or welfare vehicles)
❌ May not accommodate the 92L tank due to anti-roll bar positioning
✔️ A 62L tank option may be possible – please contact us before purchasing
