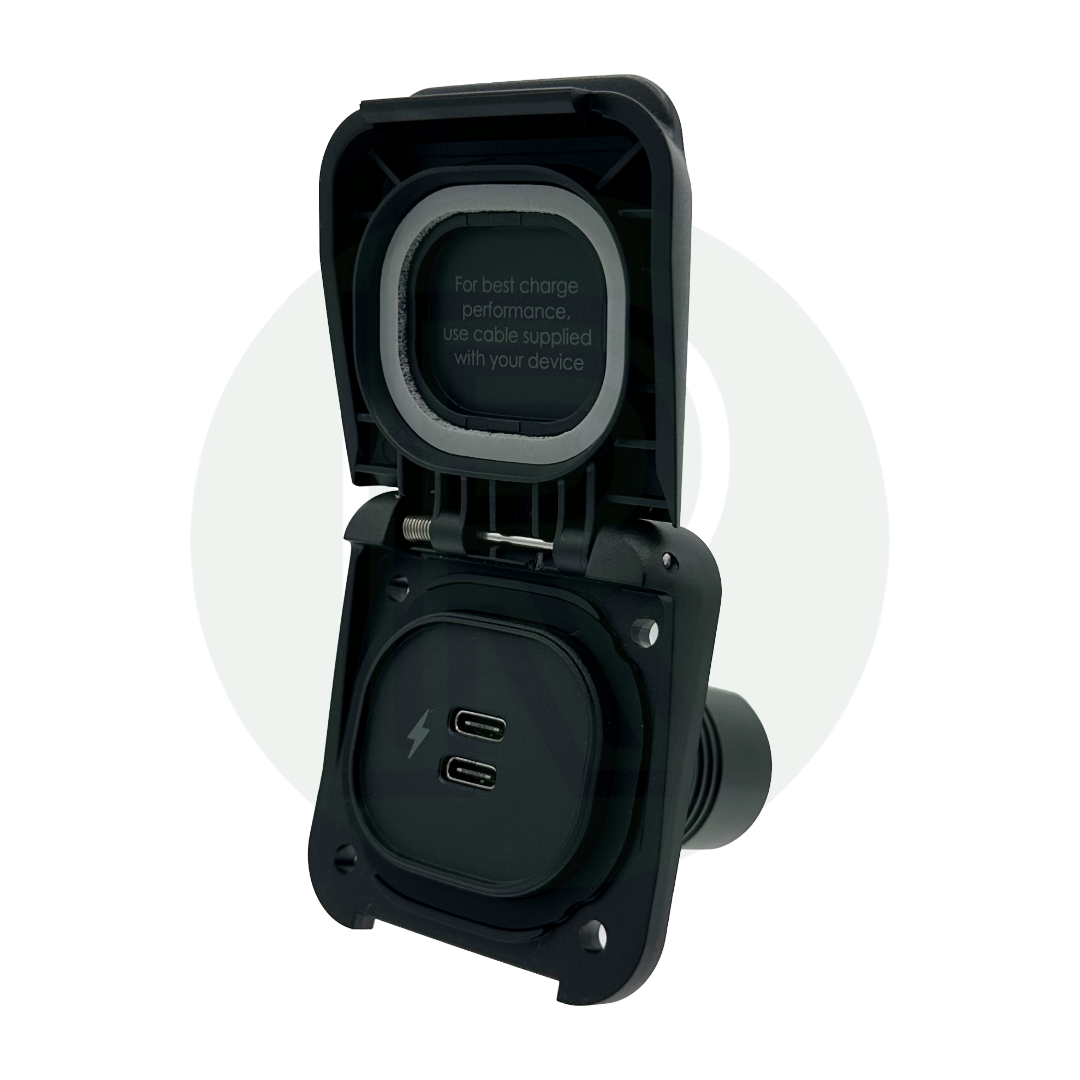

• Open waterproof dual USB-C charging socket with hinged protective lid, showing two USB-C ports and panel-mount housing.

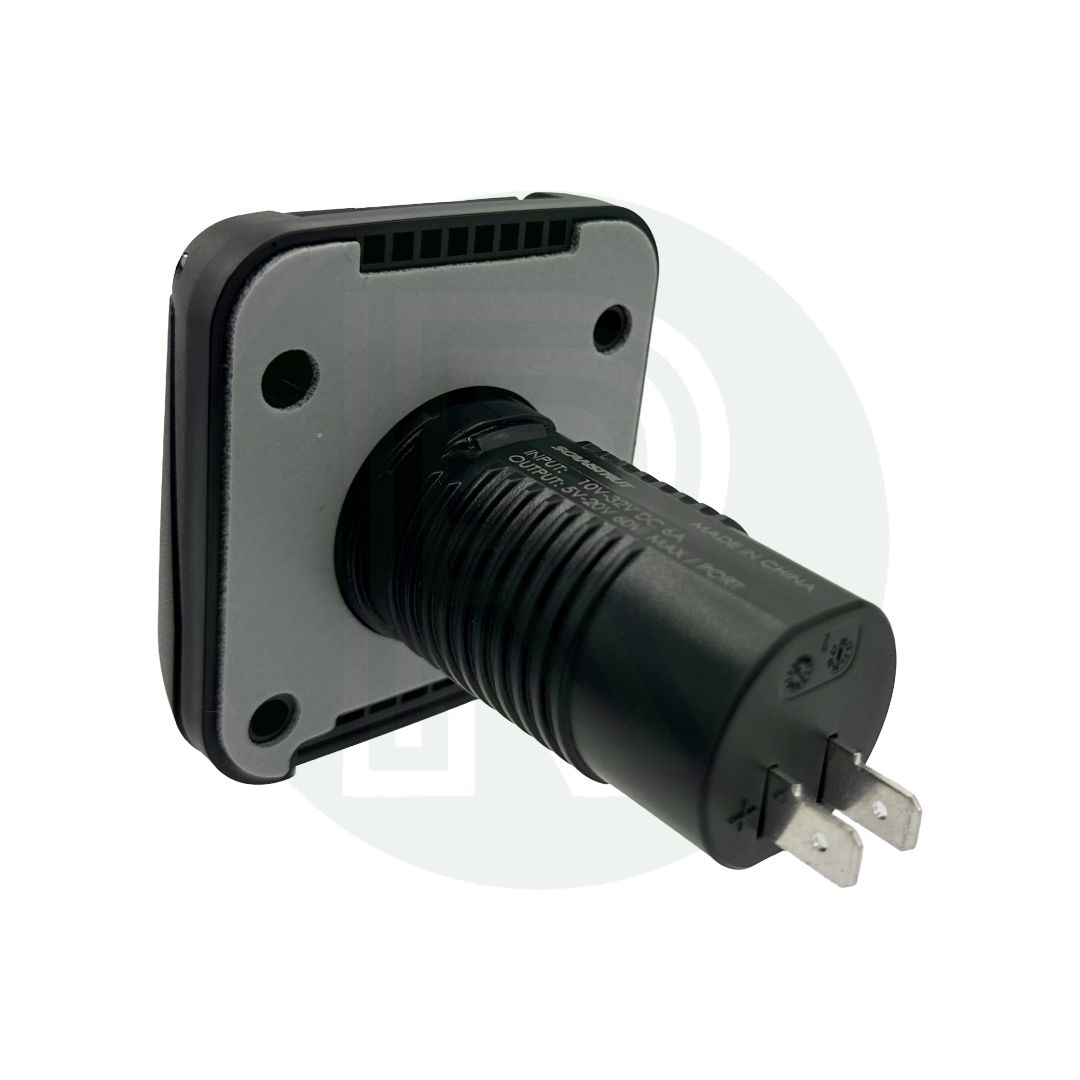

  • Rear mounting view showing threaded housing and power cable connection.

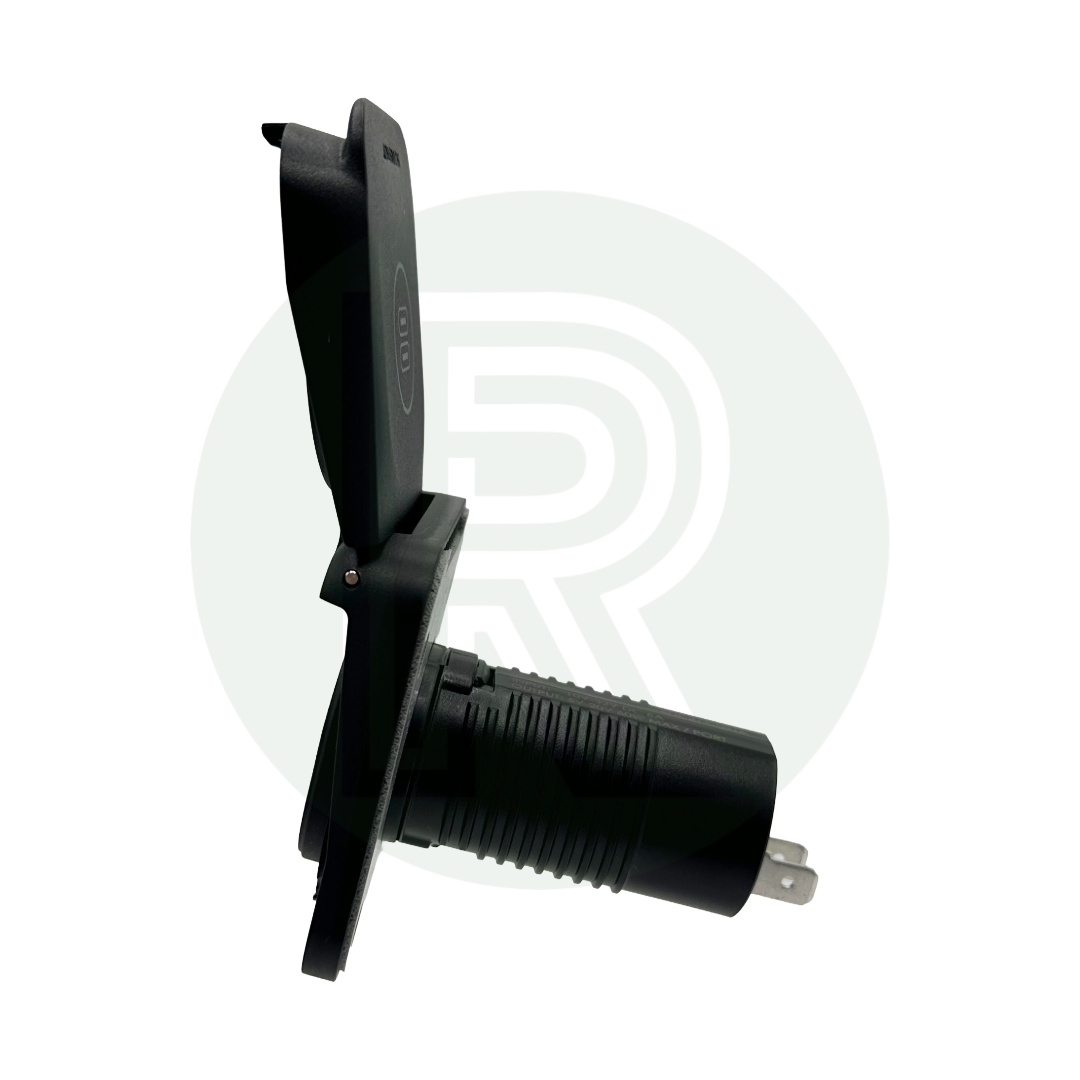

  • Side view of dual USB-C socket with lid open and rear cable housing.

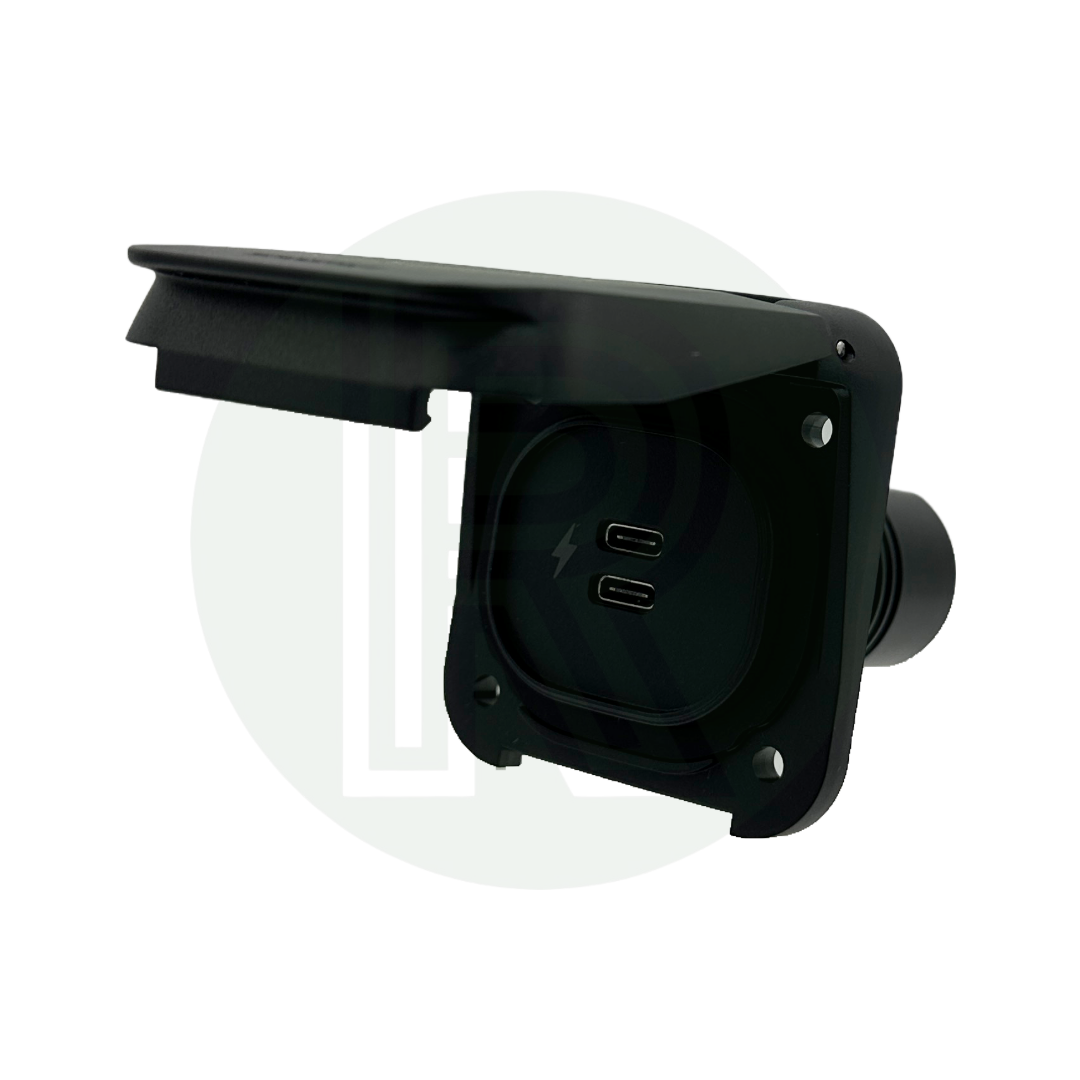

  • Angled view showing open cover and dual USB-C ports inside the socket.

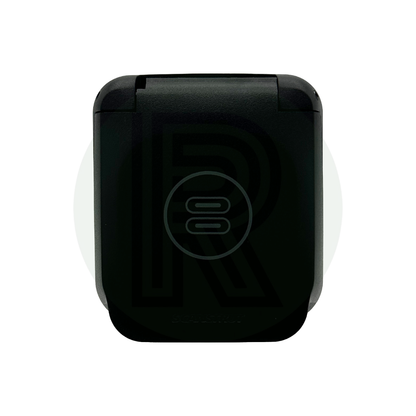

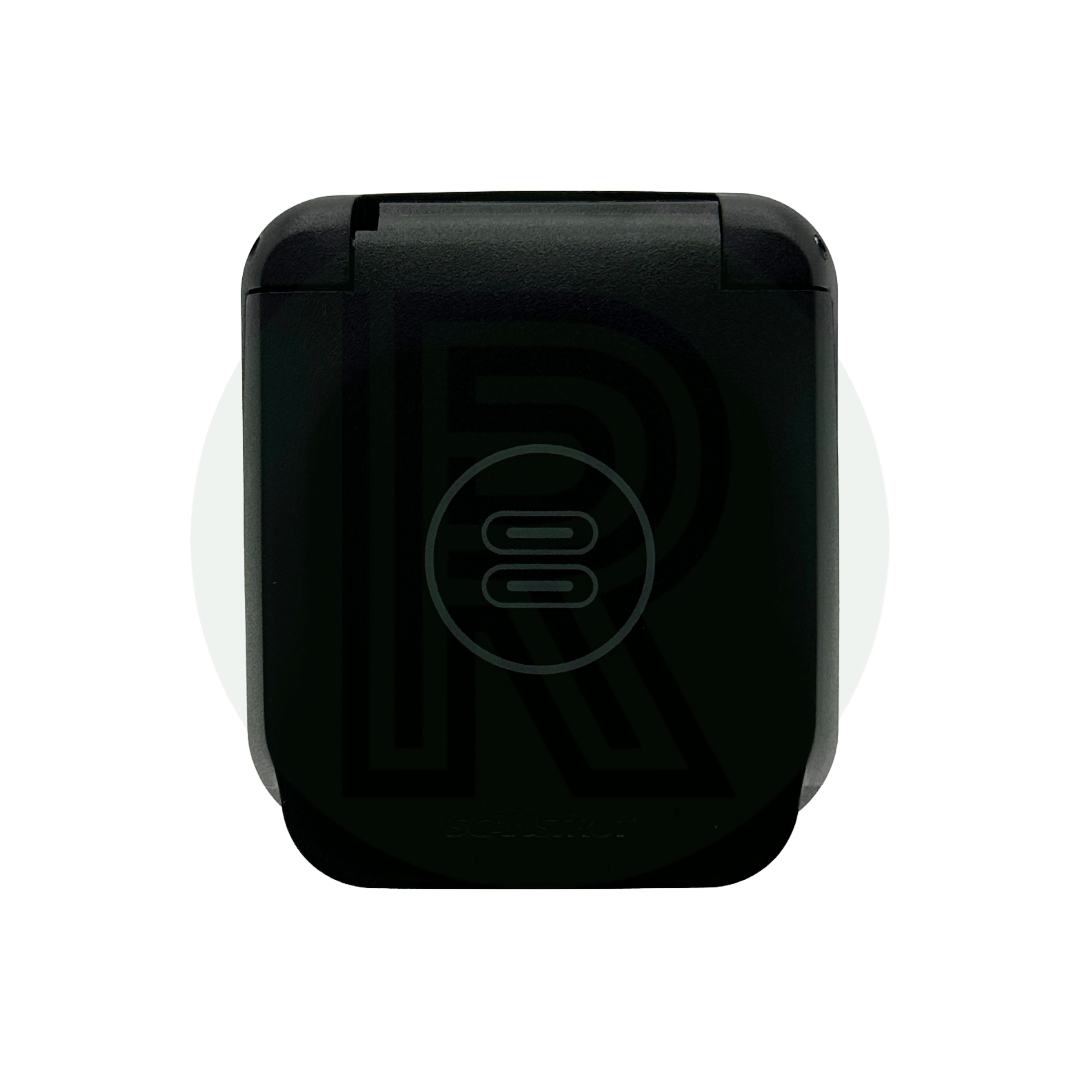

  • Closed dual USB-C socket with sun/power icon on lid, compact black design.

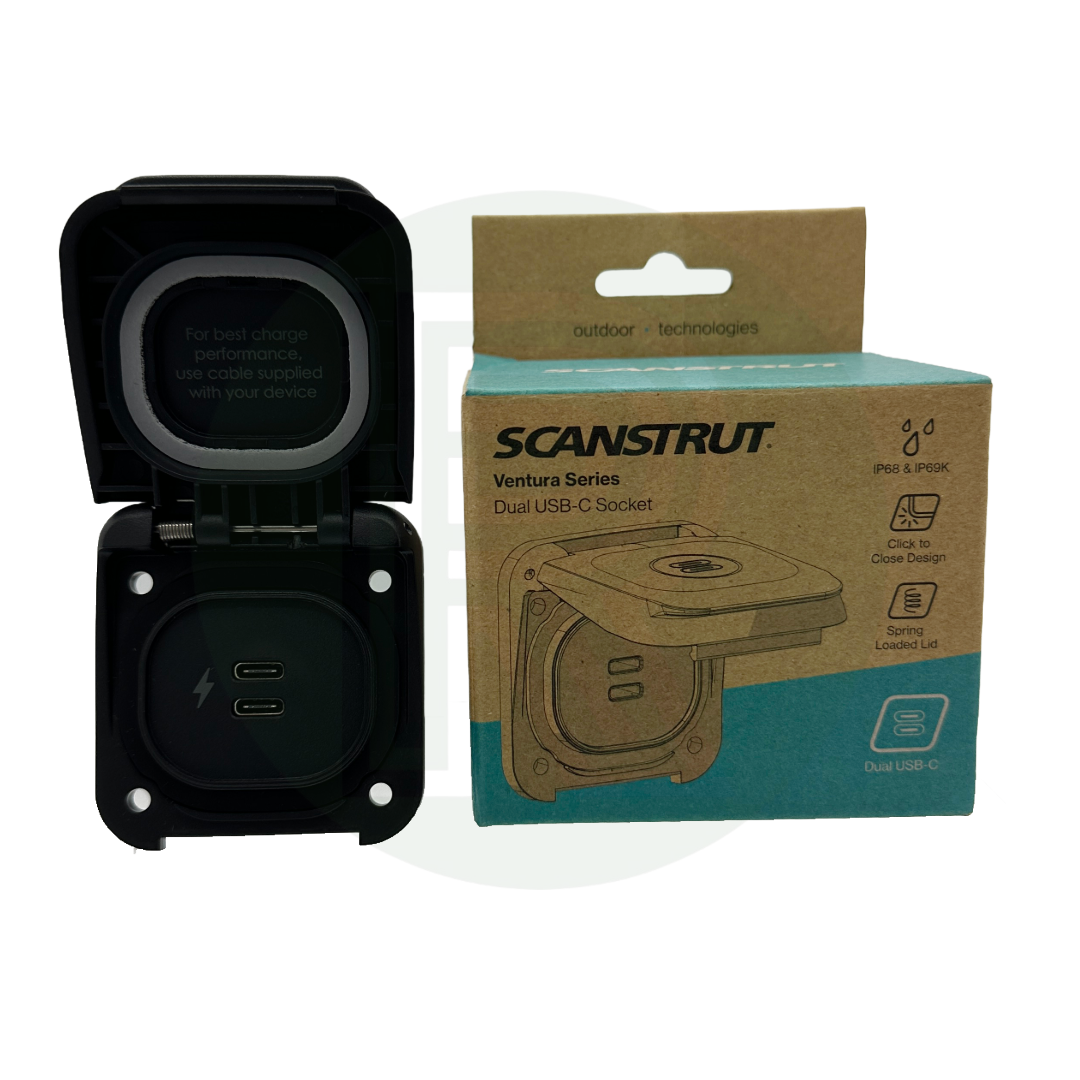

  • Dual USB-C socket open next to retail packaging (Scanstrut Ventura Series).

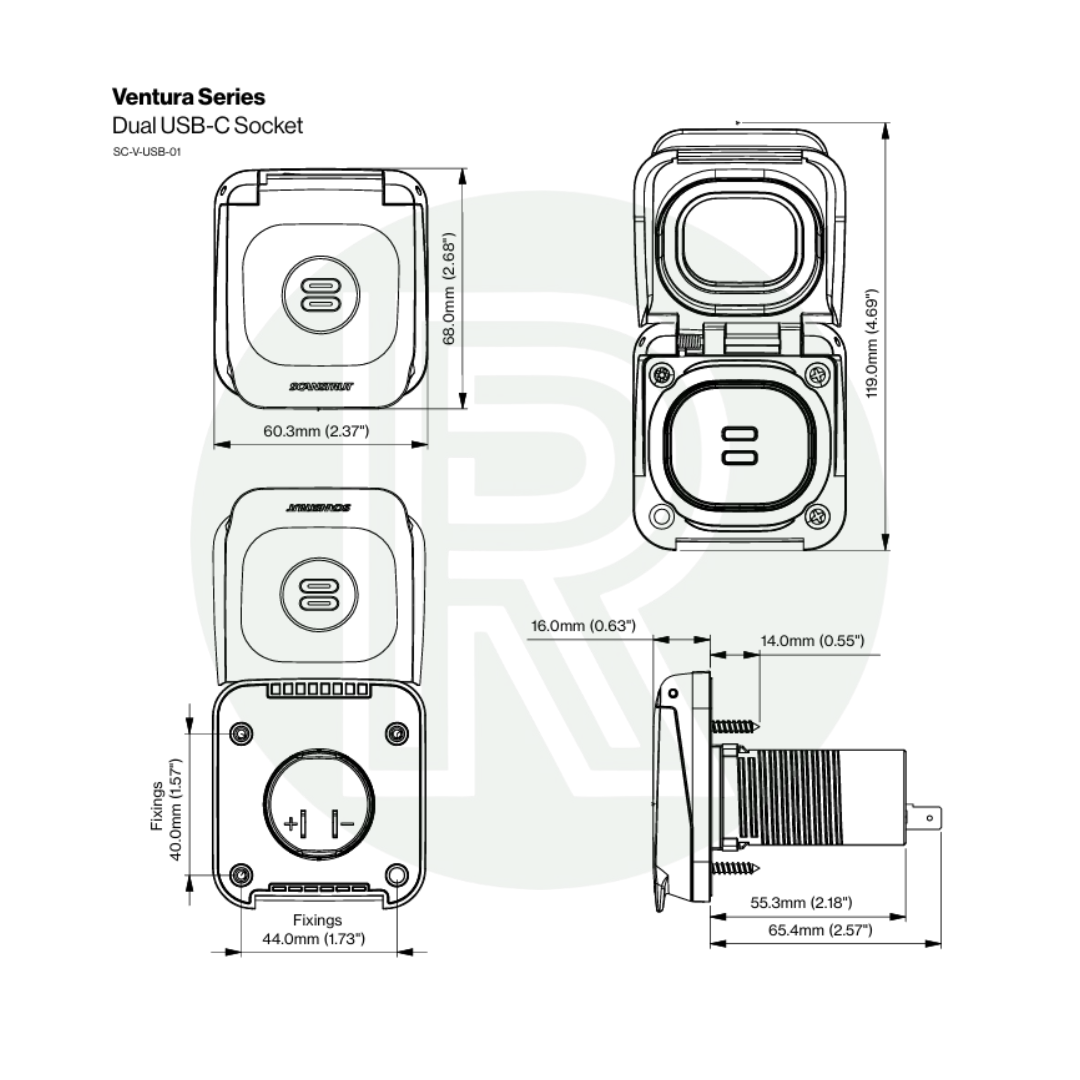

  • Technical drawing with dimensions and front/side views of the USB-C socket.

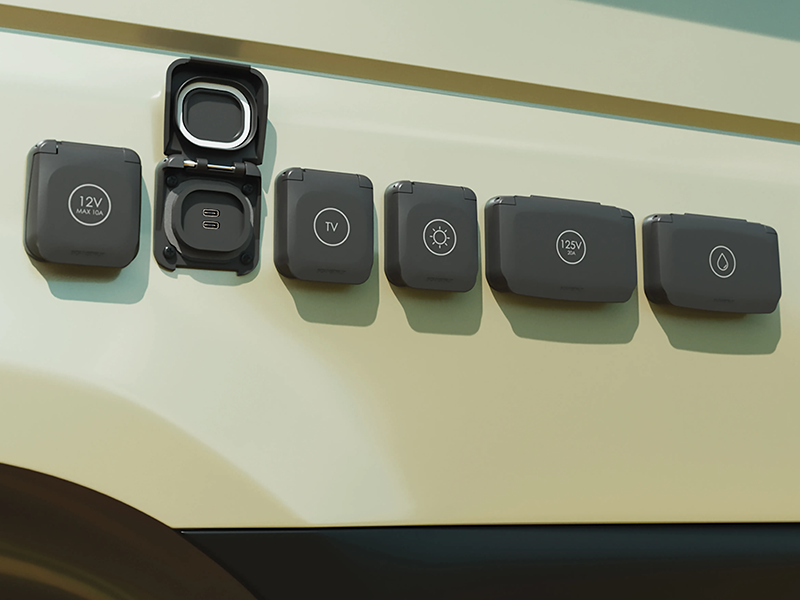

  • Multiple USB-C sockets installed on a surface, demonstrating real-world use.
1 8

Scanstrut Ventura Dual USB-C Socket 12V 24V Waterproof IP68

Scanstrut Ventura Dual USB-C Socket 12V 24V Waterproof IP68

£54.95 inc. VAT
£54.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Downloads & Guides

Installation
Manual Fitting
Template

The Scanstrut Ventura Dual USB-C Socket provides powerful USB-C charging in a rugged, weatherproof housing designed for motorhomes, campervans, caravans, overland vehicles and boats.

Featuring two USB-C charging ports, the Ventura socket is ideal for charging modern phones, tablets, laptops and other USB-C devices. It operates from 12V or 24V DC systems, delivering up to 36W on 12V and up to 60W on 24V.

Designed for exterior installation, the socket features Scanstrut's spring-loaded protective lid. With the lid securely closed, the front is rated IP68 and IP69K, providing excellent protection against water, dust and demanding outdoor conditions.

The socket supports USB Power Delivery and Quick Charge compatible devices, allowing connected equipment to negotiate the appropriate charging voltage. A very low 0.01W standby power draw also makes it well suited to leisure vehicle electrical systems.

We also sell other products from the Scanstrut Ventura Series, including Anderson SB50 and XT60 power connections and the Ventura Cold Water Outlet Kit, allowing matching external connection points to be installed around your vehicle.

Features

  • Dual USB-C charging ports
  • Suitable for 12V and 24V electrical systems
  • Up to 36W output on 12V
  • Up to 60W output on 24V
  • IP68 and IP69K protection with lid closed
  • Suitable for exterior motorhome and campervan installation
  • Spring-loaded protective lid
  • Low 0.01W standby power draw

Technical Specifications

  • Input voltage: 10–32V DC
  • System voltage: 12V / 24V
  • Charging ports: 2 x USB-C
  • Maximum input current: 6A
  • 12V USB-C output: 5V / 9V / 12V at up to 3A
  • Maximum output on 12V: 36W
  • 24V USB-C output: 5V / 9V / 12V / 15V / 20V at up to 3A
  • Maximum output on 24V: 60W
  • Standby power draw: 0.01W
  • Waterproof rating: IP68 / IP69K, front only with lid closed
  • Main installation cut-out: 32mm
  • Overall width: 60.3mm
  • Electrical connections: 6.3 x 0.8mm spade terminals
  • Certification: CE, RoHS, FCC, C-Tick and WEEE
View full details

Frequently Asked Questions

Yes. It accepts a 10–32V DC input, making it suitable for both 12V and 24V motorhome, campervan, caravan and marine electrical systems.

On a 12V system it provides up to 36W, while a 24V system enables up to 60W USB-C output for compatible devices.

Yes. On a 24V system the socket can provide up to 60W USB-C charging, making it suitable for many USB-C laptops as well as phones and tablets. Check the power requirements of your particular device.

Yes. The Ventura features two USB-C ports, allowing two compatible USB-C devices to be connected for charging.

The front is rated IP68 and IP69K when the protective lid is fully closed, making it suitable for exterior installations on motorhomes, campervans, caravans and boats.

The installation requires a 32mm main cut-out, together with the mounting holes shown on Scanstrut's supplied installation template.

The Ventura Dual USB-C is designed for exterior applications and provides IP68/IP69K protection with its lid closed. The Scanstrut TILE Dual USB-C Charger is a compact, low-profile option designed for interior installations.
