Thetford Toilet Separation S260CS
Thetford Toilet Separation S260CS
Couldn't load pickup availability
Downloads & Guides

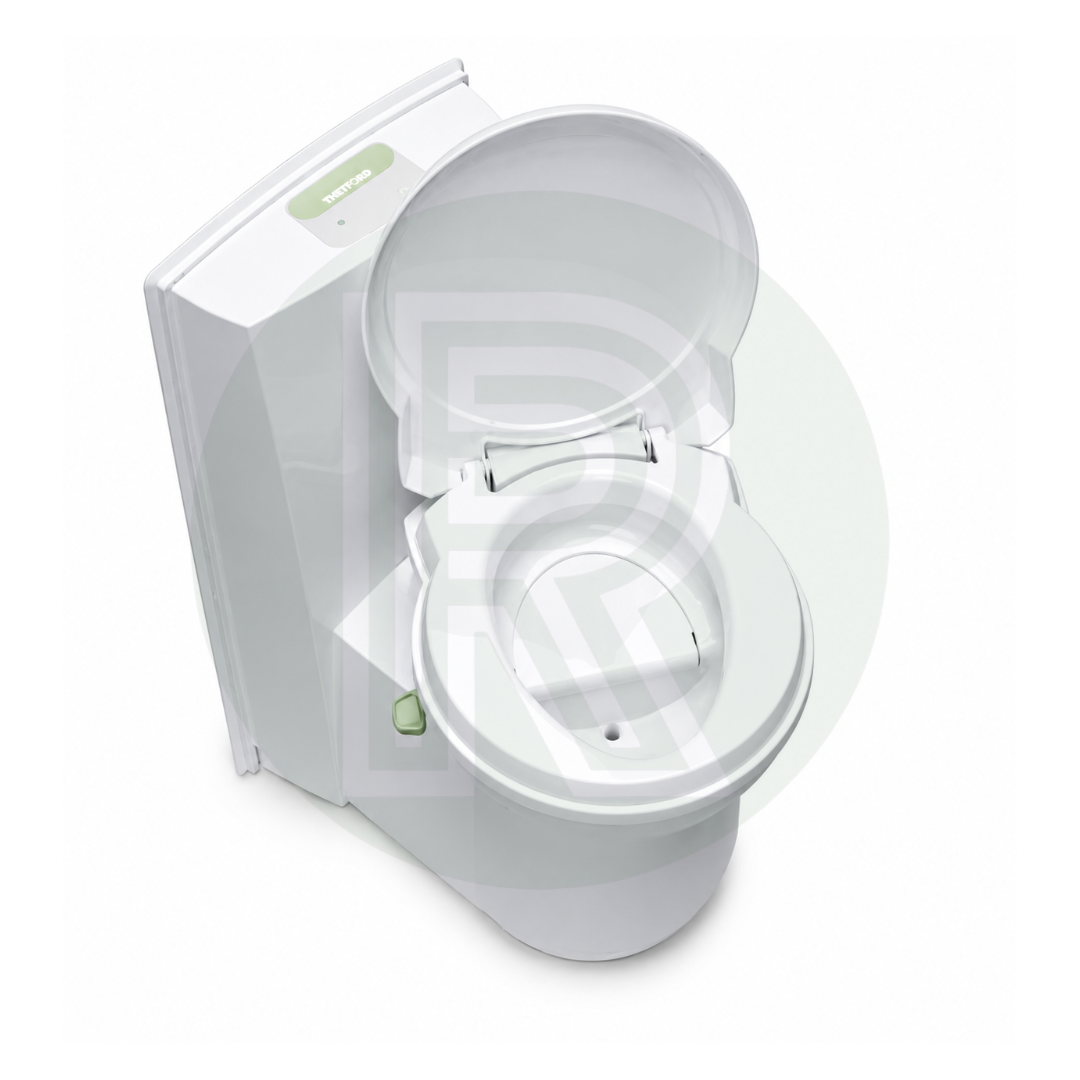

The Thetford S260-CS Separation Toilet is a modern waterless toilet designed for motorhomes, campervans and caravans, offering a practical alternative to a conventional cassette toilet for those looking for greater independence when travelling or camping off-grid.

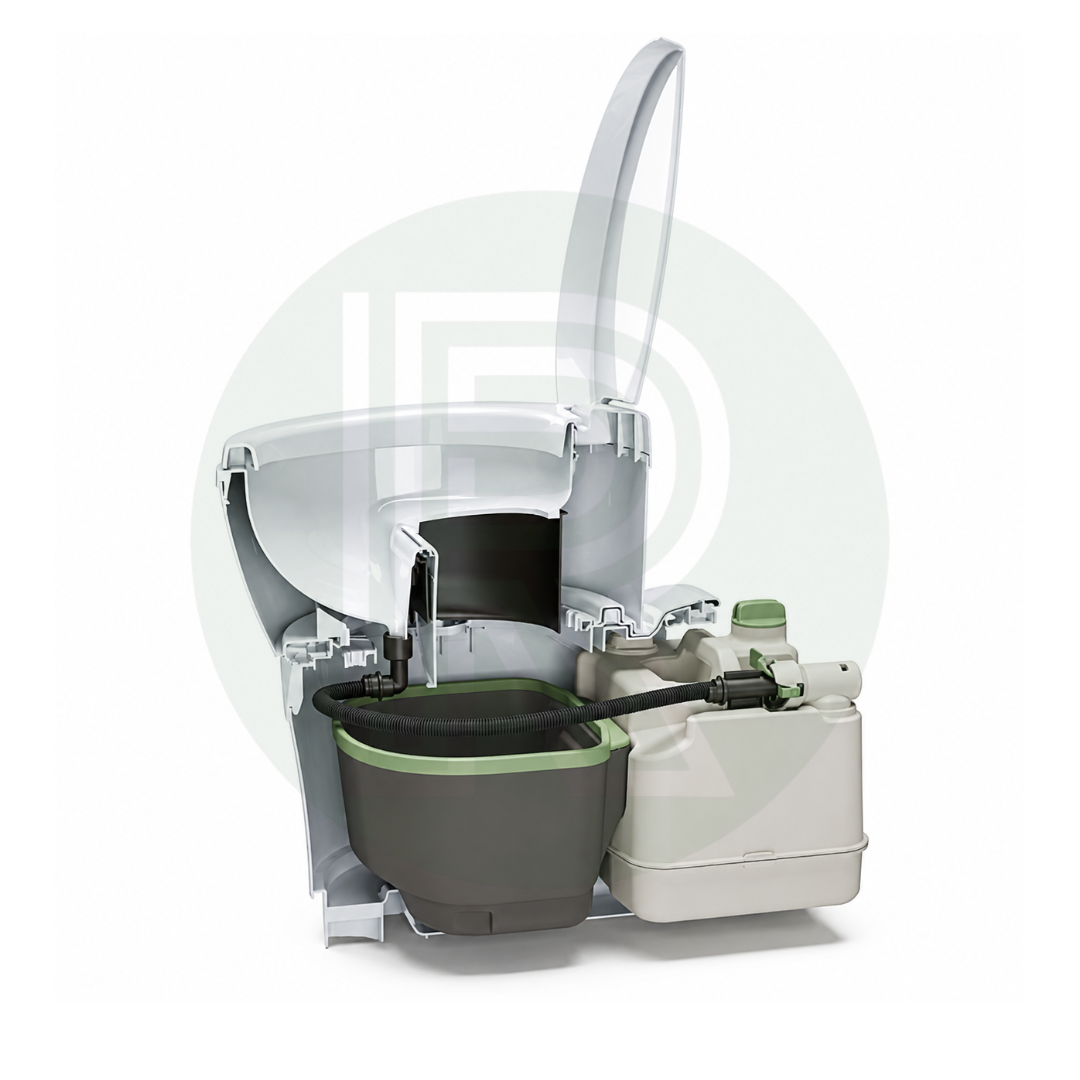

Instead of collecting liquid and solid waste together in a conventional cassette, the S260-CS separates urine and solid waste at the toilet bowl. Urine is directed into a removable 7.5 litre urine tank, while solid waste is collected separately in a 7 litre solids container.
As the toilet operates without flushing water, it helps conserve the vehicle's onboard fresh-water supply and removes the need for a conventional toilet flush system or chemical toilet additives.

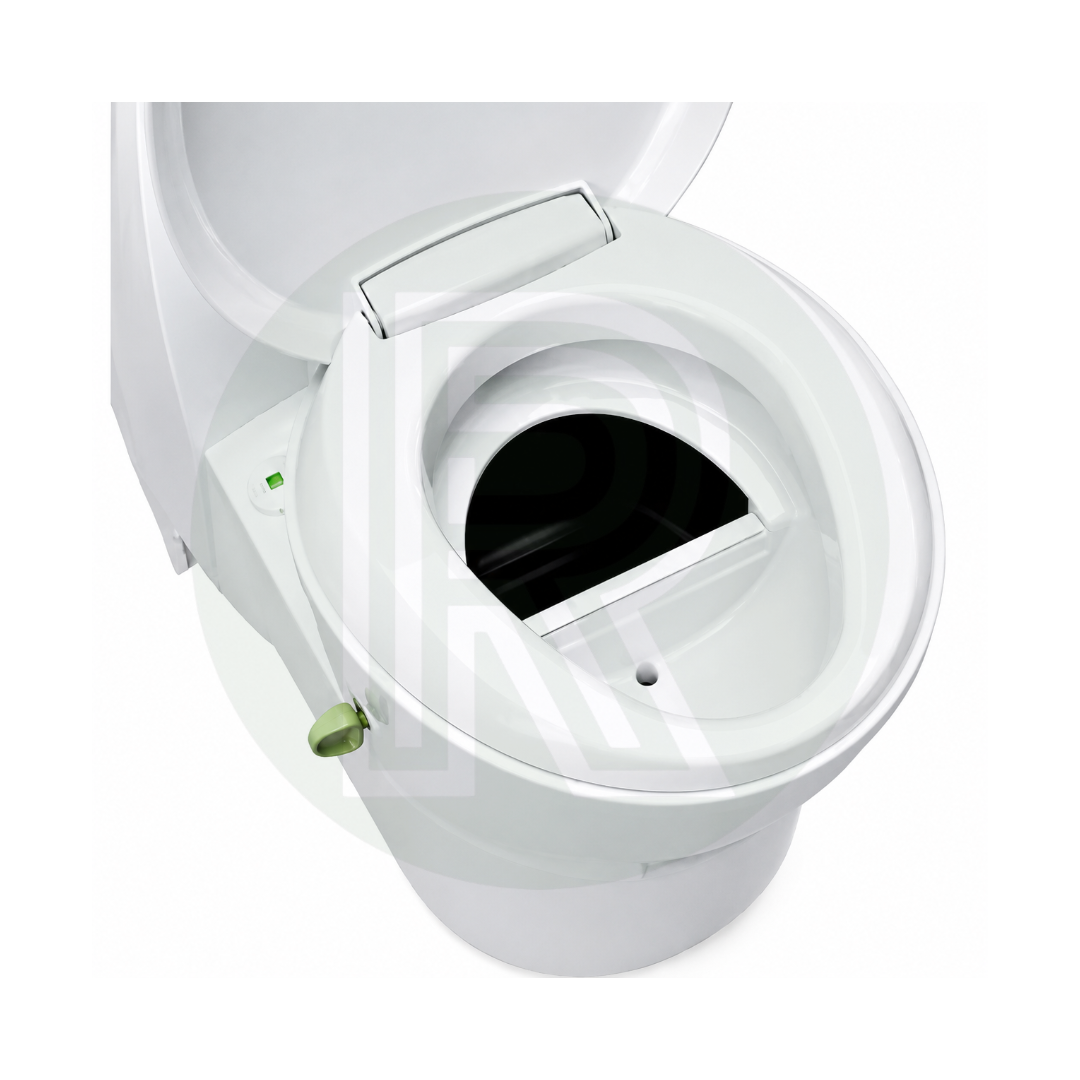

The S260 range is based on Thetford's established C260 cassette toilet platform, providing a familiar, comfortable design with a swivelling toilet bowl. The ergonomically designed separation bowl directs liquid and solid waste into their respective containers, while a side-operated blade visually covers the solids container when required.
The S260-CS also features an electronic urine tank level indicator, allowing you to monitor when the liquid waste tank needs emptying. A specially designed leak-free connection between the bowl and urine tank helps minimise the risk of spills when removing the tank.
Both waste containers can be accessed through the vehicle's exterior service door, allowing them to be removed without carrying waste through the living area.

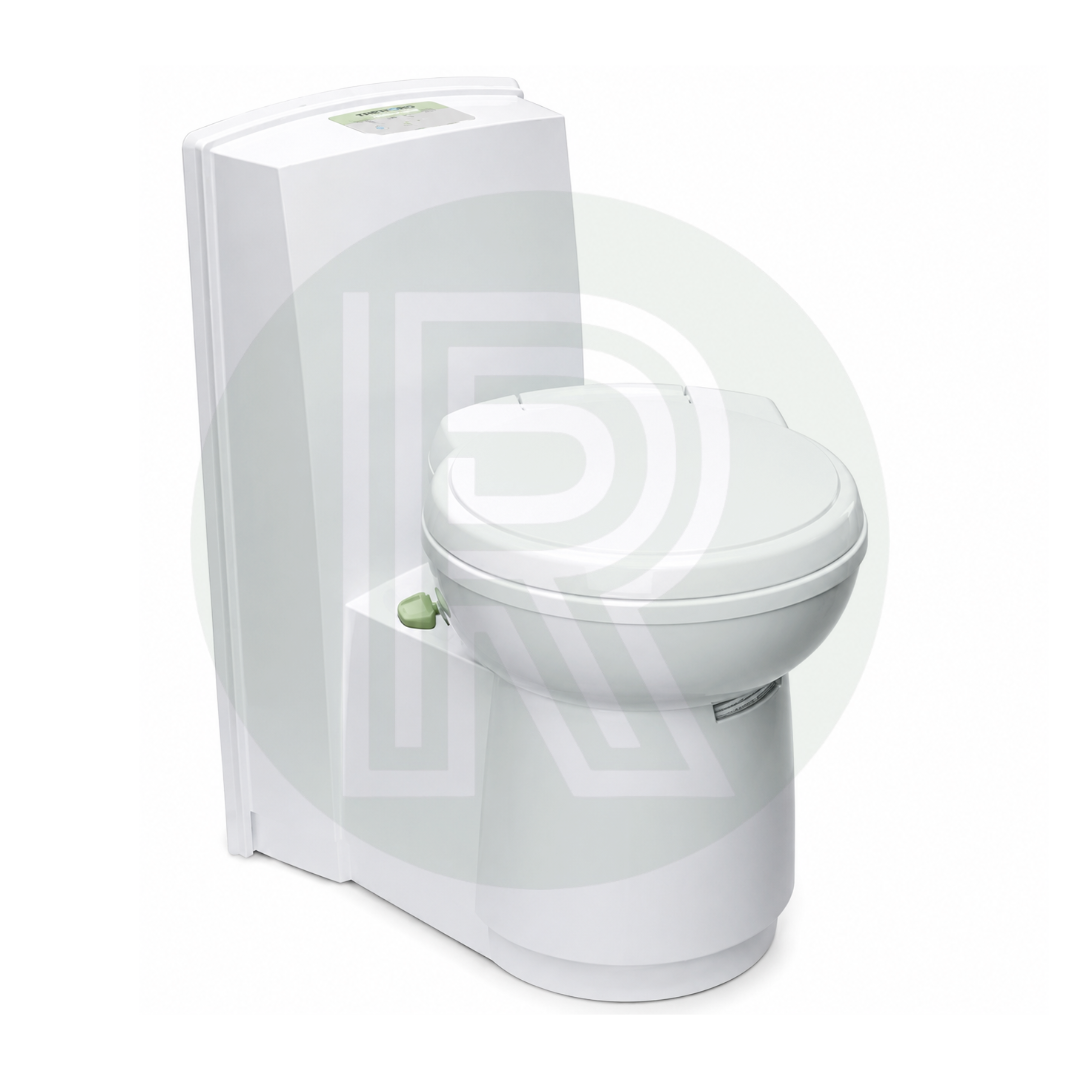

The S260-CS is the surface-mounted version of the S260 separation toilet. Unlike the S260-S, the CS model incorporates a taller rear console, making it suitable for installations where recessing the rear section of the toilet into the bathroom wall or furniture is not possible.
Features
- Waterless separation toilet for motorhomes and campervans
- Surface-mounted CS design
- Swivelling toilet bowl
- Separates liquid and solid waste at the bowl
- 7.5 litre removable urine tank
- 7 litre removable solids container
- Electronic urine tank level indicator
- Blade visually covers the solids container
Technical Specifications
- Model: Thetford S260-CS
- Type: Waterless separation toilet
- Installation type: Surface mounted
- Urine tank capacity: 7.5 litres
- Solids container capacity: Approximately 7 litres
- Urine tank level indicator: Electronic
- Toilet bowl: Swivelling
- Solids container: Removable
- Urine tank: Removable
- Bowl material: Plastic
- Urine tank material: Recycled plastic
- Solids container material: Recycled plastic
- Water required: No
- Service door: Thetford Door 3
- Service door orientation: Landscape
- Maximum user weight: 120kg
Please note: The external service door is not supplied and should be purchased separately if required.
Share
Frequently Asked Questions
The S260-CS uses a specially designed bowl to separate urine and solid waste at source.
Urine is directed into a separate removable tank, while solid waste passes into a separate solids container.
Keeping the two waste streams separate allows the toilet to operate without a conventional water flush or chemical toilet cassette.
No. The S260-CS is a waterless separation toilet and does not require a connection to the motorhome or campervan's fresh-water system for flushing.
This helps conserve onboard fresh water and makes the toilet particularly useful for off-grid touring.
Yes. The S260-CS has a swivelling toilet bowl, allowing its position to be adjusted to suit the available bathroom space and provide a comfortable seating position.
The S260-CS has a 7.5 litre removable urine tank.
The toilet also incorporates an electronic urine tank level indicator to help you identify when the tank needs emptying.
The removable solids container has a capacity of approximately 7 litres.
Liquid and solid waste are kept separate, helping to reduce moisture within the solids container.
Yes. The S260-CS features an electronic urine tank level indicator, allowing you to monitor the urine tank without having to remove it.
The separation system does not require conventional cassette-toilet chemical additives.
We also sell dedicated separation toilet products including Urine Tank Fresh, Drying Agent, Bowl Cleaner and waste bags, which can be used to help with hygiene, moisture and odour control.
Yes. The S260-CS incorporates a side-operated blade that visually covers the solids container, keeping its contents out of sight when required.
The urine tank and solids container are accessed through the vehicle's exterior service door.
The urine tank can be removed and emptied separately, while the waste bag can be closed and removed from the solids container.
Always dispose of urine and solid waste responsibly and in accordance with local regulations.
Both toilets use the same waterless separation principle and are based on Thetford's C260 platform, but their installation arrangements are different.
The S260-CS has a surface-mounted rear console, making it suitable for installations where the toilet cannot be recessed into the bathroom wall or furniture.
The S260-S is the recessed version, where the rear section is incorporated into the bathroom wall or furniture.
