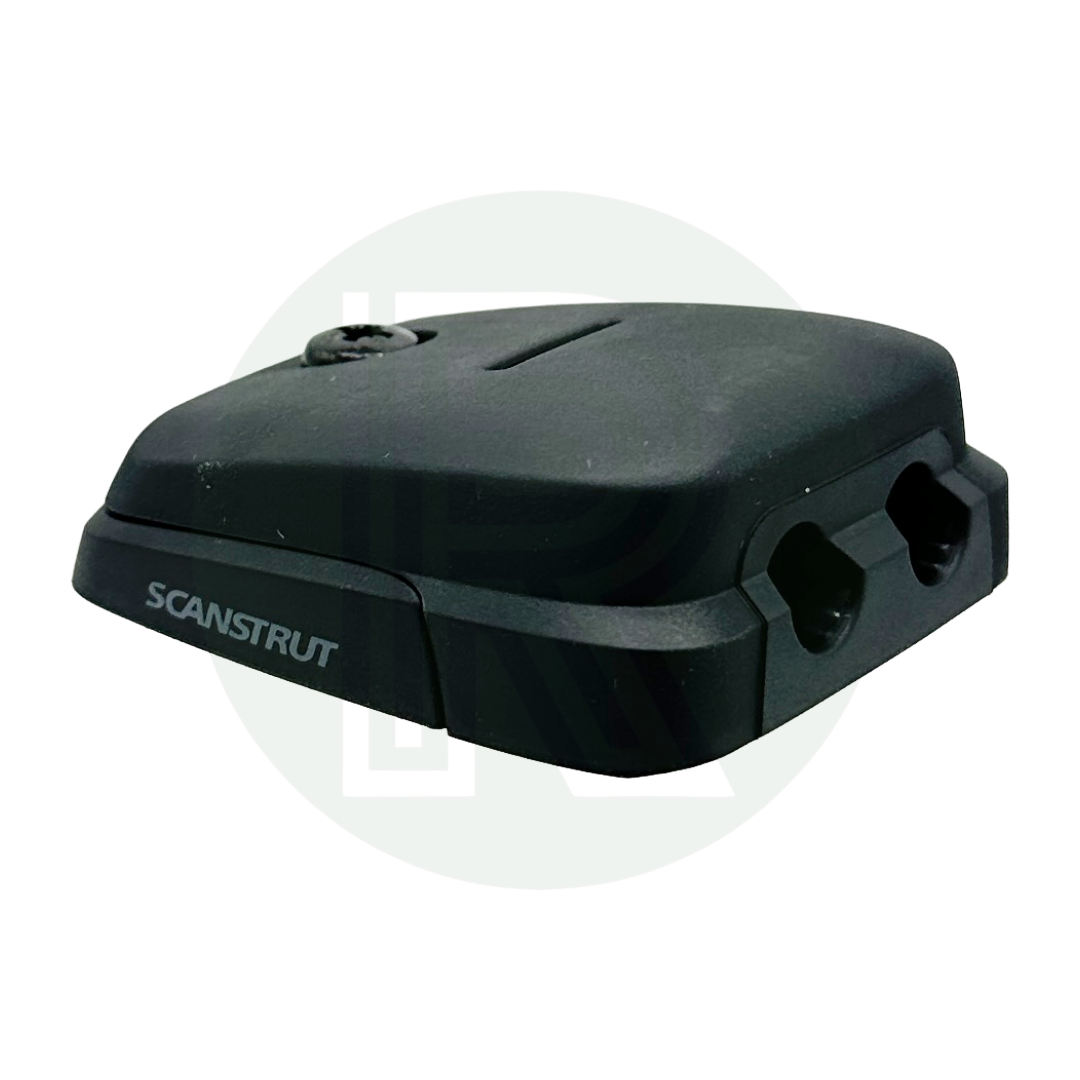

• Angled view of double cable seal showing two cable entry points for watertight routing.

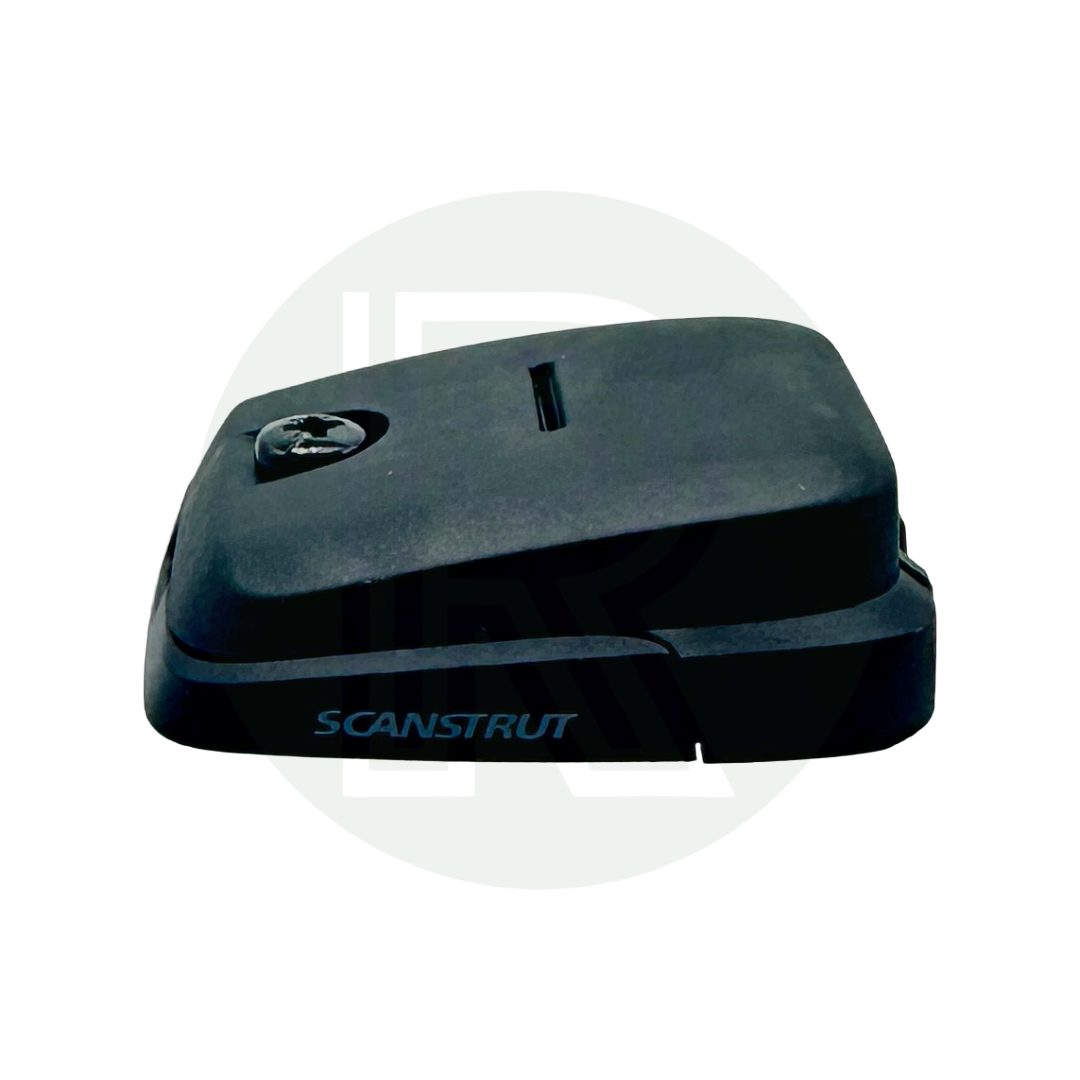

  • Side view of Scanstrut double cable seal housing with low-profile waterproof design.

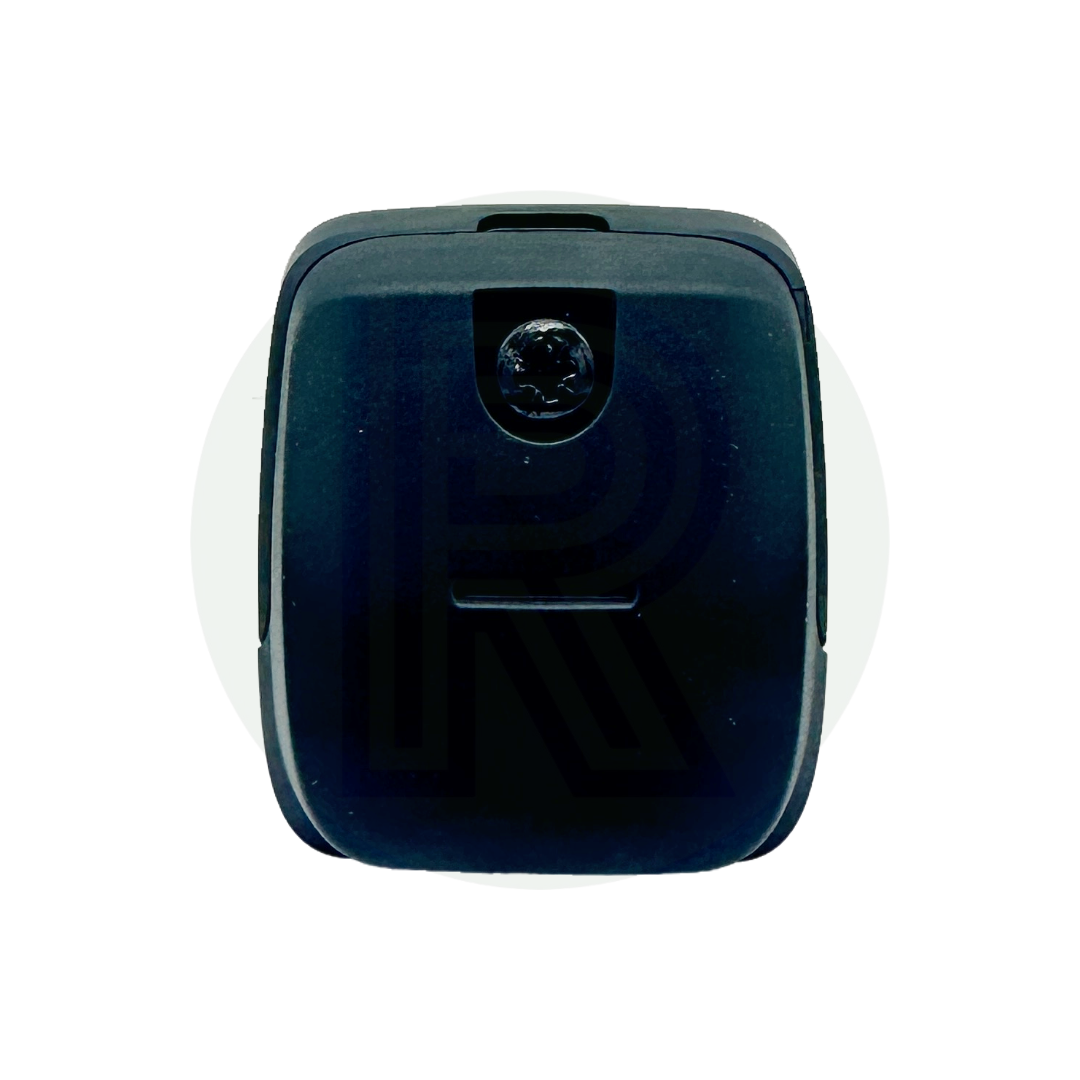

  • Top view of cable seal showing central fastening screw and dual cable channels.

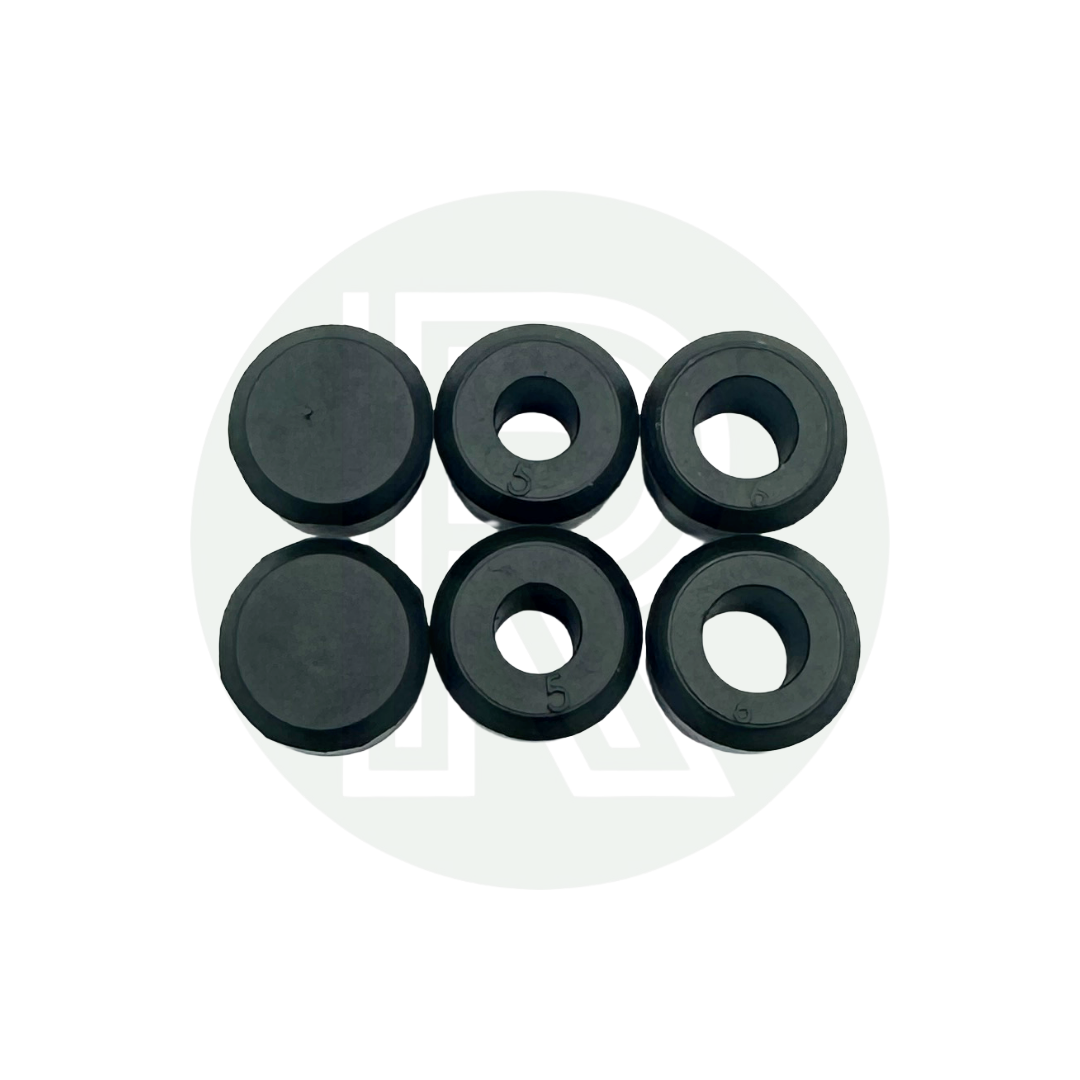

  • Set of rubber inserts for double cable seal in various sizes, designed to fit different cable diameters.

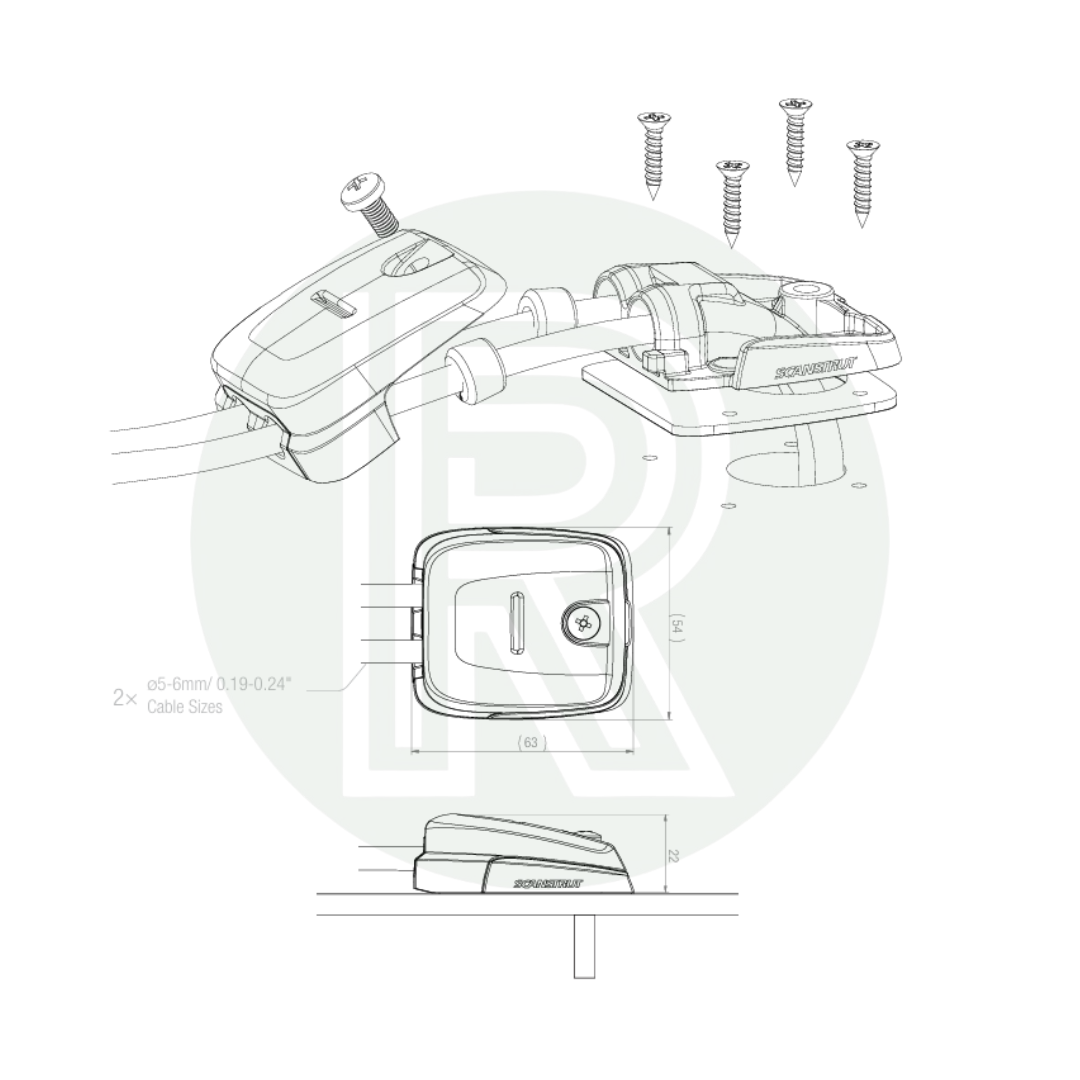

  • Technical drawing of Scanstrut double cable seal showing dual cable routing, mounting screws, and installation dimensions.
1 5

Scanstrut Double Cable Solar Entry Gland - 2 x 5/6mm Cables - Black

Scanstrut Double Cable Solar Entry Gland - 2 x 5/6mm Cables - Black

£28.95 inc. VAT
£28.95 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Downloads & Guides

Installation
Manual Fitting
Template

The Scanstrut Double Cable Solar Entry Gland provides a neat and secure way to route two cables through the roof or exterior panel of a motorhome, campervan, caravan or boat.

Designed for two 5–6mm diameter cables, it is particularly suited to routing the positive and negative cables from a solar panel installation through the vehicle roof while maintaining a tidy, low-profile finish.

The horizontal design allows the cables to enter from the side, helping keep the overall installation compact. The gland is supplied with 5mm and 6mm pre-drilled sealing bungs, together with blank bungs, allowing the most appropriate seal to be selected for the cable being installed.

Installation requires a 25mm cable entry hole, with an integrated gasket helping to create a secure seal between the gland and mounting surface.

Although ideal for solar installations, the cable gland can also be used for other suitable exterior electrical cables within the specified diameter range.

Features

  • Designed for two 5–6mm cables
  • Ideal for motorhome and campervan solar panel cables
  • Low-profile horizontal cable entry
  • Supplied with 5mm, 6mm and blank sealing bungs
  • Integrated sealing gasket
  • Suitable for exterior installations
  • Durable black finish

Technical Specifications

  • Cable capacity: 2 cables
  • Cable diameter: 5–6mm
  • Cable entry: Horizontal
  • Colour: Black
  • Overall dimensions: 63mm x 54mm
  • Height: 22mm
  • Cable entry hole: 25mm
  • Pre-drilled bungs supplied: 2 x 5mm and 2 x 6mm
  • Blank bungs supplied: 2
  • Fixings supplied: 4 x No.6 x 16 self-tapping screws
  • Gasket: Included
  • Application: Solar and exterior electrical cable entry
View full details

Frequently Asked Questions

This version is designed for two cables measuring 5–6mm in outside diameter. Both 5mm and 6mm pre-drilled sealing bungs are supplied.

Yes. It is particularly suitable as a motorhome, campervan or caravan solar cable entry gland, allowing the positive and negative solar cables to pass neatly through the vehicle roof.

Scanstrut specifies a 25mm diameter cable entry hole through the mounting surface. The gland then mounts over the opening and seals against the surface using the supplied gasket.

The gland measures approximately 63mm x 54mm x 22mm, providing a compact, low-profile installation.

Yes. The gland is supplied with 5mm and 6mm pre-drilled bungs plus blank bungs, allowing the appropriate seals to be selected for your installation.

Yes. Although it is ideal for solar panel installations, it can also be used to route other suitable electrical cables through a motorhome, campervan, caravan or boat where the cables fall within the specified 5–6mm diameter range.
