58 Litre Underfloor Fresh Water Tank Kit (Backfill System) – VW Crafter 2006–2018

This 58-litre underfloor fresh water tank kit (Backfill System) is purpose-engineered for the VW Crafter 2006–2018.
The backfill configuration allows the tank to be filled via your internal cold-water plumbing, making it perfect for stealth builds or vans where you want a clean exterior with no external filler cap.

Designed to mount neatly along the driver’s-side sill—just behind the exhaust—the tank takes full advantage of the Crafter’s spacious sill cavity, providing a secure, space-efficient installation without reducing ground clearance.

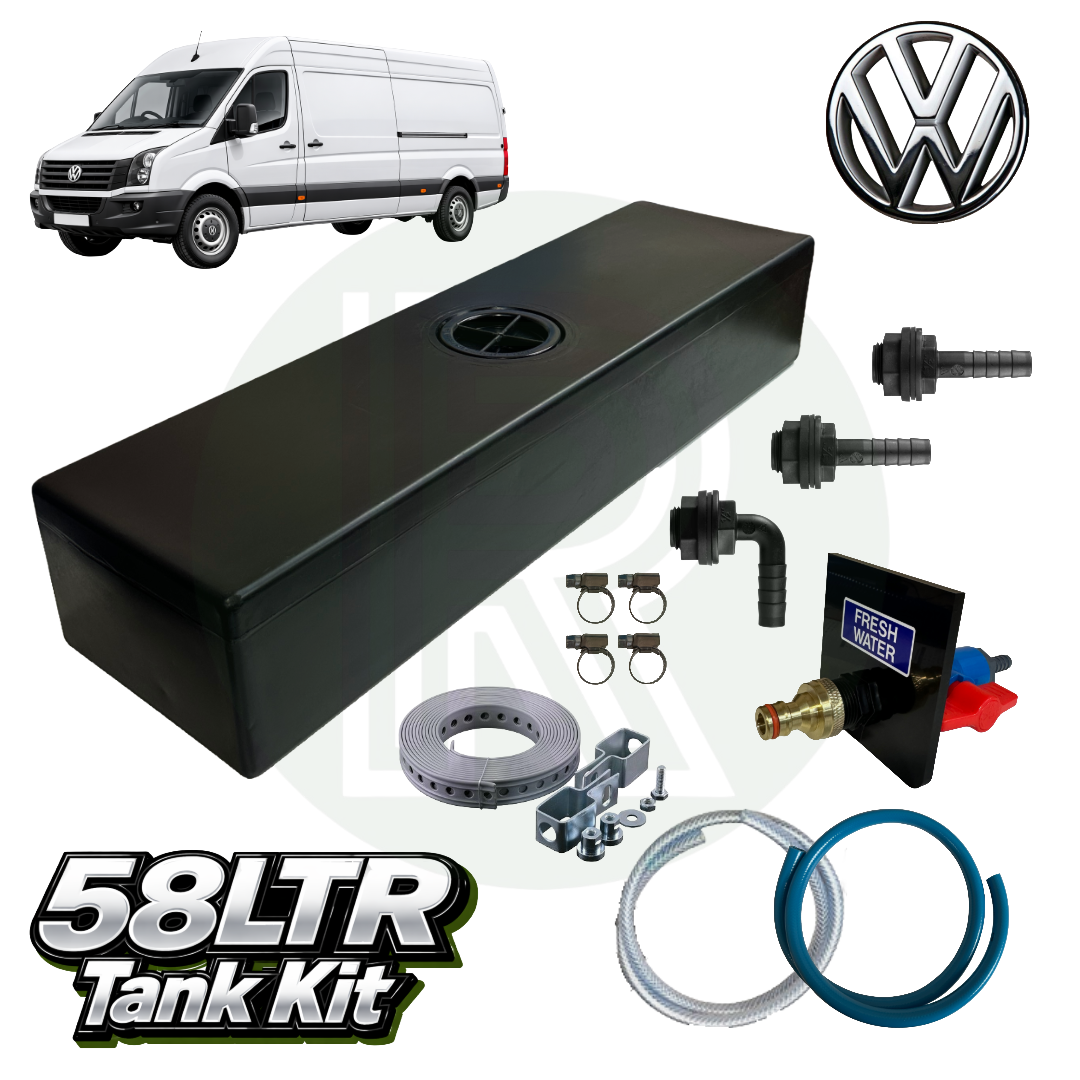

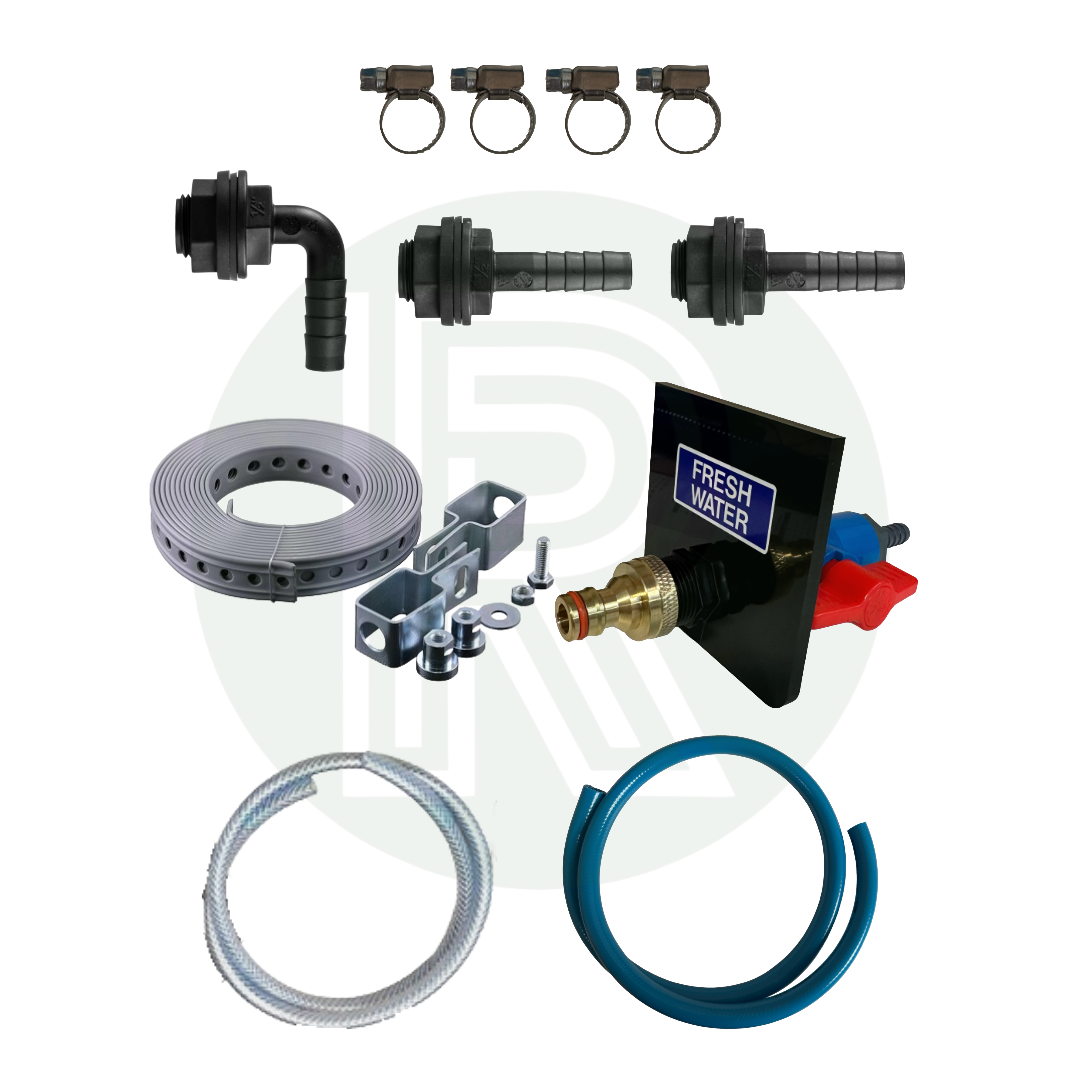

What’s Included (Backfill Kit)

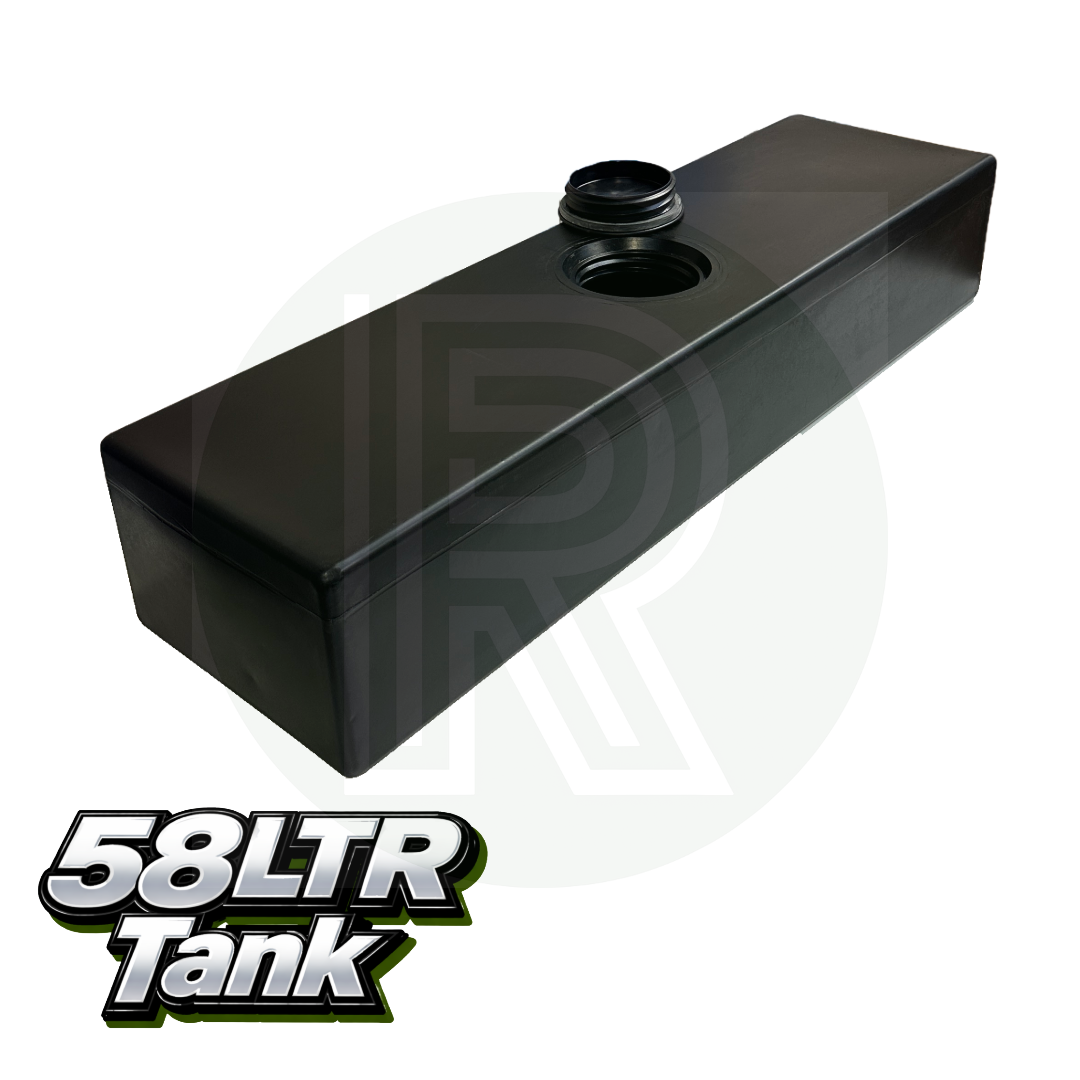

1 × 58L Fresh Water Tank
(Approx. 1140 × 300 × 175 mm)

1 × ½" Elbow (breather connection)

2 × ½" Straight Connectors (for the blue backfill feed line)

1 × 1m Length of ½" Breather Pipe

1 × 2m Length of ½" Blue Flexible Water Pipe

1 × Backfill Point with Integrated Isolator Valve

4 × Jubilee Clips

1 × Universal Tank Strap Mounting Kit & Fixings

A complete, ready-to-install fresh-water backfill system for the VW Crafter.

Locating Instructions — VW Crafter 2006–2018 (Backfill)

Installs lengthways along the driver’s-side outer sill

 Positioned behind the exhaust box and ahead of the rear axle

Secured using the included universal mounting straps

System Routing

Backfill line connects to the interior cold-water plumbing using the supplied isolation valve

Breather hose must be routed upward through the floor to prevent siphon or vacuum lock

Ensure adequate clearance from:

Exhaust heat and routing

 Factory heat shielding

Brake & fuel lines

Handbrake cable

Wiring looms

The Crafter’s sill structure provides ample space for a clean install while maintaining excellent ground clearance.

Important Information

Compatible with optional water-level sensors, including models from:
Victron Energy and SRNE (Here)

Tank is leak-tested; minor moisture on arrival is normal

Clean thoroughly before filling with drinking water

Specifications

Capacity: 58 litres

 Dimensions: 1140 × 300 × 175 mm

Material: Rotomoulded polyethylene

 Finish: Matt black

 Dry Weight: ~5.5 kg
