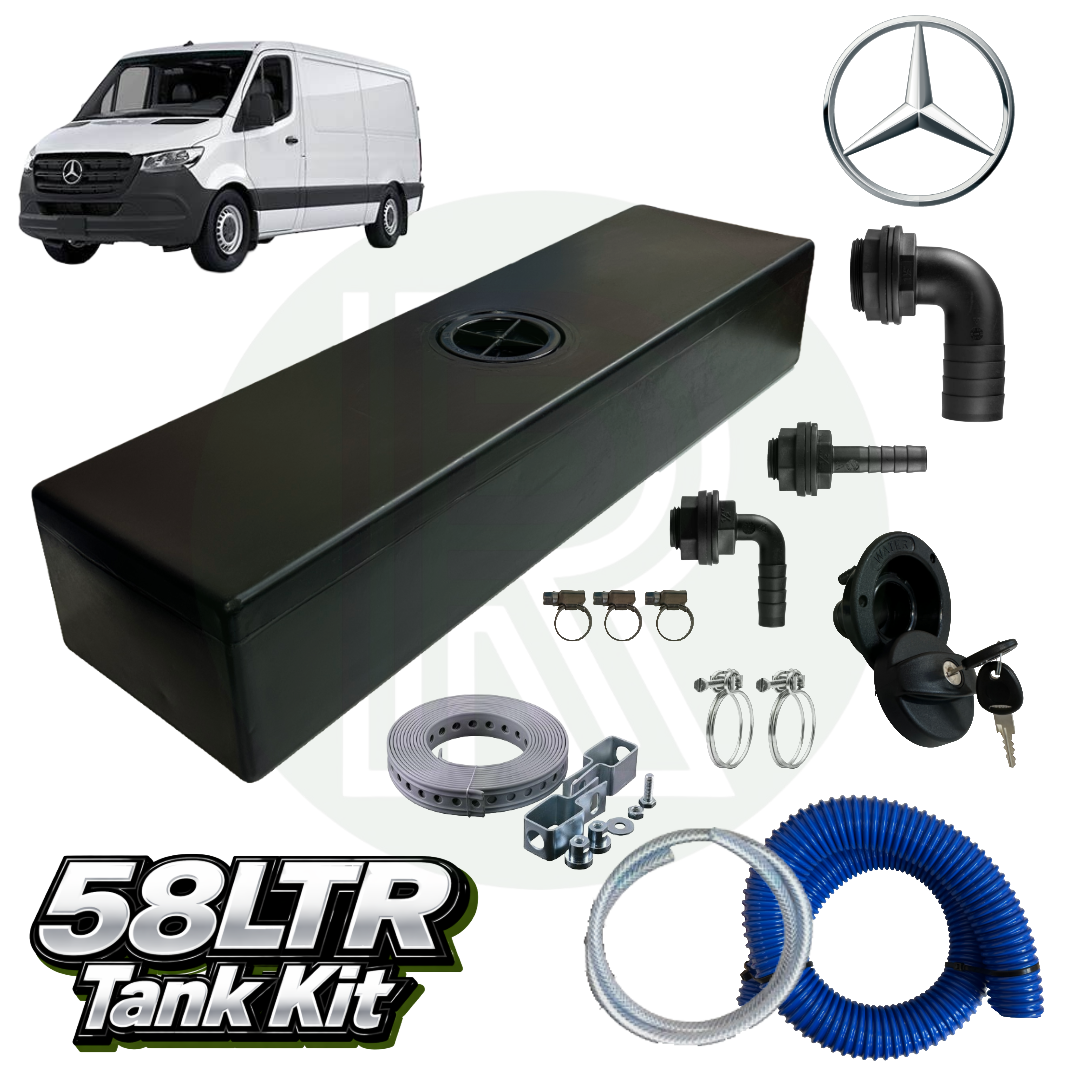

58 Litre Underfloor Fresh Water Tank Kit (Topfill) – Mercedes Sprinter RWD (2006–Present)

This 58-litre underfloor fresh water tank kit (Topfill) is purpose-designed for the Mercedes Sprinter RWD (2006–present). It fits neatly along the driver’s-side sill—just behind the exhaust—taking advantage of the deeper RWD sill cavity for secure, discreet fresh-water storage without compromising ground clearance.

Constructed from high-strength, algae-resistant polyethylene, the tank delivers long-term durability and reliability. Its matt-black finish is ideal for underbody installation, offering excellent protection against road debris, salt and moisture.

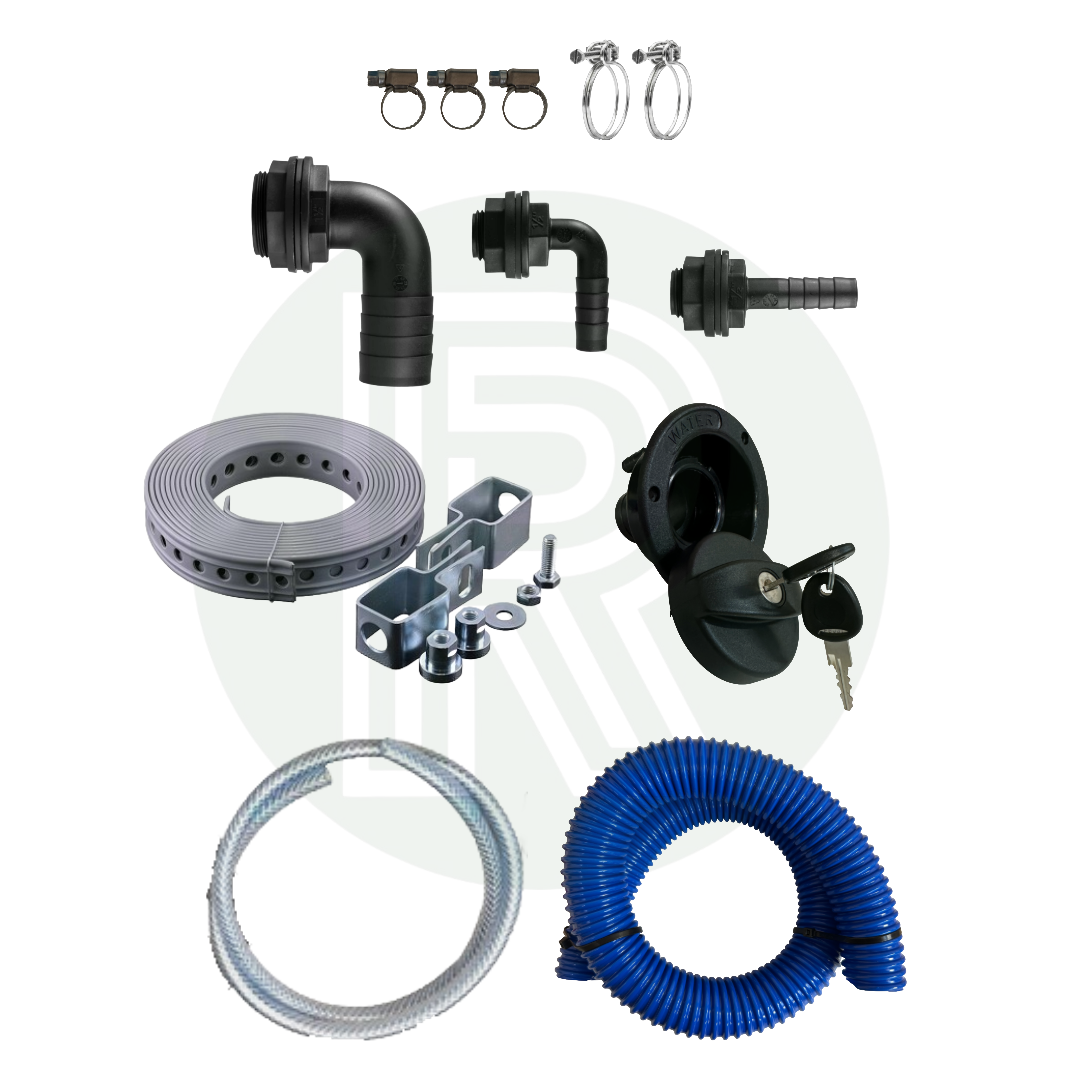

What’s Included (Topfill Kit)

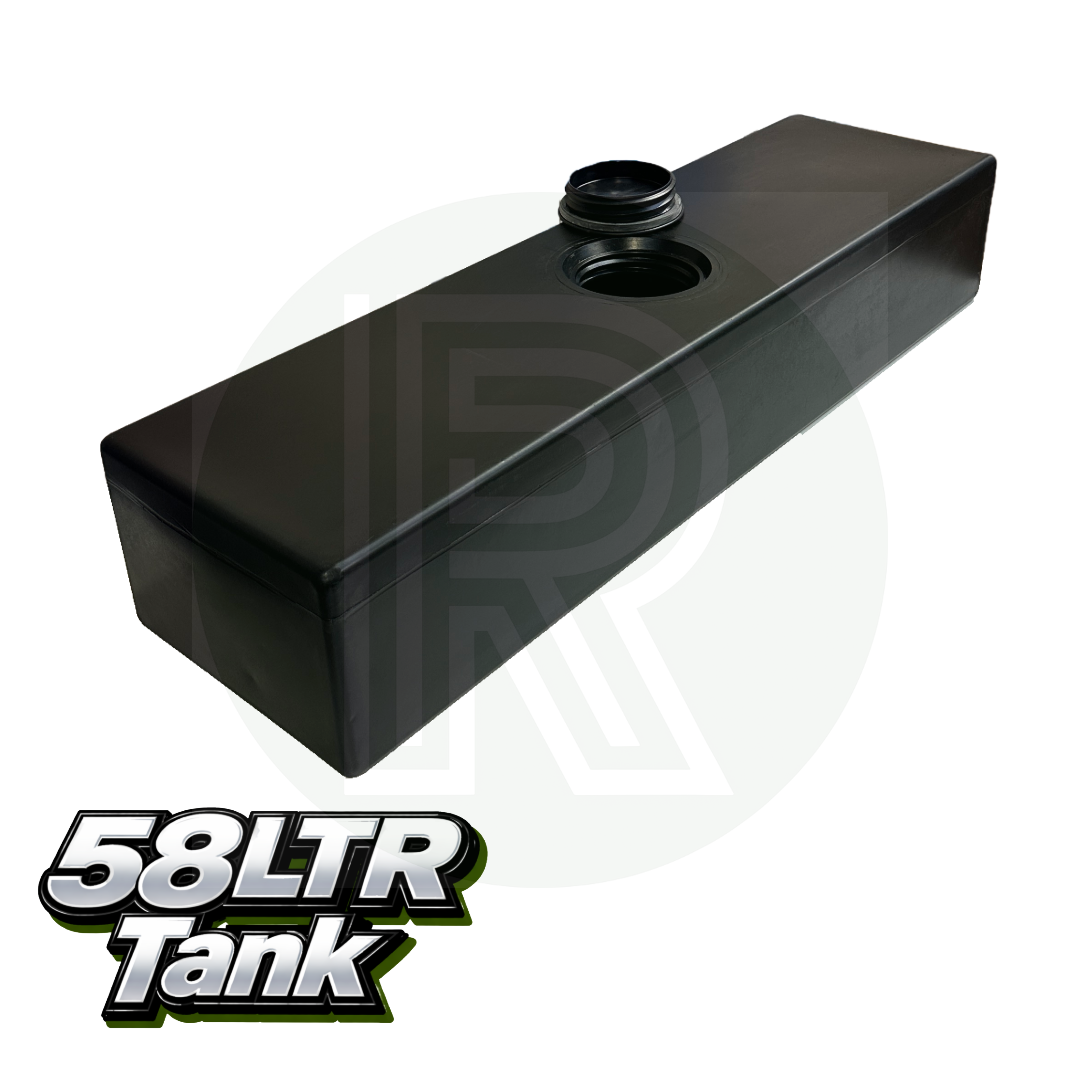

1 × 58L Fresh Water Tank
(Approx. dimensions:1140 × 300 × 175 mm)

1 × ½" Elbow (breather connection)

1 × ½" Straight Connector (pump feed line)

1 × 1½" / 40mm Elbow (topfill inlet hose connection)

1 × 1m Length of ½" Breather Pipe

1 × 1m Length of 40mm Blue Topfill Inlet Hose

3 × Jubilee Clips (small hose connections)

2 × 40mm Wire Hose Clips (for securing the topfill hose)

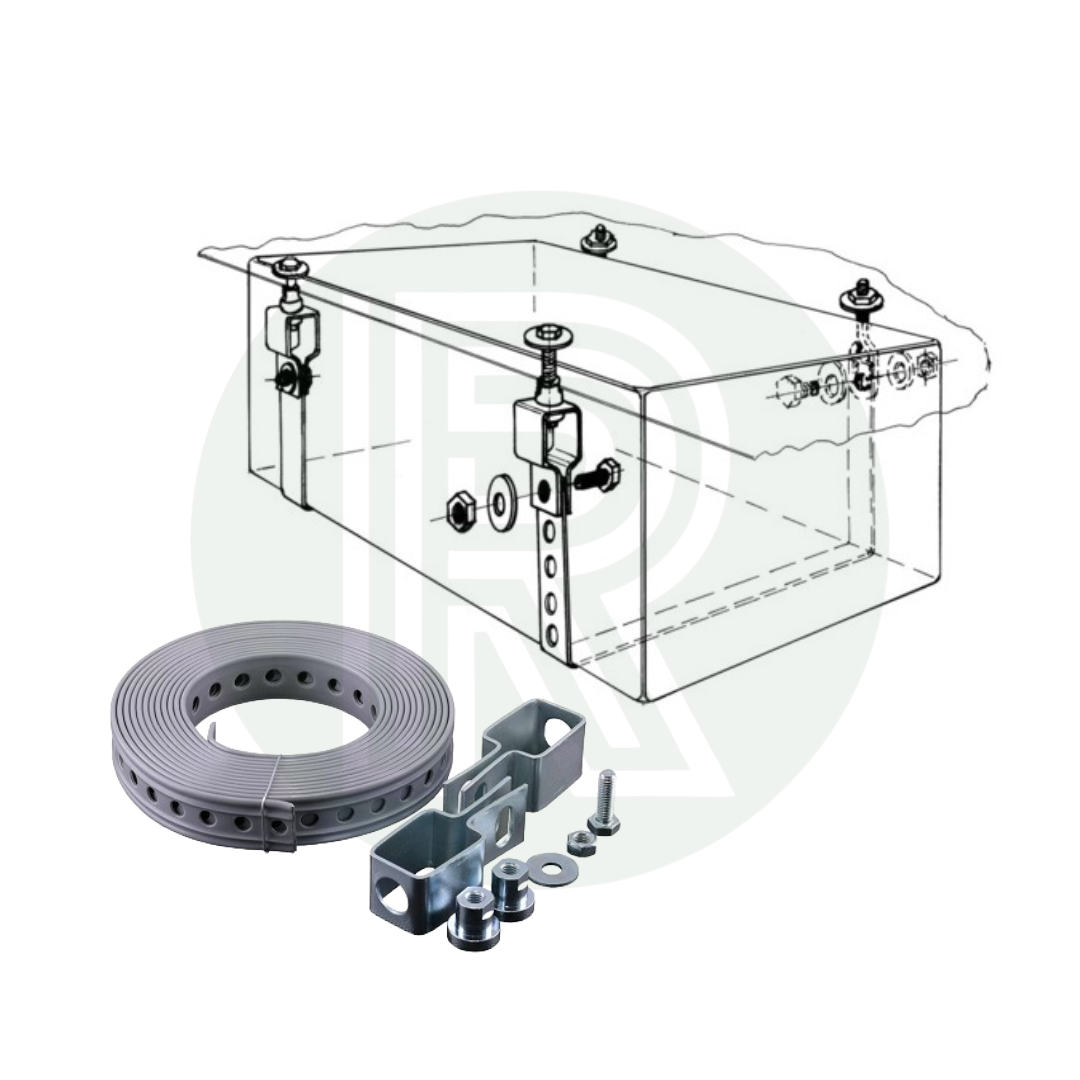

1 × Universal Tank Strap Mounting Kit & Fixings

A complete, ready-to-install topfill fresh-water system.

Locating Instructions — Sprinter RWD (Topfill)

Installs lengthways along the driver’s-side outer sill

Positioned behind the exhaust box and ahead of the rear axle

 Uses the supplied straps to secure the tank to the sill/rail

Ensure adequate clearance from:

 Exhaust routing (RWD layout)

 Heat shields

Handbrake cable

Brake & fuel lines

The RWD Sprinter’s deeper sill cavity allows this tank to sit securely without reducing ground clearance, unlike FWD/4x4 variants

Important Information

 Compatible water-level senders available, including models for
Victron Energy and SRNE (Here)

Tanks may contain small traces of water from leak-testing

Clean thoroughly before use with drinking water

Specifications

Capacity: 58 litres

Dimensions: 1140 × 300 × 175 mm

Material: Rotomoulded polyethylene

Finish: Matt black

·         Dry Weight: ~5.5 kg
